Brand: Apollo

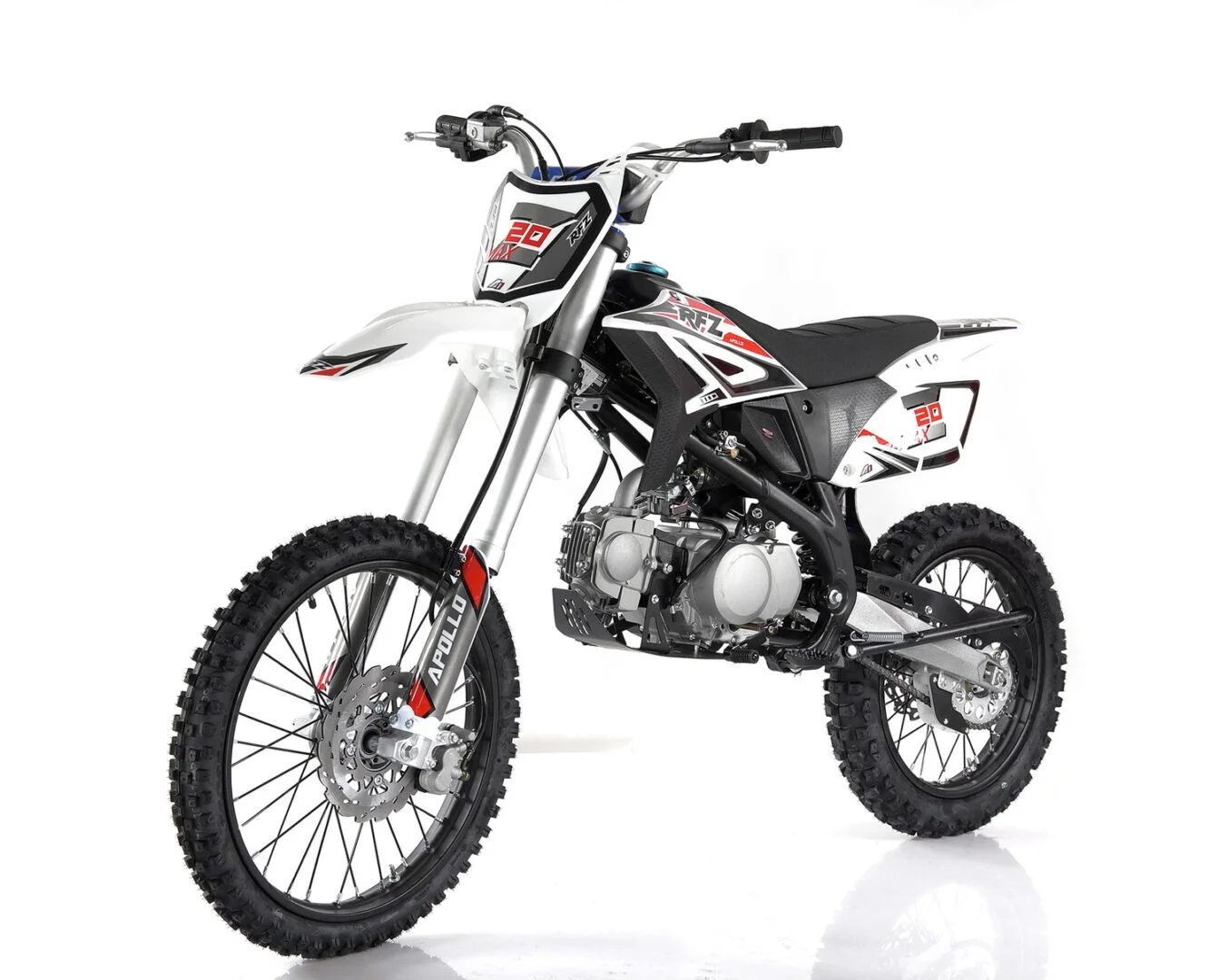

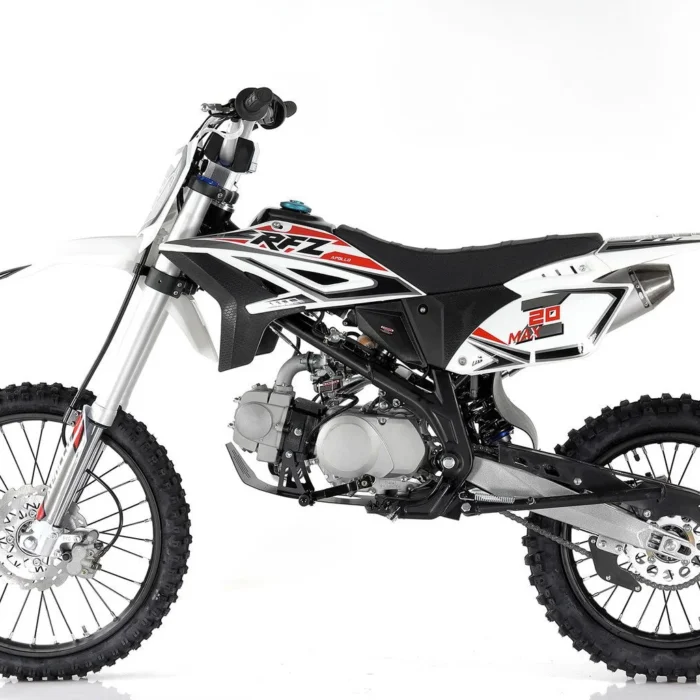

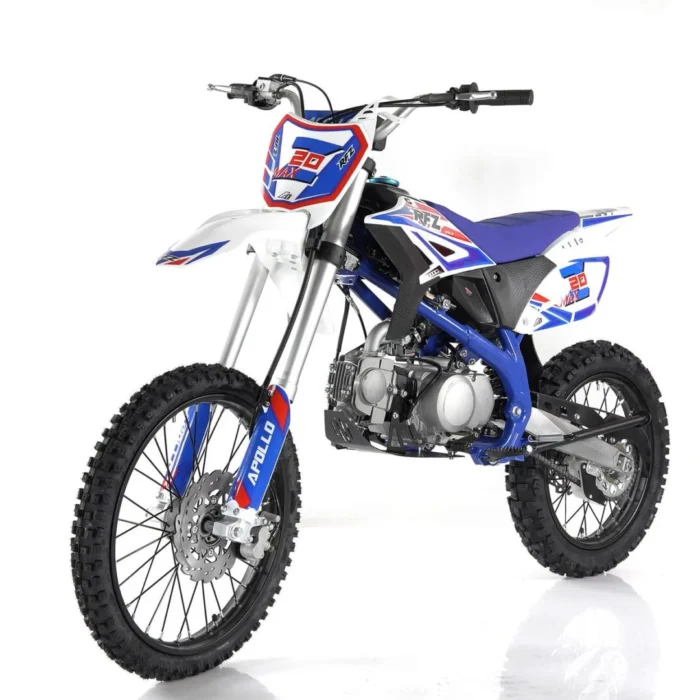

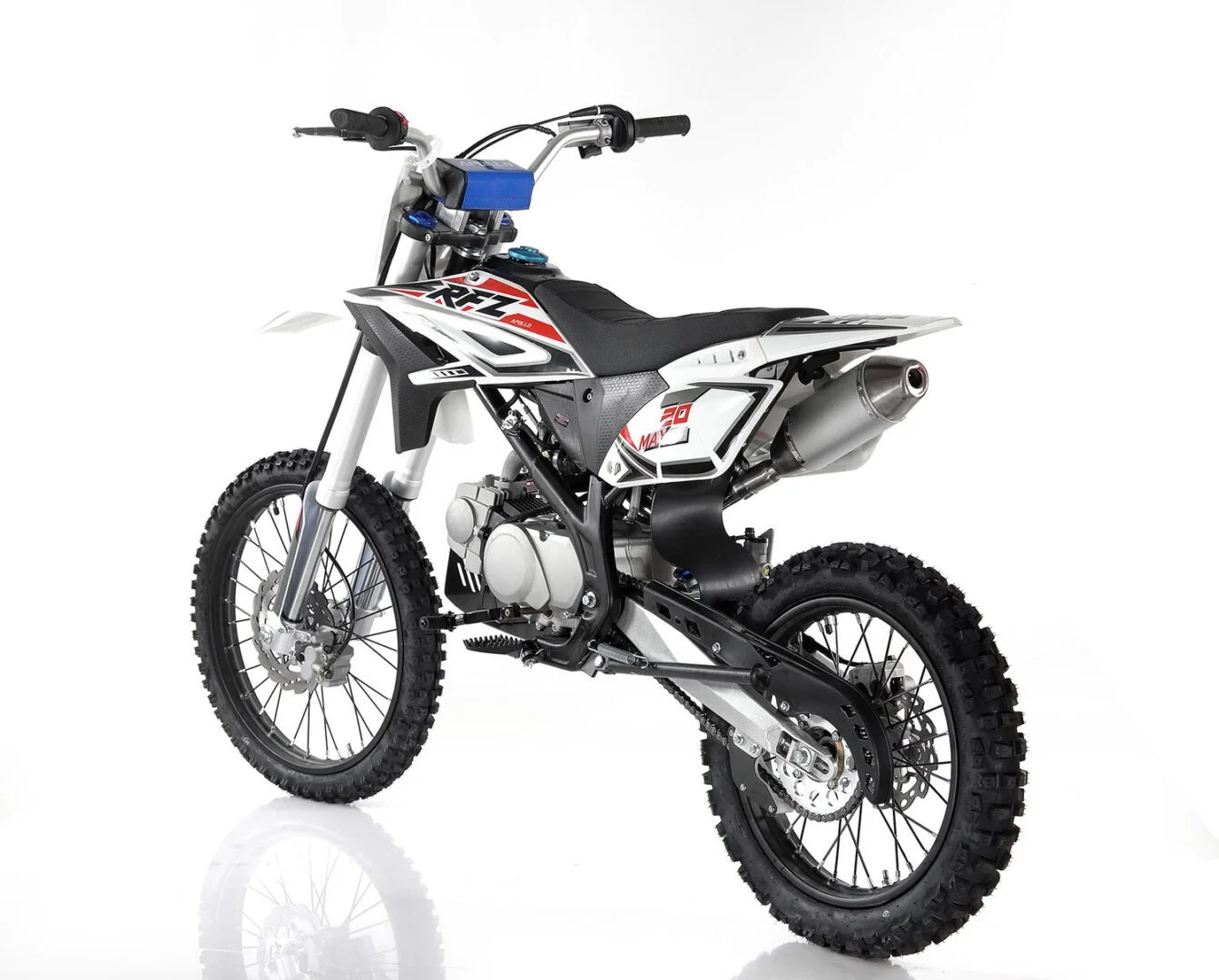

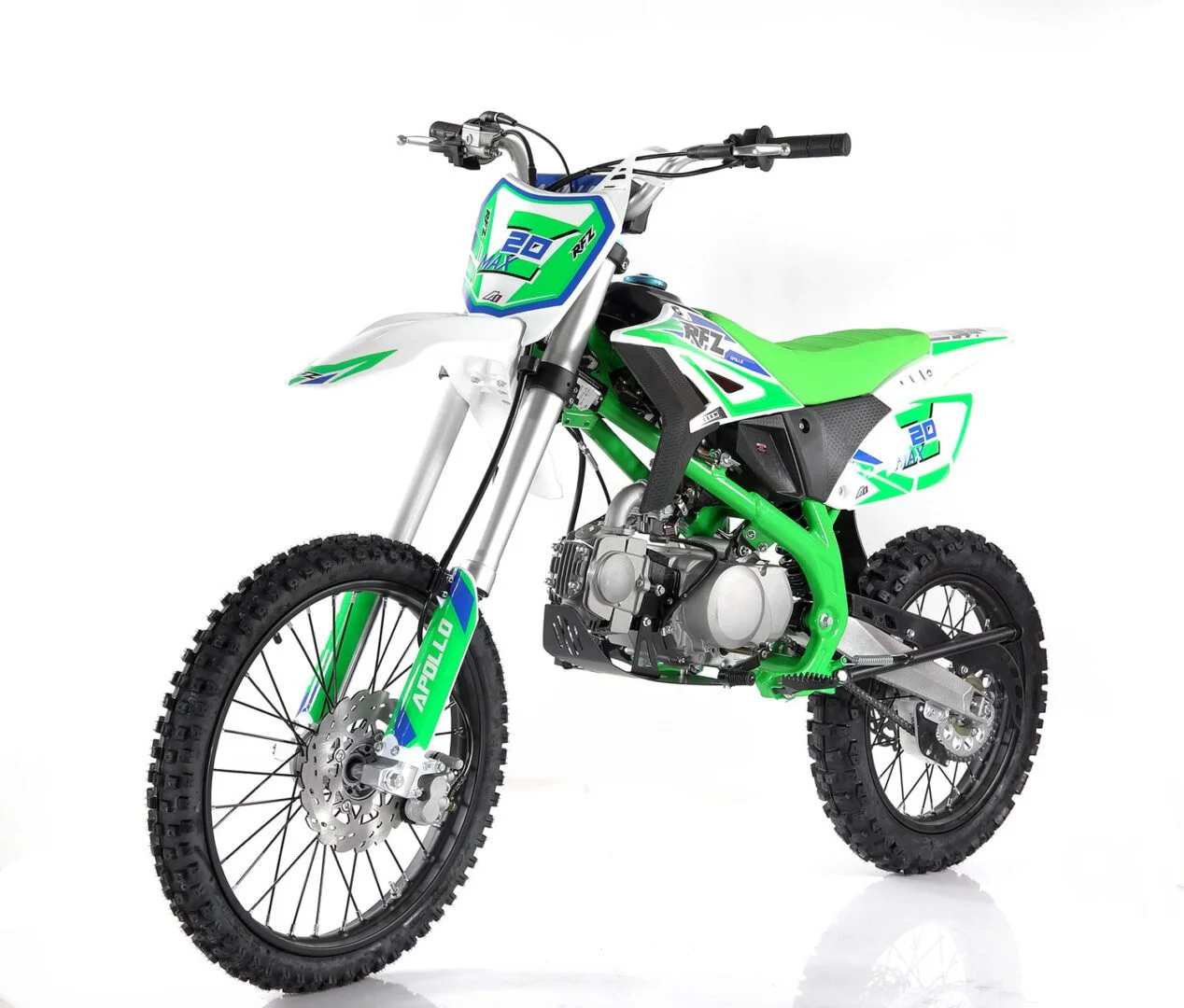

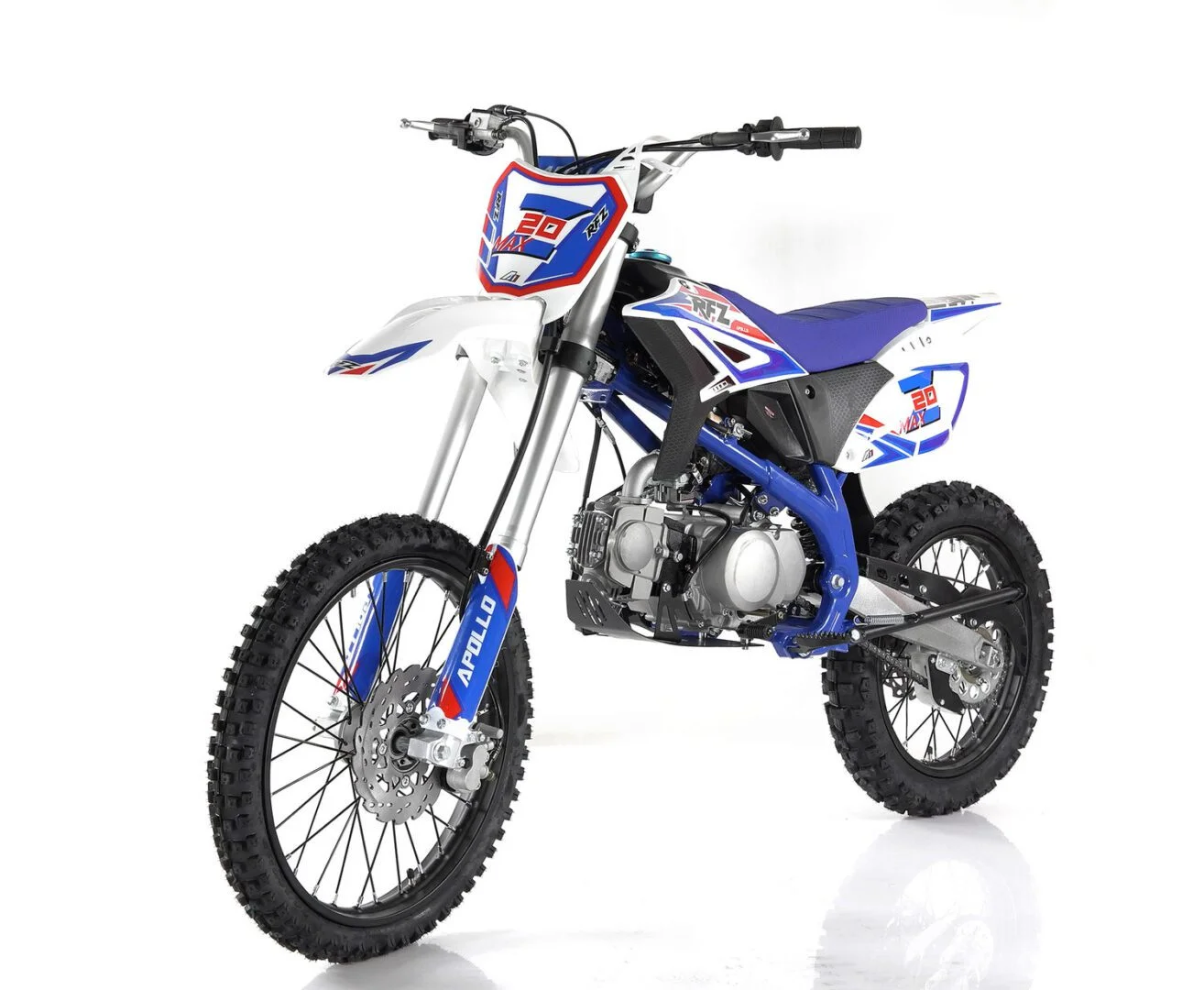

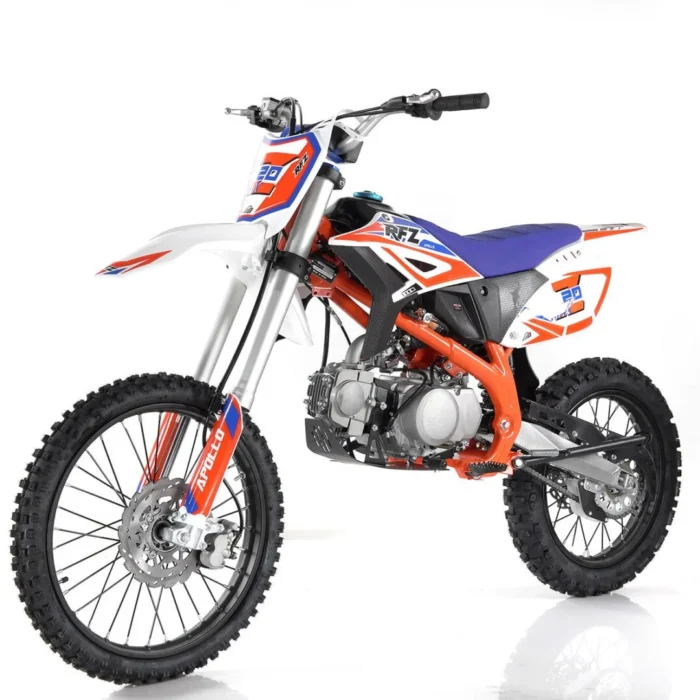

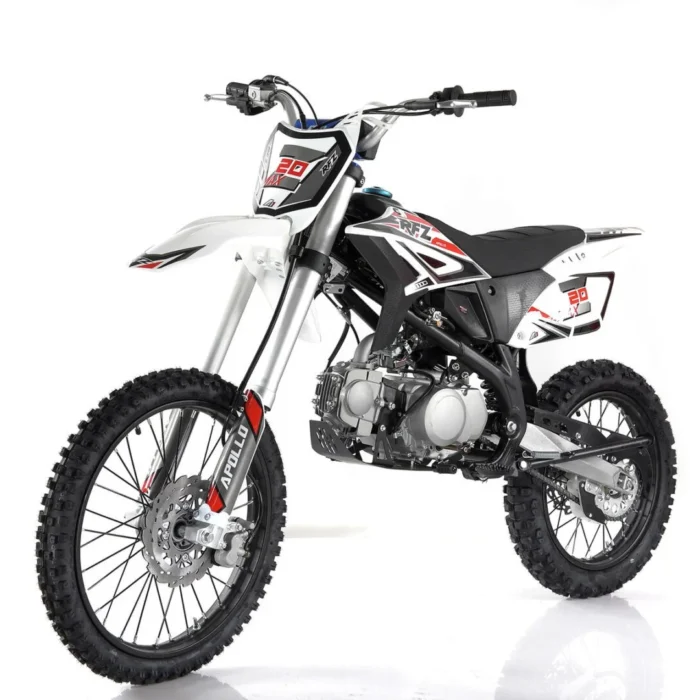

Apollo DB-Z20 Max 125cc Dirt Bike, 4-stroke, single-cylinder, Air cooled

Original price was: $1,999.Current price is: $1,599.

13 products sold in last 11 hours
Selling fast! Over 9 people have in their cart
28 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

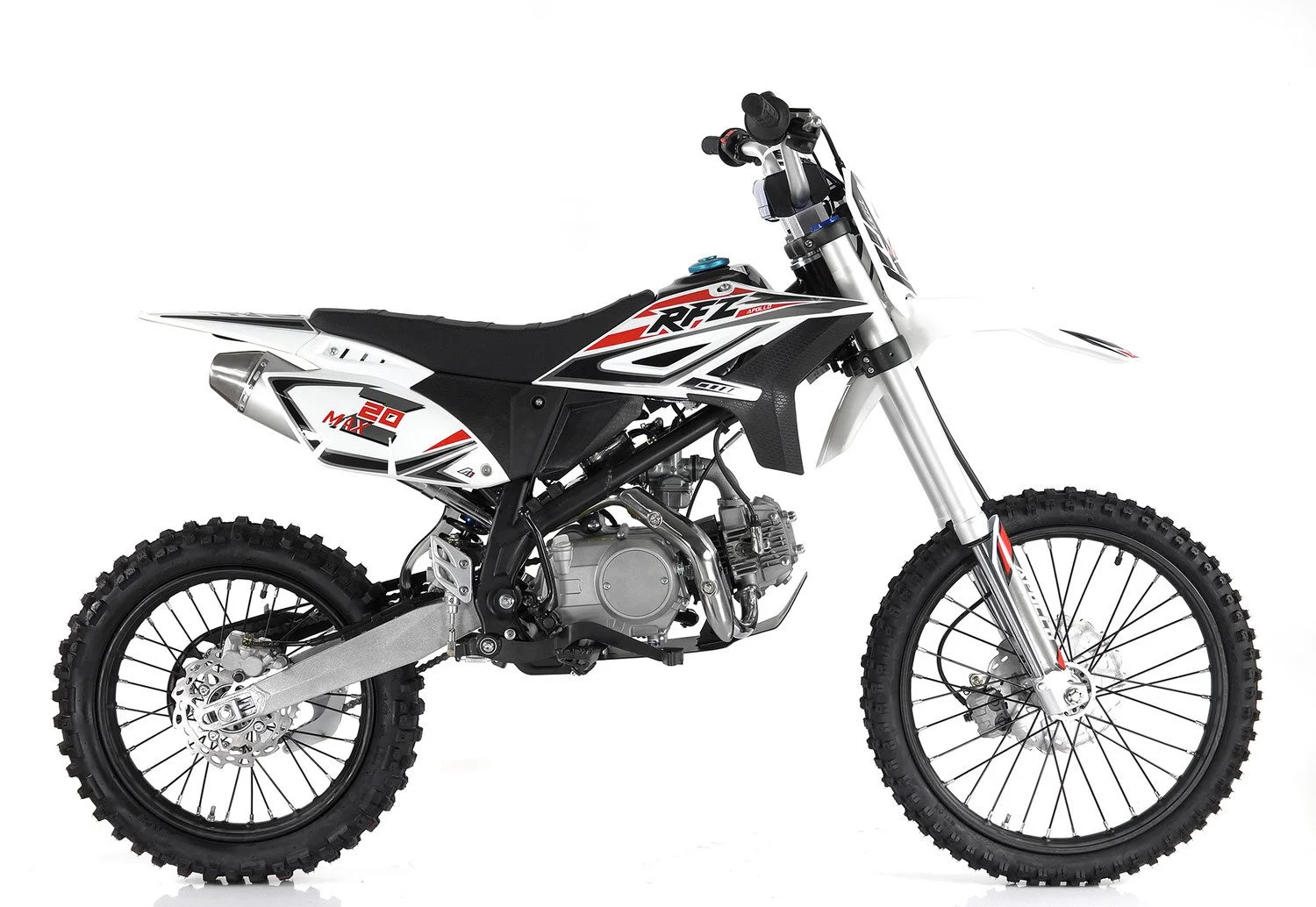

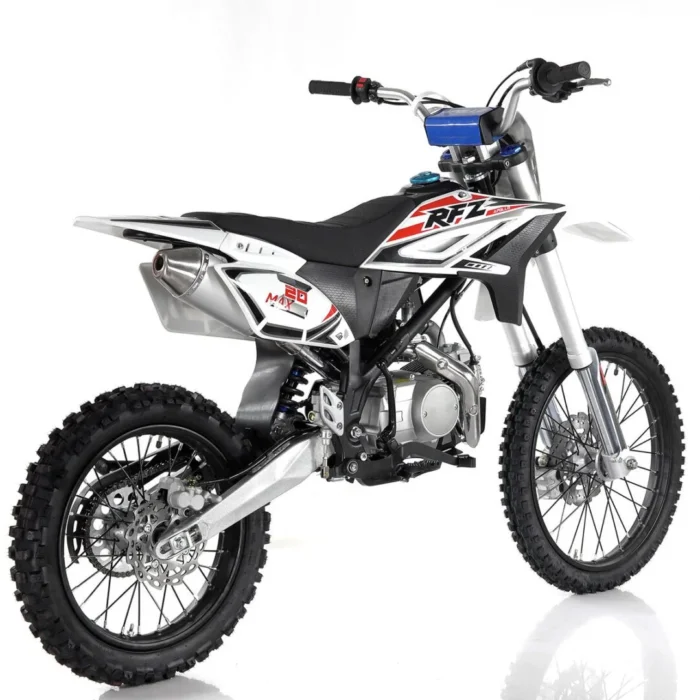

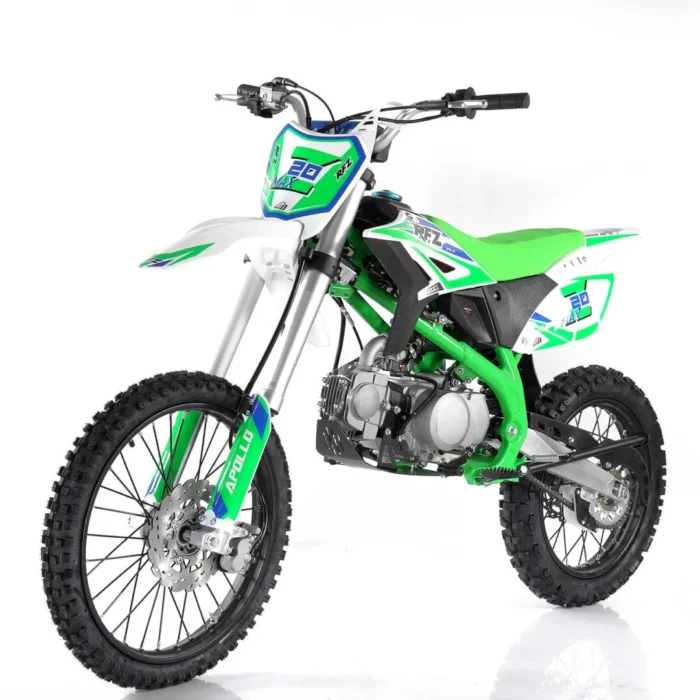

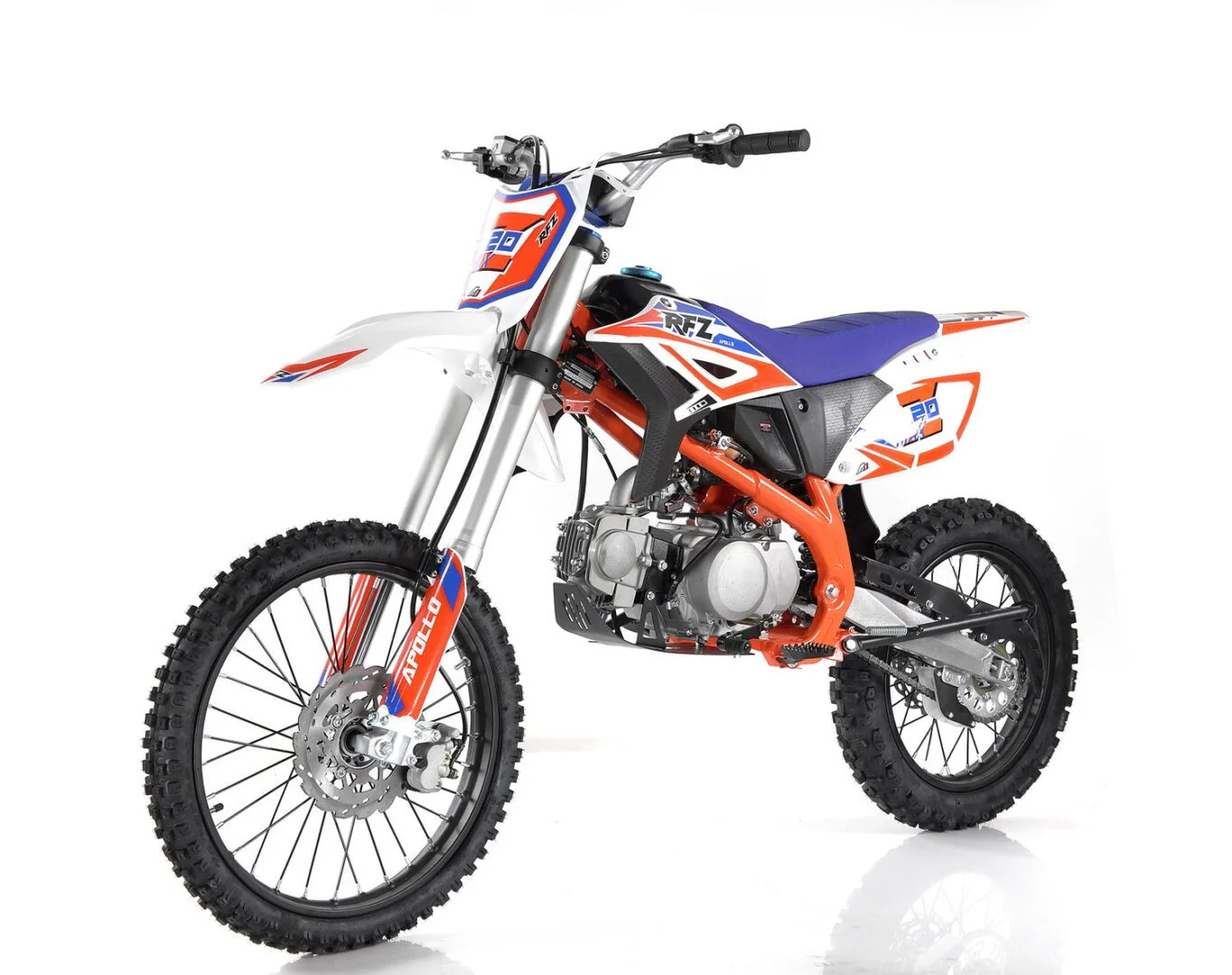

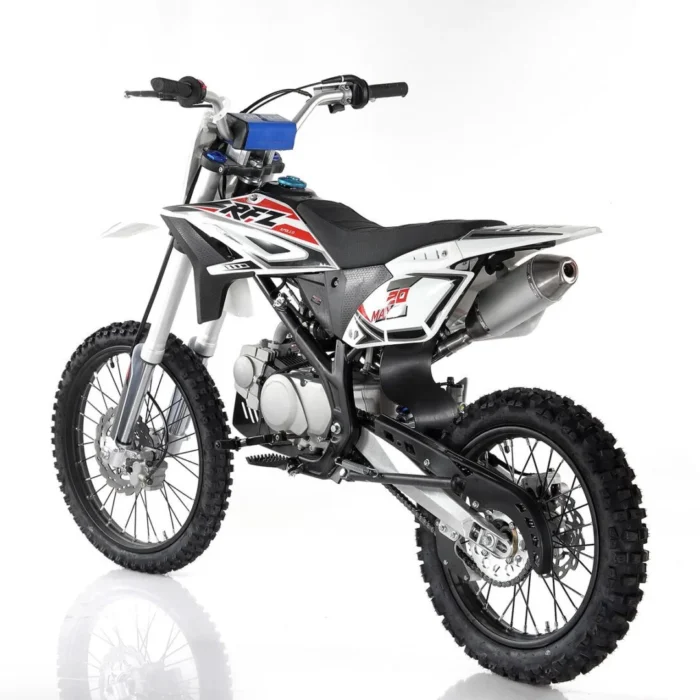

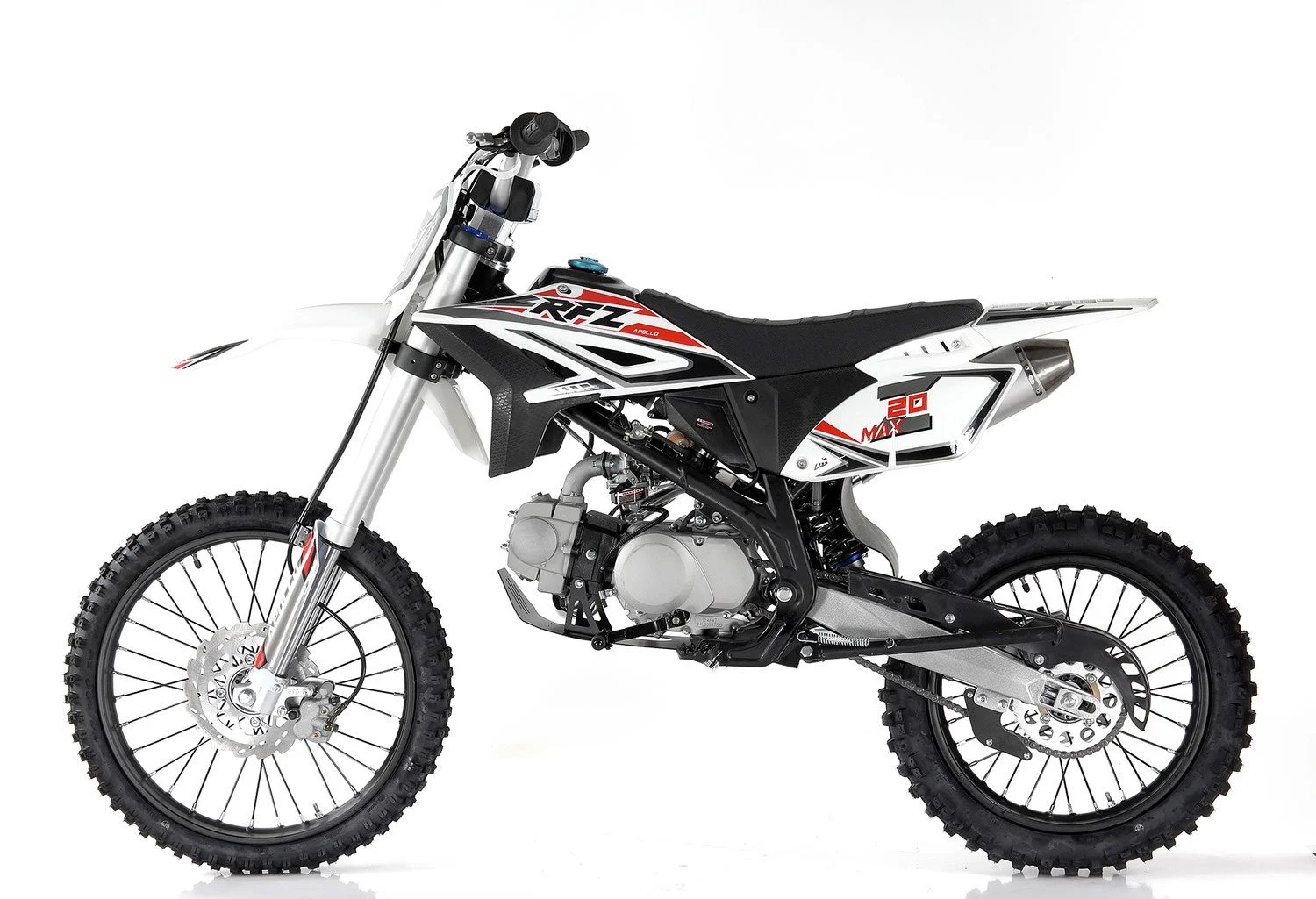

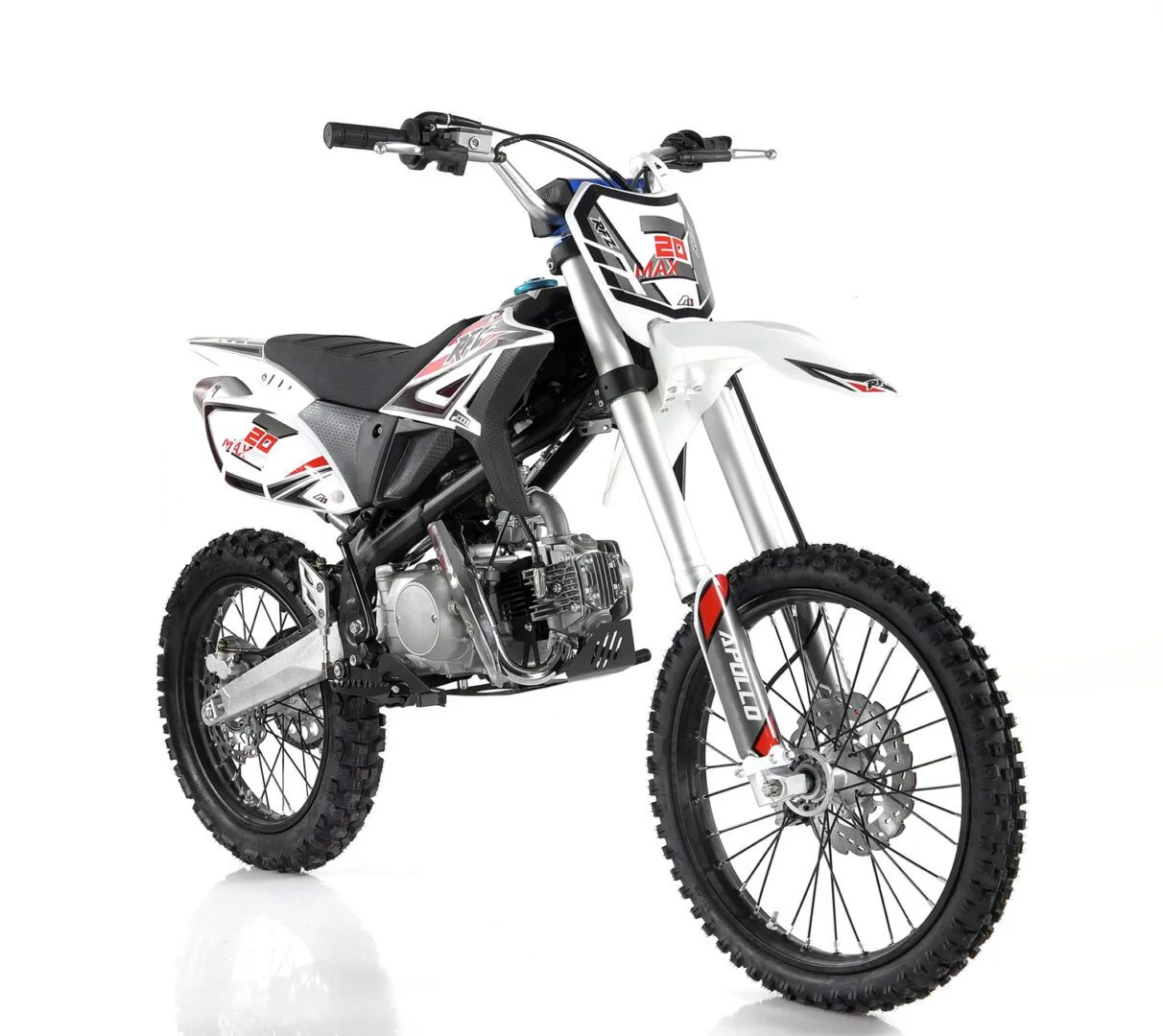

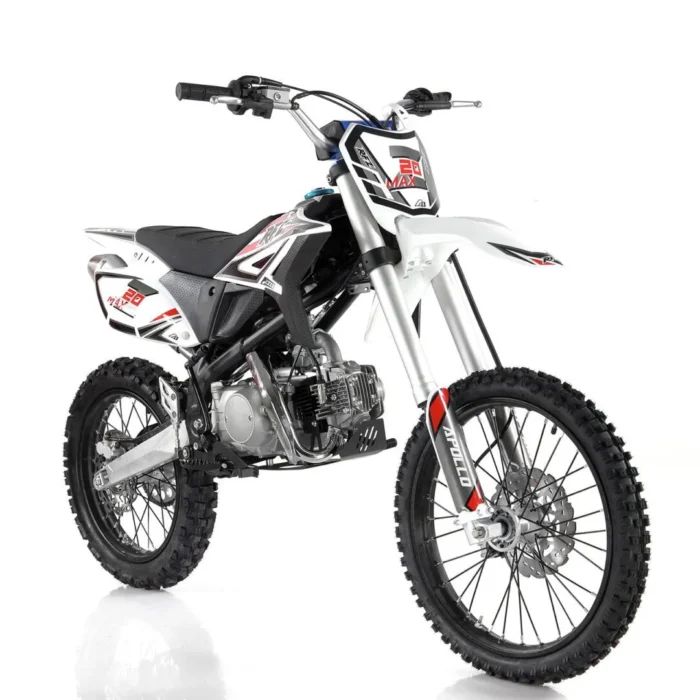

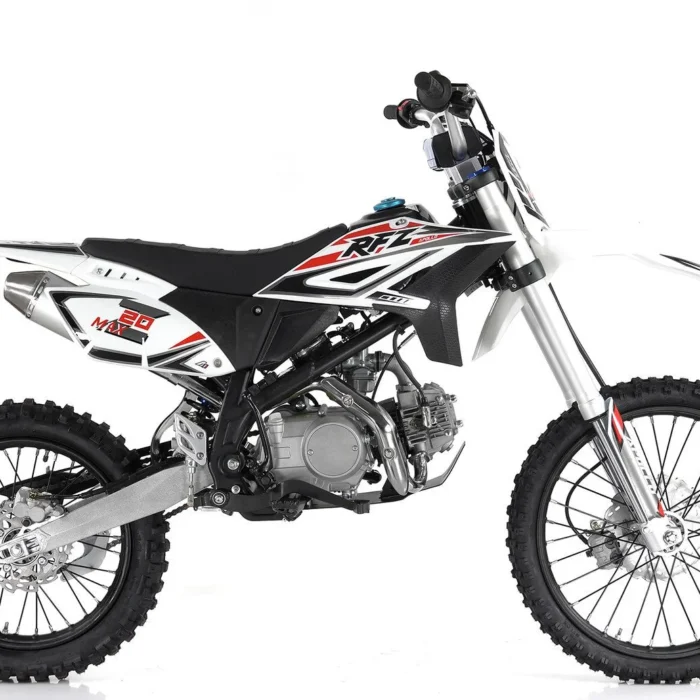

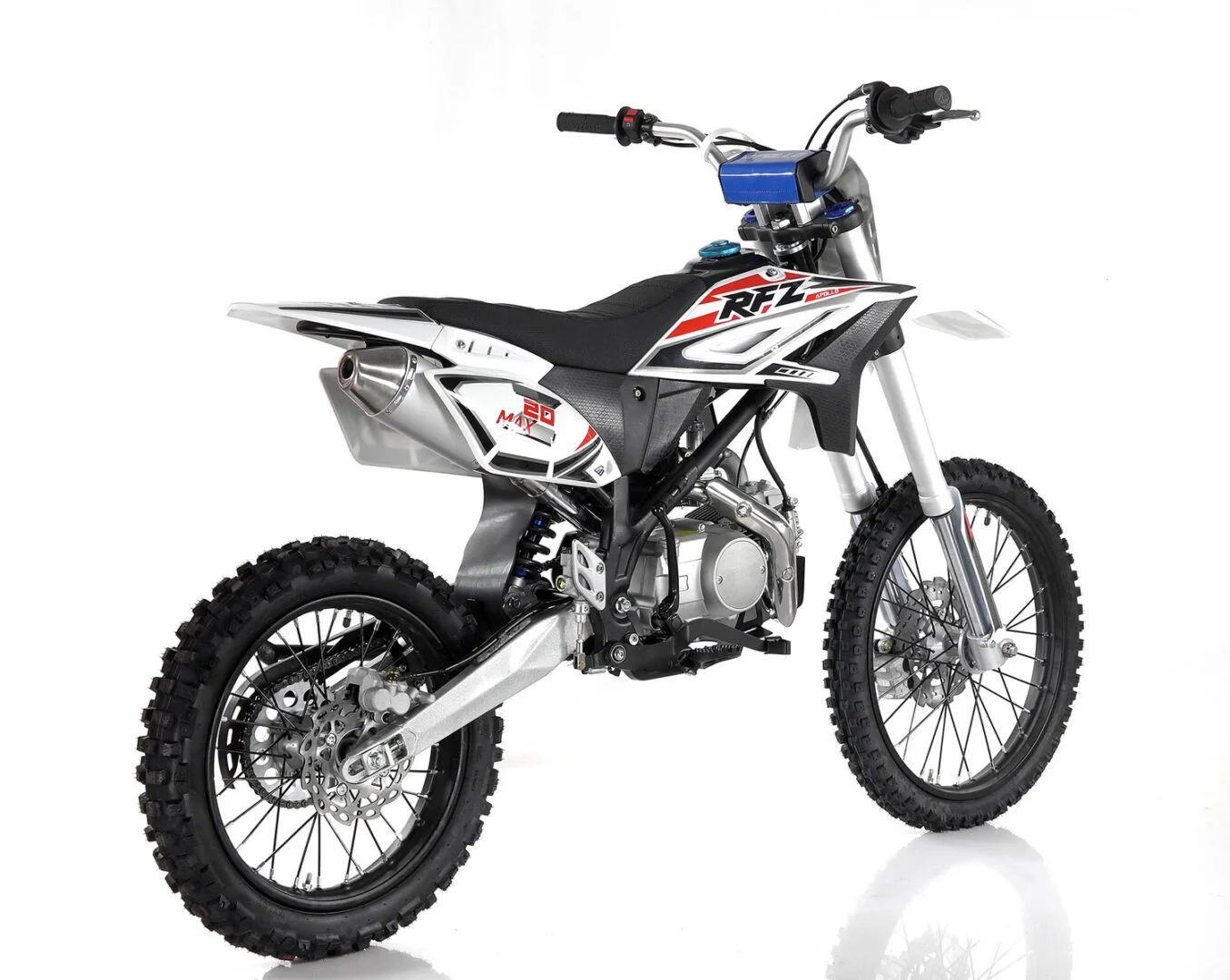

Apollo DB-Z20 Max 125cc Dirt Bike PPS-2852

The Apollo DB-Z20 Max is a 125cc off-road dirt bike listed under SKU PPS-2852. The stored specifications identify a 125cc air-cooled four-stroke single-cylinder YX engine, four-speed manual N-1-2-3-4 gearing, kick start, chain drive, front and rear hydraulic disc brakes, 19-inch front and 16-inch rear tires and a 34.5-inch seat height.

Browse related models in our Dirt Bikes category. For manufacturer information, visit the Apollo Motors website.

What to Verify Before Riding

Match the physical VIN or serial number to SKU PPS-2852 and final sales paperwork. Verify the engine label, kick-start operation, four-speed manual shifting, hydraulic disc brakes, wheel sizes, suspension, chain, throttle and safety labels. Confirm rider fit, protective equipment, supervision needs and local off-road riding rules before use.

The DB-Z20 Max is built for durability with a double-beam heavy-duty steel frame, designed to withstand the rigors of rough terrains. The bike features hydraulic disc brakes, providing superior stopping power for enhanced safety. Its air-cooled engine ensures consistent performance, keeping the engine cool even during demanding rides.



Technical Specifications

Engine Information

  • Carburetor: PZ26
  • Engine Brand: YX
  • Engine Type: 125cc Air Cooled, 4-Stroke, Single Cylinder
  • Engine Gear: 4-Speed Manual (N-1-2-3-4)
  • Transmission: Chain Drive
  • Shift Gear: Hand
  • Engine Bore X Stroke: 54×54mm
  • Compression Ratio: 8.8:1
  • Max Power: 7.8HP/7500r/min
  • Max Torque: 8.6N.m/5000r/min
  • Ignition: CDI
  • Engine Oil Total Capacity: 0.24 Gallon
  • Fuel Tank Capacity: 1.03 Gallon
  • Start Way: Kick Start

Chassis / Suspension / Brakes

  • Front Wheel: 70/100-19
  • Rear Wheel: 90/100-16
  • Drive Train: Chain Drive
  • Front and Rear Absorber Brand: SYD
  • Front Absorber: 31.9 inches Non-Adjustable
  • Rear Absorber: 13.8 inches Adjustable
  • Front Hand Brake: Hydraulic Disc
  • Rear Foot Brake: Hydraulic Disc
  • Frame: Double Beam Heavy Duty Steel Frame

Dimensions

  • Product Size (L*W*H): 74 x 30.7 x 48 inches
  • Seat Height: 34.5 inches
  • Wheelbase: 49.2 inches
  • Ground Clearance: 14.5 inches
  • Net Weight: 192 lbs
  • Gross Weight: 221 lbs
Condition

New

Power Type

Gas
