2009 E-z-go Rxv For Sale

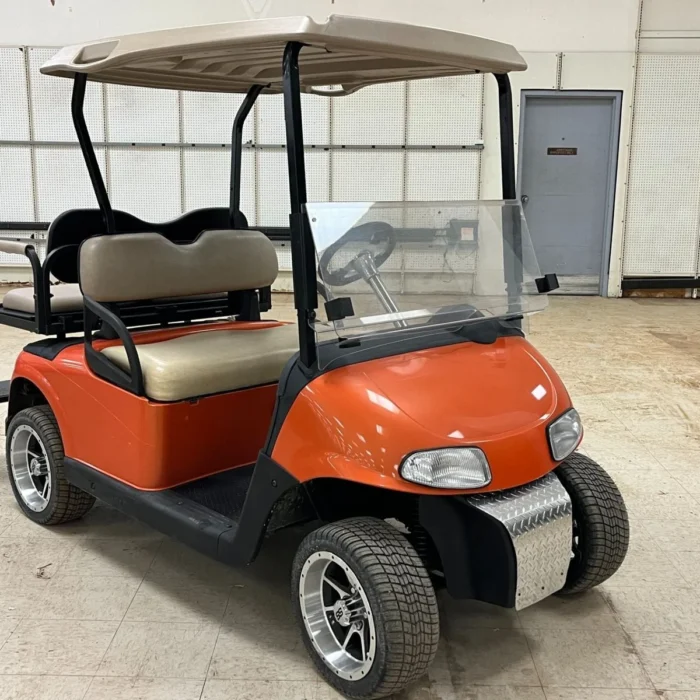

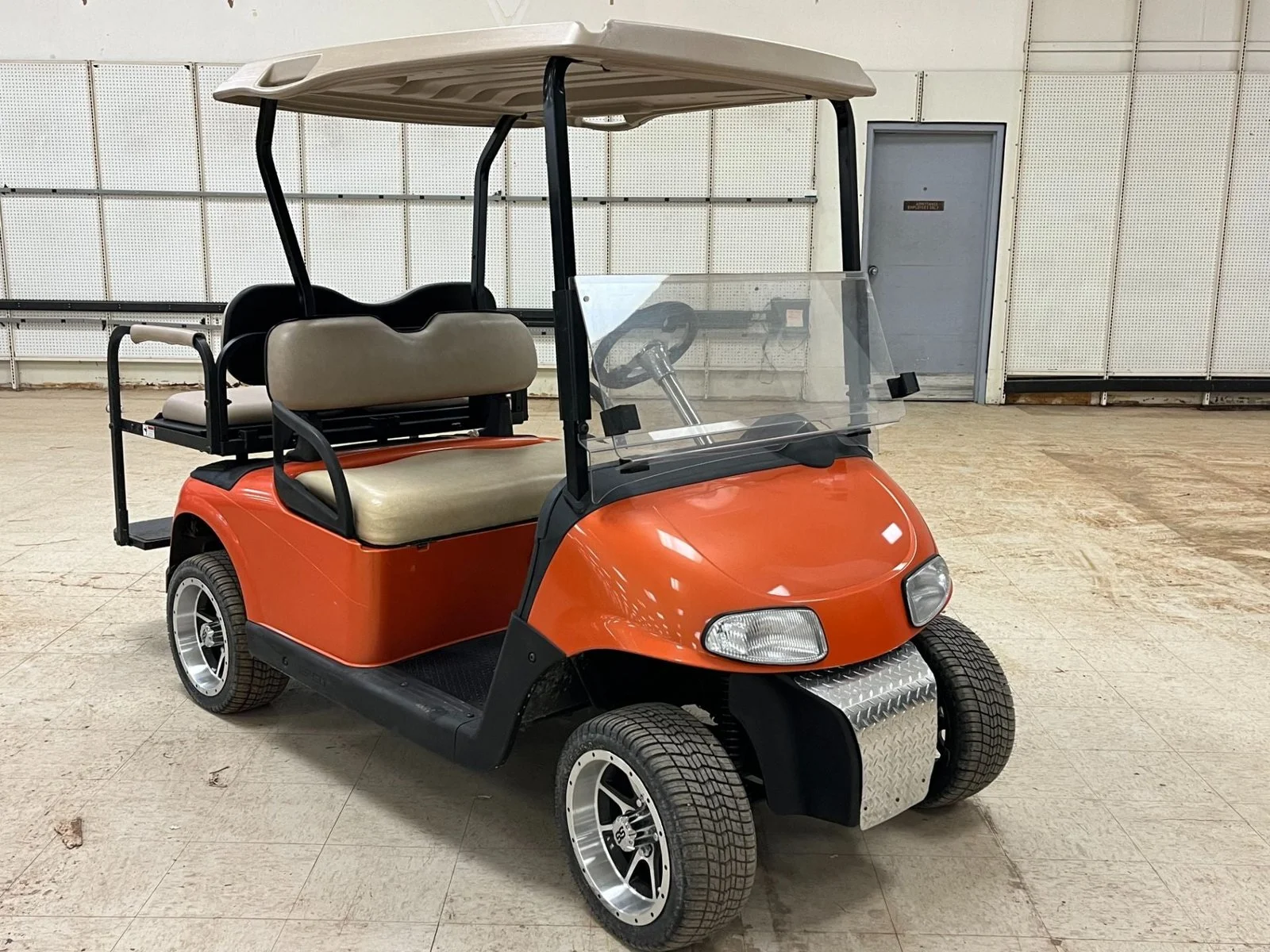

2009 E-Z-GO RXV Overview

The 2009 E-Z-GO RXV is a pre-owned two-passenger golf cart with detailed dimensions, braking, suspension, steering, and powertrain information. The supplied source identifies this unit as an RXV Gas model, but the same listing also contains electric-motor, multi-battery, and onboard-charger specifications that do not describe one consistent configuration. The exact powertrain therefore needs to be confirmed for this individual cart before purchase.

Compare this RXV with other current options in our 2 Passenger Golf Carts category. For general E-Z-GO manufacturer and model information, visit the official E-Z-GO website.

2009 E-Z-GO RXV Specifications

GENERAL INFORMATION
Manufacturer
E-Z-GO
Model Year
2009
Model
RXV Gas
Model Code
RXV Gas
Color
Orange
Specifications
Full dimensions: 9′ long, 52″ wide , 78″ high
Max load capacity:1200LBS
Motor: 4000watt
Battery: 6 pcs 8v battery , lithium battery available for upgrade
Charger: on board smart charger
Charging time: 5 hours
Brake: brake and parking brake
Frame and chassis: Steel with hydraulic dipping
Tire size: 23×10-14
ELECTRICAL
Battery
One, 12 V maintenance-free
ENGINE
Engine
EX1, 4 cycle, Single cylinder, OHC
Horsepower
11.5 hp (8.6 kW) J1995 standard
Displacement
150 cc (9.15 cu. in.)
Carburetion
Closed-loop electronic fuel injection
Starter
Pedal

MEASUREMENTS
Length
Overall – 94.5 in. (240 cm)
Height
Overall (without roof) – 47.5 in. (121 cm)
Overall (with roof) – 70.0 in. (178 cm)
Width
Overall – 47.0 in. (119 cm)
Weight
Dry – 676 lb. (307 kg)
Curb – 692 lb. (314 kg)
Wheelbase
65.7 in. (167 cm)
Front wheel track – 35.5 in. (90 cm)
Rear wheel track – 38.0 in. (97 cm)
Ground Clearance
At differential – 4.0 in. (10 cm)
OPERATIONAL
Brakes
Service – Rear wheel mechanical self-adjusting drums
Parking – Self-compensating, single point engagement
Suspension
Front – Independent A-arm coil-over shock
Rear – Mono-leaf spring with hydraulic shocks
Tires
18 x 8.50-8 (4-ply rated)
Seating
Capacity – 2 passenger
Load Capacity
Vehicle – 500 – 800 lb. (227 – 360 kg)
Turning Radius
Outside clearance circle – 19.0 ft. (5.8 m)
Steering
Double-ended rack and pinion
Speed
Level ground – 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph)

What to Check on This 2009 E-Z-GO RXV

When comparing a used 2009 E-Z-GO RXV, verify the exact power system on the physical cart. This listing includes an EX1 gasoline engine and electronic fuel injection as well as a 4,000-watt motor, six 8-volt batteries, and an onboard charger. Because those details conflict, they should not be presented as one verified configuration. Confirm fuel type, battery setup, charger equipment, and any installed accessories that matter to your intended use.

Also compare the listed two-passenger seating, tire size, dimensions, ground clearance, braking, suspension, steering, and the current product photos. Used golf carts can differ because of previous modifications and replacement equipment. If you plan to use the cart outside a golf course environment, check the exact lighting and safety equipment on this unit and confirm any local requirements separately before relying on it for a particular use.
