Trailmaster Challenger 200U UTV, 168.9cc Engine, Automatic CVT with Reverse, 4-Stroke, Single Cylinder, Air Cooled

Original price was: $4,499.Current price is: $4,299.

4 products sold in last 15 hours
Selling fast! Over 20 people have in their cart

Local Pick-Up: You can come and pick up your New ride at 2470 W Pioneer Pkwy, Grand Prairie, TX 75051, however, In store we offer assembling service at additional charges, please call for details. +1(682) 369-8012

28 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

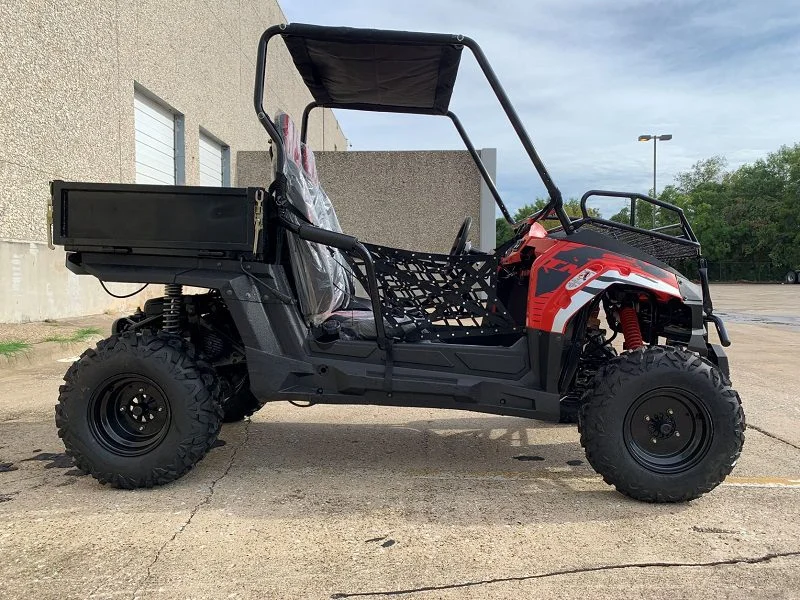

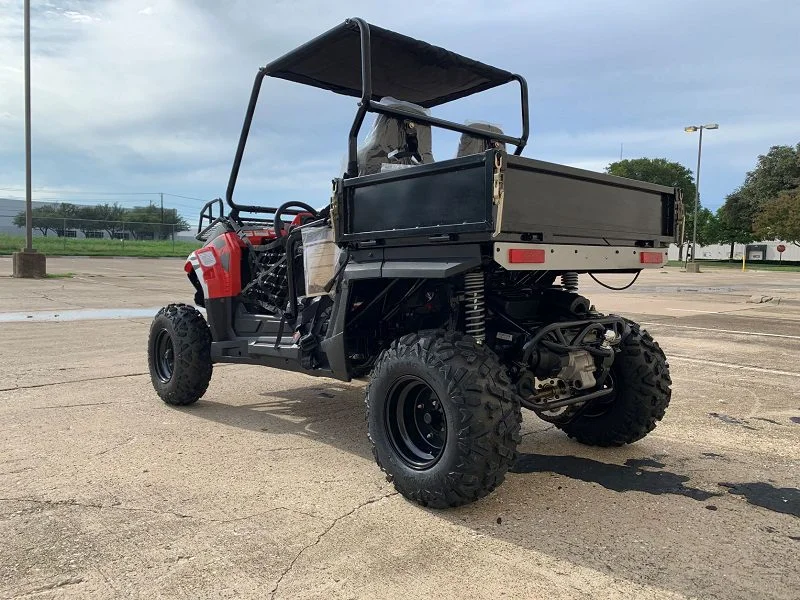

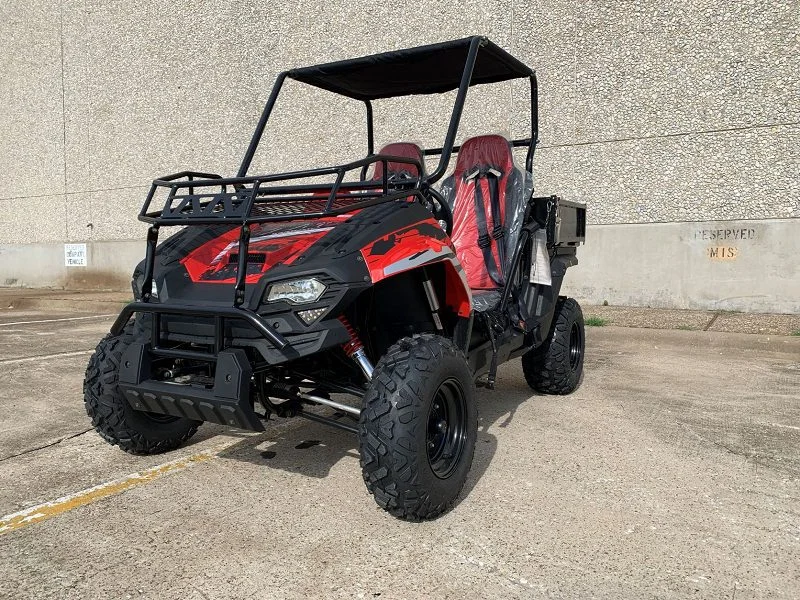

Trailmaster Challenger 200U UTV, 168.9cc Engine, Automatic CVT with Reverse, 4-Stroke, Single Cylinder, Air Cooled

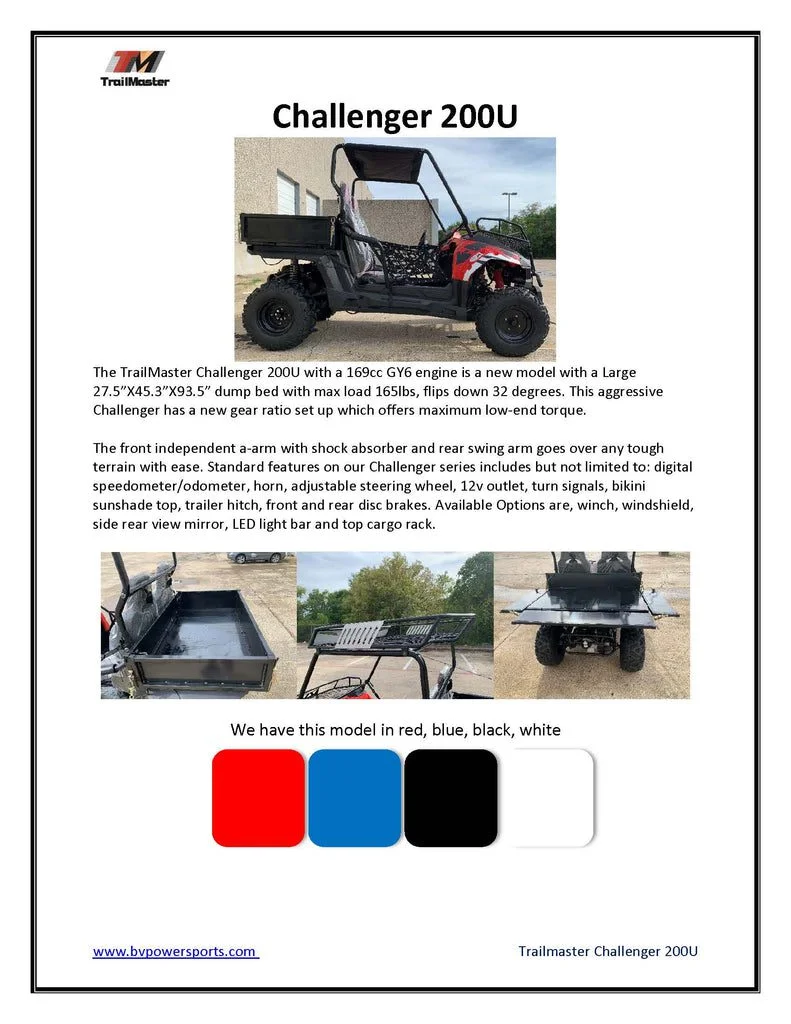

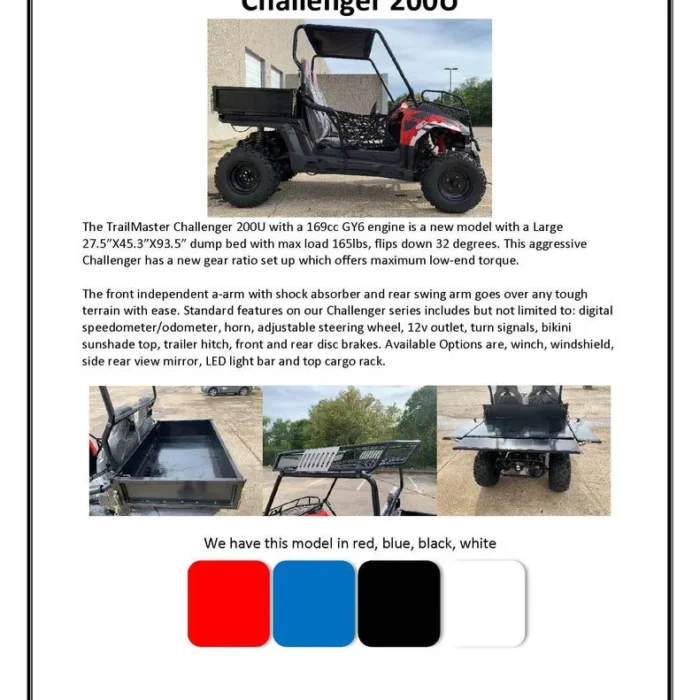

Introducing the Trail Master Challenger 200U, a powerful utility vehicle designed for all your adventure needs. Equipped with a strong 169cc GY6 engine, this model delivers reliable performance and efficiency. The 27.5” x 45.3” x 93.5” dump bed is perfect for heavy loads, with a maximum capacity of 165 lbs. It tilts down at a 32-degree angle, making unloading quick and easy—ideal for transporting tools, equipment, or gear.

The Challenger 200U stands out with its optimized gear ratio, which maximizes low-end torque for impressive acceleration and towing capabilities. It effortlessly navigates rugged terrain thanks to its front independent A-arm suspension with shock absorbers and a rear swing arm, ensuring a smooth and stable ride over bumpy paths.

This utility vehicle is loaded with standard features for a better driving experience. You’ll find a digital speedometer and odometer for accurate tracking of your journeys, a horn for safety alerts, and an adjustable steering wheel for personalized comfort. The 12V outlet keeps your devices powered, while turn signals enhance communication with other road users. The bikini sunshade top provides protection from the sun, and the trailer hitch adds versatility for towing. Plus, the front and rear disc brakes ensure reliable stopping power in various conditions.

To further customize your Challenger, you can choose from several optional upgrades. Add a winch for extra utility, a windshield for weather protection, side rearview mirrors for improved visibility, an LED light bar for nighttime adventures, and a top cargo rack for increased storage capacity.

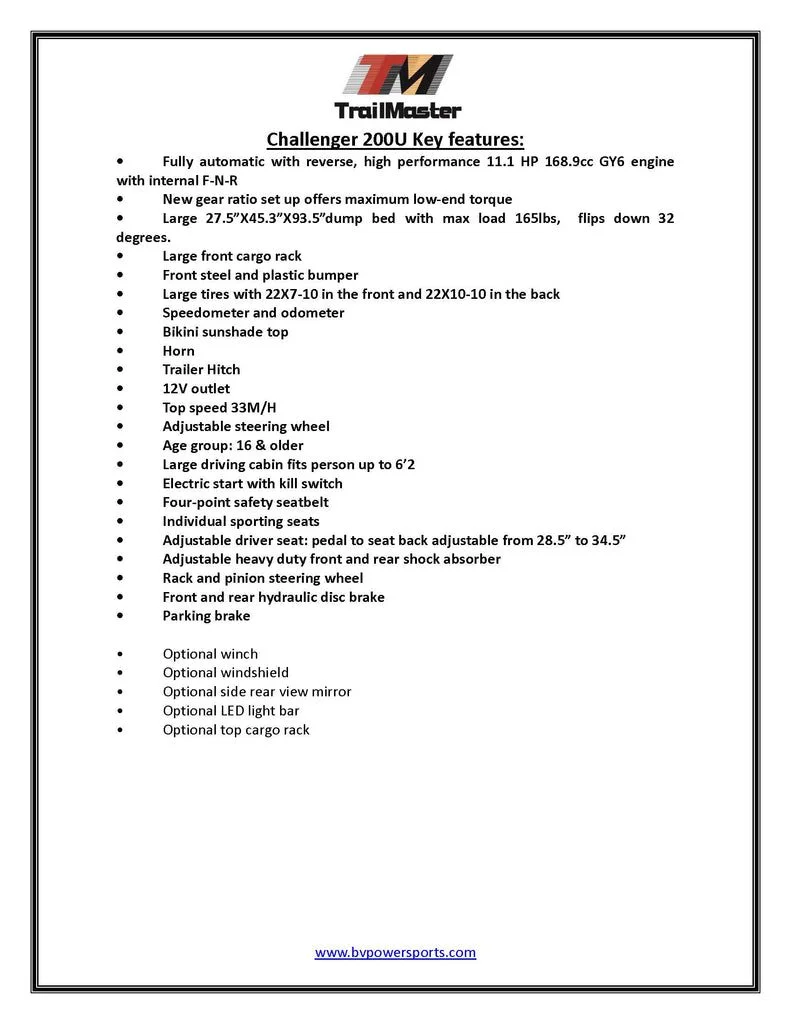

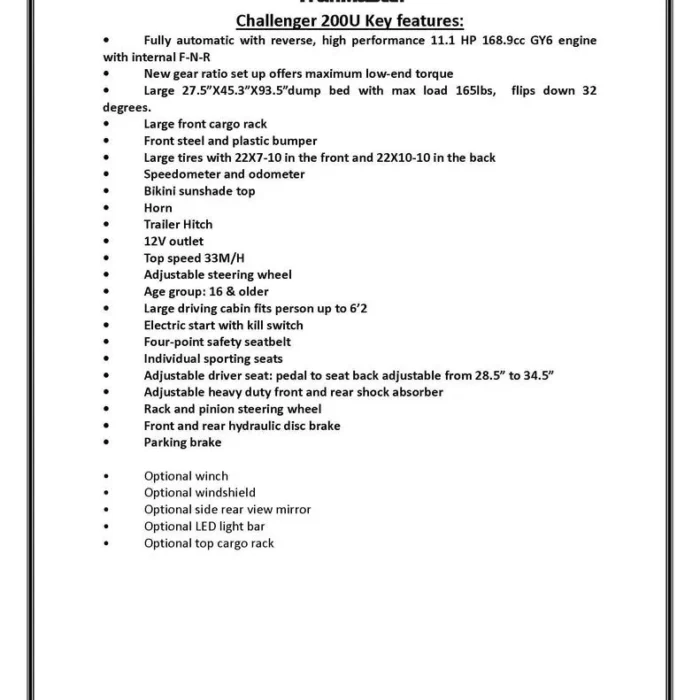

  • Fully automatic with reverse, high performance 11.1 HP 168.9cc GY6 engine with internal F-N-R
  • New gear ratio set up offers maximum low-end torque

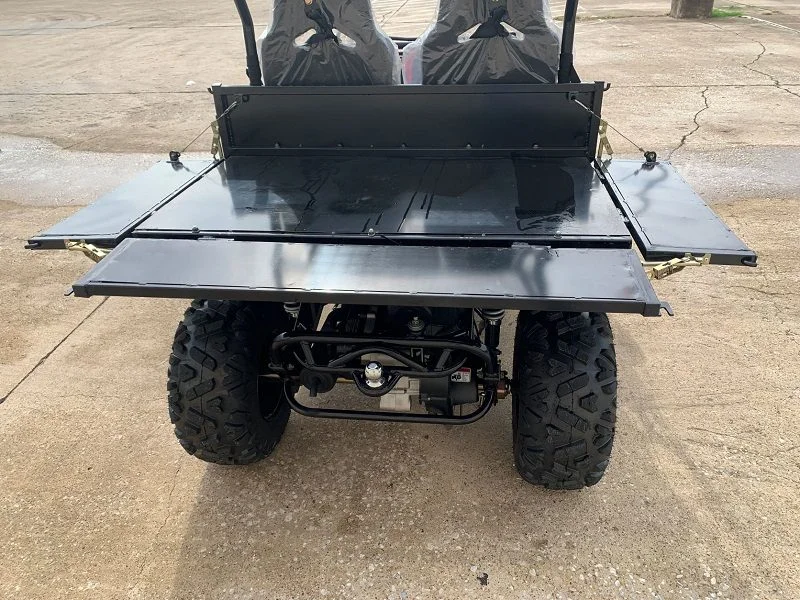

  • Large 27.5”X45.3”X93.5”dump bed with max load 165lbs,  flips down 32 degrees.
  • Large front cargo rack
  • Front steel and plastic bumper
  • Large tires with 22X7-10 in the front and 22X10-10 in the back
  • Speedometer and odometer
  • Bikini sunshade top
  • Horn
  • Trailer Hitch
  • 12V outlet
  • Top speed 33M/H
  • Adjustable steering wheel
  • Age group: 16 & older
  • Large driving cabin fits person up to 6’2
  • Electric start with kill switch
  • Four-point safety seatbelt
  • Individual sporting seats
  • Adjustable driver seat: pedal to seat back adjustable from 28.5” to 34.5”
  • Adjustable heavy duty front and rear shock absorber
  • Rack and pinion steering wheel
  • Front and rear hydraulic disc brake
  • Parking brake
  • Optional winch
  • Optional windshield
  • Optional side rear view mirror
  • Optional LED light bar
  • Optional top cargo rack

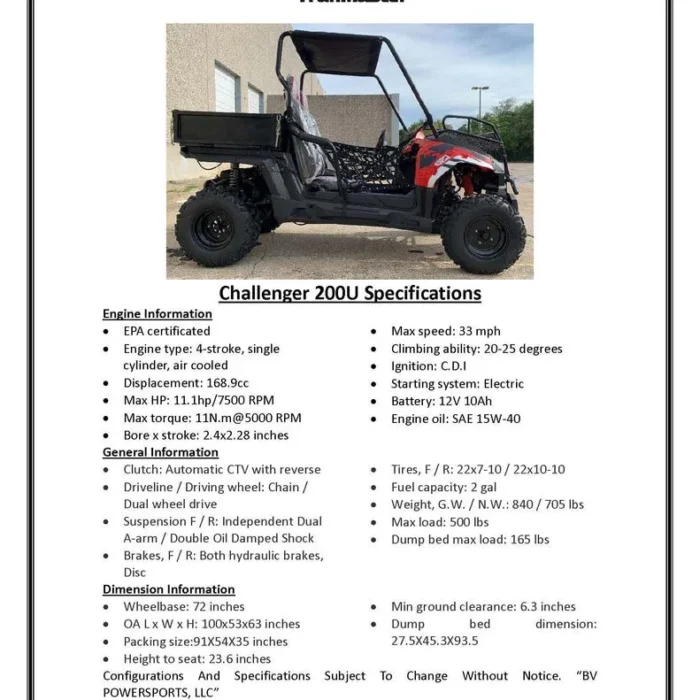

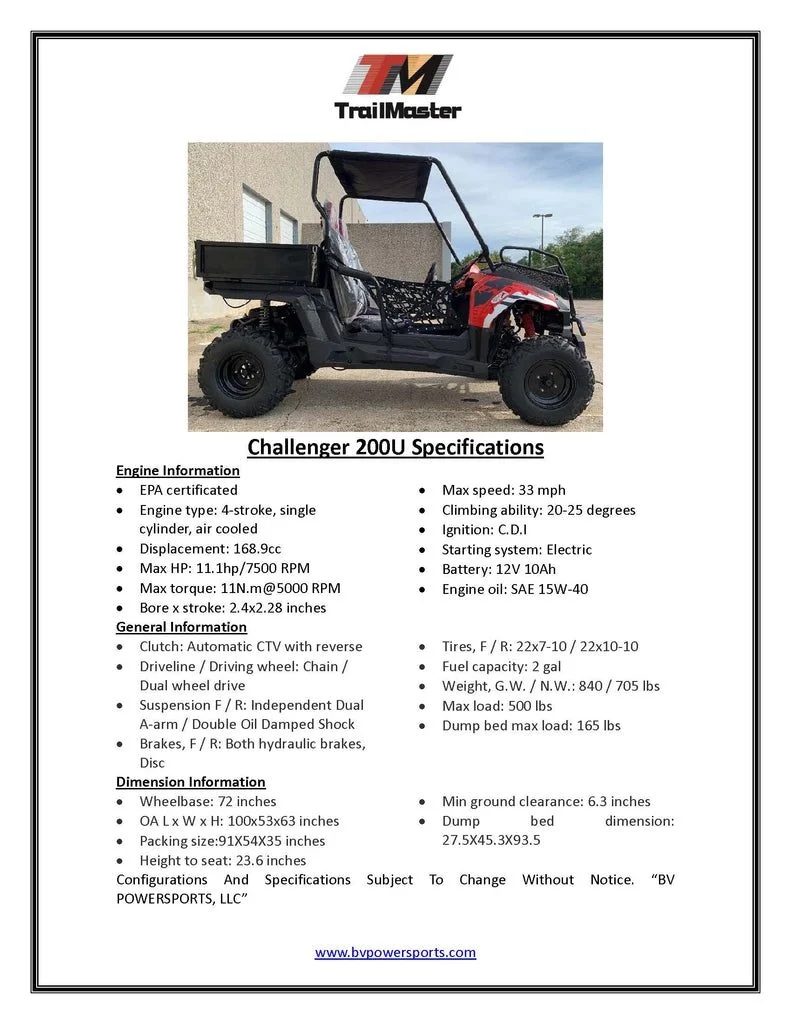

Specifications

Engine Information

  • EPA Certificated: Yes
  • Engine Type: 4-stroke, single cylinder, air cooled
  • Displacement: 168.9cc
  • Max HP: 11.1 hp / 7500 RPM
  • Max Torque: 11 N.m @ 5000 RPM
  • Bore x Stroke: 2.4 x 2.28 inches
  • Max Speed: 33 mph
  • Climbing Ability: 20-25 degrees
  • Ignition: C.D.I
  • Starting System: Electric
  • Battery: 12V 10Ah
  • Engine Oil: SAE 15W-40

General Information

  • Clutch: Automatic CTV with reverse
  • Driveline / Driving Wheel: Chain / Dual wheel drive
  • Suspension F/R: Independent Dual A-arm / Double Oil Damped Shock
  • Brakes, F/R: Both hydraulic brakes, Disc
  • Tires, F/R: 22 x 7-10 / 22 x 10-10
  • Fuel Capacity: 2 gallons
  • Weight, G.W. / N.W.: 840 lbs / 705 lbs (381 kg / 319 kg)
  • Max Load: 500 lbs
  • Dump Bed Max Load: 165 lbs

Dimension Information

  • Wheelbase: 72 inches
  • Length × Width × Height: (Inches) 100 x 53 x 63 / (mm) 2540 x 1346 x 1600
  • Packing Size: 91 x 54 x 35 inches
  • Height to Seat: 23.6 inches
  • Min Ground Clearance: 6.3 inches
  • Dump Bed Dimension: 27.5 x 45.3 x 93.5 inches

Rider-fit and utility note: The stored copy lists ages 16 and older, cabin fit up to 6’2", a 500 lb maximum load and a 165 lb dump-bed load. Buyers should verify the manufacturer’s current age, size, supervision and load guidance for the exact UTV before use. The vehicle is listed with a trailer hitch, but this record does not provide a towing-capacity figure; do not infer a tow rating from the hitch alone. Also confirm the 168.9cc engine, automatic reverse, brakes, tires and installed equipment. For general product-safety and recall checks, review the U.S. Consumer Product Safety Commission recall database. Browse more UTV and powersports inventory at DLR Golf Carts.

Condition

New

Power Type

Gas
