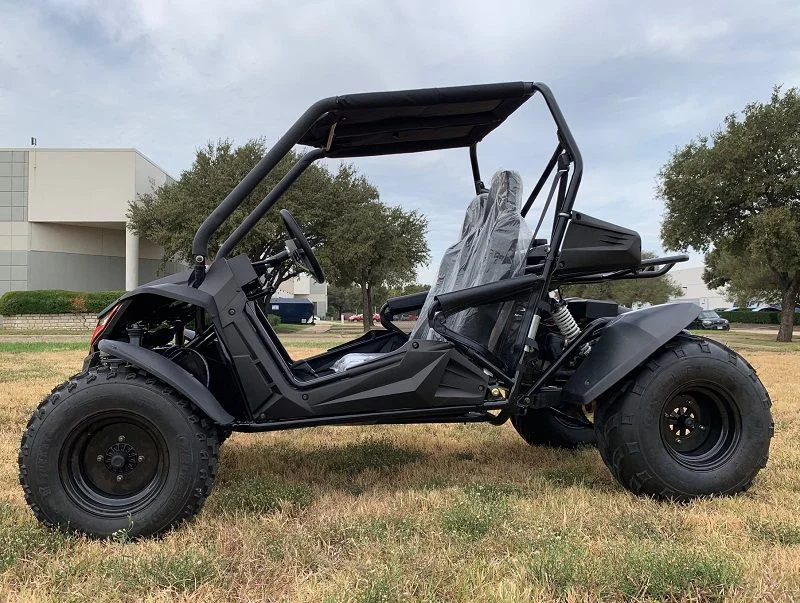

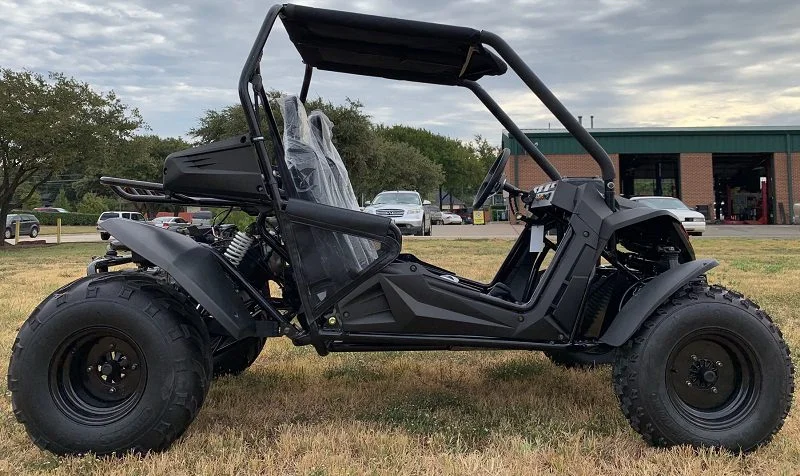

TrailMaster Cheetah 200EX Off-Road UTV/Go-Kart, Windshield, Light Bar, Spare Tire, Upgraded Center Pivot Rear End, Fuel Injected
Local Pick-Up: You can come and pick up your New ride at 2470 W Pioneer Pkwy, Grand Prairie, TX 75051, however, In store we offer assembling service at additional charges, please call for details. +1(682) 369-8012
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

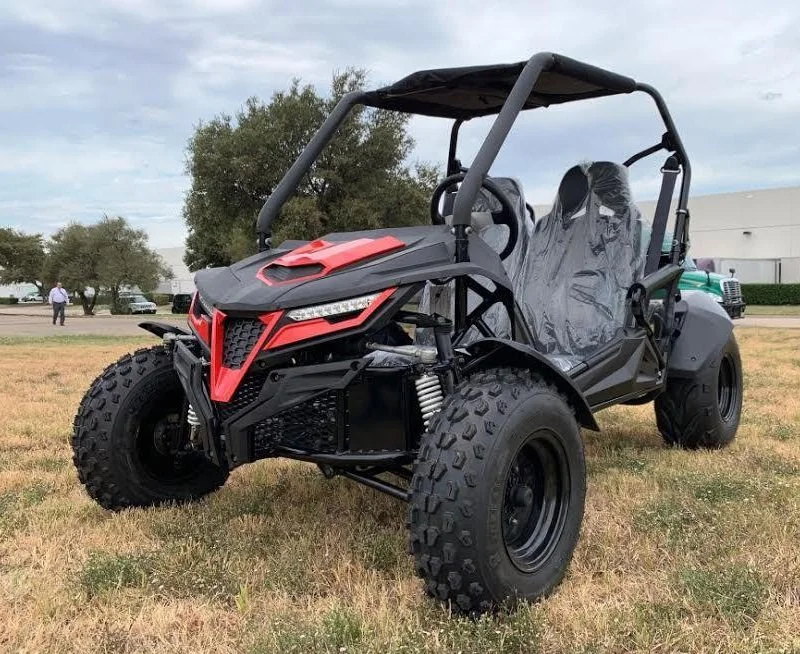

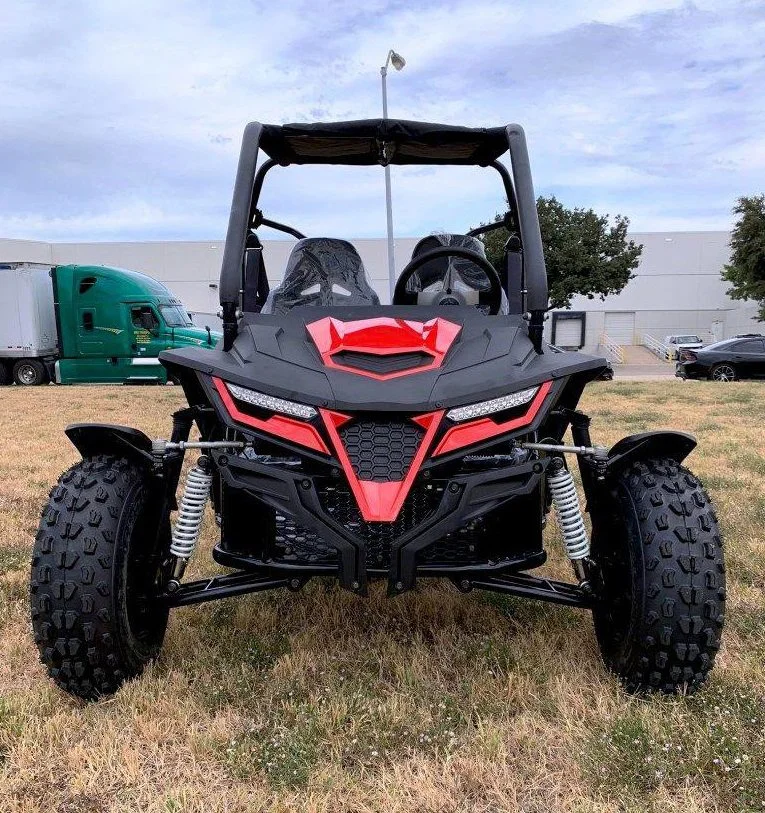

TrailMaster Cheetah 200EX Off-Road UTV/Go-Kart, Windshield, Light Bar, Spare Tire, Upgraded Center Pivot Rear End, Fuel Injected

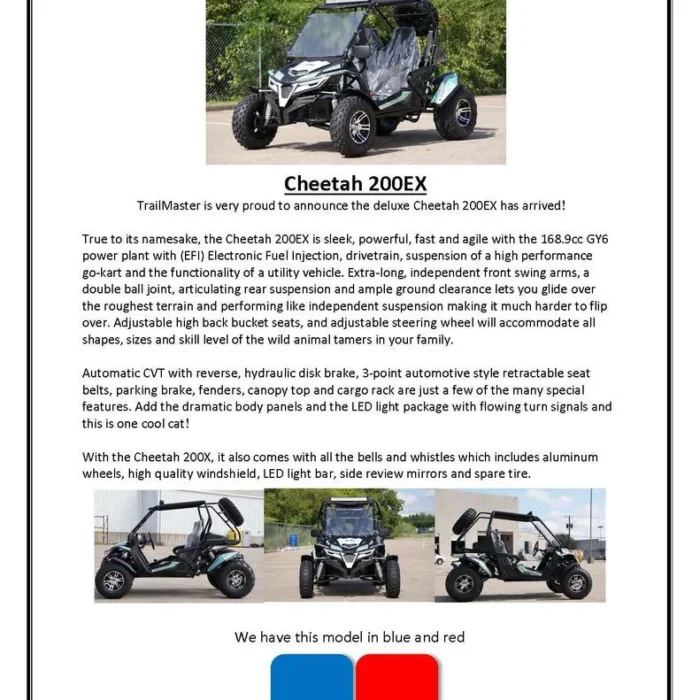

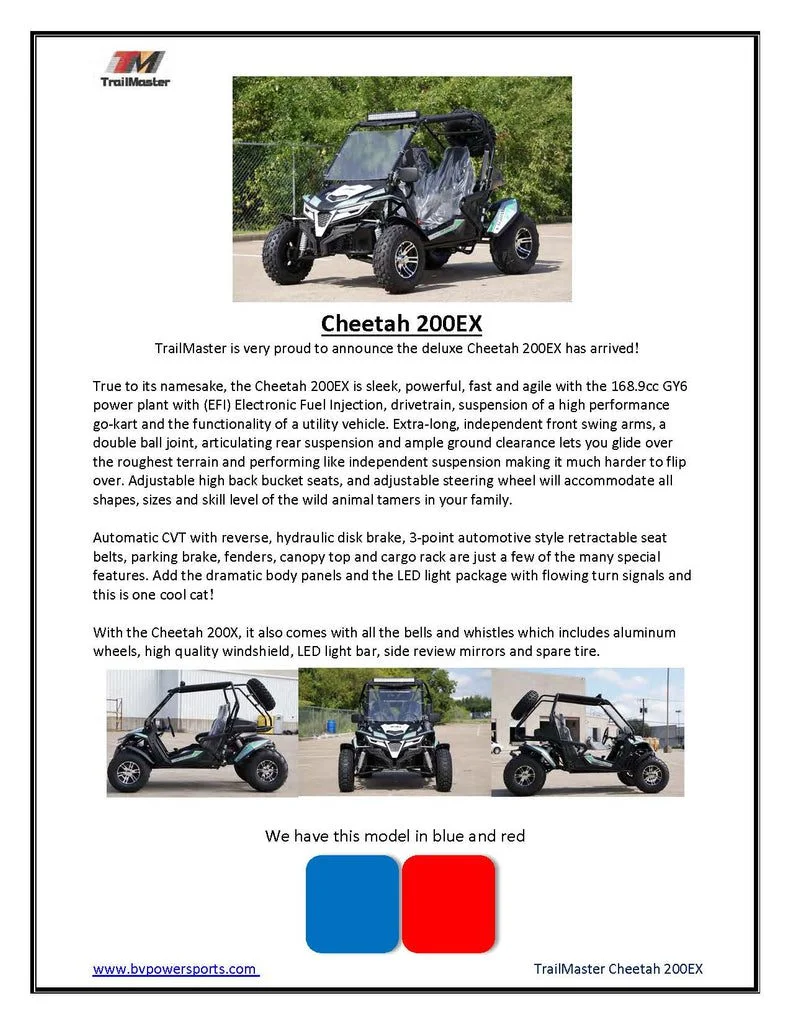

TrailMaster is very proud to announce the deluxe Cheetah 200EX has arrived!

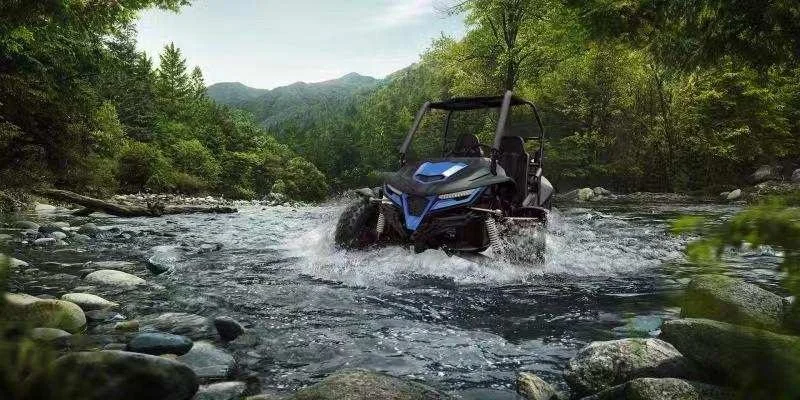

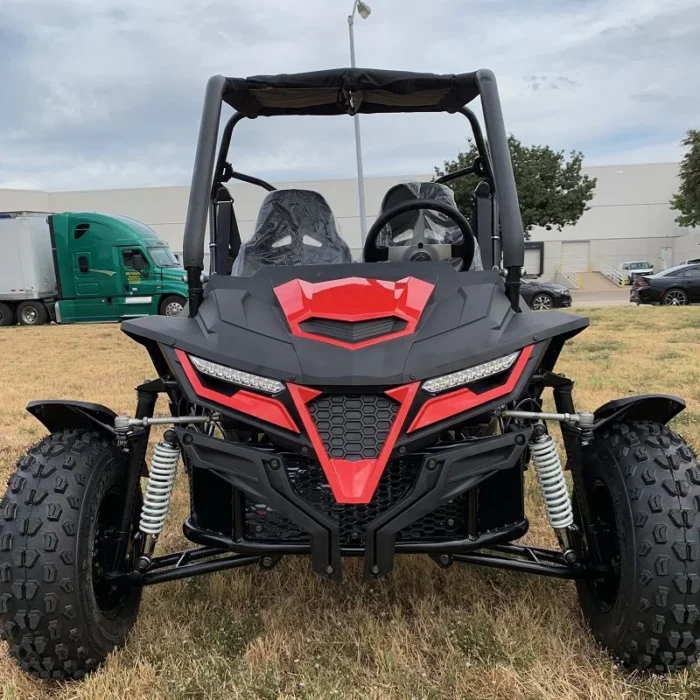

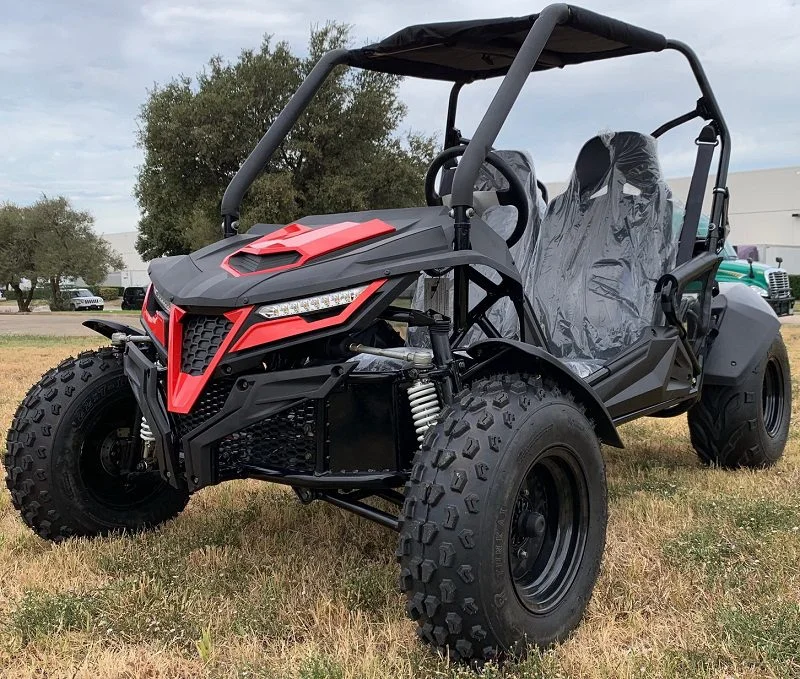

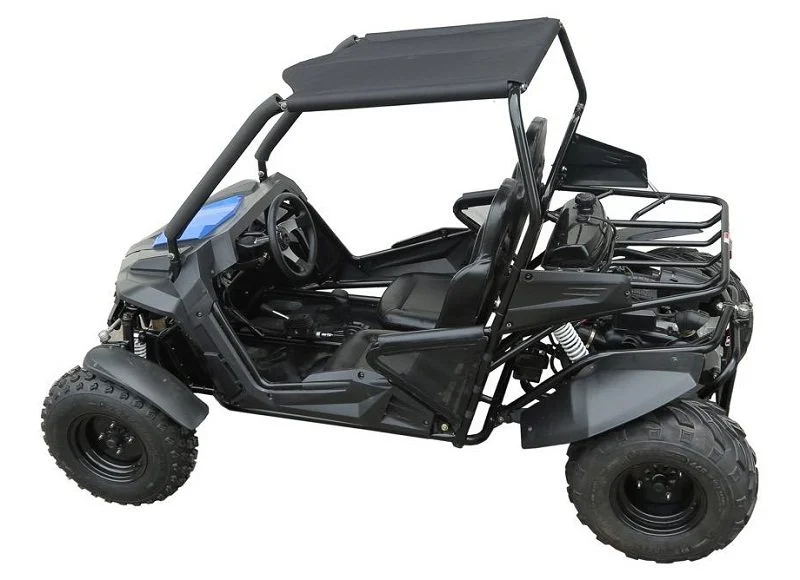

True to its namesake, the Cheetah 200EX is sleek, powerful, fast and agile with the 168.9cc GY6 power plant with (EFI) Electronic Fuel Injection, drivetrain, suspension of a high performance go-kart and the functionality of a utility vehicle. Extra-long, independent front swing arms, a double ball joint, articulating rear suspension and ample ground clearance lets you glide over the roughest terrain and performing like independent suspension making it much harder to flip over. Adjustable high back bucket seats, and adjustable steering wheel will accommodate all shapes, sizes and skill level of the wild animal tamers in your family.
Automatic CVT with reverse, hydraulic disk brake, 3-point automotive style retractable seat belts, parking brake, fenders, canopy top and cargo rack are just a few of the many special features. Add the dramatic body panels and the LED light package with flowing turn signals and this is one cool cat!
With the Cheetah 200X, it also comes with all the bells and whistles which includes aluminum wheels, high quality windshield, LED light bar, side review mirrors and spare tire.

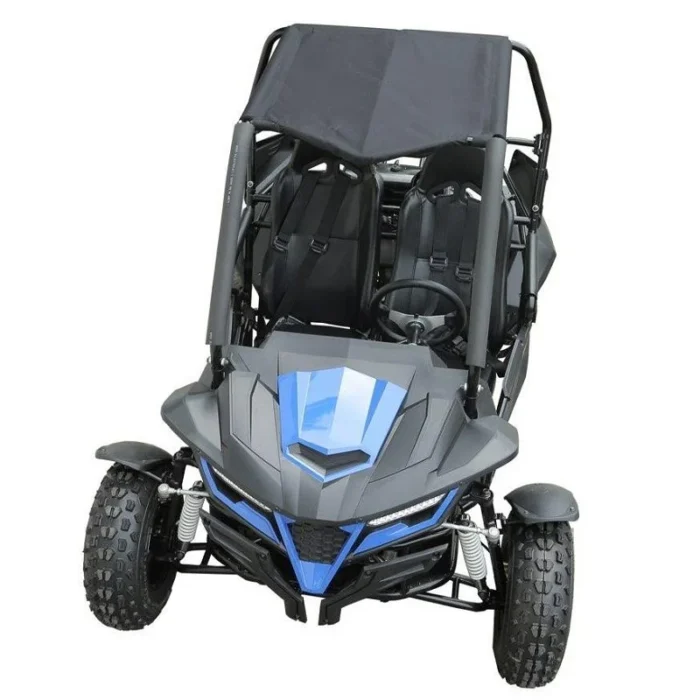

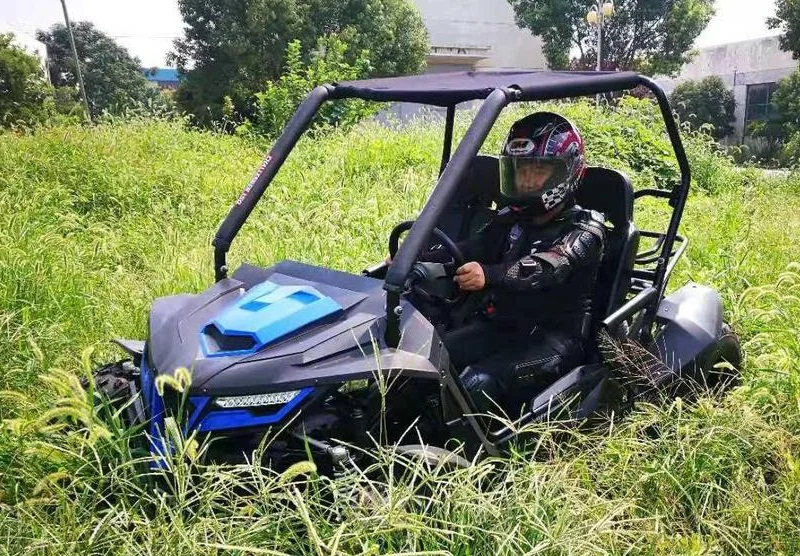

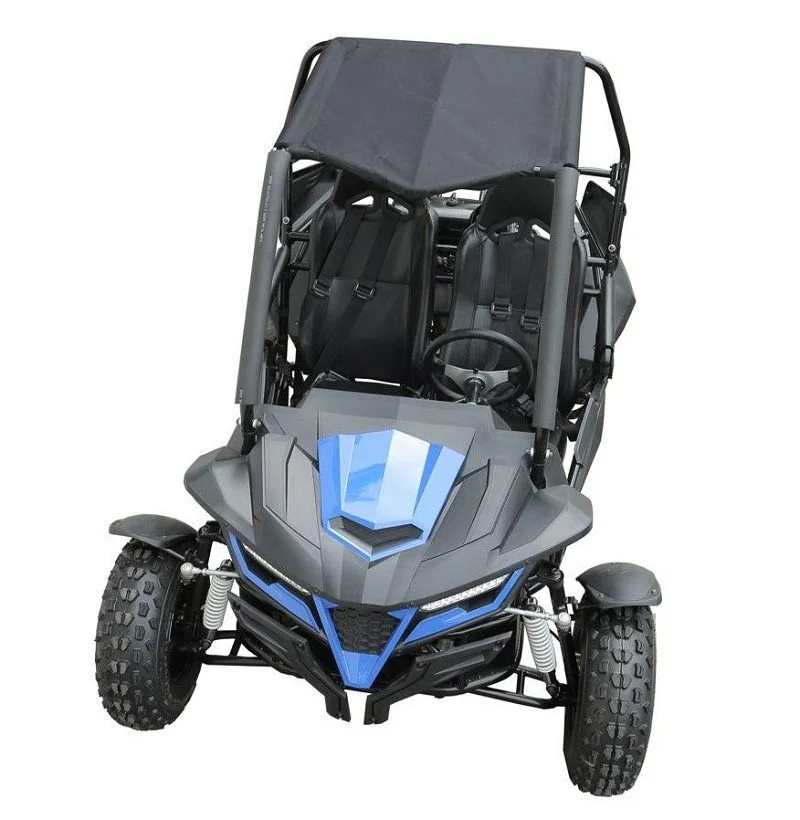

We have this model in blue and red.

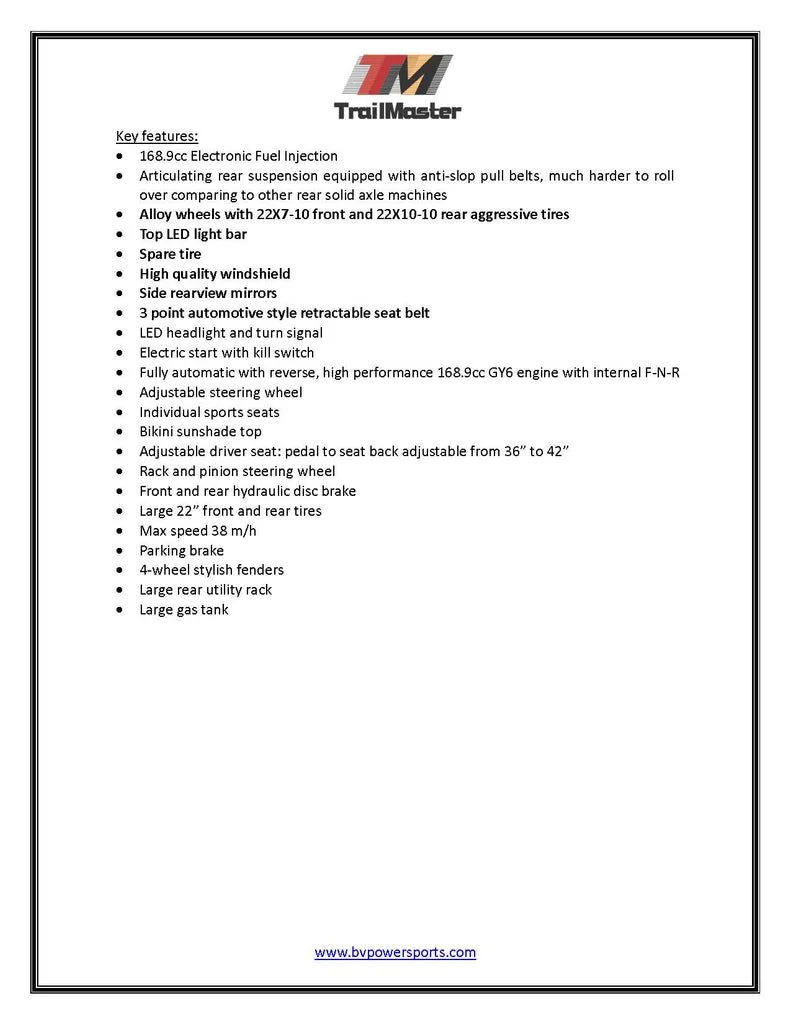

Key Features:
- 168.9cc Electronic Fuel Injection

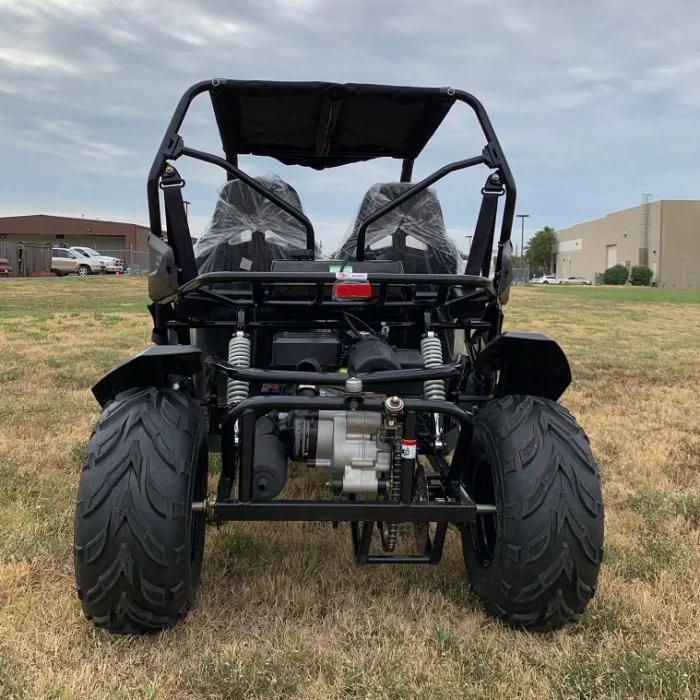

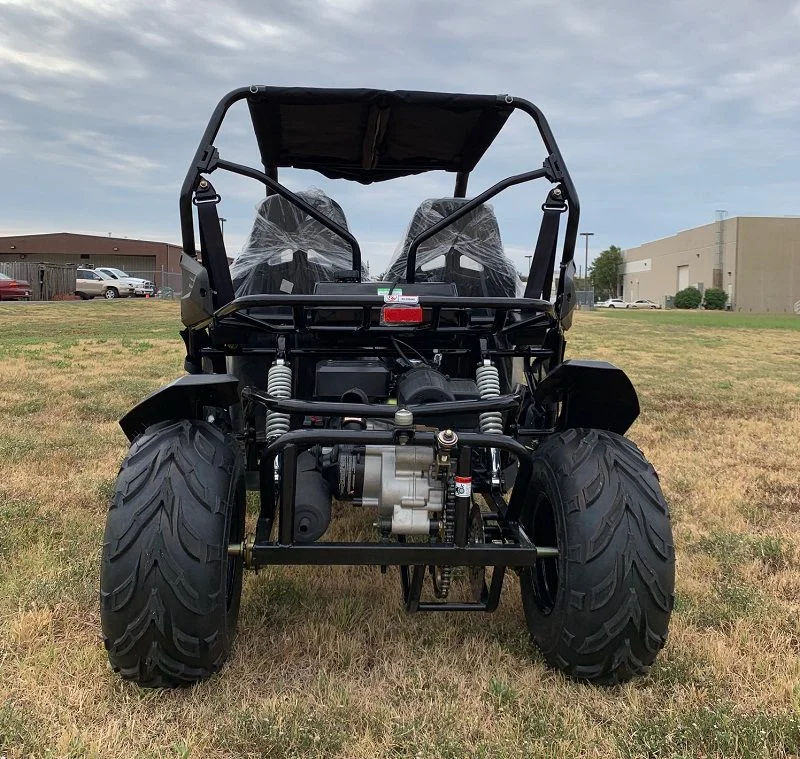

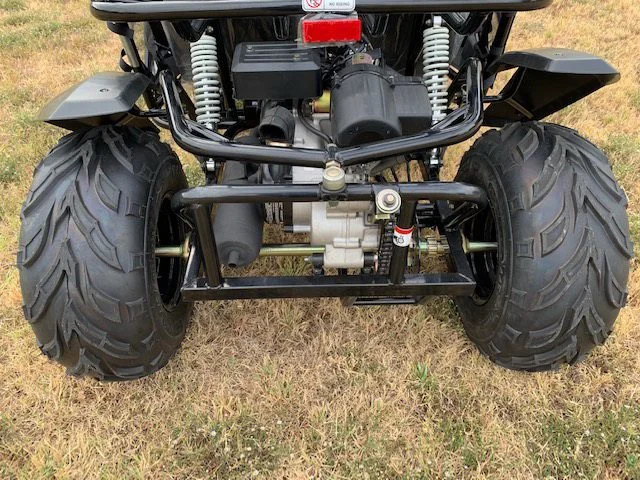

- Articulating rear suspension equipped with anti-slop pull belts, much harder to roll over comparing to other rear solid axle machines
- Alloy wheels with 22X7-10 front and 22X10-10 rear aggressive tires
- Top LED light bar
- Spare tire
- High quality windshield
- Side rearview mirrors

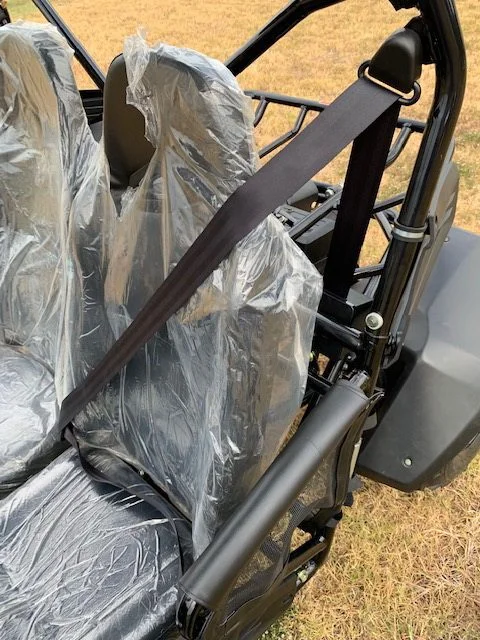

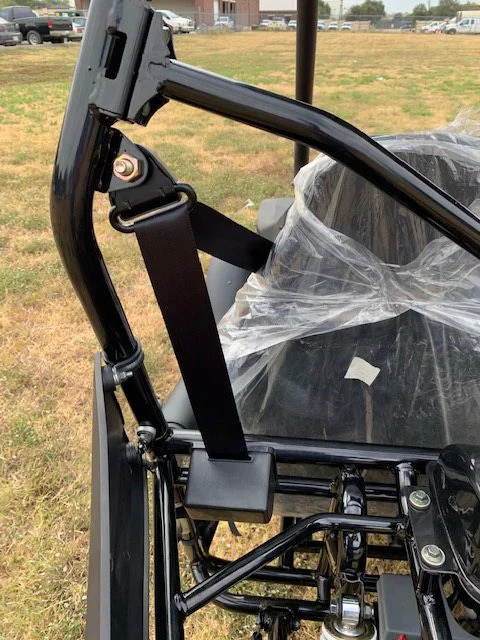

- 3 point automotive style retractable seat belt

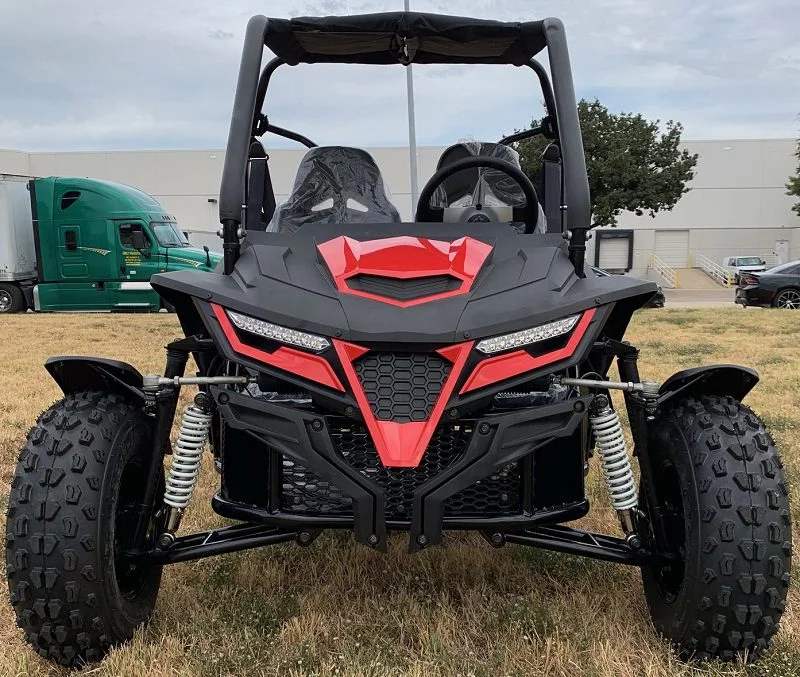

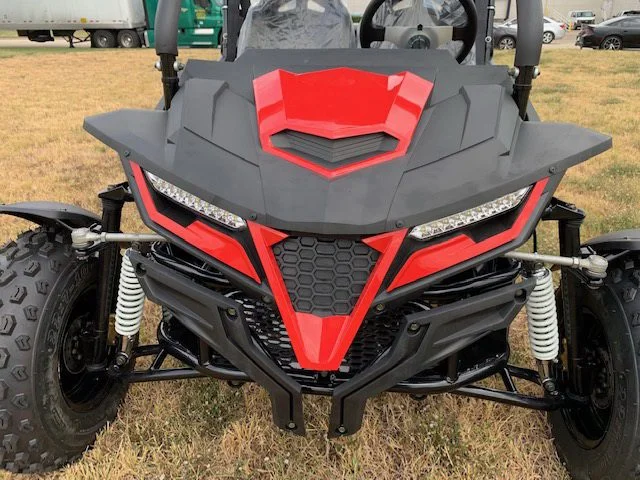

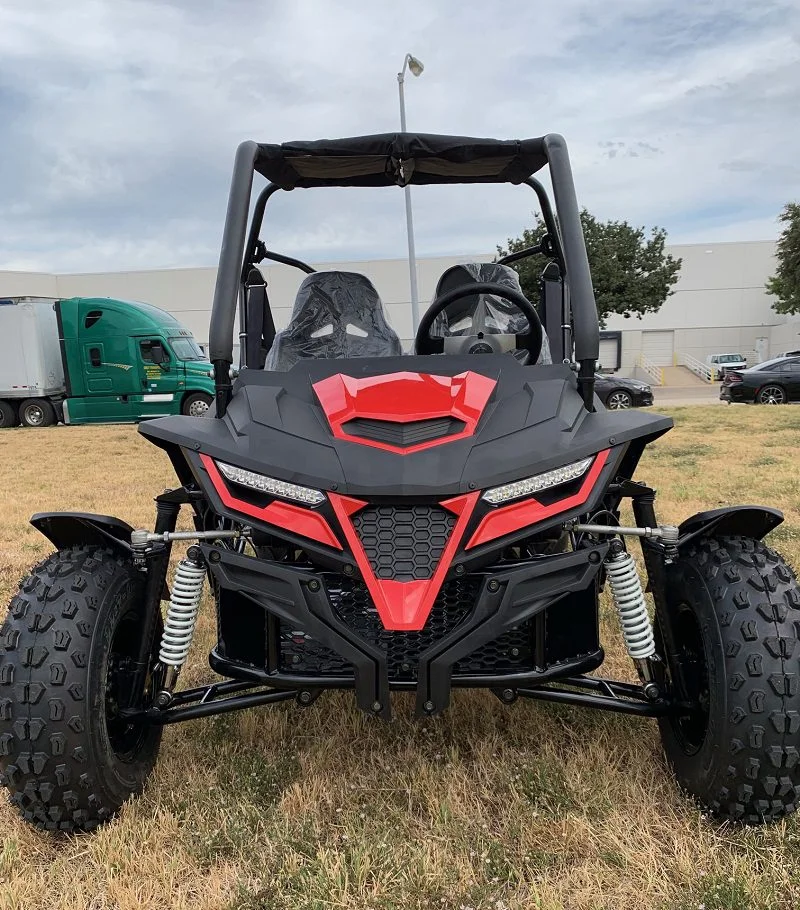

- LED headlight and turn signal
- Electric start with kill switch
- Fully automatic with reverse, high performance 168.9cc GY6 engine with internal F-N-R

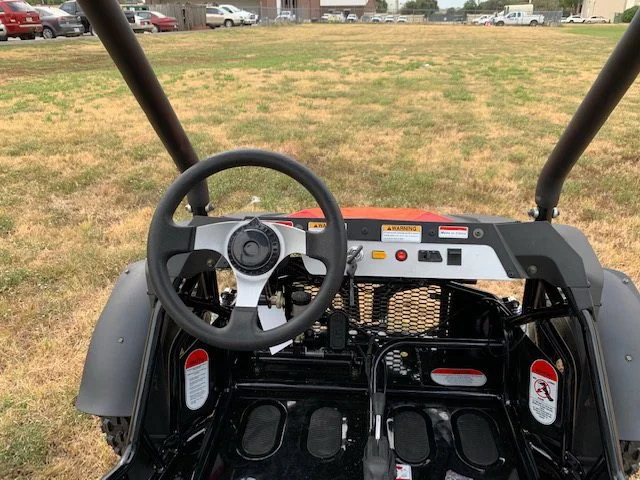

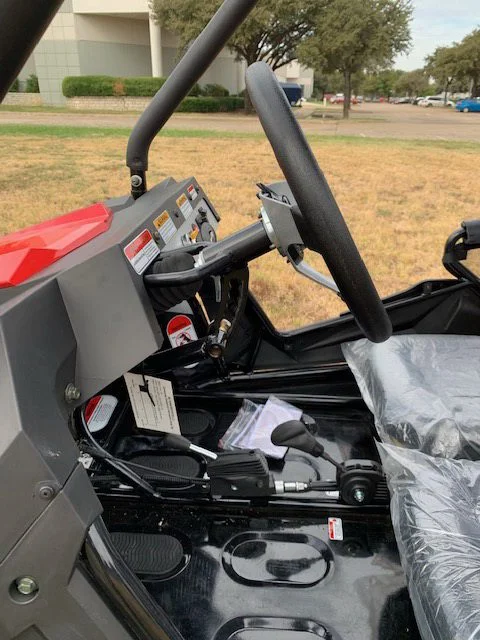

- Adjustable steering wheel

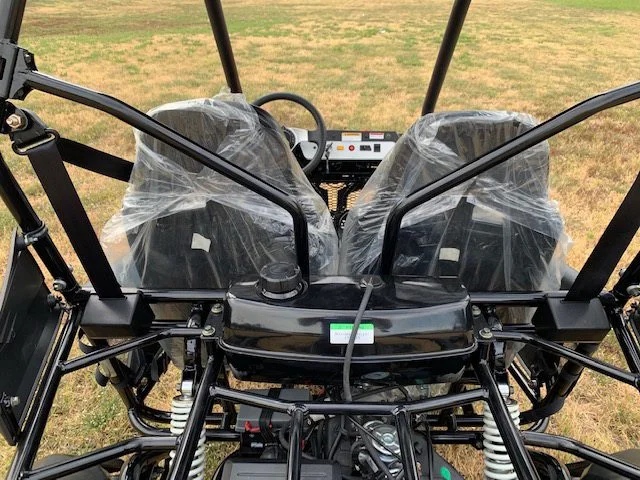

- Individual sports seats
- Bikini sunshade top
- Adjustable driver seat: pedal to seat back adjustable from 36″ to 42″
- Rack and pinion steering wheel
- Front and rear hydraulic disc brake
- Large 22″ front and rear tires
- Max speed 38 m/h
- Parking brake
- 4-wheel stylish fenders

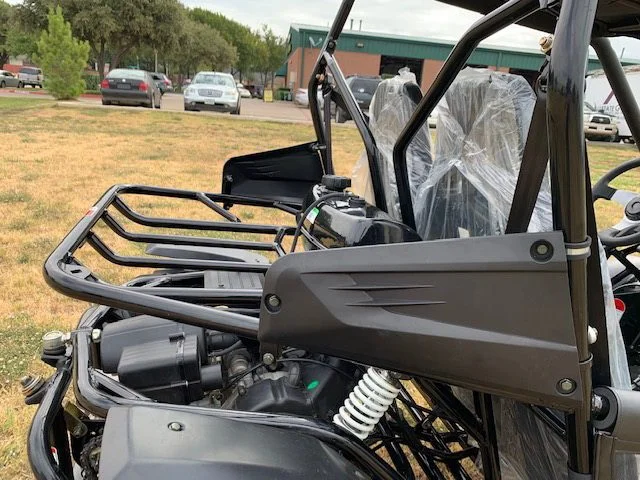

- Large rear utility rack
- Large gas tank

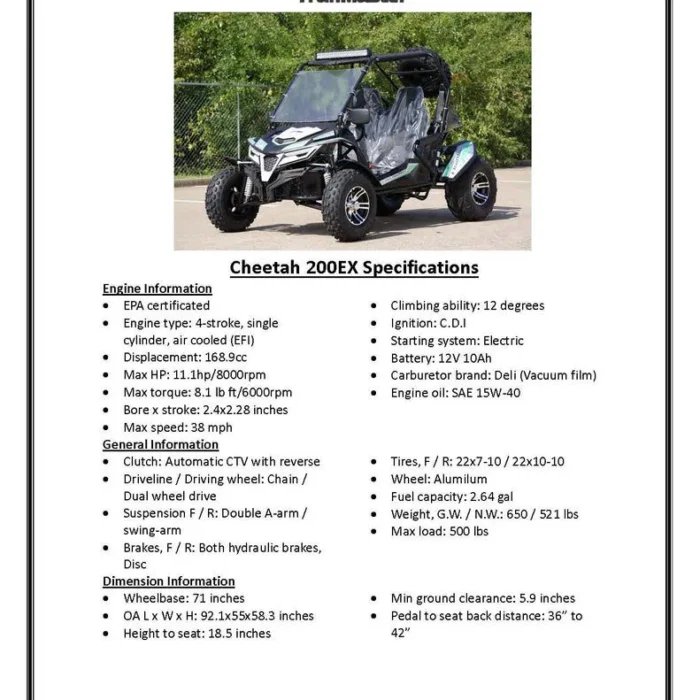

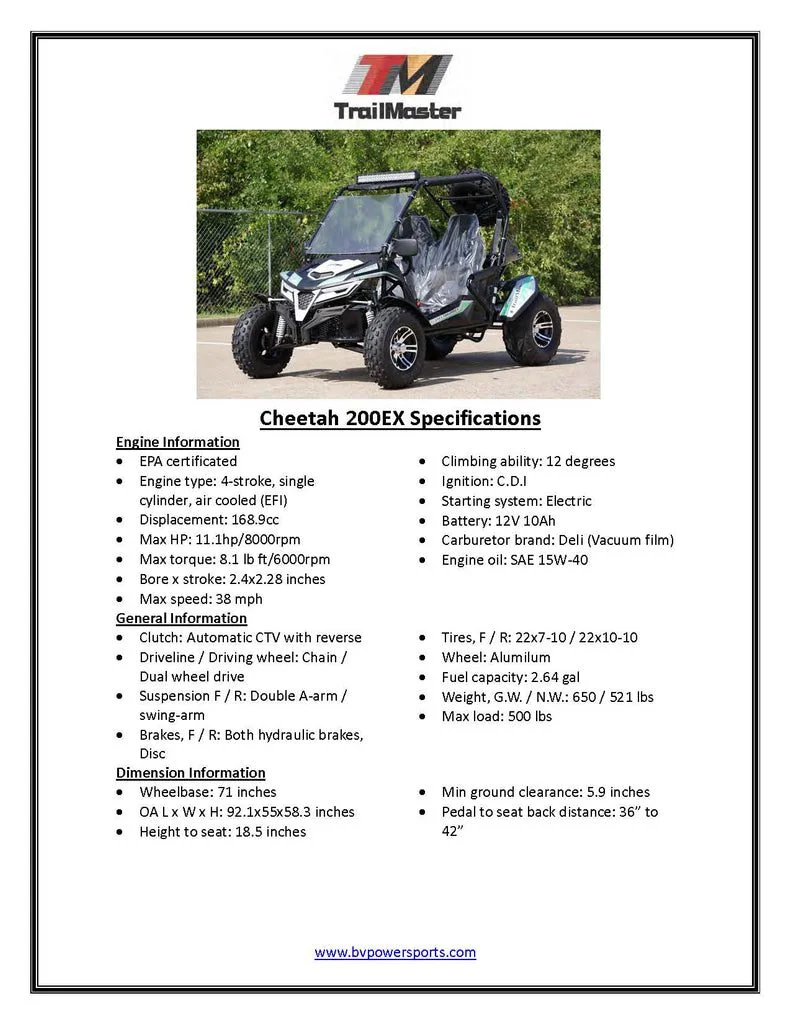

Vehicle Specifications
General Information
- EPA Certified: Yes
- Max Horsepower: 9.4 hp at 7500 rpm
- Max Torque: 8 lb-ft at 6000 rpm
- Max Load: 500 lbs
- Max Speed: 38 mph
- Climbing Ability: 18 degrees
- Fuel Capacity: 2.64 gal
- Engine Oil: SAE 15W-40
- Battery: 12V, 10Ah
Engine Information
- Engine Type: 4-stroke, single cylinder, air-cooled
- Displacement: 169cc
- Bore x Stroke: 2.26 x 2.28 inches
- Carburetor: EFI
- Ignition: C.D.I
- Starting System: Electric
- Clutch: Automatic CVT with reverse
- Driveline / Driving Wheel: Chain / Dual Wheel Drive
Chassis and Suspension

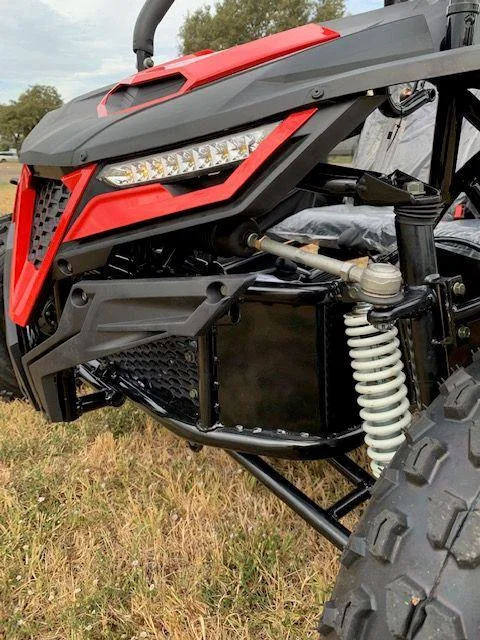

- Front Suspension: Double A-arm
- Rear Suspension: Swing-arm
- Brakes (Front/Rear): Both hydraulic, Disc
- Tires (Front/Rear): 22×7-10 / 22×10-10
- Wheel Type: Aluminum
Dimension Information
- Overall Dimensions (L x W x H): 92.1 x 55 x 58.3 inches
- Wheelbase: 71 inches
- Ground Clearance: 5.9 inches
- Seat Height: 18.5 inches
- Pedal to Seat Back Distance: 36″ to 42″
- Weight (Gross/Net): 650 / 521 lbs
Off-road and equipment note: Confirm the exact Cheetah 200EX’s 168.9/169cc EFI engine, CVT reverse, hydraulic disc brakes, windshield, light bar, mirrors, spare tire, seating and suspension before use. The page identifies this as an off-road UTV/go-kart; EPA certification and road-style lighting do not by themselves establish public-road legality. The listed 38 mph speed can vary with load, terrain, setup and maintenance. For general product-safety and recall checks, review the U.S. Consumer Product Safety Commission recall database. Browse more go-karts and powersports inventory at DLR Golf Carts.
| Condition | New |
|---|---|
| Power Type | Gas |
