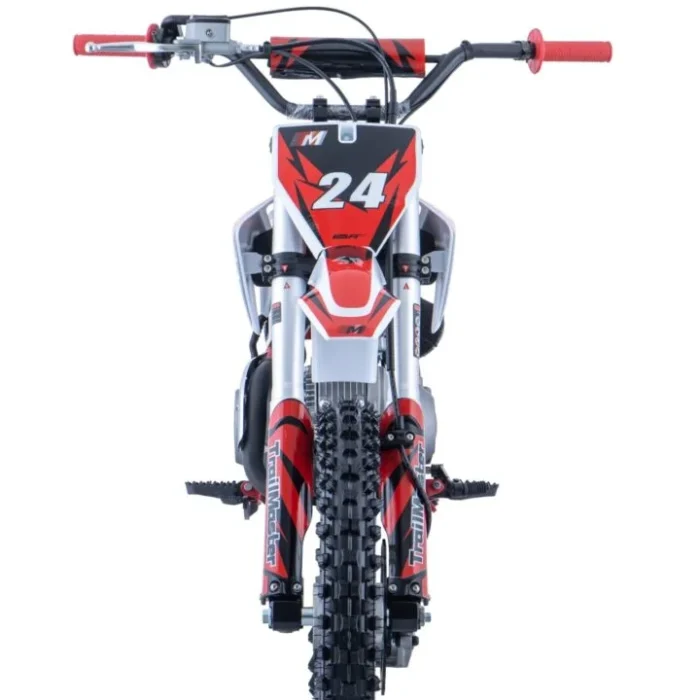

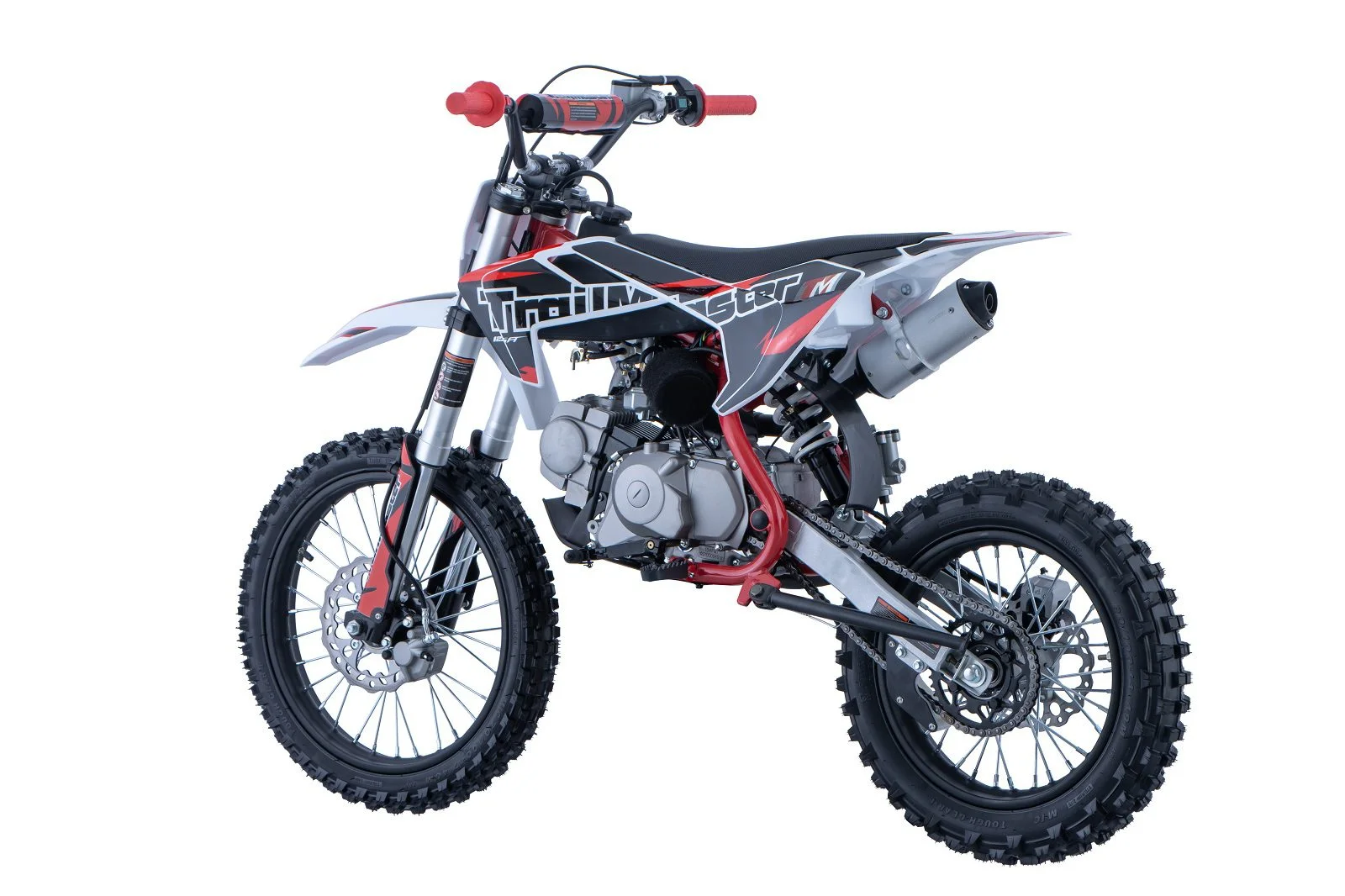

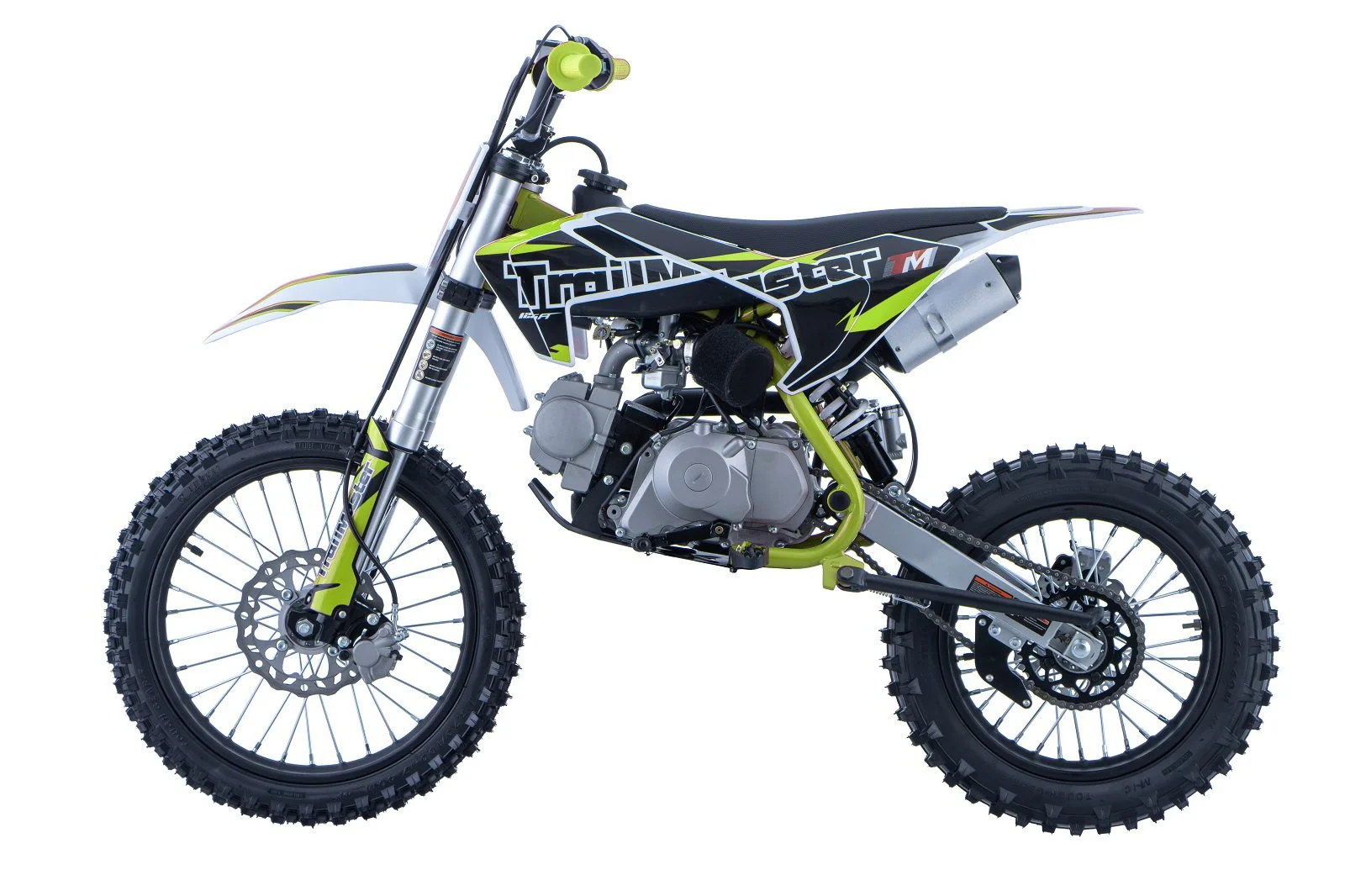

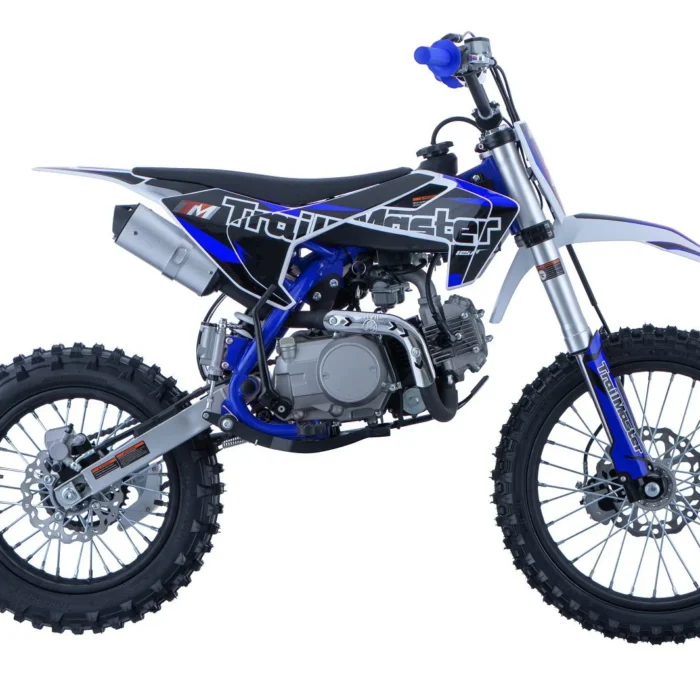

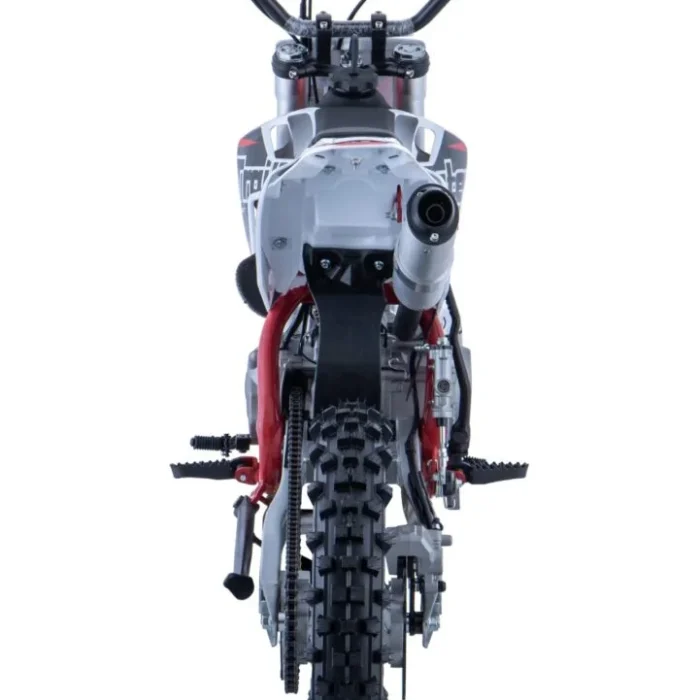

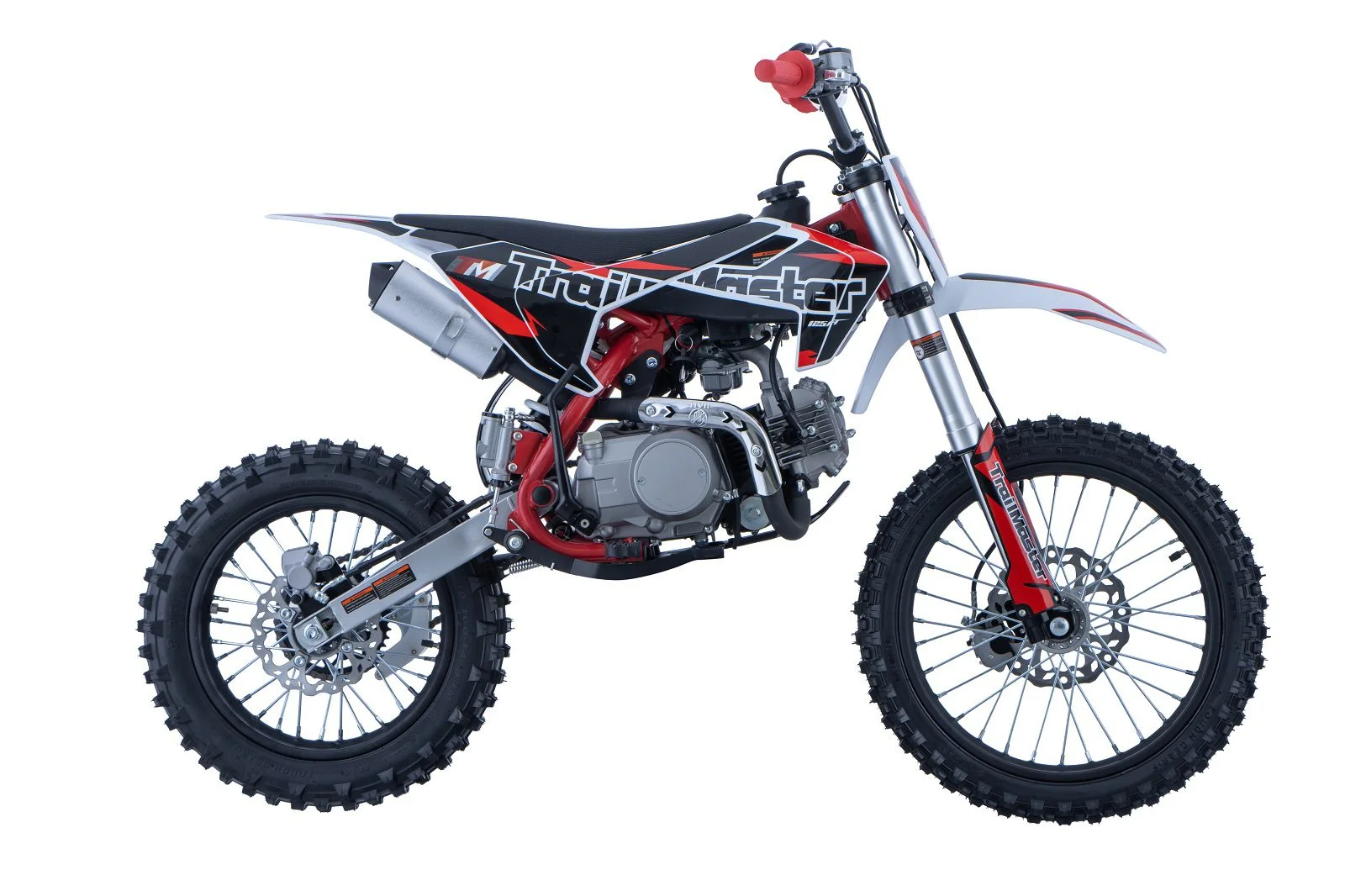

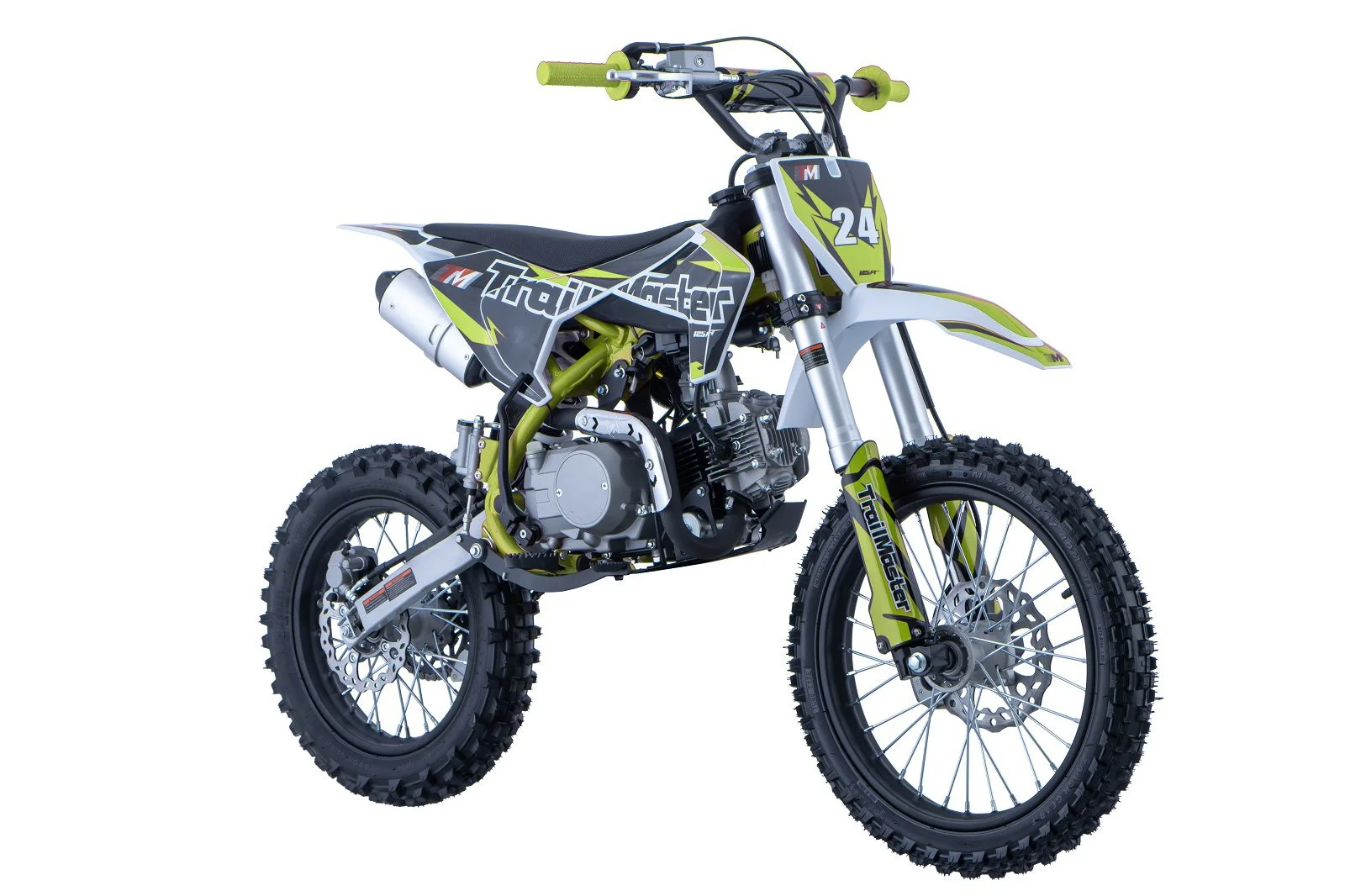

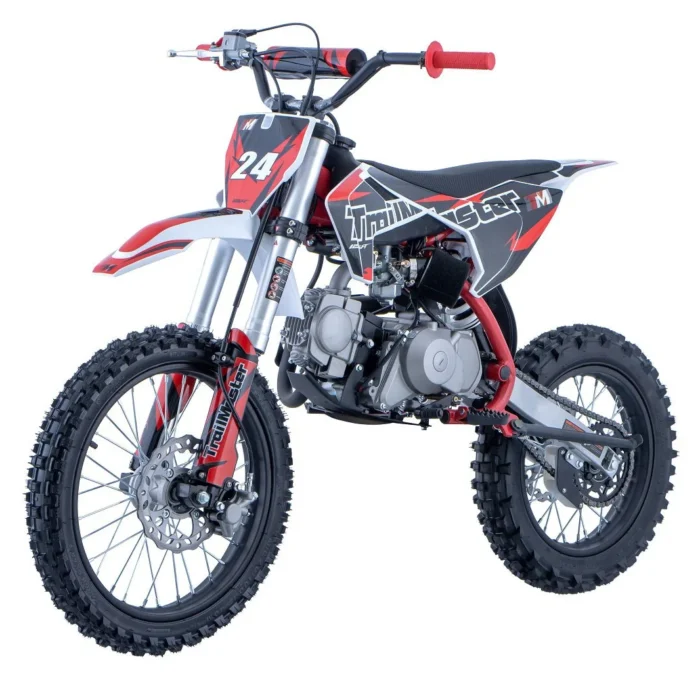

Trailmaster TM24 125cc Dirt Bike, Semi-Automatic, Single Cylinder, 4-Stroke, Air Cooled, Kick Start & Electric Start

Original price was: $1,399.Current price is: $1,149.

20 products sold in last 9 hours
Selling fast! Over 11 people have in their cart
30 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

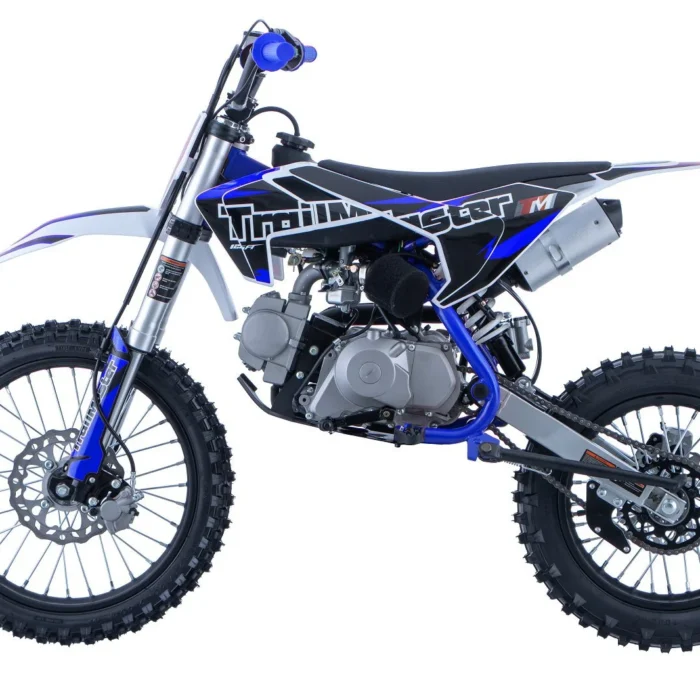

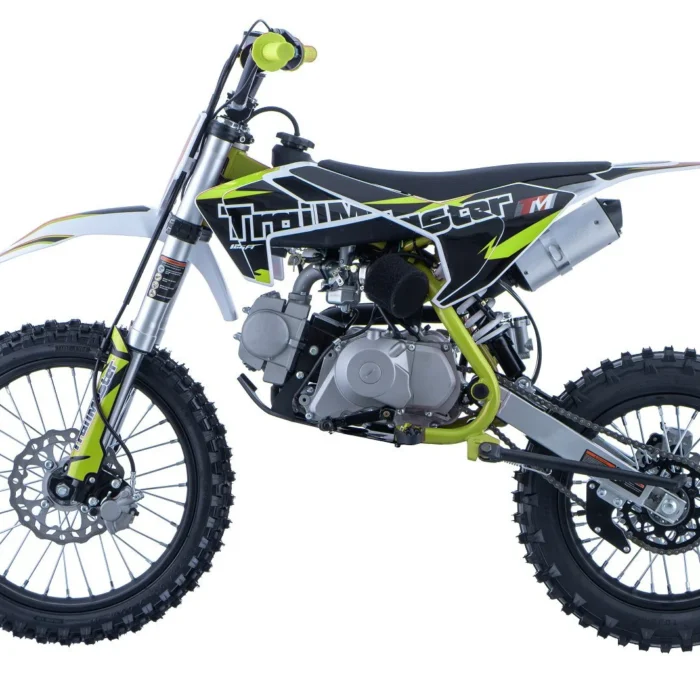

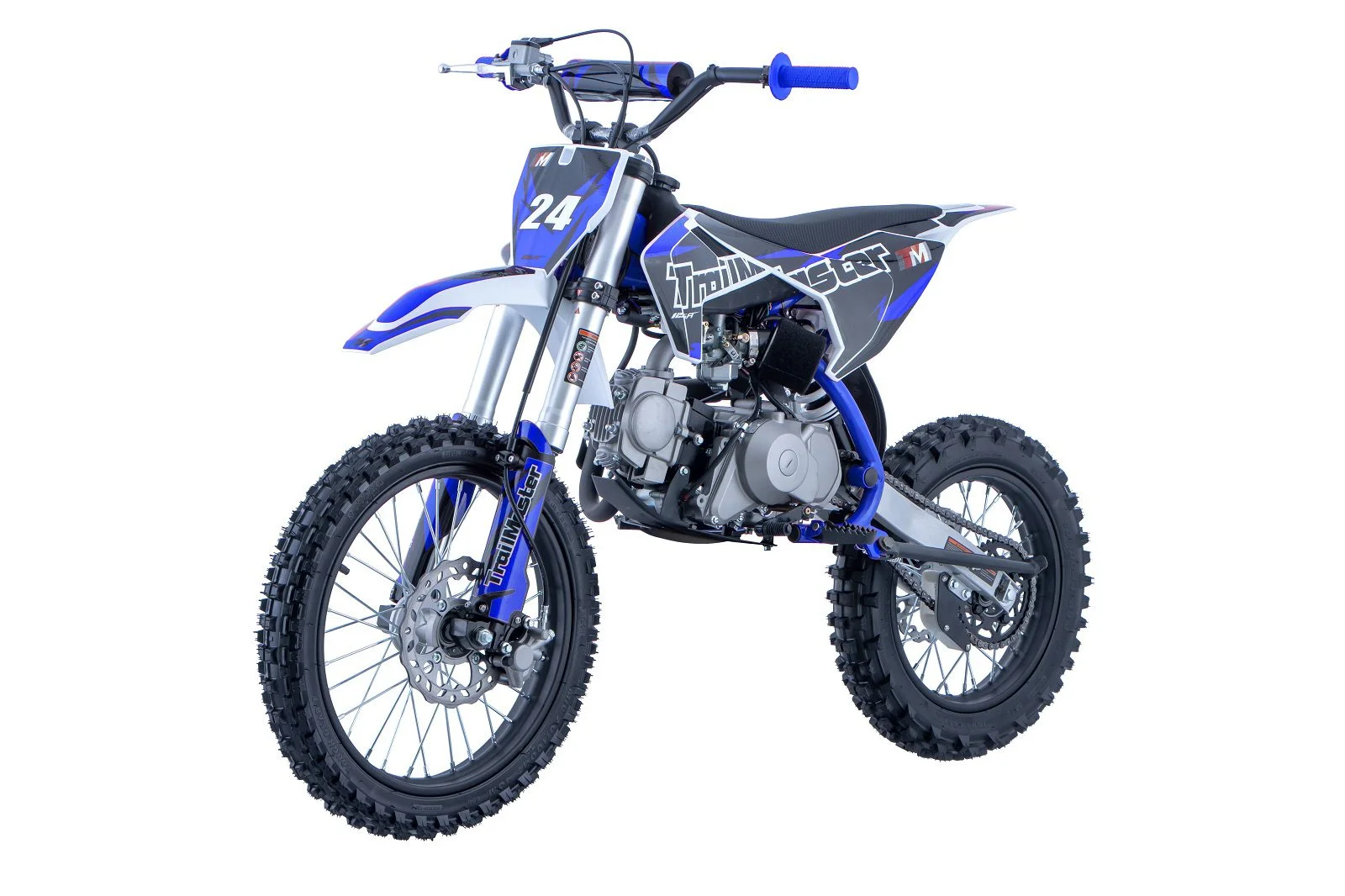

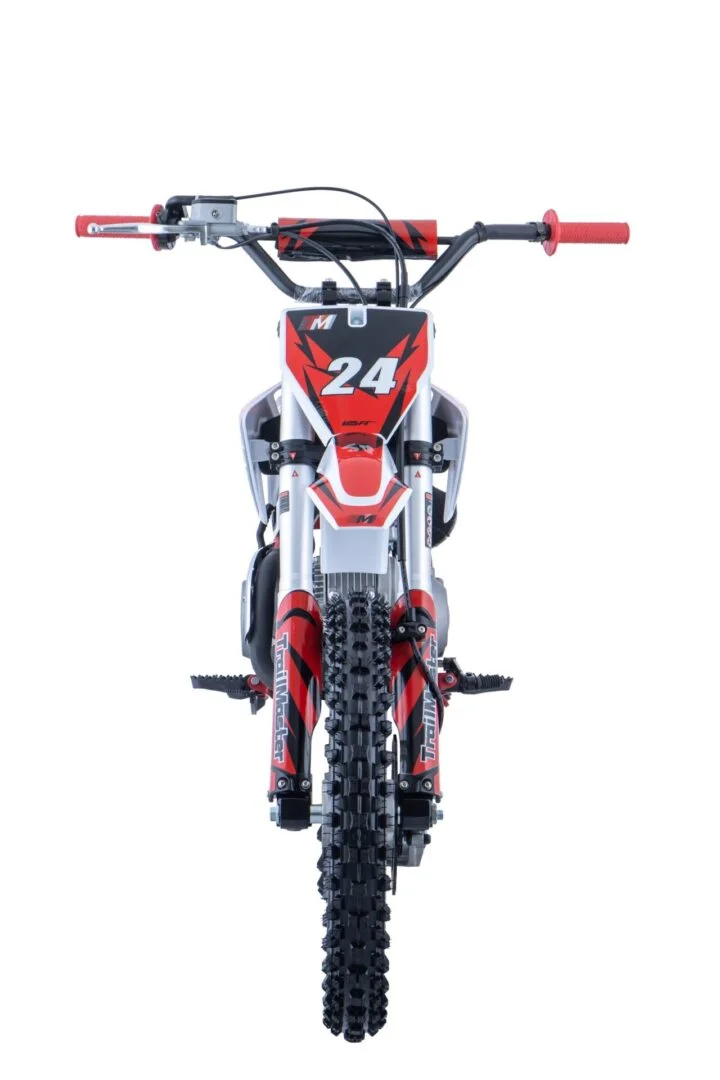

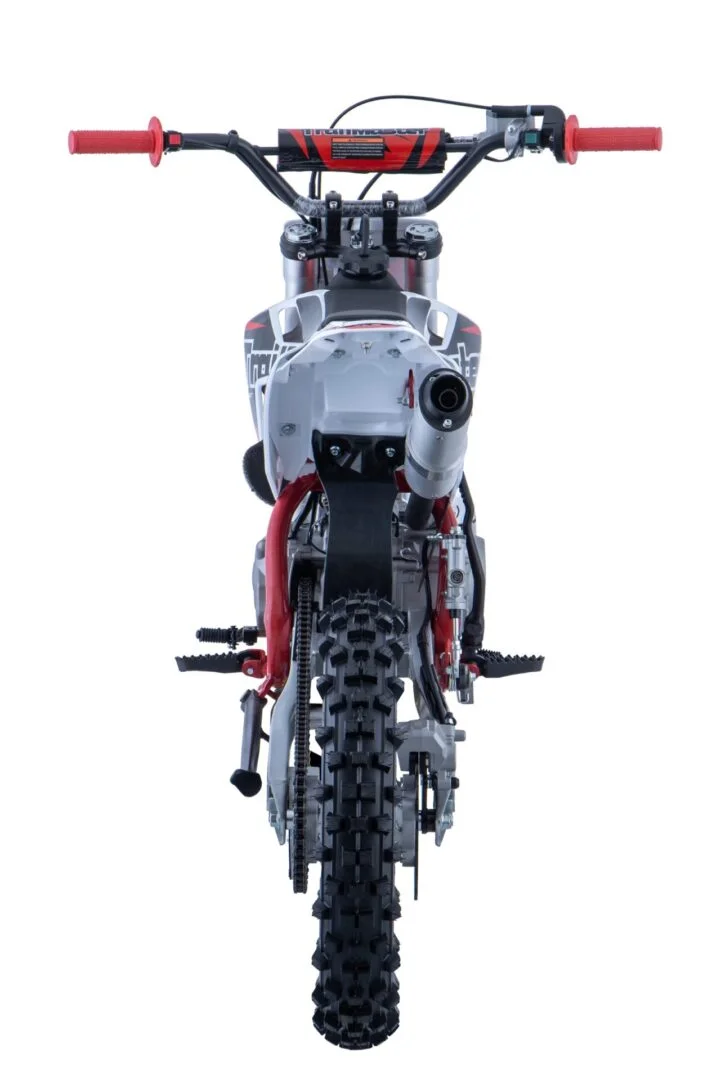

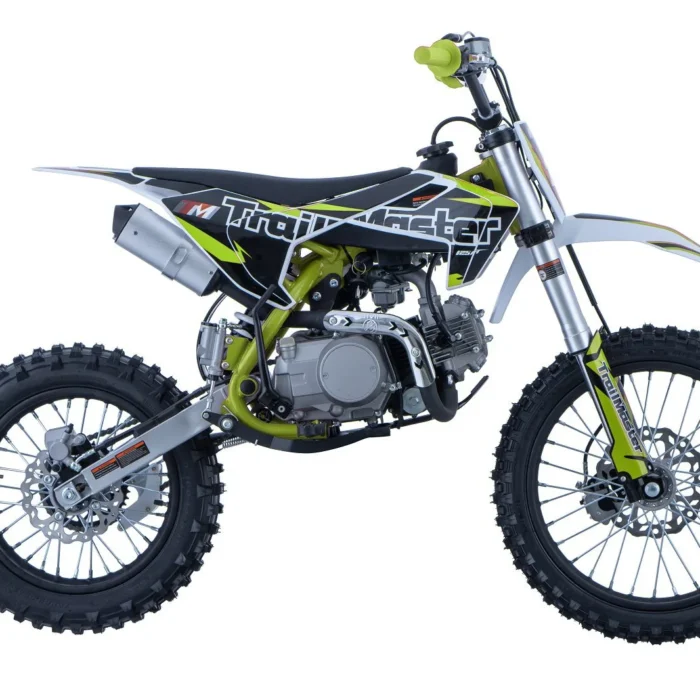

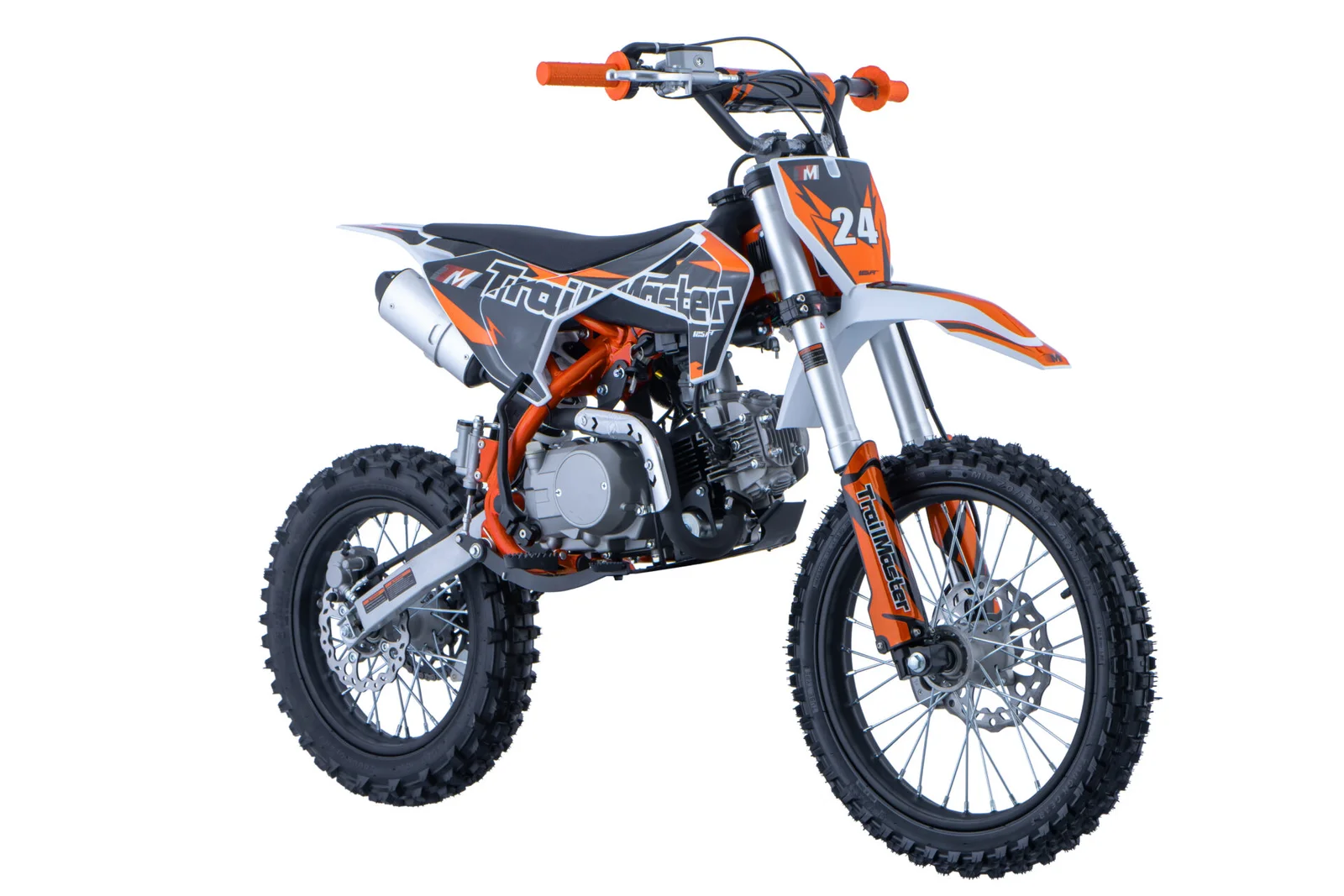

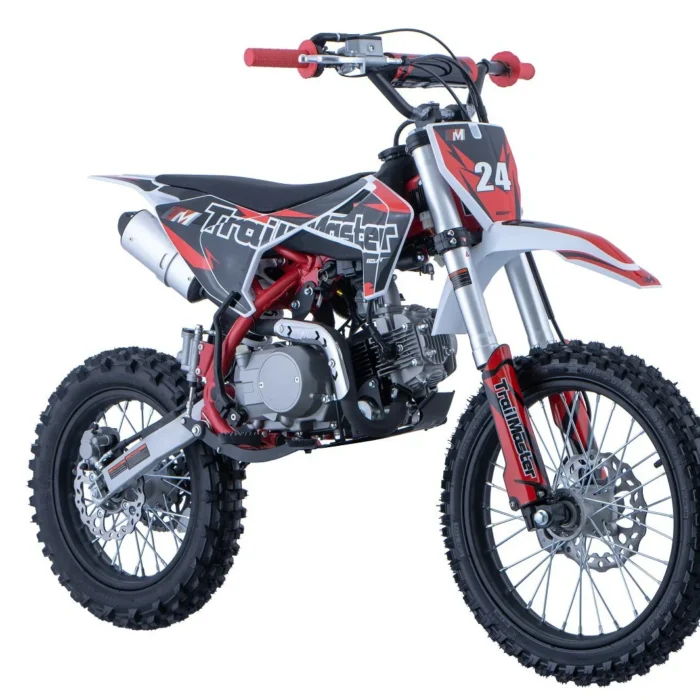

Trailmaster TM24 125cc Dirt Bike, Semi-Automatic, Single Cylinder, 4-Stroke, Air Cooled, Kick Start & Electric Start

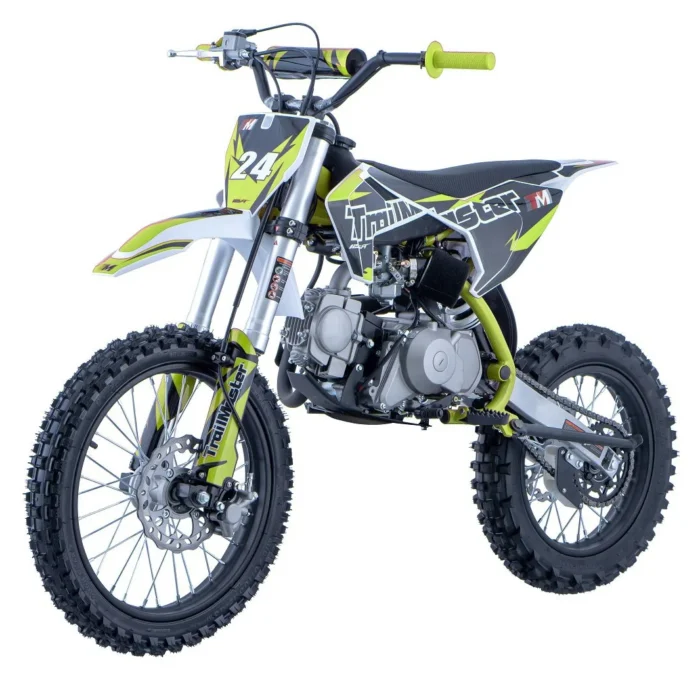

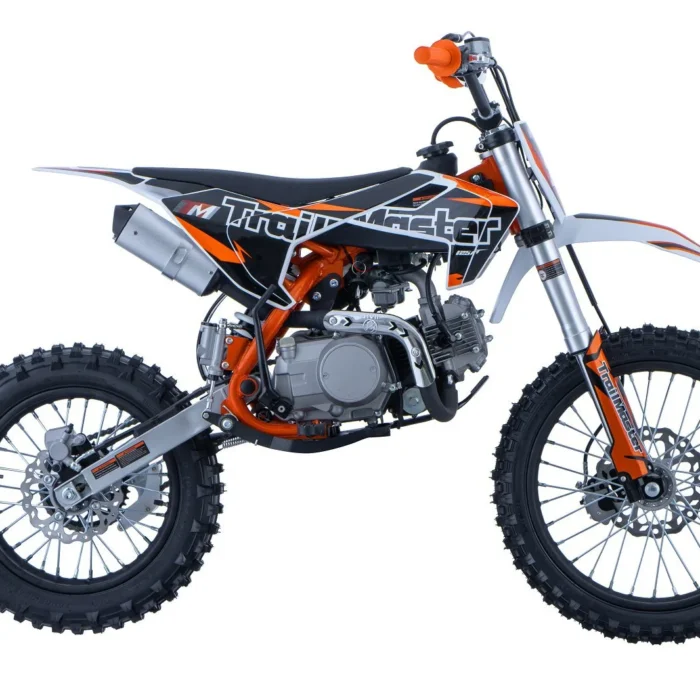

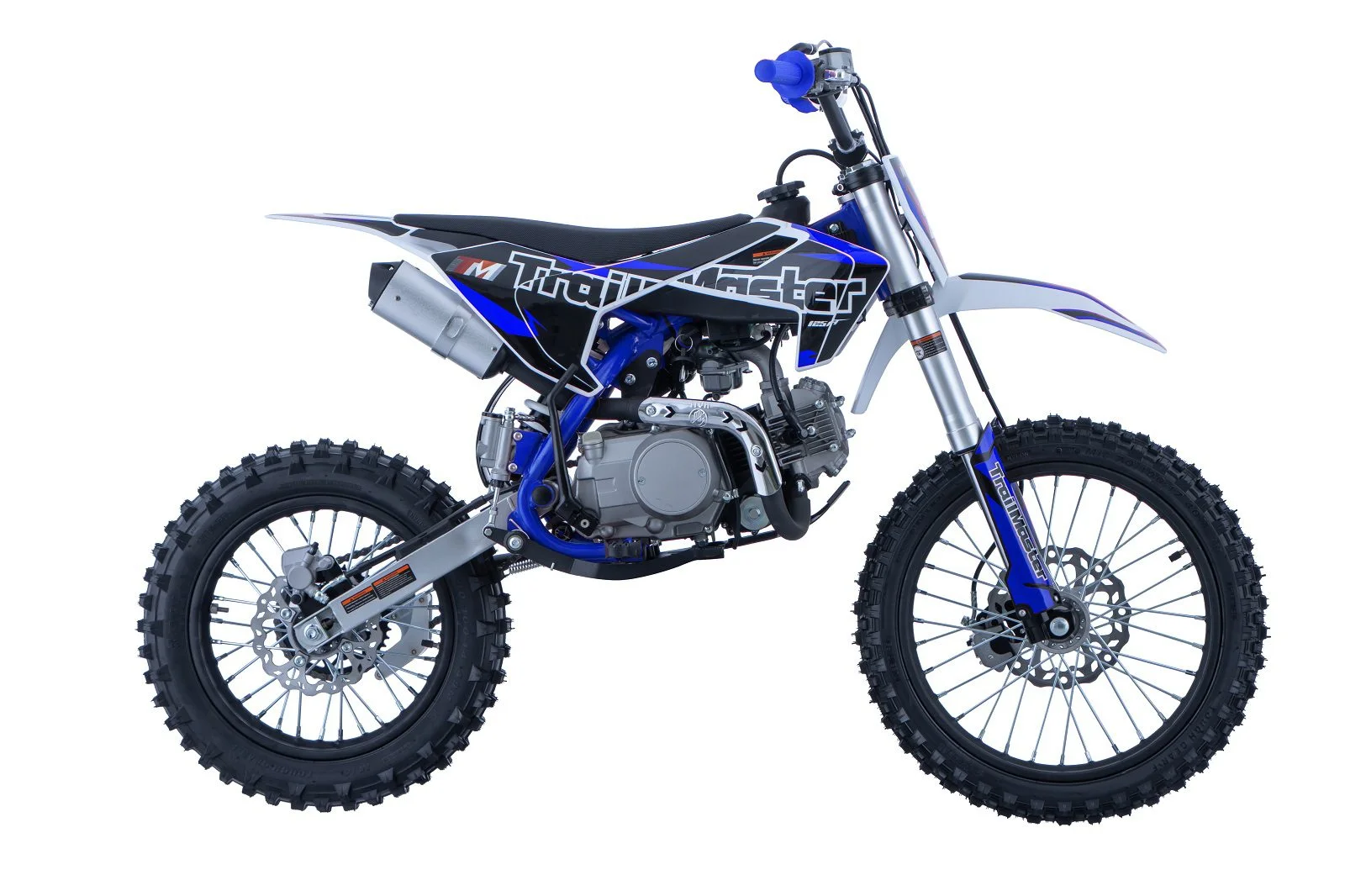

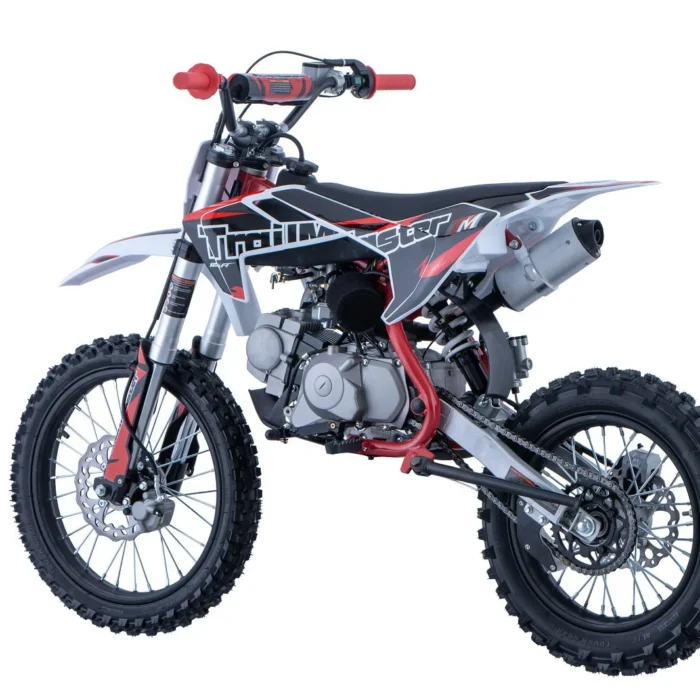

The TM 24-125 Dirt Bike is a high-performance, mid-size motorcycle built for riders who want power, durability, and smooth handling. It features a 125cc 4-stroke engine that delivers 8.3 horsepower and can reach a top speed of 35 MPH. With a seat height of 32”, this bike is suitable for a wide range of riders, and it comes in red, blue, green, and orange colors.

Equipped with a 4-speed manual transmission and front and rear disc brakes, the TM 24-125 offers precise control and reliability. The heavy-duty frame ensures durability, while the motocross-style ergonomics and race suspension provide excellent handling on various terrains.

With electronic CDI ignition, starting the bike is easy, and it ensures smooth operation across all gears. Weighing only 161 pounds, the 125cc engine offers a powerful ride with an even power band, making it perfect for both beginners and experienced riders.

Additional features include a 41.54-inch wheelbase, 29.13-inch seat height, 14” front tire and 12” rear tire, and an aluminum handlebar for added durability. The hydraulic front and rear disc brakes ensure reliable stopping power, making the TM 24-125 a great choice for off-road adventures.



Vehicle Specifications

Engine System

  • Engine Type: ZM125cc, Single Cylinder, 4-Stroke, Air Cooled
  • Displacement: 124 ml
  • Max Power: 6.2 kW @ 7000 rpm
  • Max Torque: 9.0 N.m @ 5000 rpm
  • Compression Ratio: 9.6:1
  • Shift Type: N-1-2-3-4, Four-Gear, Automatic Clutch
  • Start Type: Kick Start & Electric Start
  • Ignition: CDI
  • Transmission: Chain Drive; #428, 14/41T

Size Data

  • Dimensions (L x W x H): 64.2″ x 29.5″ x 41.5″
  • Wheel Base: 42.3″
  • Tires: Front: 70/100-17, Rear: 90/100-14
  • Seat Height: 32.7″
  • Ground Clearance: 13.6″
  • Fuel Capacity: 3.5 L
  • Minimum Fuel Consumption: ≤367g/kw.h
  • Max Range: ≤10.5 miles
  • Engine Oil: SJ5W-30

Frame/Suspension/Brake/Wheel System

  • Frame: Cradle Type Steel Tube Frame
  • Front Fork: Inverted 45×48-700mm Forks, Non-Adjustable
  • Rear Shock: ¢10 x 275mm, Non-Adjustable
  • Swing-Arm: Steel Tube
  • Handle Bar: Aluminium Crossbar, L=720mm, Dia=22mm
  • Wheels: Steel 1.6 x 17″ (Front) / 1.85 x 14″ (Rear) Rims, Cast Hubs
  • Front Brake: Hydraulic Single Piston Caliper, 210mm Disc
  • Rear Brake: Hydraulic Single Piston Caliper, 190mm Disc
  • Exhaust: Stainless Steel Header Pipe, Hexagon Aluminum Silencer

Packing and Loading

  • Packing Size: 54.5″ x 14.8″ x 29.7″
  • Net Weight: 134.5 lbs
  • Gross Weight: 161 lbs

Transmission and dimension note: The stored page describes the TM24 as semi-automatic with an automatic clutch, but one narrative paragraph calls it a 4-speed manual transmission. Seat height also appears as 32 inches, 29.13 inches and 32.7 inches, while wheelbase appears as 41.54 inches and 42.3 inches. Buyers should verify the physical transmission/clutch setup, seat height and wheelbase on the exact bike before purchase. Also confirm the 124 mL engine, electric/kick start, hydraulic disc brakes and 17/14-inch wheel setup before off-road use. For general product-safety and recall checks, review the U.S. Consumer Product Safety Commission recall database. Browse more dirt bikes and powersports inventory at DLR Golf Carts.

Transmission, fit and wheel-data note: The product title identifies this as semi-automatic, while the narrative calls the transmission 4-speed manual and the technical table lists a four-gear automatic clutch. The stored seat-height values also vary between 29.13, 32 and 32.7 inches, and the narrative mentions 14/12-inch tires while the table lists 17/14-inch wheels/tires. Buyers should verify the physical transmission/clutch operation, seat height, wheel/tire sizes and identification labels on the exact bike before purchase. This dirt bike should be treated as off-road unless exact vehicle documentation and local rules establish otherwise. For general product-safety and recall checks, review the U.S. Consumer Product Safety Commission recall database. Browse more dirt bikes and powersports inventory at DLR Golf Carts.

Condition

New

Power Type

Gas
