Apollo DB-Z20 125cc Dirt Bike, 4-Speed Manual, 4-Stroke, Single Cylinder, Air-Cooled
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

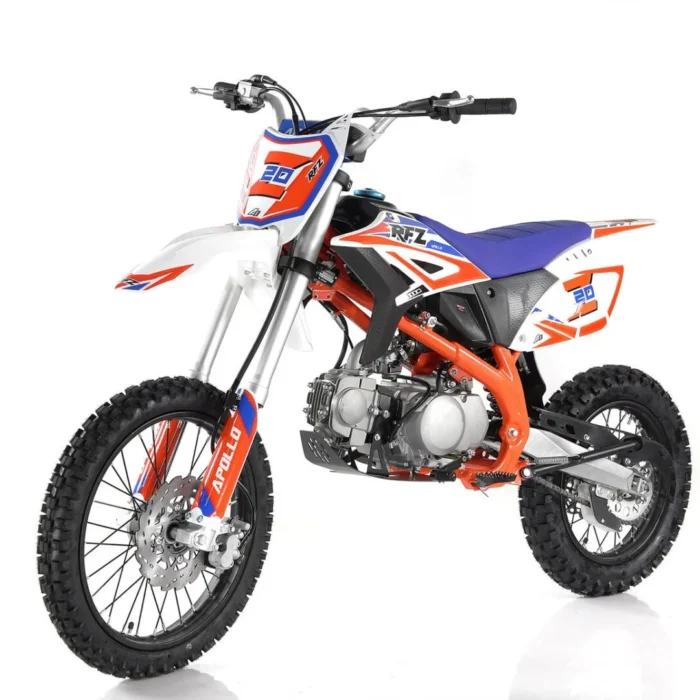

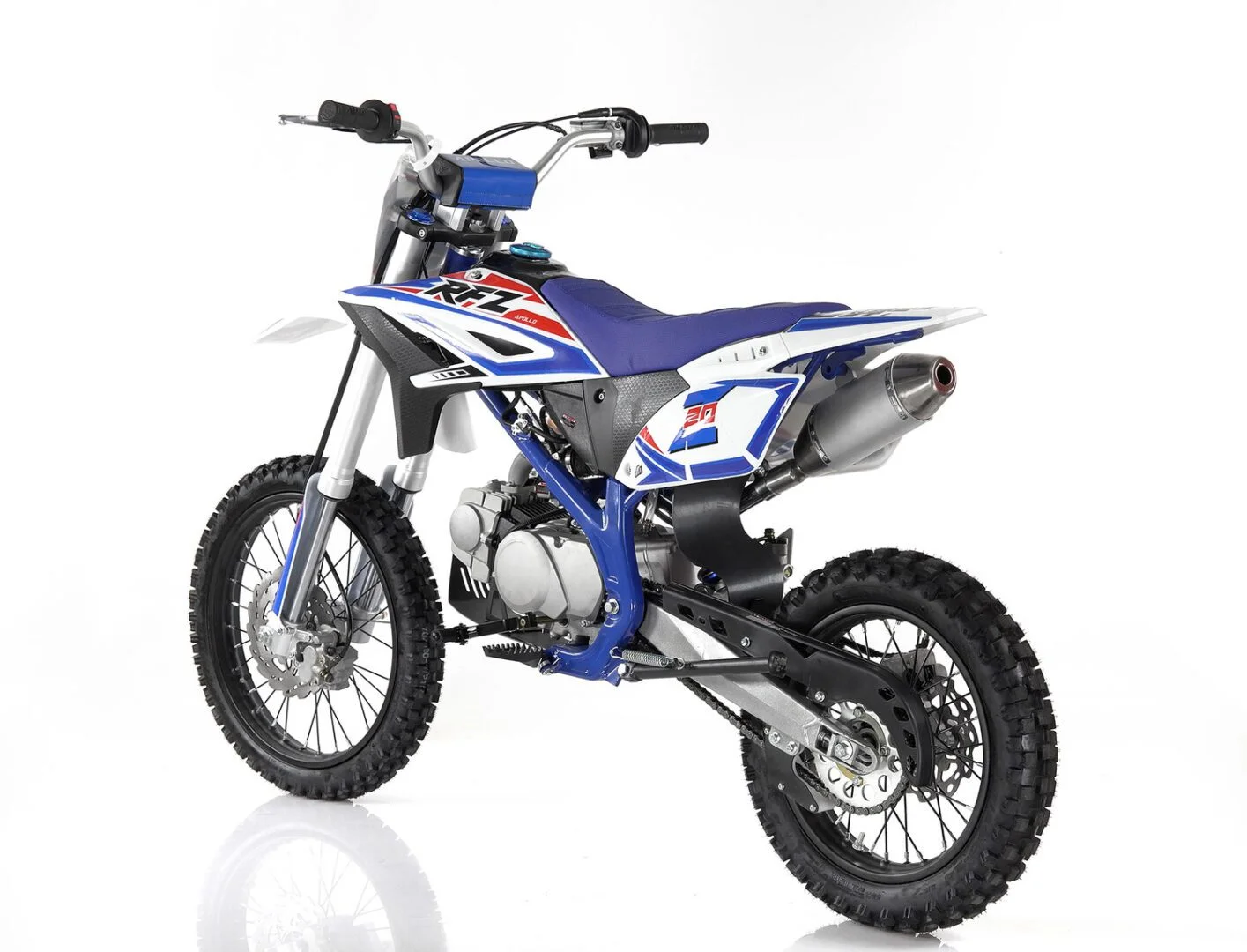

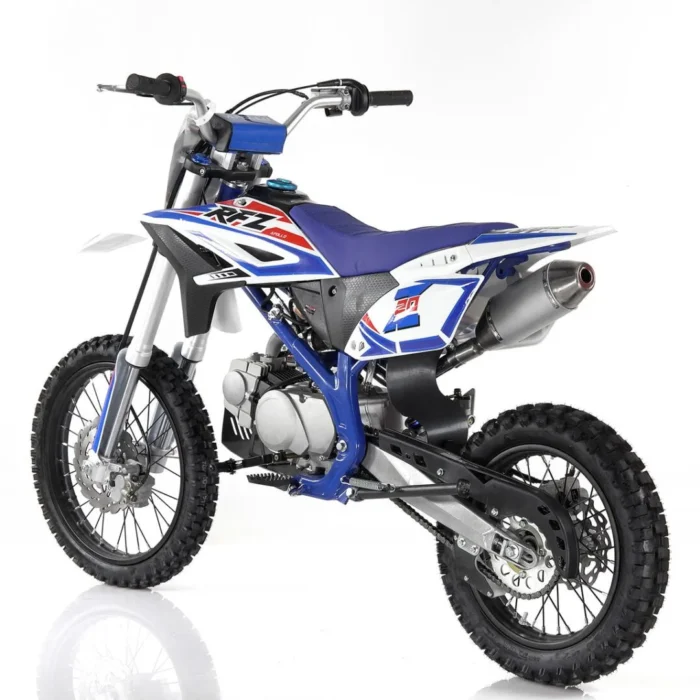

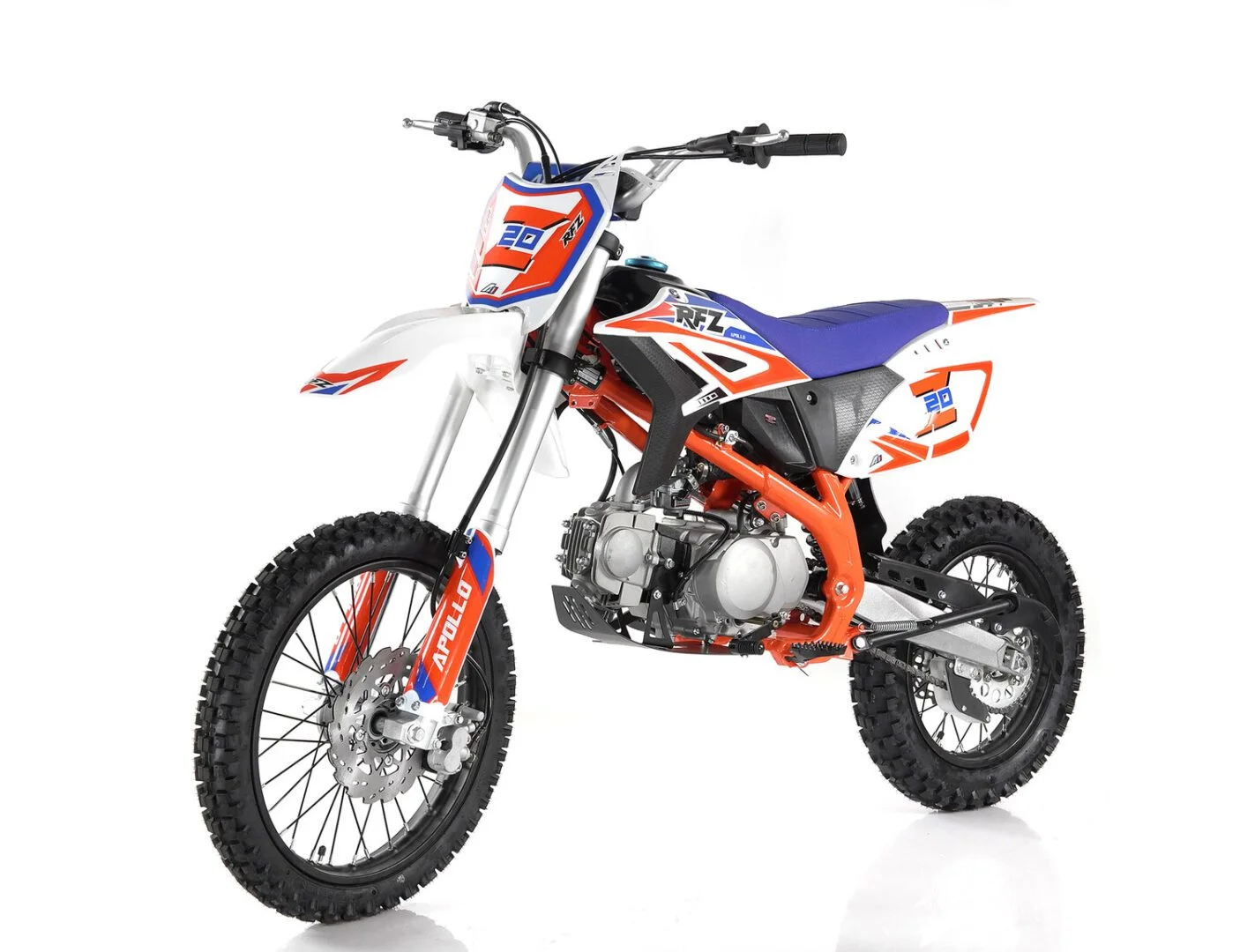

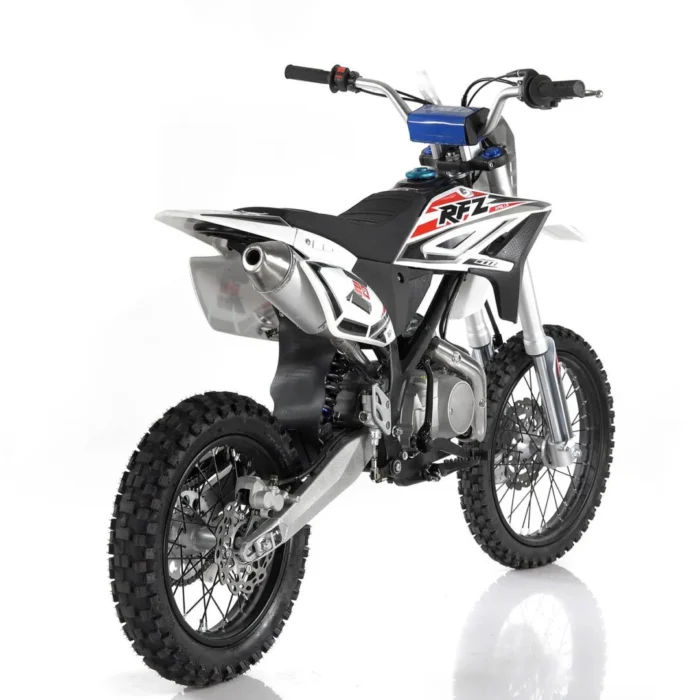

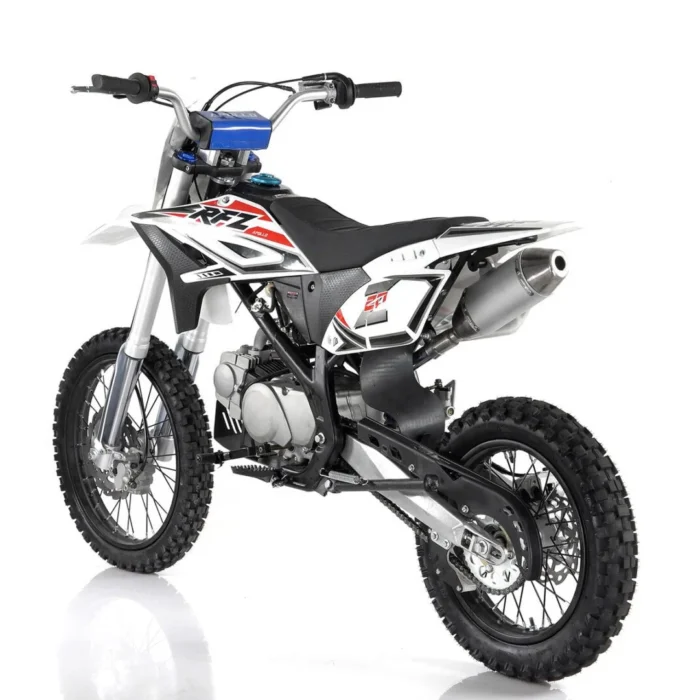

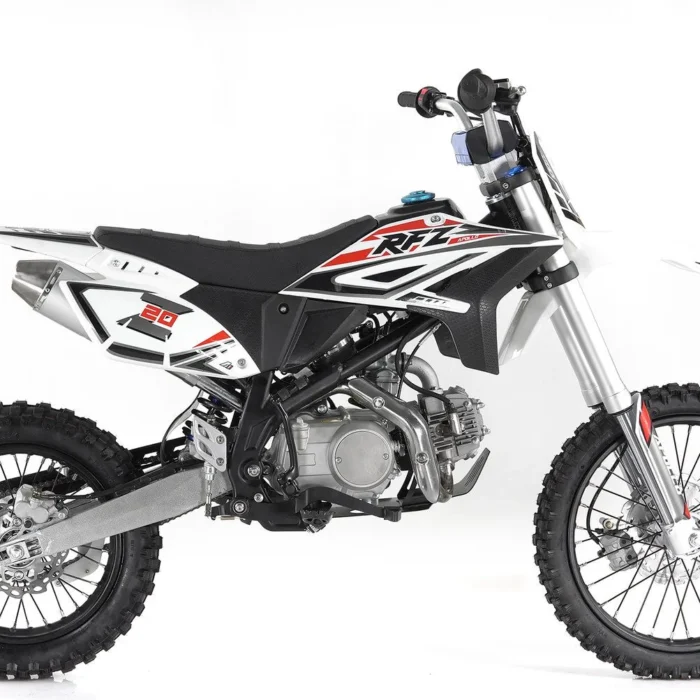

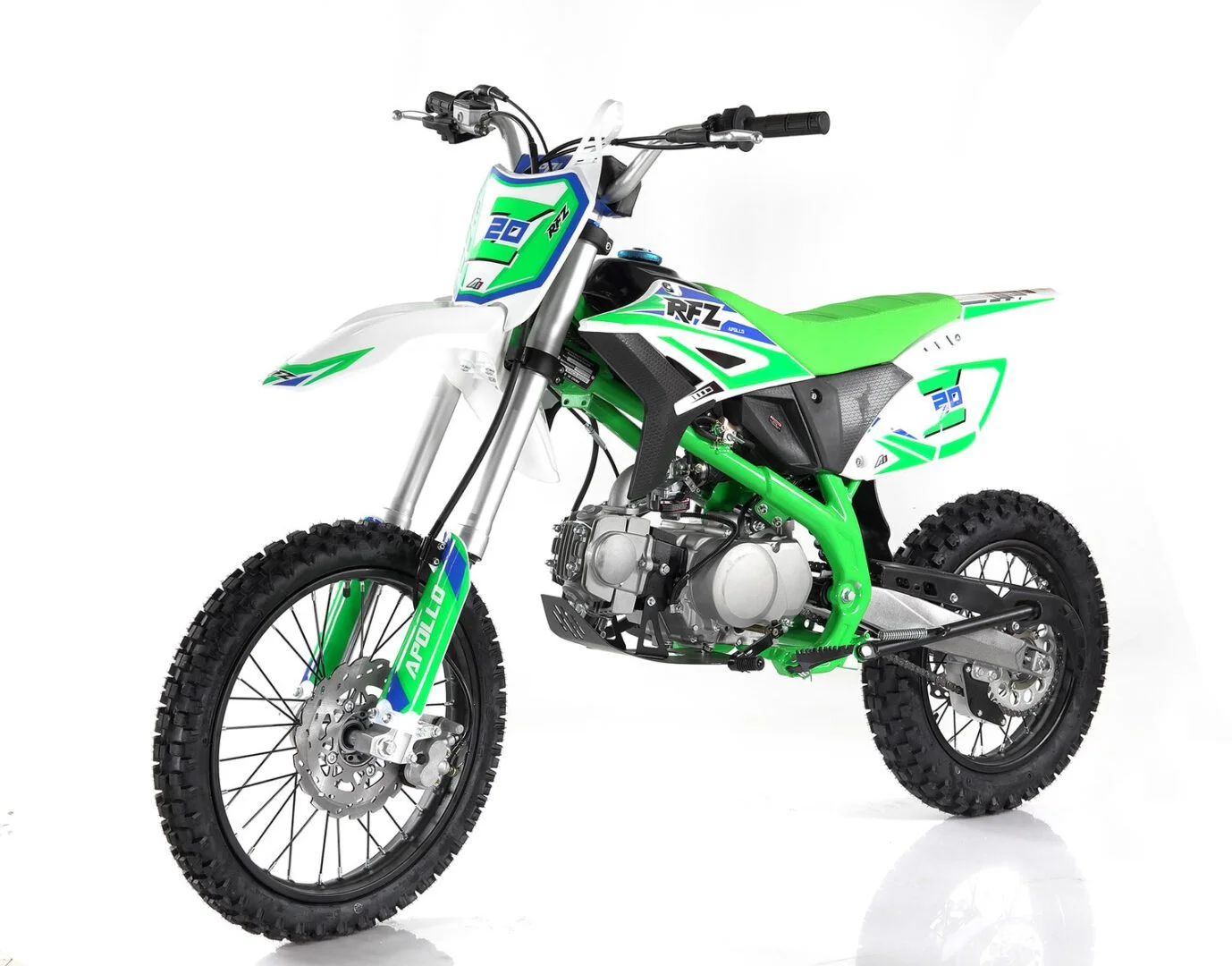

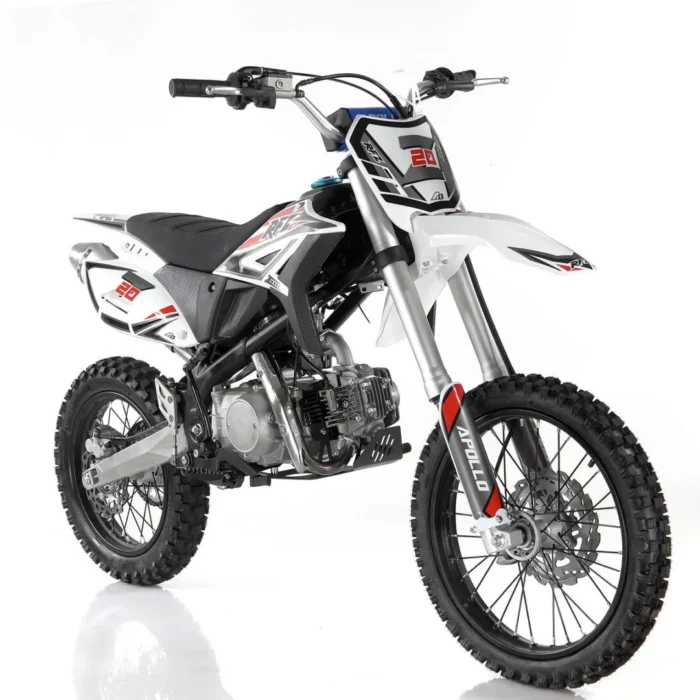

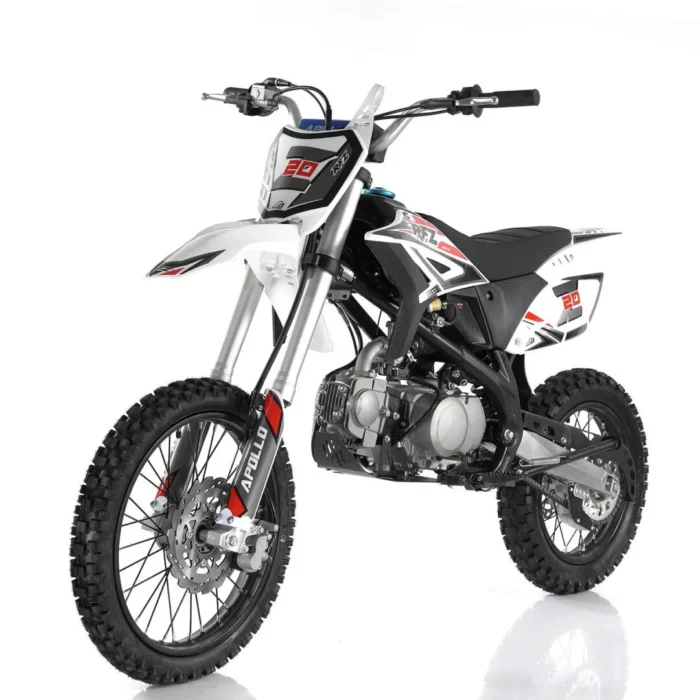

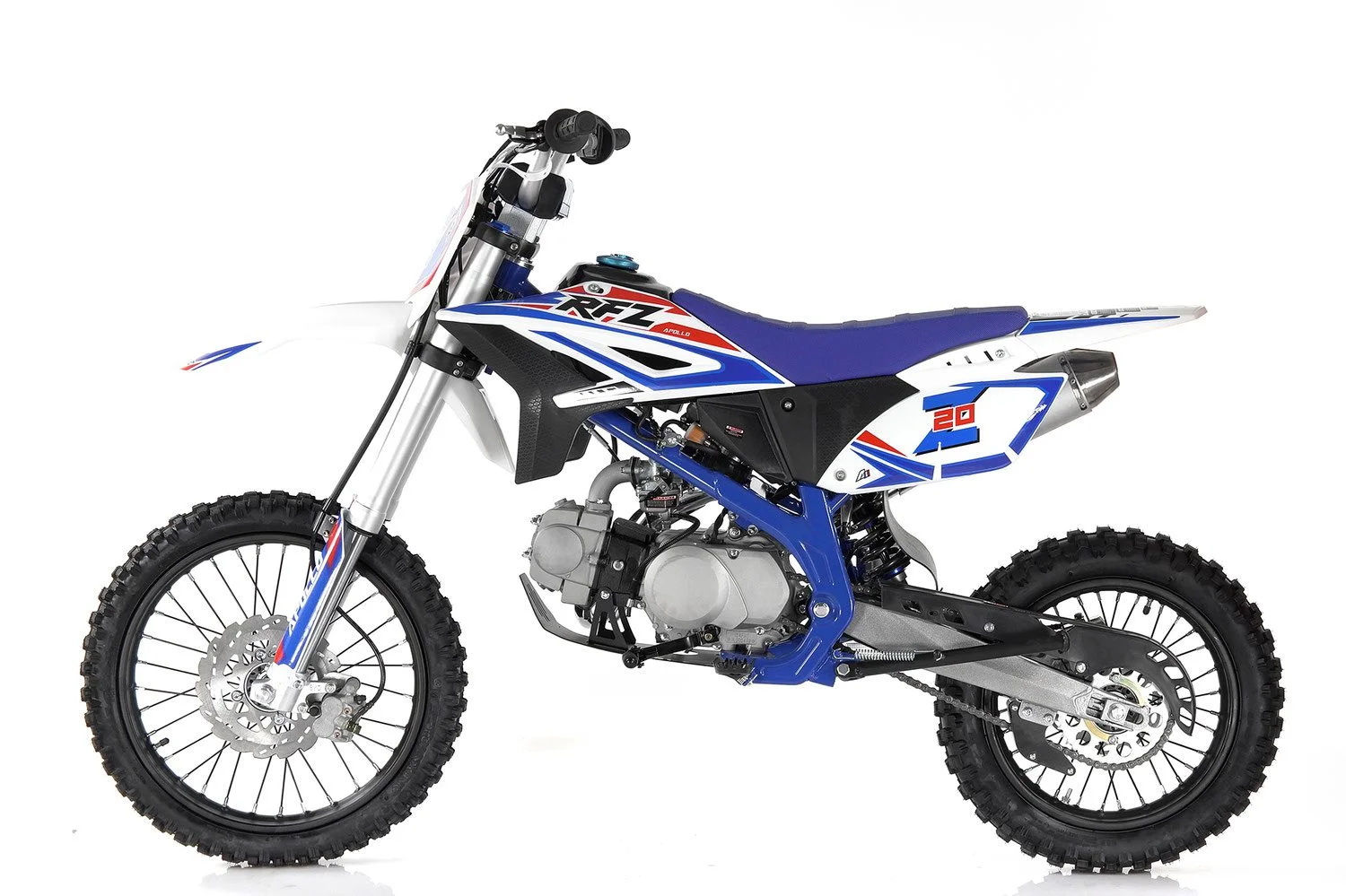

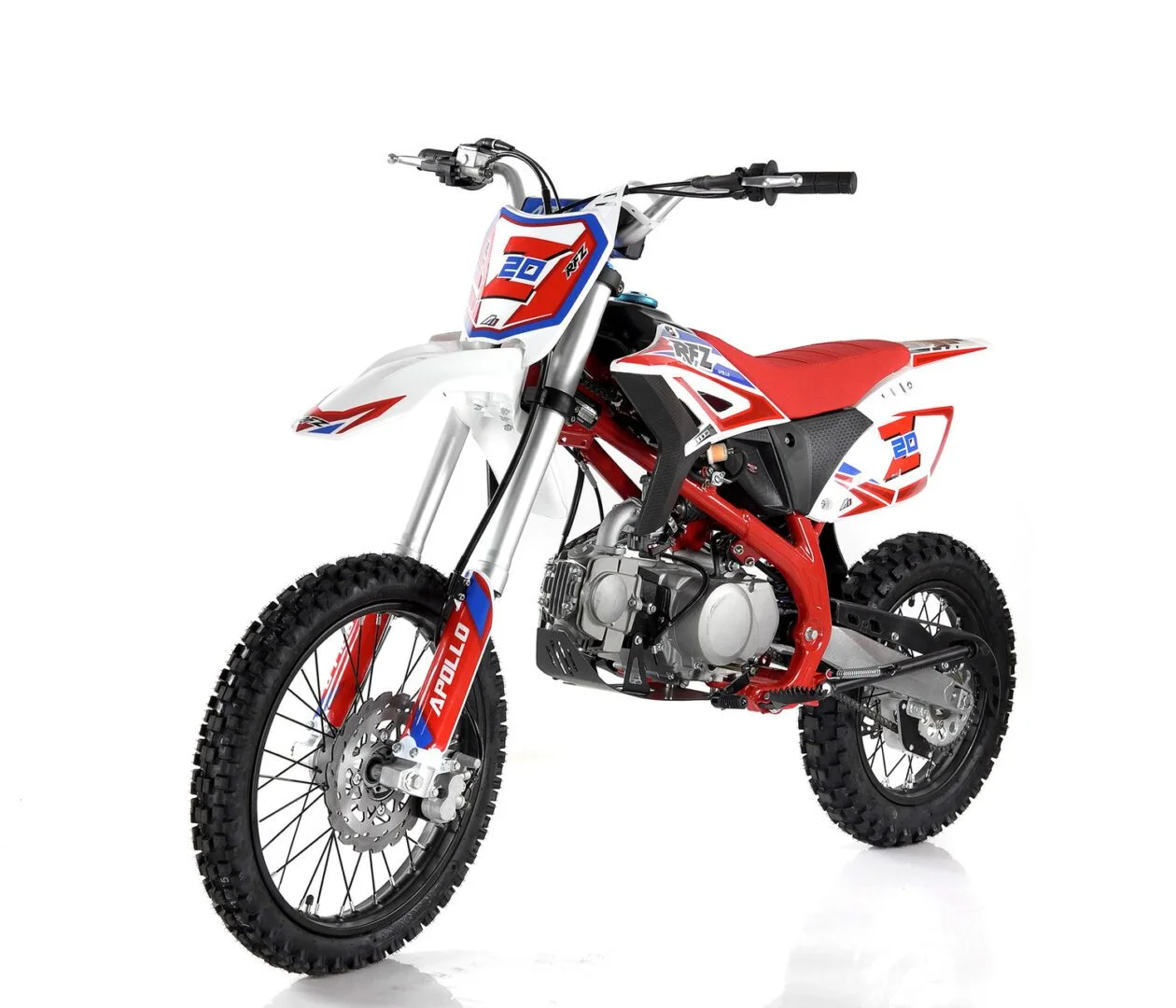

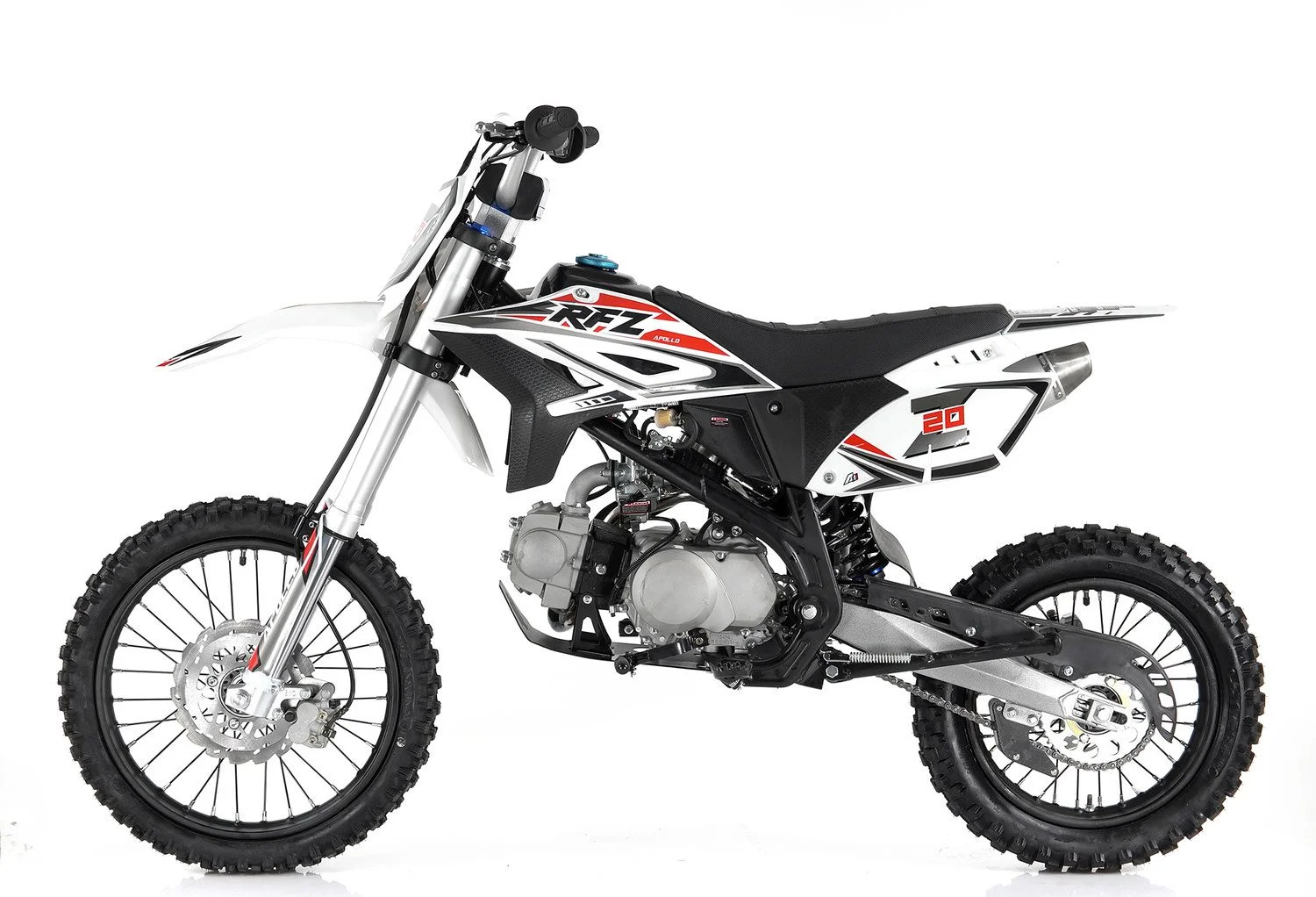

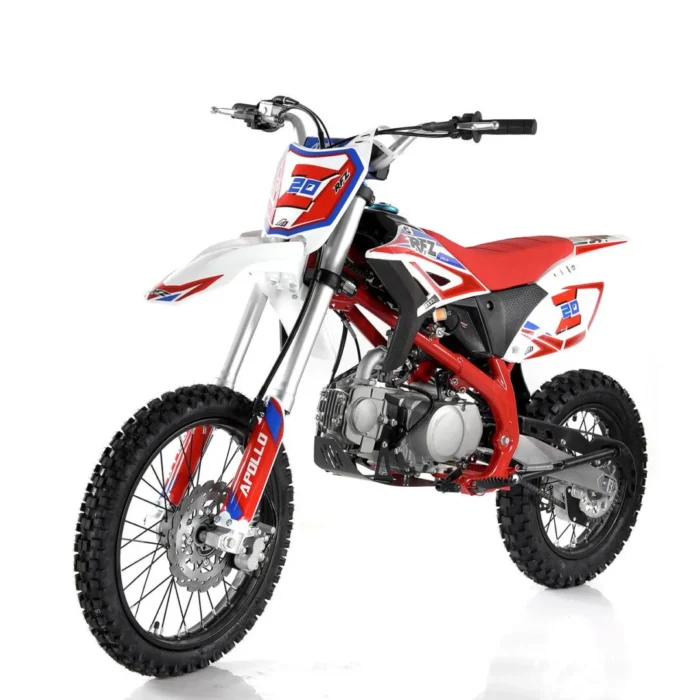

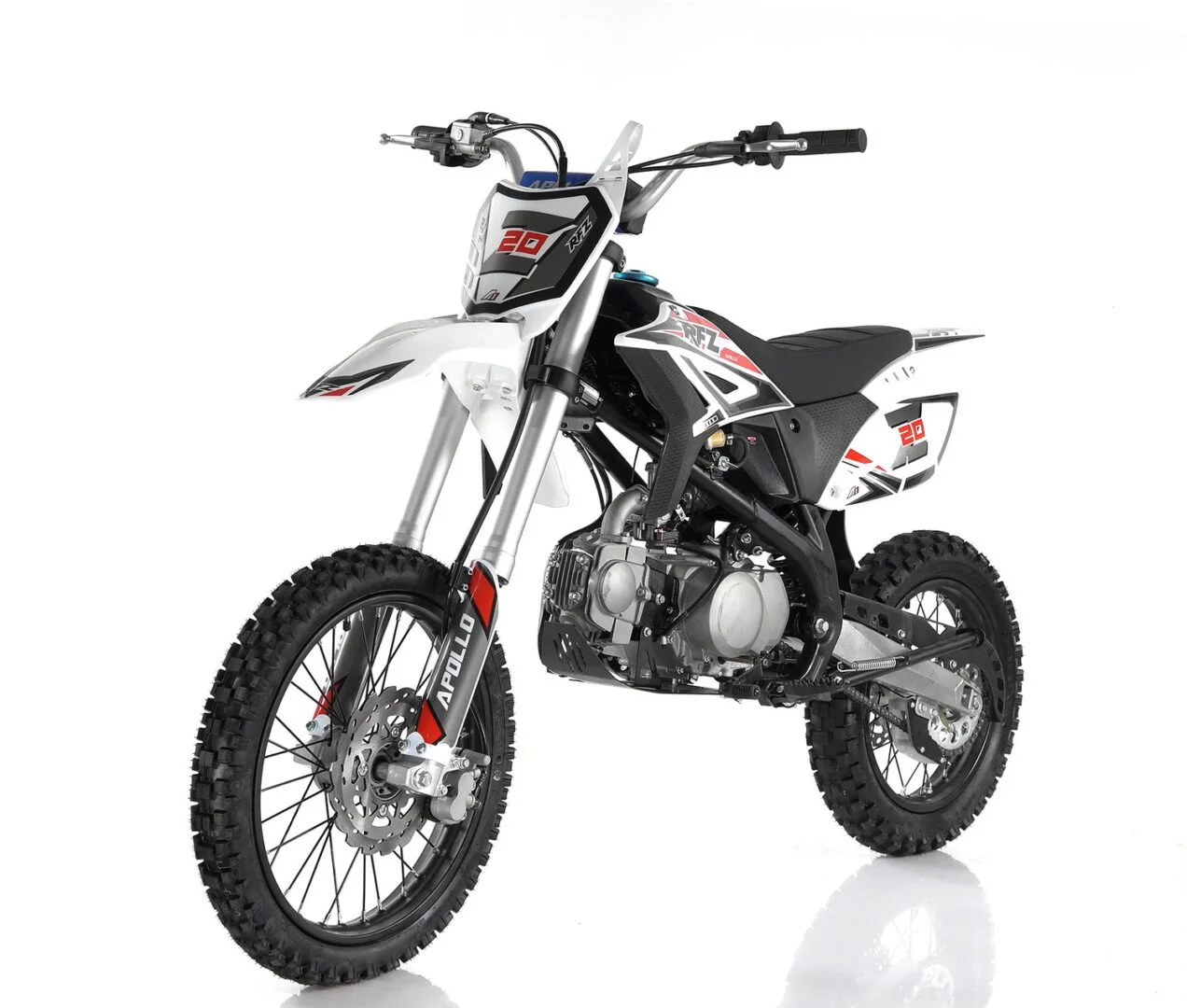

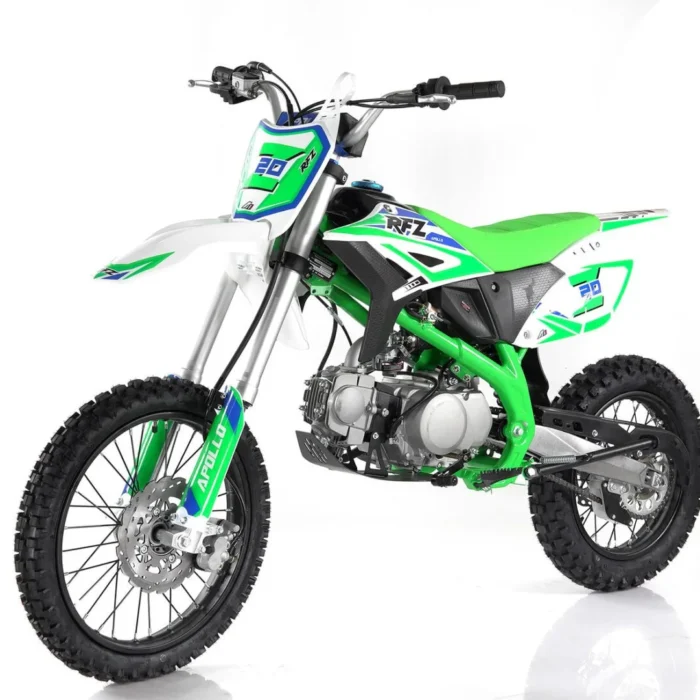

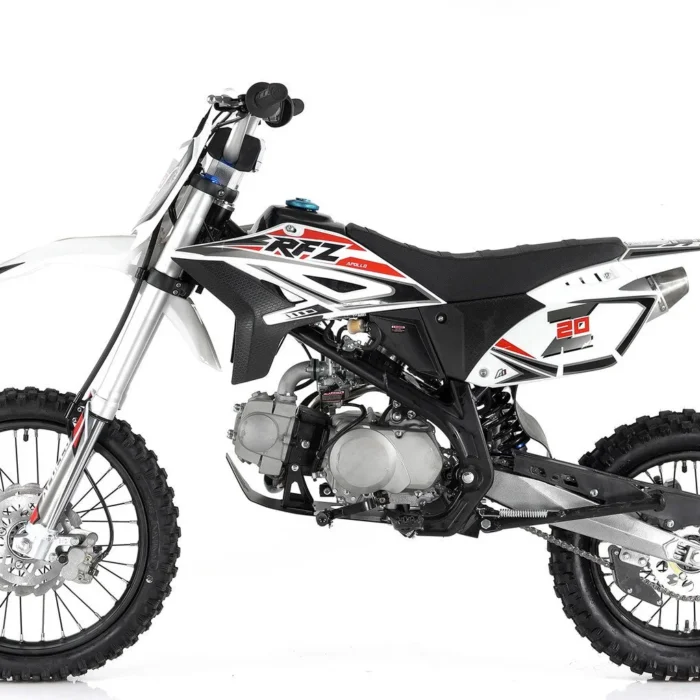

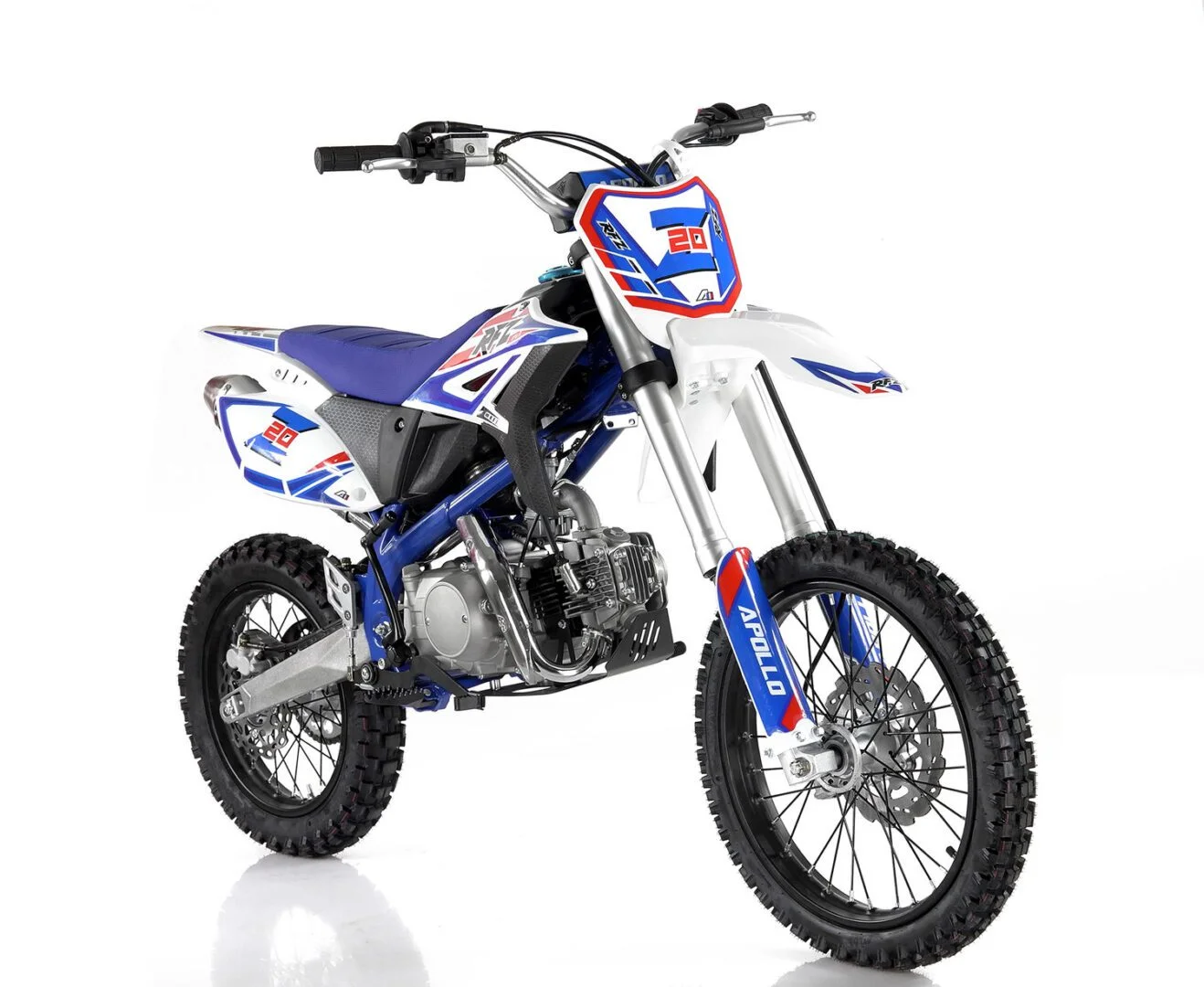

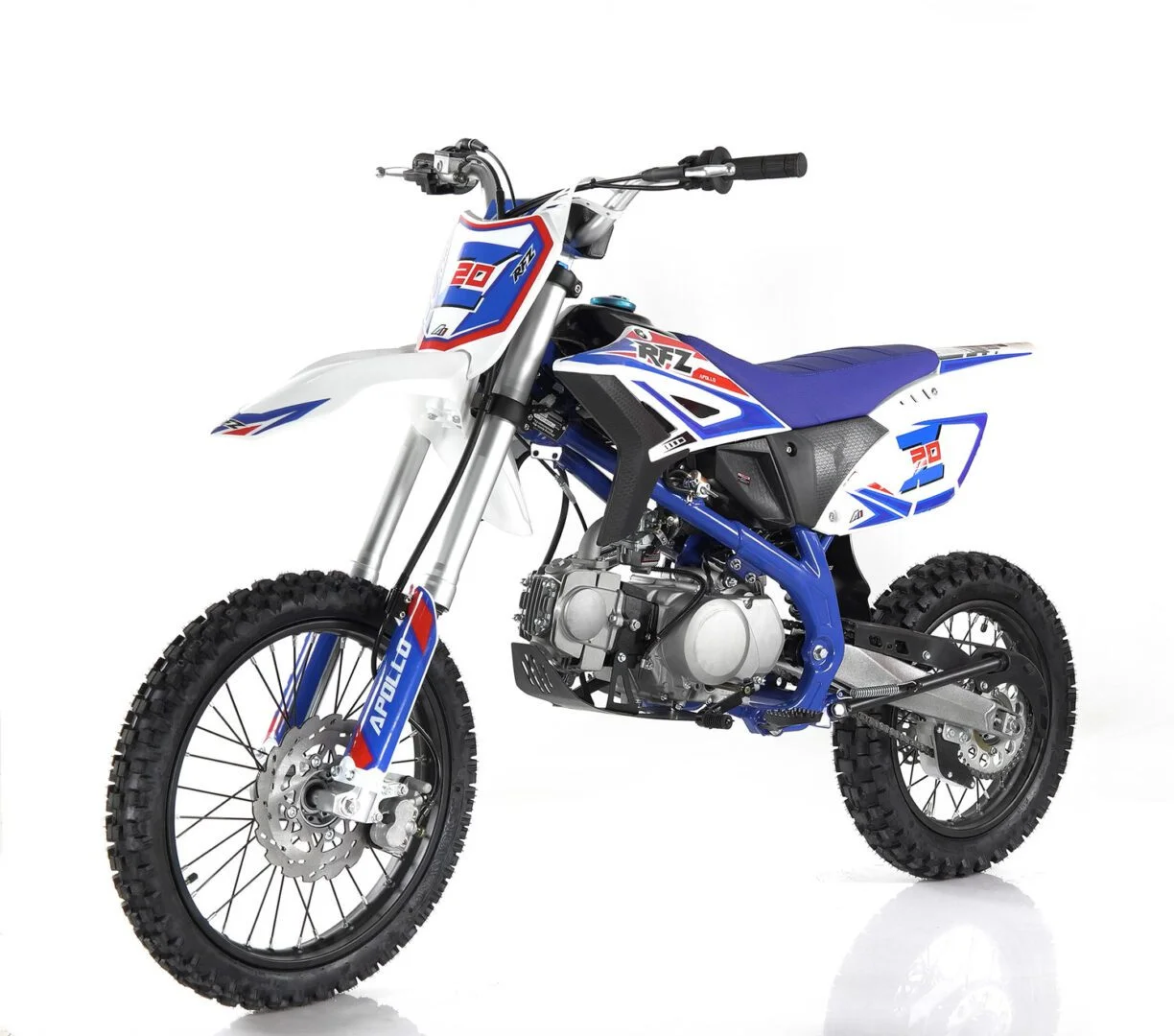

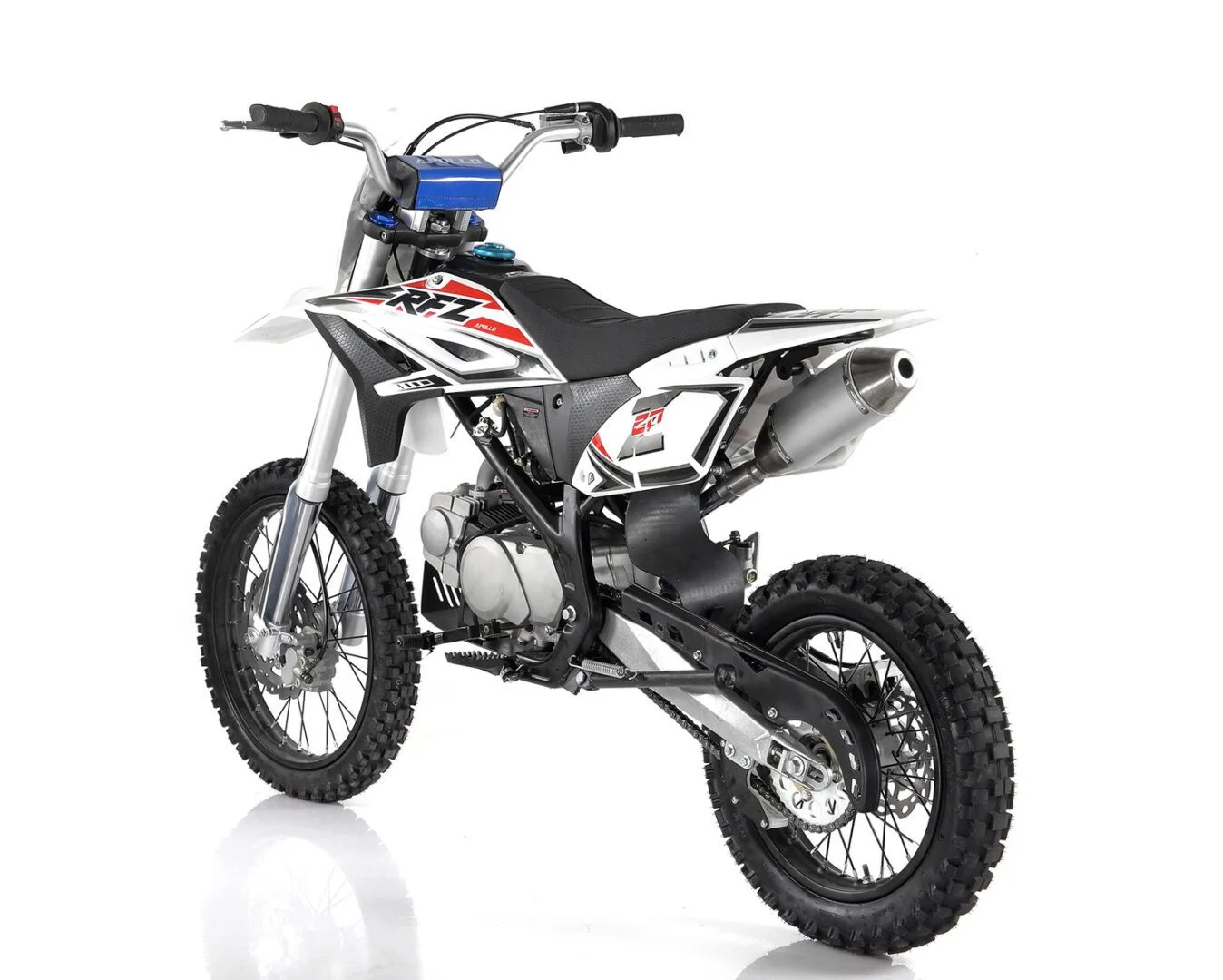

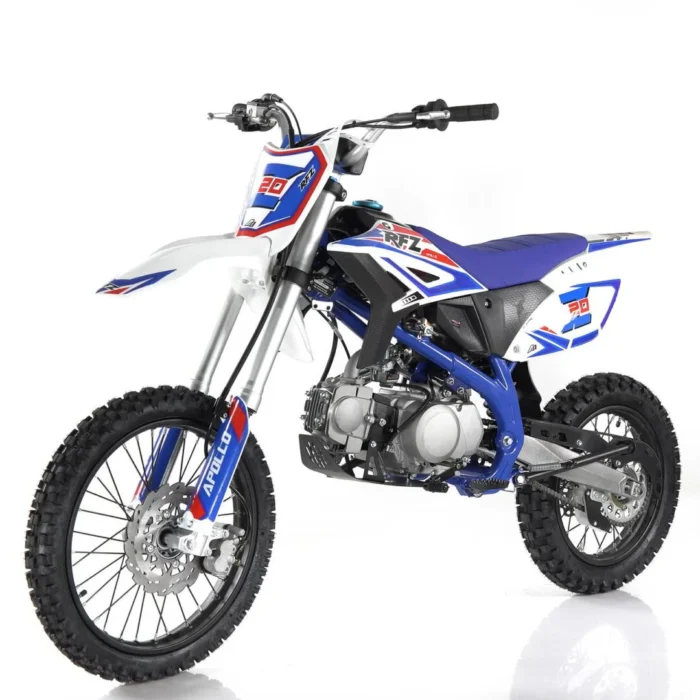

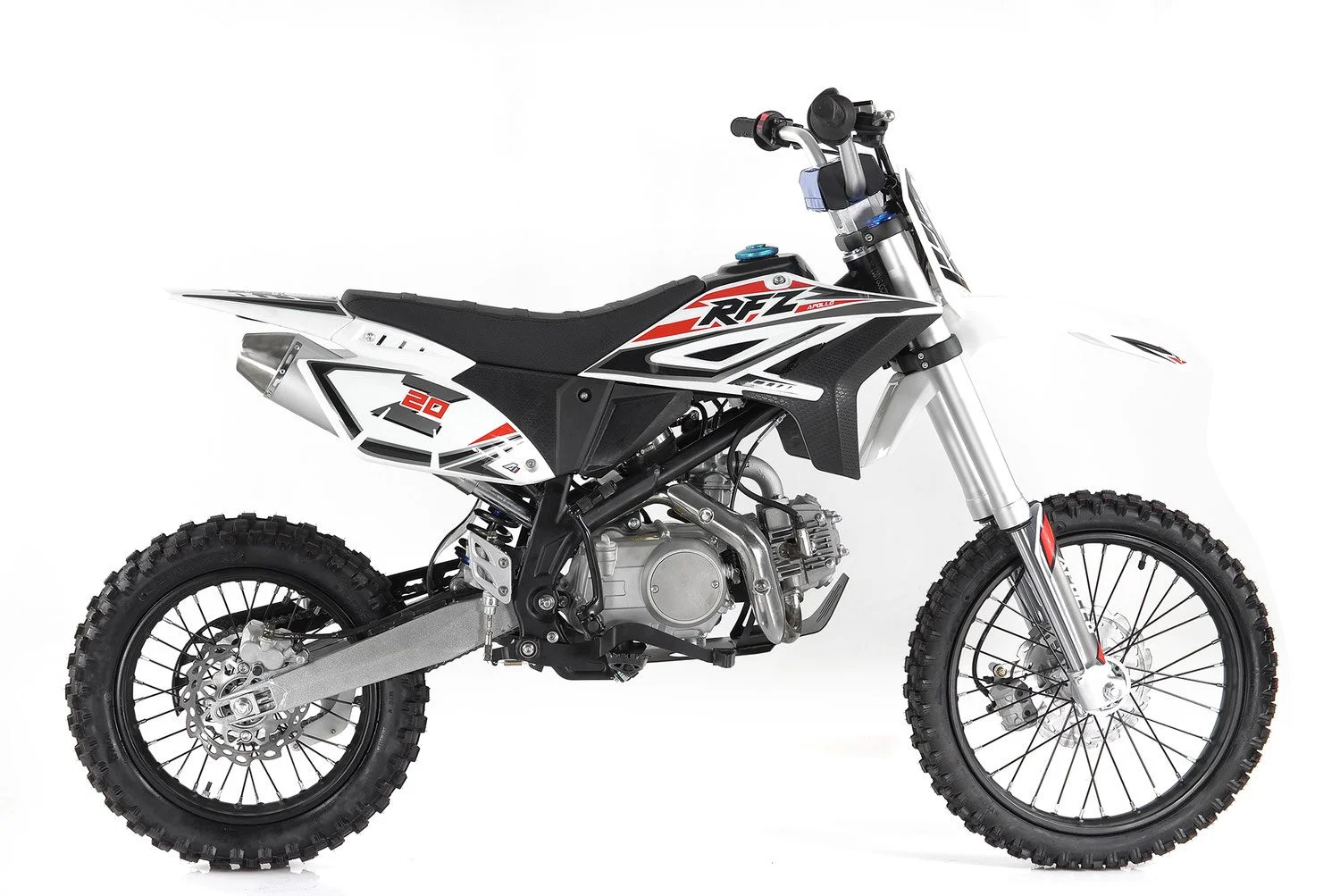

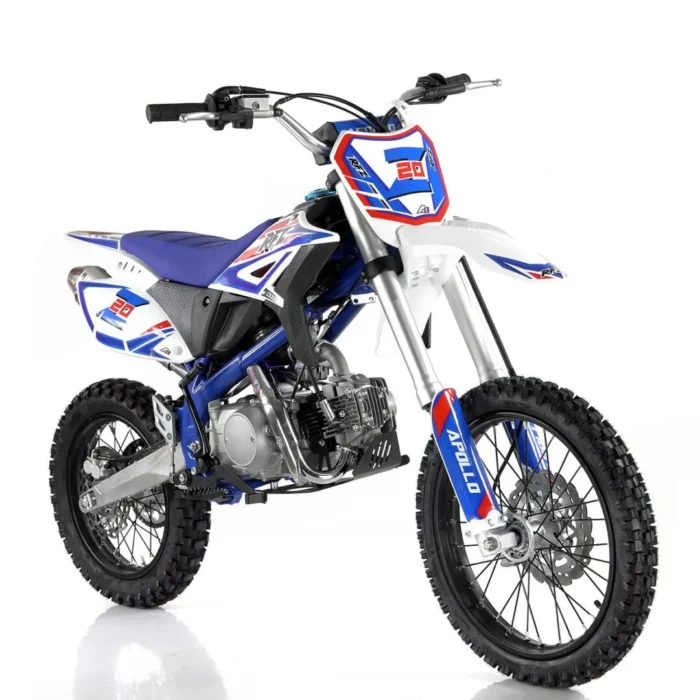

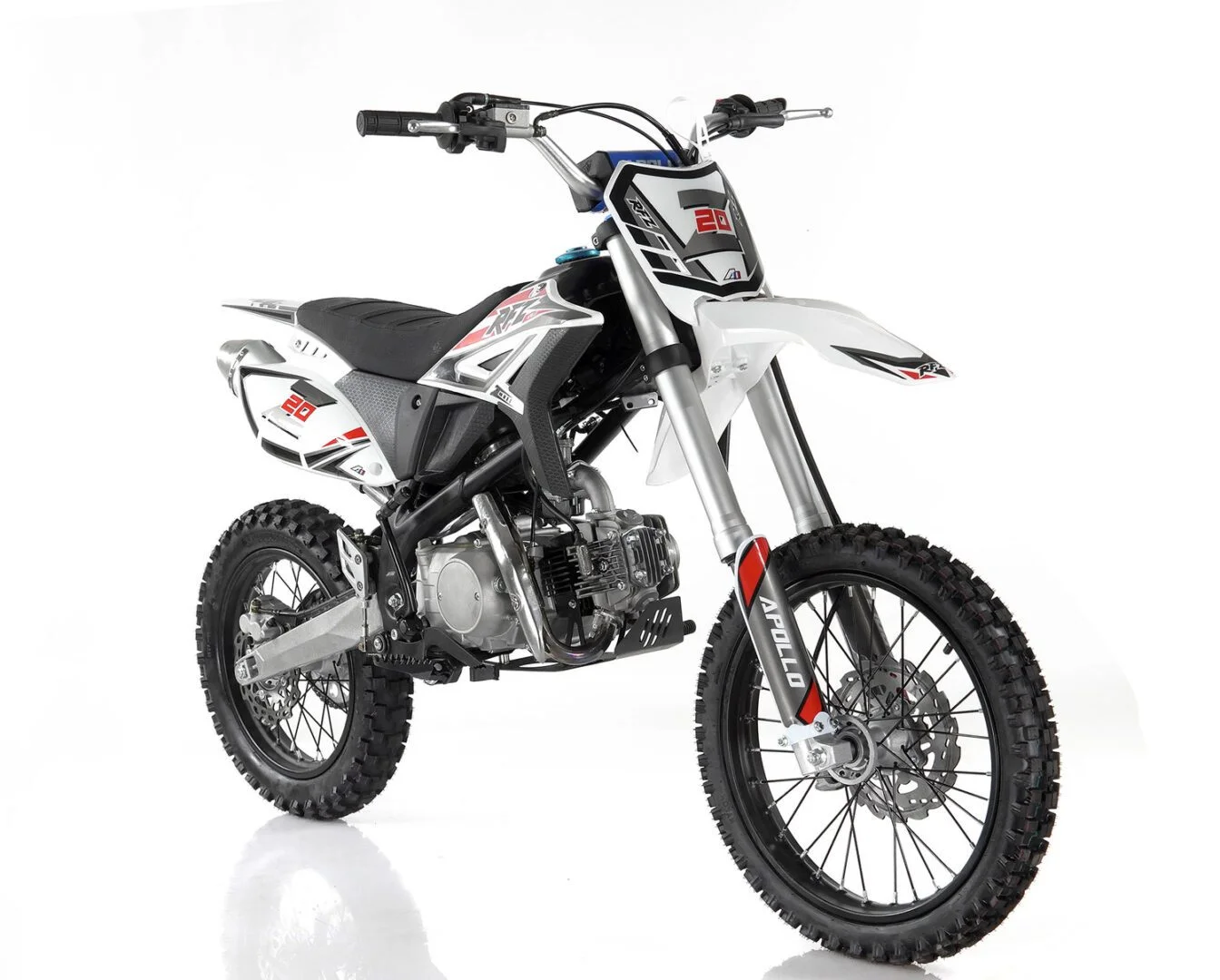

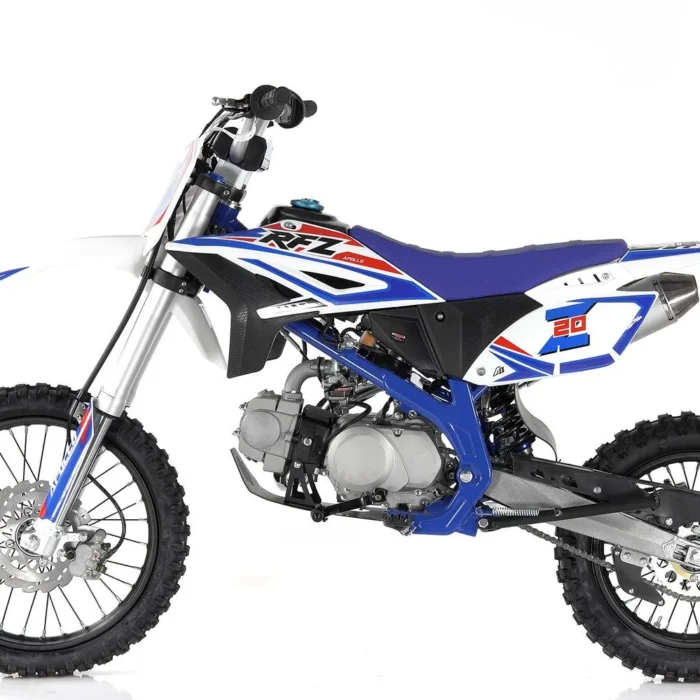

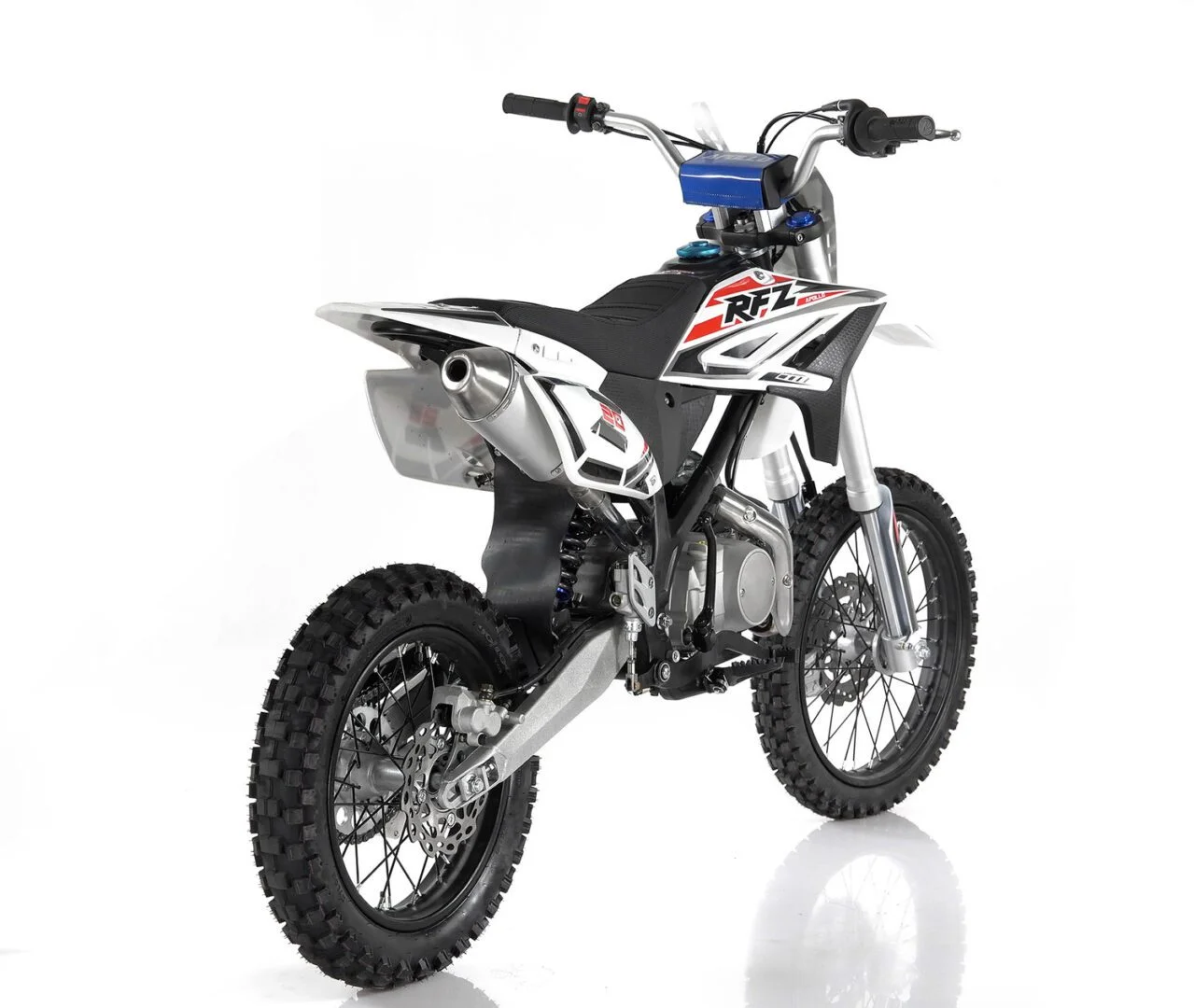

Apollo DB-Z20 125cc Dirt Bike PPS-2847
The Apollo DB-Z20 is a 125cc off-road dirt bike listed under SKU PPS-2847. The stored specifications identify a 125cc air-cooled four-stroke single-cylinder YX engine, four-speed manual N-1-2-3-4 gearing, kick start, chain drive, front and rear hydraulic disc brakes, 17-inch front and 14-inch rear tires and a 32.5-inch seat height.
Browse related models in our Dirt Bikes category. For manufacturer information, visit the Apollo Motors website.
The DB-Z20 is equipped with a kick start for reliable ignition, while its hydraulic disc brakes provide exceptional stopping power and safety. The bike’s double-beam heavy-duty steel frame offers superior strength and stability, allowing it to handle the toughest off-road challenges. The air-cooled system ensures the engine stays cool even during intense rides.
Technical Specifications
Engine Information
- Carburetor: PZ26
- Engine Brand: YX
- Engine Type: 125cc Air Cooled, 4-Stroke, Single Cylinder
- Engine Gear: 4-Speed Manual (N-1-2-3-4)
- Transmission: Chain Drive
- Shift Gear: Hand
- Engine Bore X Stroke: 54×54mm
- Compression Ratio: 8.8:1
- Max Power: 7.8HP/7500r/min
- Max Torque: 8.6N.m/5000r/min
- Ignition: CDI
- Engine Oil Total Capacity: 0.24 Gallon
- Fuel Tank Capacity: 1.03 Gallon
- Start Way: Kick Start
Chassis / Suspension / Brakes
- Front Wheel: 70/100-17
- Rear Wheel: 90/100-14
- Drive Train: Chain Drive
- Front and Rear Absorber Brand: SYD
- Front Absorber: 30.3 inches Non-Adjustable
- Rear Absorber: 13.8 inches Adjustable
- Front Hand Brake: Hydraulic Disc
- Rear Foot Brake: Hydraulic Disc
- Frame: Double Beam Heavy Duty Steel Frame
Dimensions
- Product Size (L*W*H): 70 x 30.7 x 46 inches
- Seat Height: 32.5 inches
- Wheelbase: 49.2 inches
- Ground Clearance: 14.5 inches
- Net Weight: 168 lbs
- Gross Weight: 196 lbs
| Condition | New |
|---|---|
| Power Type | Gas |
