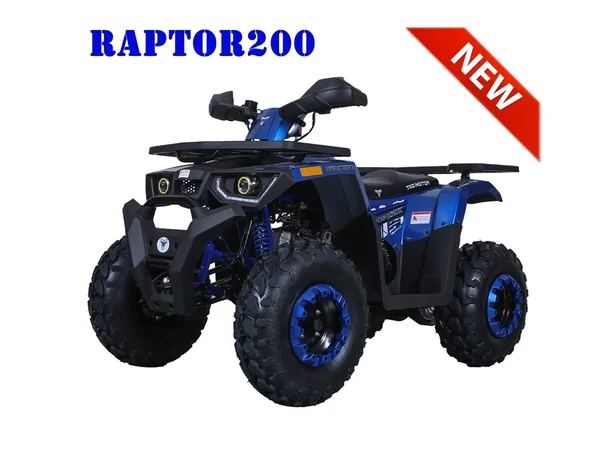

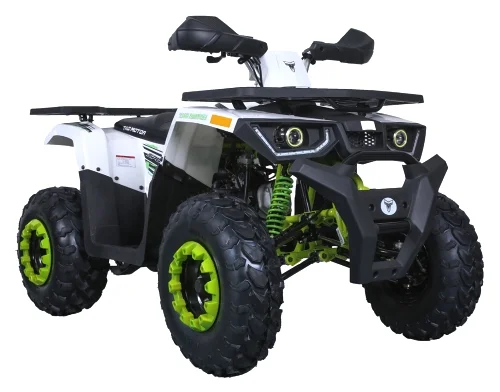

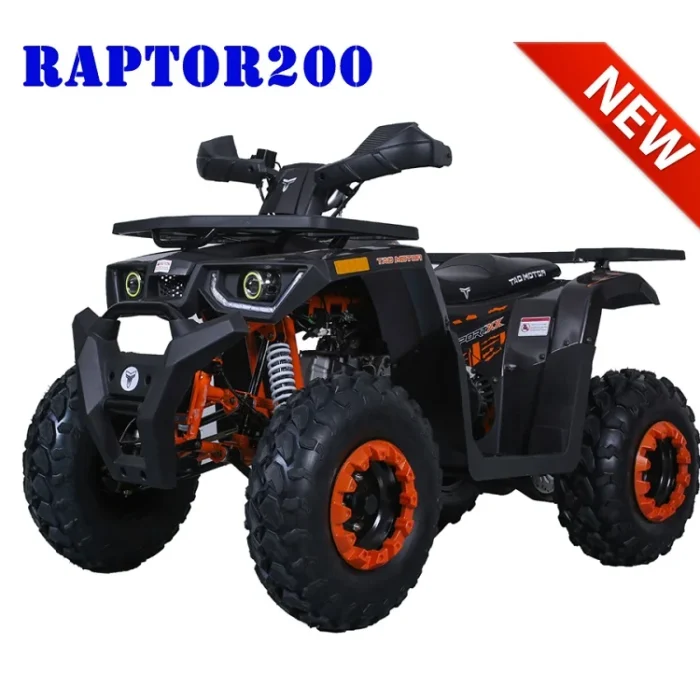

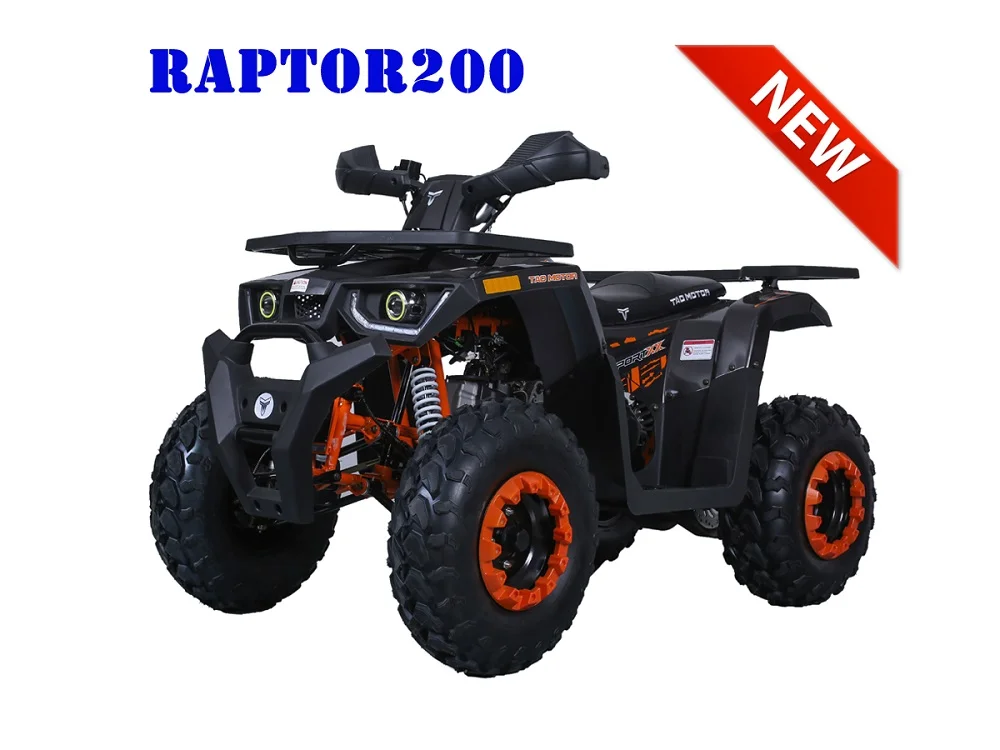

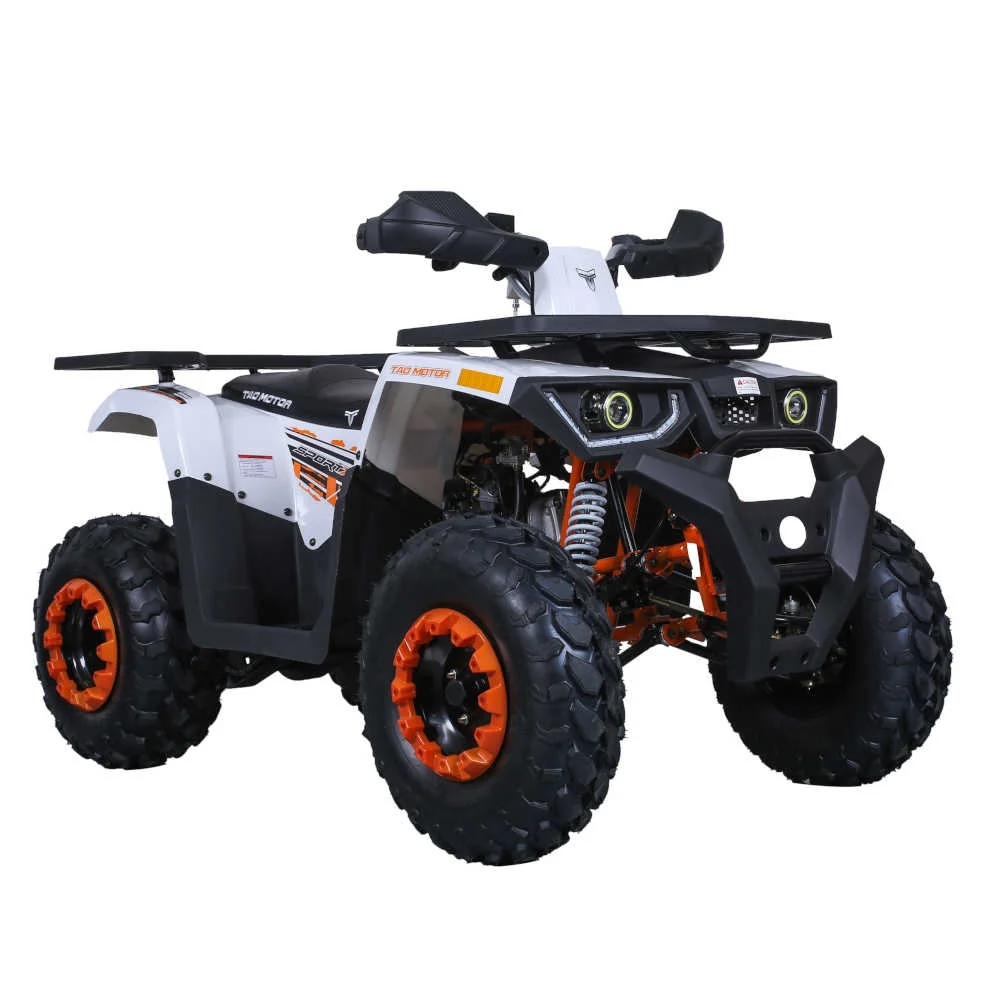

Raptor 200cc Automatic ATV

Raptor 200 Automatic ATV PPS-2264

This Raptor 200 automatic ATV is listed under SKU PPS-2264. The product title says 200cc, while the stored engine specification identifies a 169cc air-cooled four-stroke single-cylinder engine with electric start, automatic D-N-R gearing and chain drive. Treat “Raptor 200” as the model designation and confirm the physical engine label before relying on displacement.

Browse related models in our ATVs category. For general ATV rider-safety information, visit the ATV Safety Institute.

Listed Chassis and Safety Equipment

The source lists front and rear hydraulic disc brakes, 23×7-10 front and 22×10-10 rear tires, a speed limiter, engine kill switch, LED headlights, 12V 9Ah battery, 32.28-inch seat height and a 330-pound listed maximum load. Confirm those figures against the exact ATV and current documentation before purchase.

What to Verify Before Riding

Match the physical VIN or serial number to SKU PPS-2264 and final sales paperwork. Verify the engine label, electric-start system, D-N-R operation, brakes, tires, steering, suspension, speed limiter, kill switch, lighting and all safety labels. Confirm rider fit, protective equipment, supervision requirements and local off-road riding rules before use.

Specifications

ENGINE
Engine Type 169cc, Air Cooled, 4-stroke, single cylinder, automatic
Start Type Electric Start
Transmission Chain Drive
Engine Gear D-N-R
Shift Gear Hand
Max Torque 10.2N.m/5000-5500r/min
Wheelbase 48 inches
Ignition CDI
Fuel Tank Capacity 1.3 Gallons

CHASSIS
Front Hand Brake Hydraulic Disc
Rear Foot Brake Hydraulic Disc
Tire Front 23×7-10 (with steel rims)
Tire Rear 22×10-10 (with steel rims)
Front Suspension 14.8 inches
Rear Suspension 14.6 inches
Remote Control No
Speed Limiter Yes
Engine kill switch Yes
LED Headlights Yes
Running mileage Yes

DIMENSION
Battery 12V/9Ah
G.W 479 LBS
N.W 386 LBS
Max Loading 330 LBS
Overall Size 73 x 42 x 44 inches
Carton Size 65 x 44 x 31 inches
Seat Height 32.28 inches
Ground Clearance 5.12 inches
