T60 DLX 48V 6 Seater Golf Kart
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

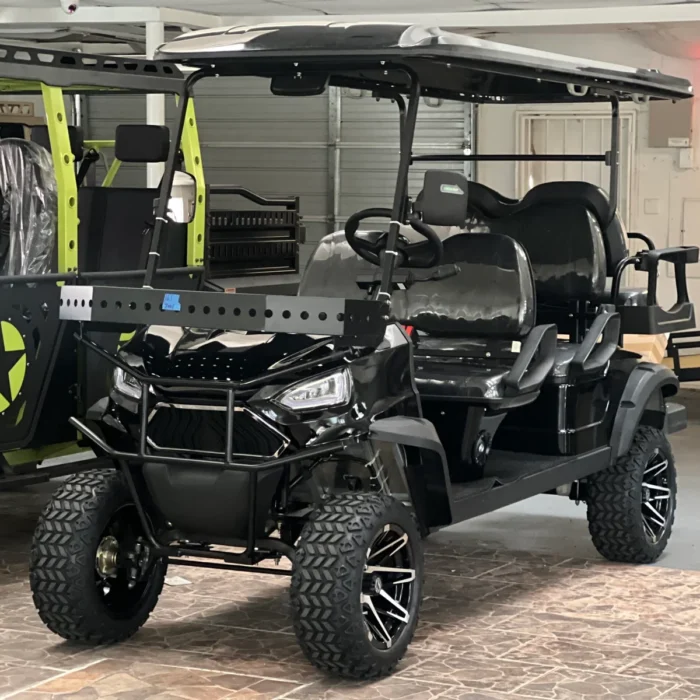

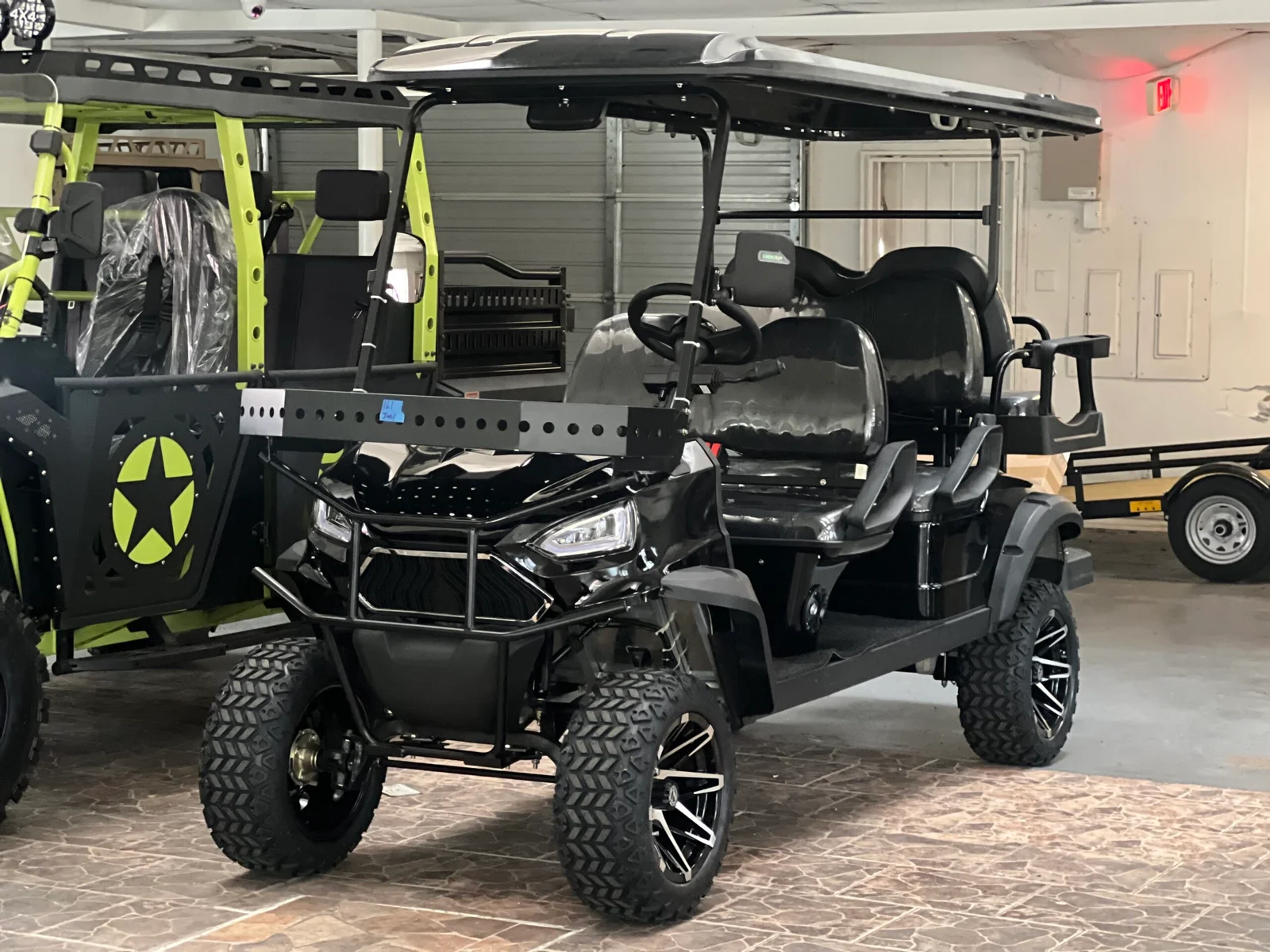

Vitacci T60 DLX 48V Golf Kart PPS-5889
The Vitacci T60 DLX is an electric golf kart listed under SKU PPS-5889. The title and type row describe a six-seat / six-passenger cart, while the stored “Passenger Capacity” row says four passengers. Verify the physical seating layout and final sales paperwork before relying on either capacity description.
The stored electrical specifications identify a 48V 4,000W MAHLE brushless motor, six 8V 150Ah Trojan lead-acid batteries, 48V/350A Curtis controller, on-board 25A charger, rear-wheel drive, mechanical rear drum brakes with regenerative braking, 14-inch alloy wheels and a listed maximum speed of 18 mph.
Browse related models in our 6 Passenger Golf Carts category. For manufacturer information, visit the Vitacci website. The table lists a 50–59 mile range and 6–8 hour charging time; actual results vary with battery condition, temperature, terrain, speed, payload and charging conditions.
TECHNICAL SPECS
| Item No. | ||
| Type | 6 Passengers Off-road Golf Cart | |
| T401R-LD150 | ||
| Specs. | 48V/4000W,150A Lead-acid battery | |
| Electronic System | Controller | USA – Curtis® 1266,DC 48V/350A |
| Battery | USA – TROJAN BATTERY 6*8V150AH | |
| Motor | USA – MAHLE brushless motor, DC 48V/4000W | |
| Charger | On-board input 110V-240V, output 48V/25A | |
| Vehicle Body | Windshield | 3-C passed armored glass OR DOT passed PVC foldable windshield |
| Roof | longer and stronger, injection molded ABS | |
| Seats | High density sponge, thickening leather and high qualitied arm rest | |
| Side Board | aluminum alloy with antiskid finishing | |
| Floor Mat | skid-proof full piece rubber floor mat | |
| Roof holder | made with iron steel material and finished with water proof coating | |
| Dashboard | Include battery meter, blue-tooth MP3 player, USB charger sockets and switches | |
| View mirror | EMARK certificated, two side mirrors and one inside mirror | |
| Tire and Rim | 23×10-14,6PL off-road tire,14×7 inch aluminum alloy rims | |
| Lights and Signal | Front and rear lights, Turning lights, Brake lights, electrical horn | |
| Chassis | Frame | Made with Q23 high quality iron steel and finished with galvanize coating |
| Steering System | Self Compensating Rack & Pinion Steering | |
| Brake System | Rear Wheel Mechanical Drum Brake and Regeneration Brake | |
| Suspension | Multi leaf spring and hydraulic damper shock | |
| Driving System | Rear two wheels driving | |
| Rear Axle | speed ratio 12.4:1 | |
| Passenger Capacity | 4 Passengers | |
| Gross Weight | 1411 LBS (with lead-acid battery) | |
| Overall Size(LXWXH) | 139″ * 50″ * 75″ | |
| Max. Speed | 18 m/h | |
| Range | 50-59 mile | |
| Charging Time | 6-8 hours | |
| Turning Radius | 3.5 m | |
| Climbing Capacity | 30% | |
| Minimum Brake Distance | 3.5m |
| Condition | New |
|---|---|
| Power Type | Electric |
