Tao Motor Champ Electric Golf Cart, Large Colorful TFT Display, 48V AC 5KW KDS Motor
The Tao Motor Champ is a four-passenger 48V electric golf cart with a 5 kW KDS AC motor, 155Ah lead-acid battery pack, TFT display, flip rear seat and 23-inch tires.
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

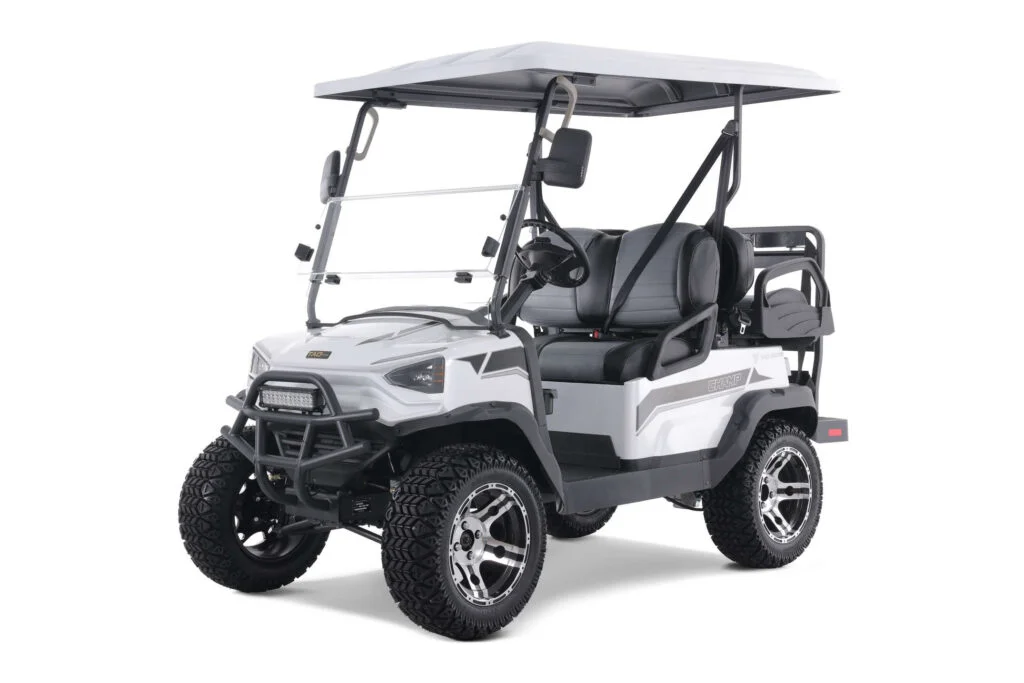

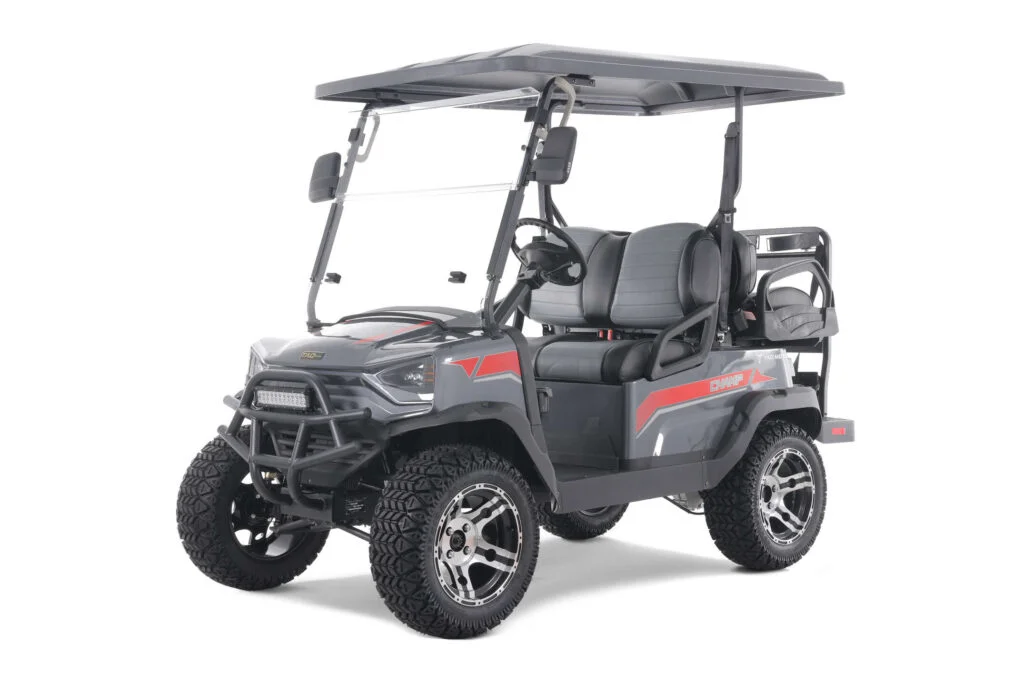

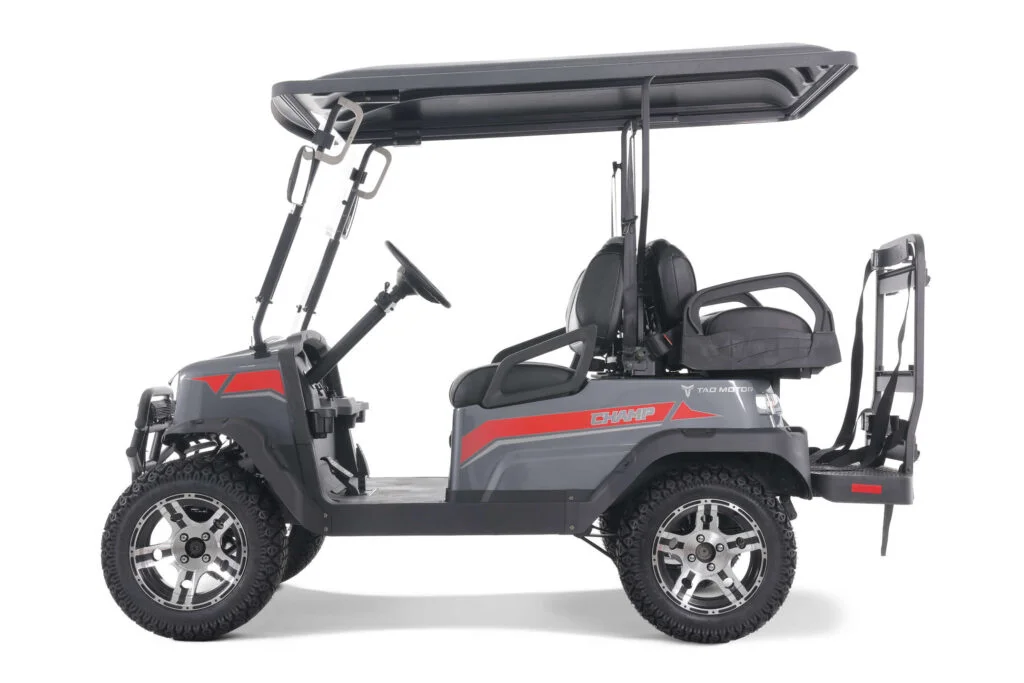

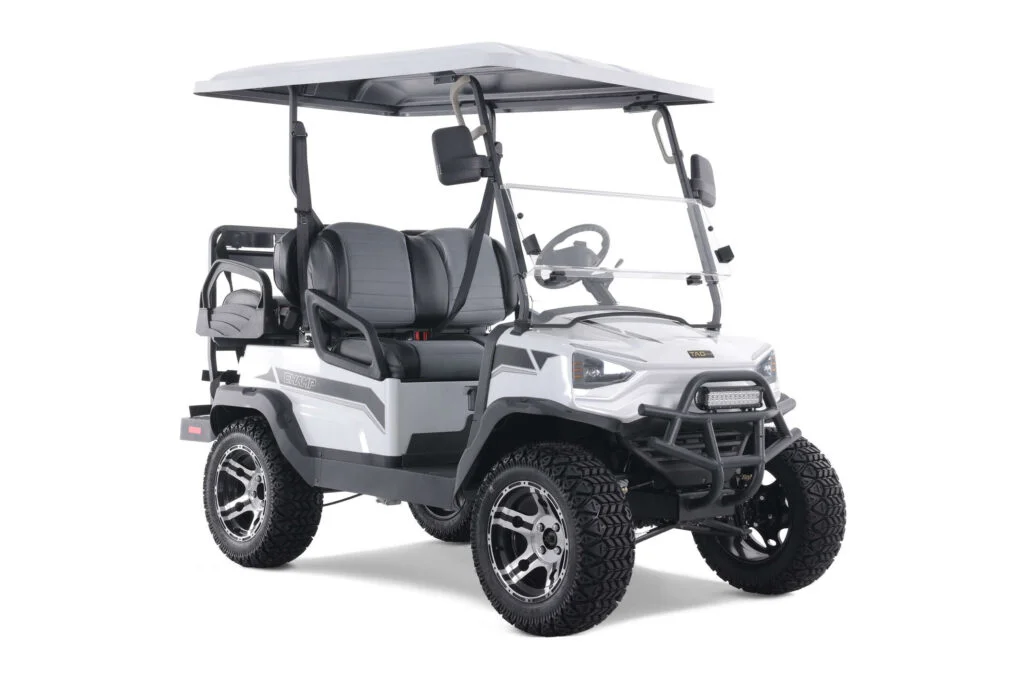

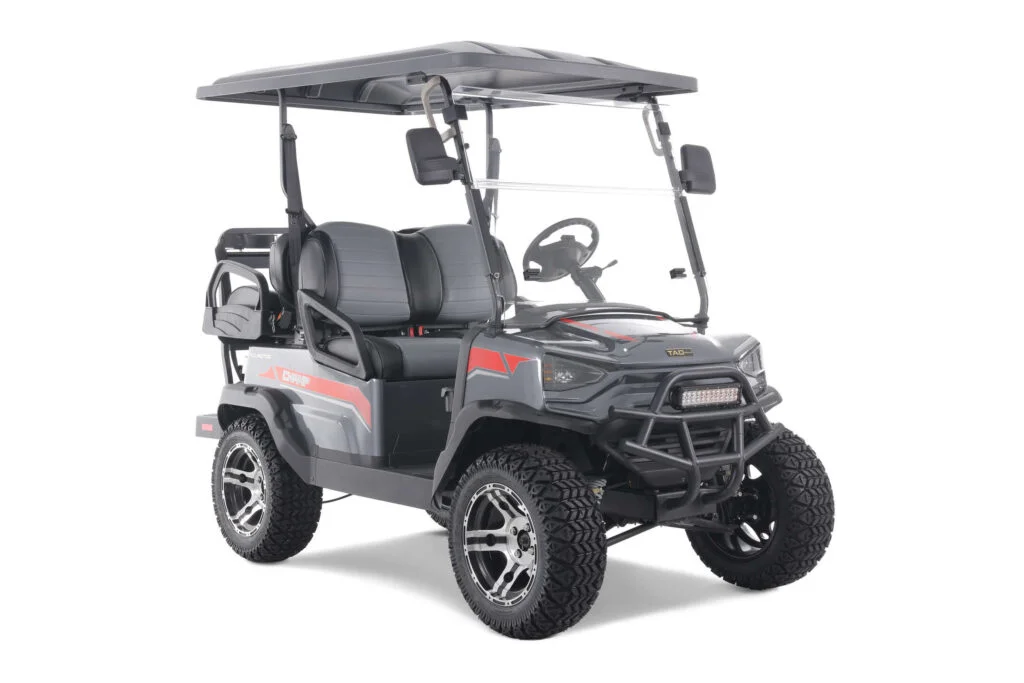

Tao Motor Champ 48V Electric Golf Cart
The Tao Motor Champ is a four-passenger electric golf cart powered by a 48V AC 5 kW KDS motor and a 48V 155Ah lead-acid battery pack. A 48V/350A AC controller, motor-shaft direct drive and helical-gear transaxle provide the electric drivetrain, while a seat-mounted F-N-R selector handles forward, neutral and reverse operation.
The Champ combines a front independent double A-arm suspension with rear leaf springs and hydraulic shock absorbers. Rear drum brakes, 23×10.5-14 tires, aluminum-alloy wheels and an aluminum-alloy chassis form the core running gear. TaoMotor lists four-passenger capacity and a foldable rear seating/deck arrangement for added utility.
Tao Motor Champ highlights
- 48V AC 5 kW KDS motor: current TaoMotor manufacturer specification.
- 48V 155Ah lead-acid battery pack: six-battery system with a 25A smart charger.
- 48V/350A AC controller: matched to the direct-drive electric powertrain.

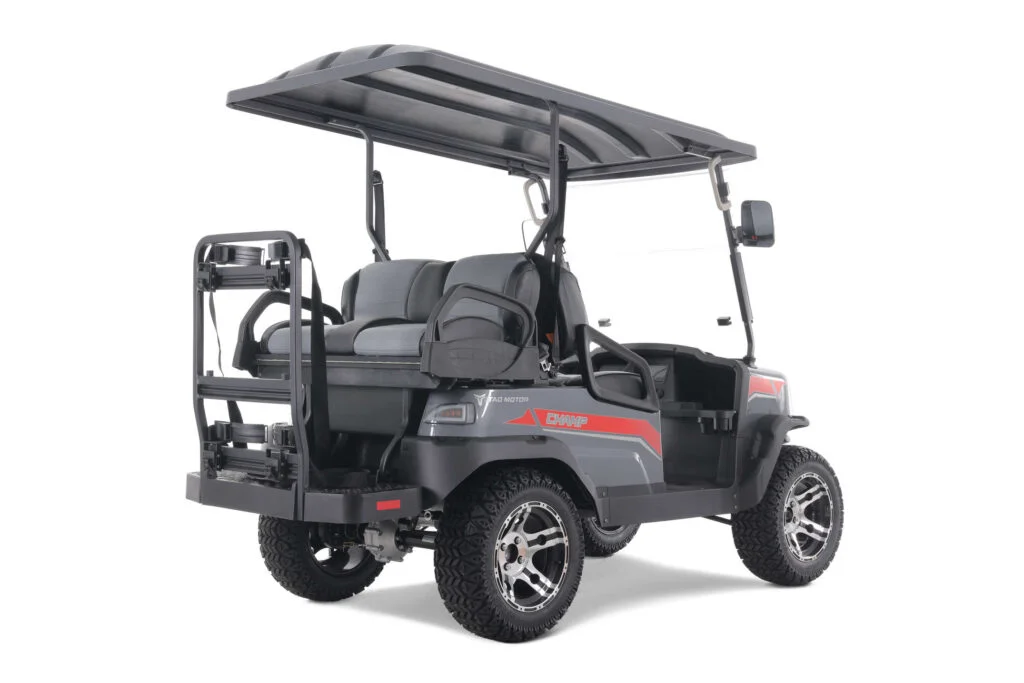

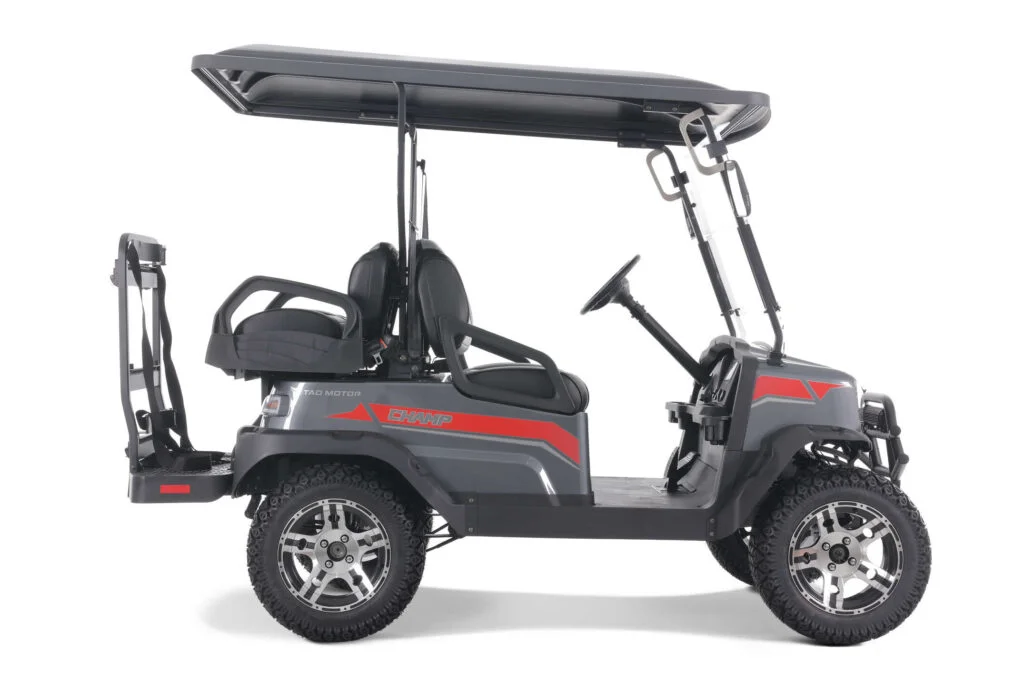

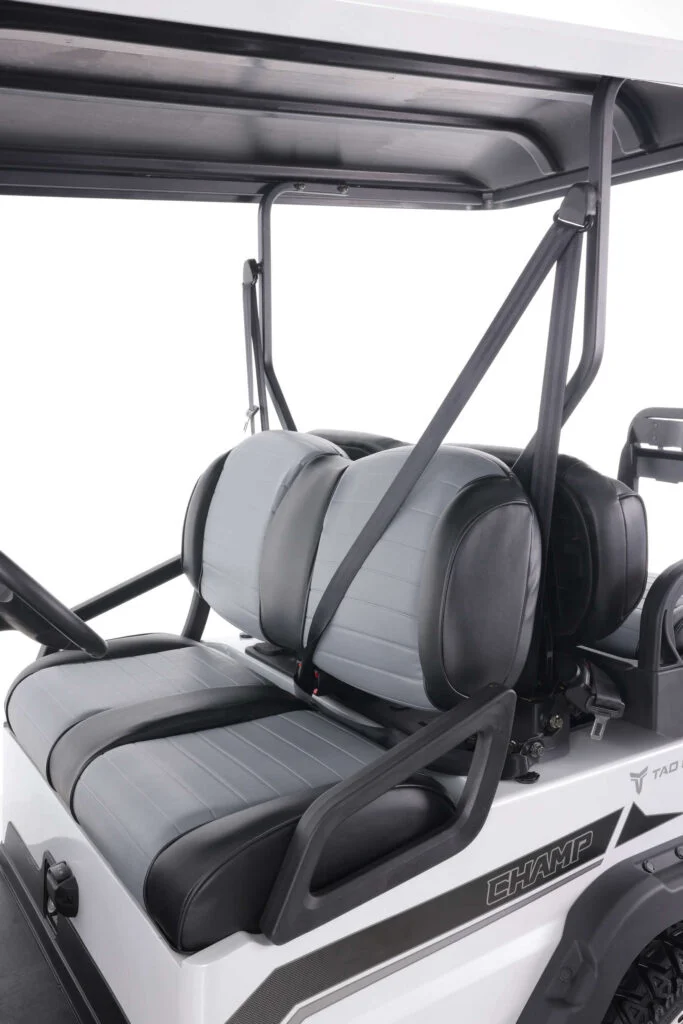

- Four-passenger capacity: front seating plus rear flip-seat/deck arrangement.

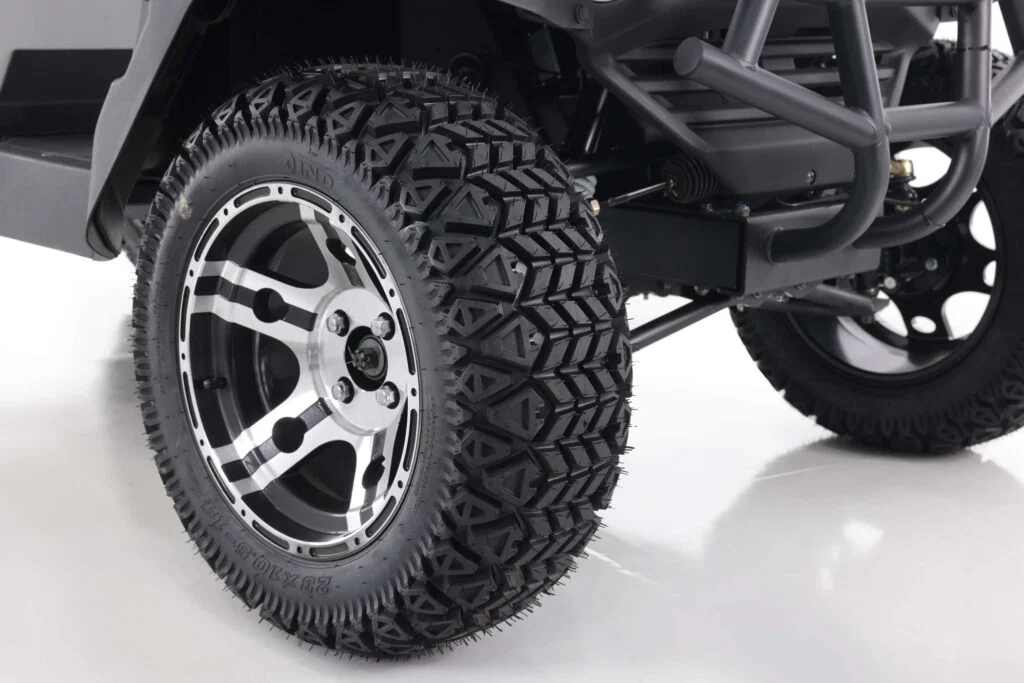

- 23×10.5-14 tires: mounted on aluminum-alloy wheels.

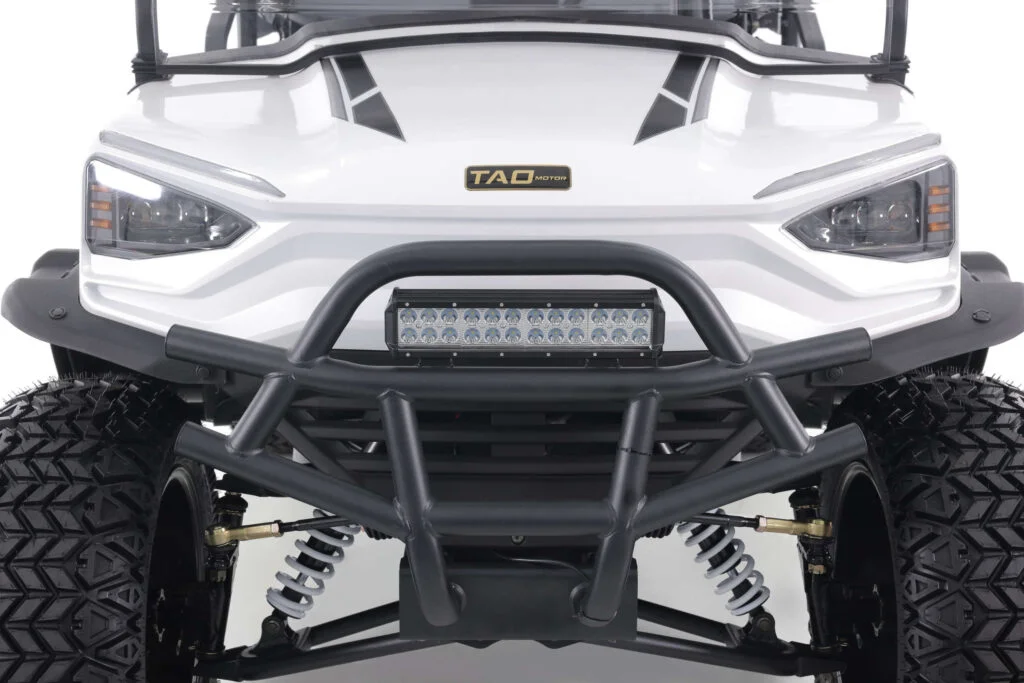

- Independent front suspension: double A-arm design with rear leaf springs and hydraulic shocks.

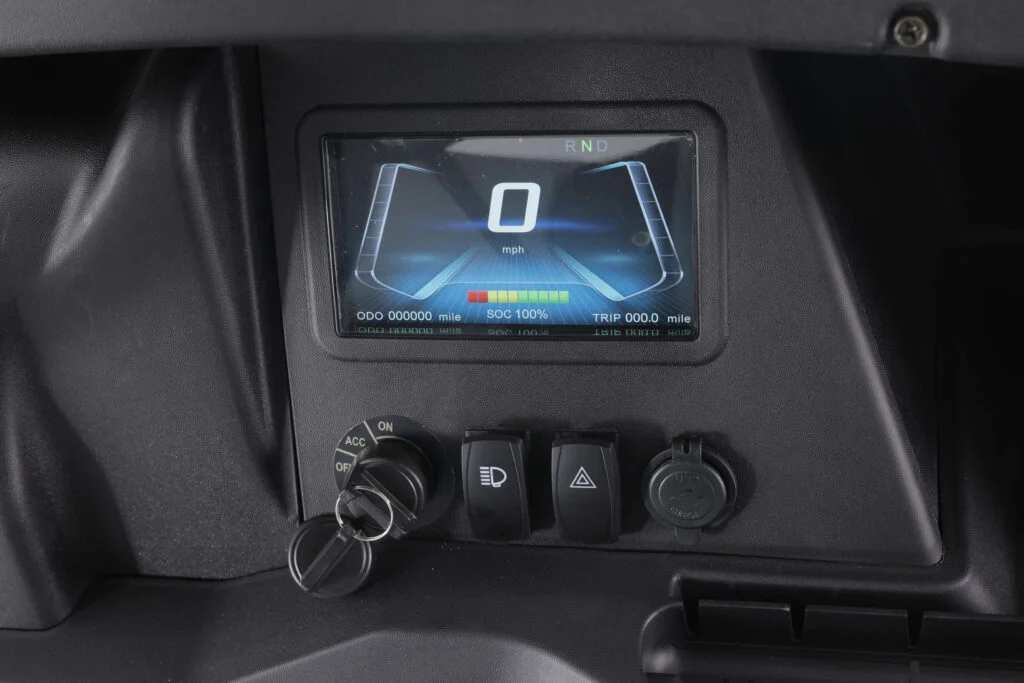

- Large TFT display: shows speed, battery status, mileage and trip information.

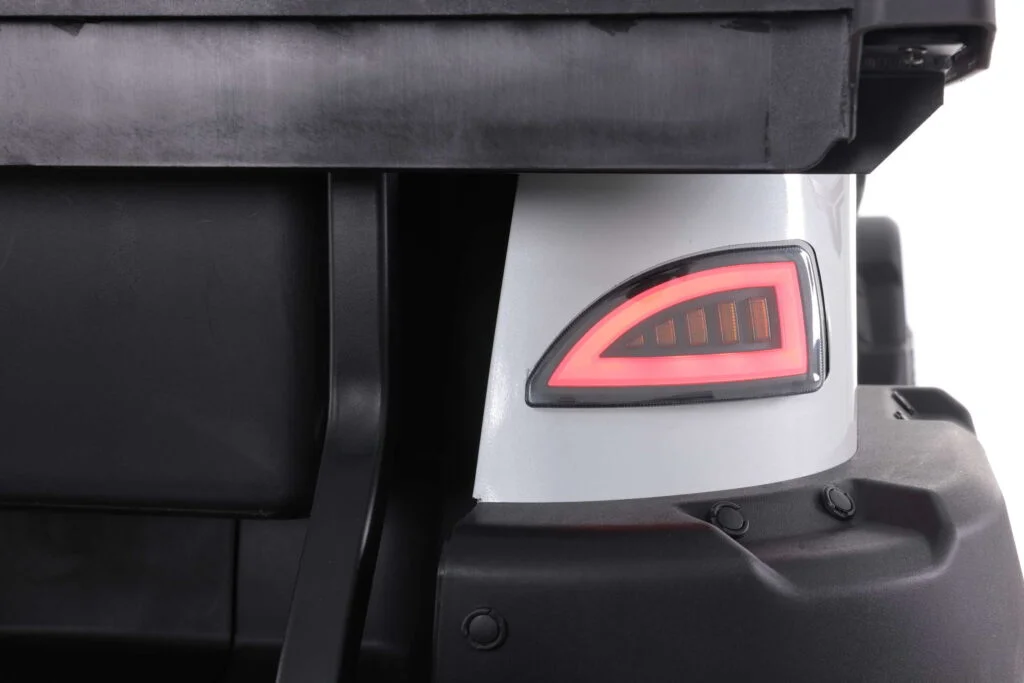

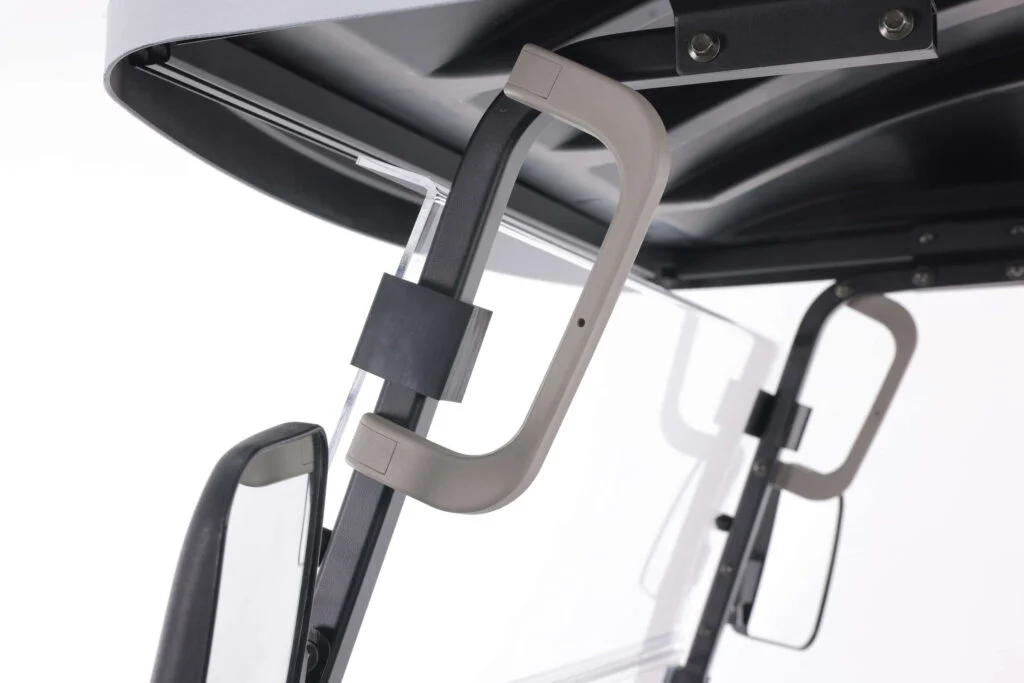

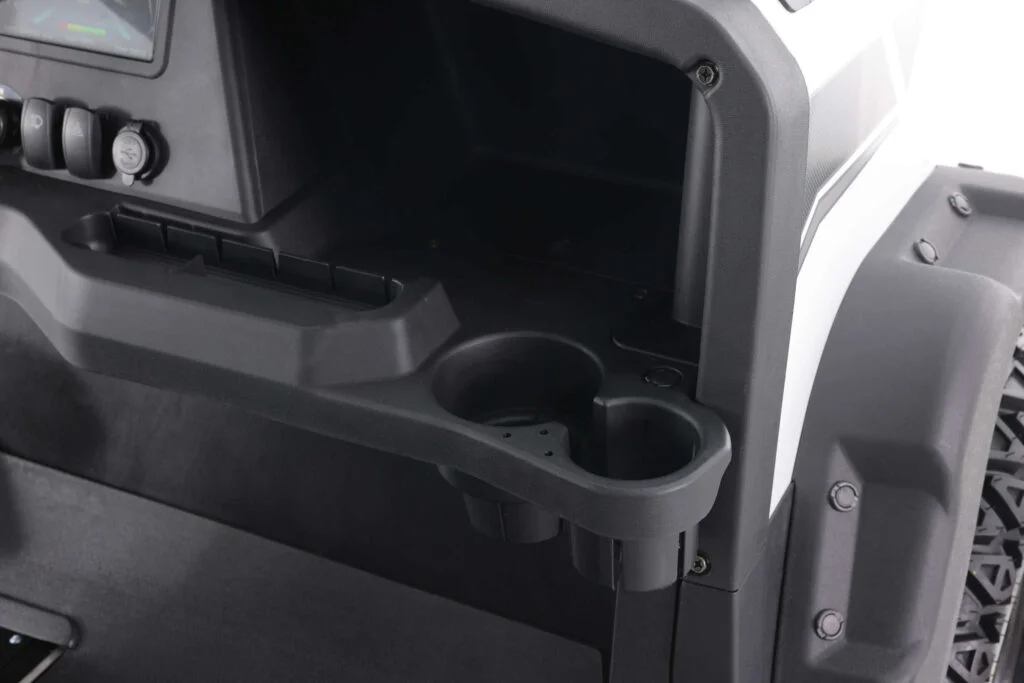

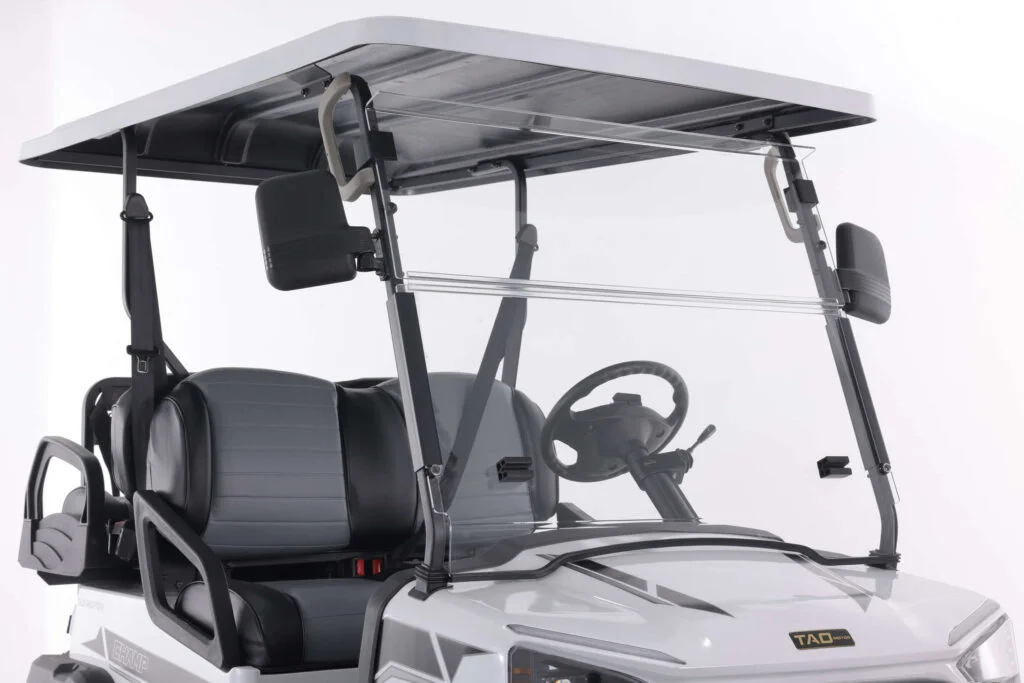

- Practical equipment: LED lighting, foldable windshield, mirrors, USB ports, cup holders and storage compartments.
Battery/range note: TaoMotor publishes the battery, charger and drivetrain specifications for this Champ configuration but does not provide a manufacturer range figure on the current model page. Driving distance depends on battery condition, payload, terrain, speed, temperature and other operating conditions.
Road-use note: golf-cart road eligibility varies by jurisdiction. Equipment such as lights, mirrors, seat belts and turn signals does not automatically make a cart legal for public-road use.
Browse more 4-passenger golf carts at DLR Golf Carts, or review the Tao Motor Champ manufacturer page.
Tao Motor Champ Specifications
Electrical System
- Motor: 48V AC 5 kW KDS
- Controller: 48V / 350A AC
- Battery: 48V 155Ah
- Battery Type: Six lead-acid batteries
- Charger: 110V smart charger, 25A output
- Drivetrain: Motor-shaft direct drive
- Transaxle: Differential with helical gears
- Gear Selection: F-N-R / key switch
Chassis and Dimensions
- Passenger Capacity: 4
- Front Suspension: Independent double A-arm
- Rear Suspension: Leaf springs with hydraulic shock absorbers
- Service Brake: Rear drum
- Parking Brake: Yes
- Front / Rear Tires: 23×10.5-14 / 23×10.5-14
- Ground Clearance: 7 in
- Wheelbase: 68 in
- Assembled Weight: 1,300 lb
- Overall Size: 113 × 52 × 82.5 in
| Condition | New |
|---|---|
| Power Type | Electric |
