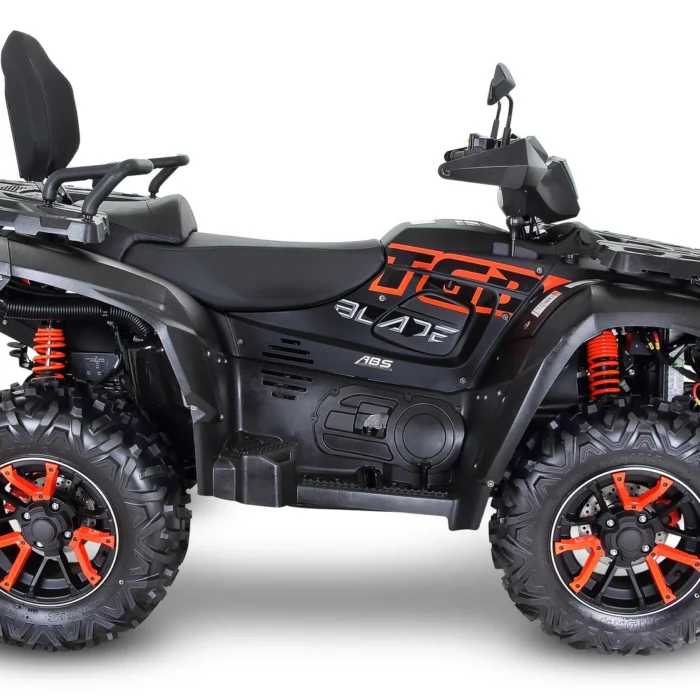

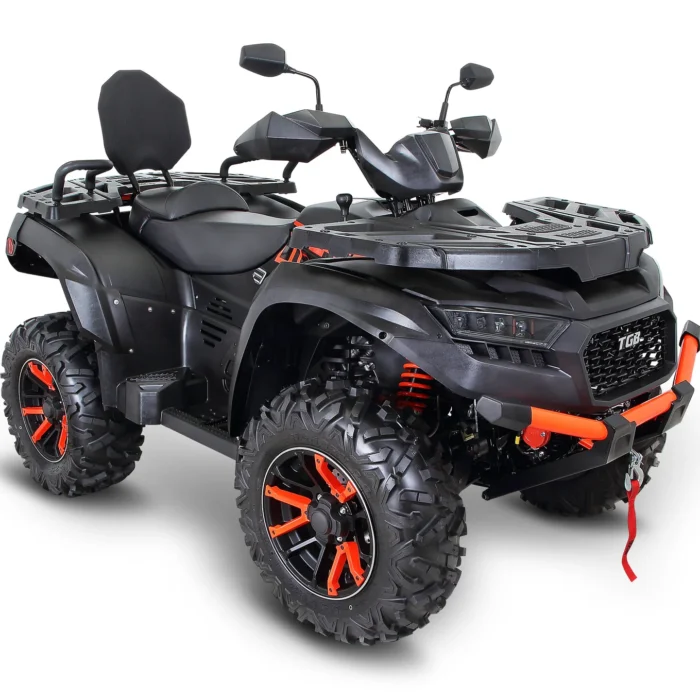

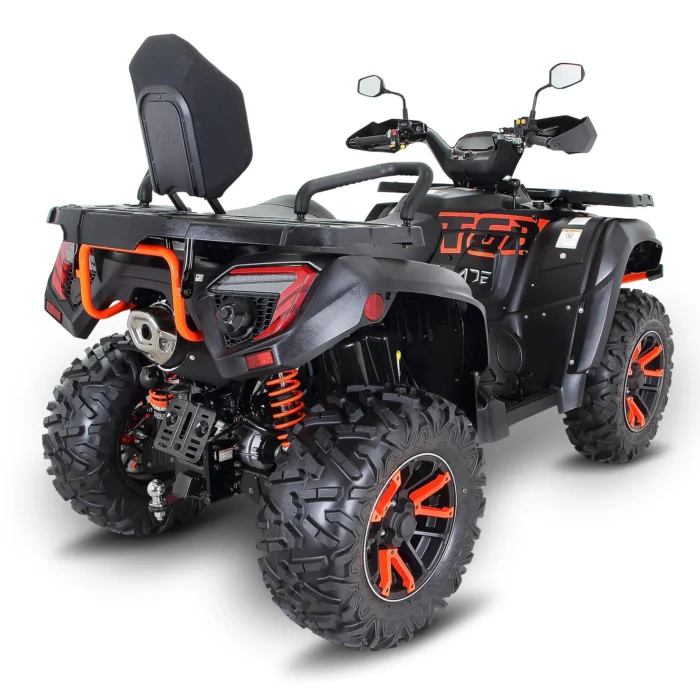

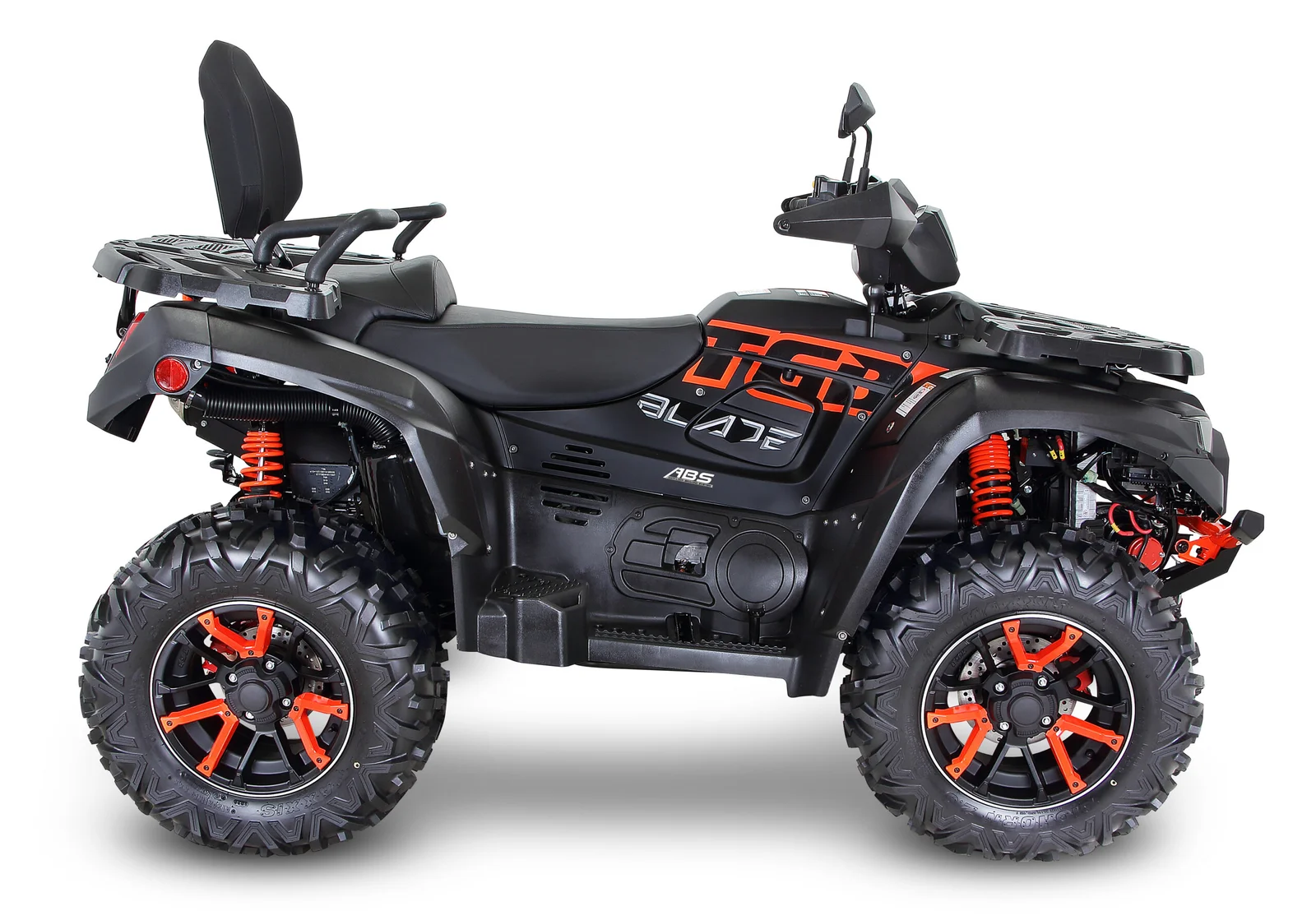

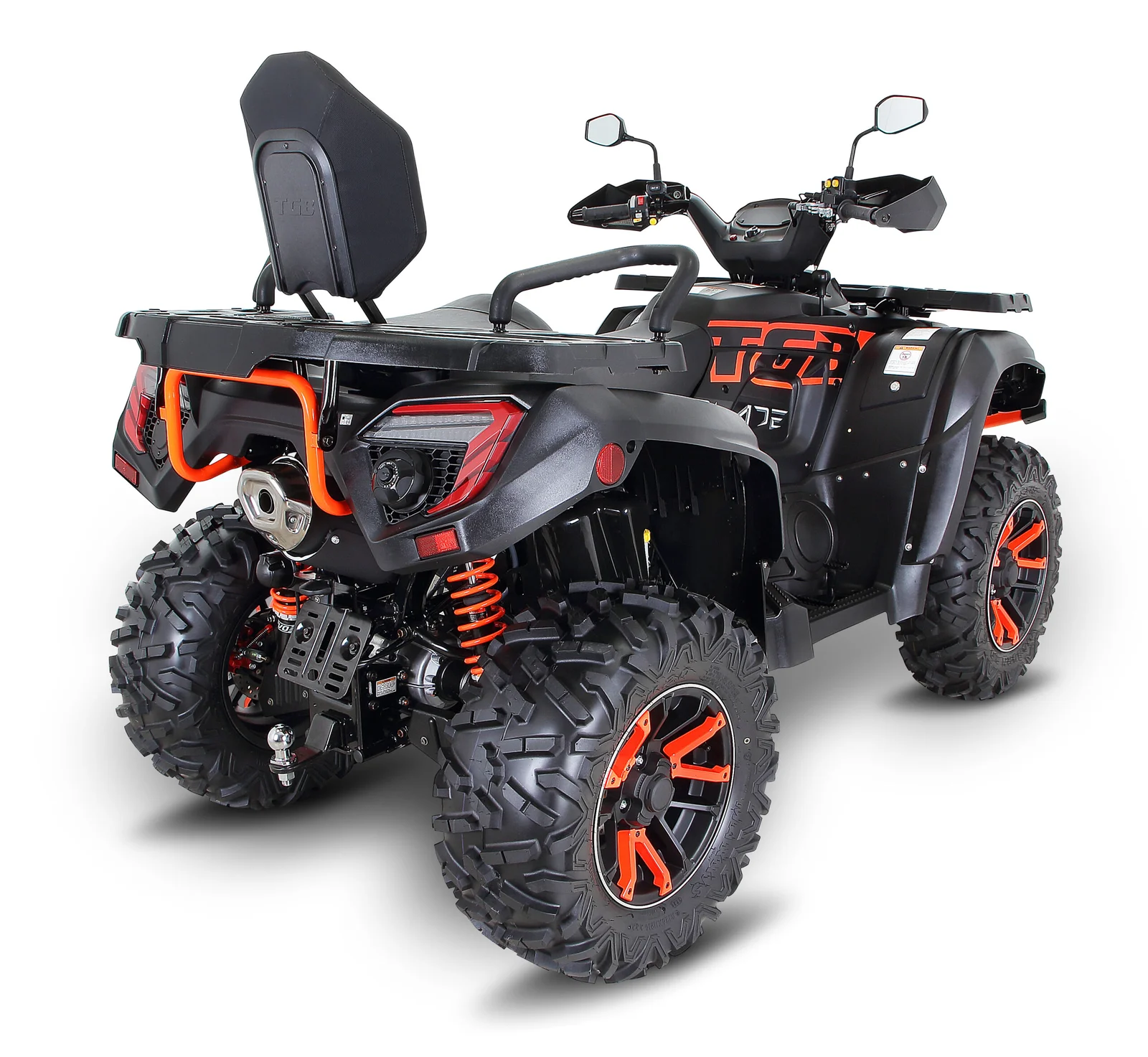

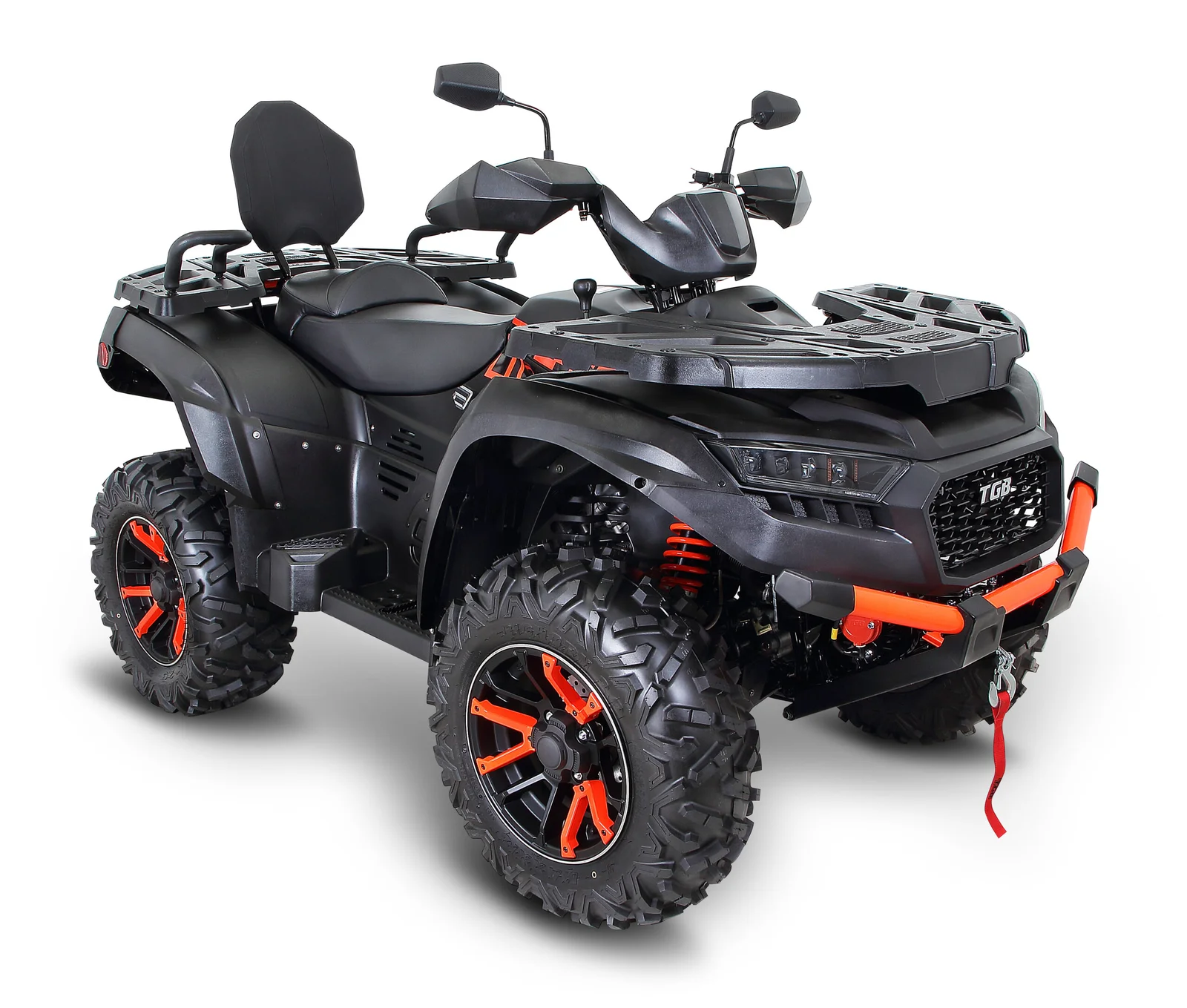

TGB Blade 1000 LTX EPS ABS ATV PPS-5602
The TGB Blade 1000 LTX EPS ABS is a two-seat ATV listed under SKU PPS-5602. The stored specifications identify a 997cc SOHC V-twin engine with programmed fuel injection, 83 HP at 7,000 rpm, 89.9 N·m at 5,500 rpm, V-belt CVT automatic transmission with L/H/N/R/P selection, 4×4 shaft drive, dual A-arm suspension, hydraulic disc brakes, ABS, 26-inch tires and 14-inch wheels.
Browse related models in our ATVs category. For rider-safety information, visit the ATV Safety Institute. The source lists T3 and L7e homologation availability for two-seat configurations, but those labels do not by themselves establish registration or public-road eligibility everywhere; verify local requirements separately.
What to Verify Before Riding
Match the physical VIN or serial number to SKU PPS-5602 and the final sales paperwork. Verify 4×4 engagement, differential locks, EPS, ABS, CVT range selection, brakes, tires, passenger seating, 12V outlets and all safety labels. Confirm current rider/passenger guidance, included manuals/accessories and local off-road riding rules before use.
Vehicle Specifications
Engine Information
- Engine Type: 997 cc, V-Twin, SOHC
- Ignition: ECU
- Starter: Electric
- Bore x Stroke: Ø 92 × 75.0 mm
- Compression Ratio: 10.2
- Fuel System: Programmed Fuel Injection
- Max Power: 83 HP / 7000 rpm
- Max Torque: 89.9 Nm / 5500 rpm
- Drive System: 4 × 4 Shaft Drive
- Gear Selection: L/H/N/R/P
- Transmission: V-belt CVT Automatic
- Engine Braking System: Standard
Suspension and Brakes
- Front Suspension: Dual A-arm
- Rear Suspension: Dual A-arm with Anti-roll Bar
- Front/Rear Brake: Hydraulic Disc with piston caliper and Hydraulic Foot Brake
- Parking Brake: Park In Transmission / Lockable Hand Lever
Tires and Dimensions
- Front Tire: AT 26 × 9 – 14, 6 PLY
- Rear Tire: AT 26 × 11 – 14, 6 PLY
- Wheelbase: 1460 mm
- Length/Width/Height: 2340 × 1255 × 1340 mm
- Fuel Capacity: 23 L
Electrical and Homologation
- Electrical Outlet Connector: 2 DC 12V 10A 120W
- Homologation Available: T3, L7e 2 seaters
| Condition | New |
|---|---|
| Power Type | Gas |
