TGB Blade 600 LTX EPS
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

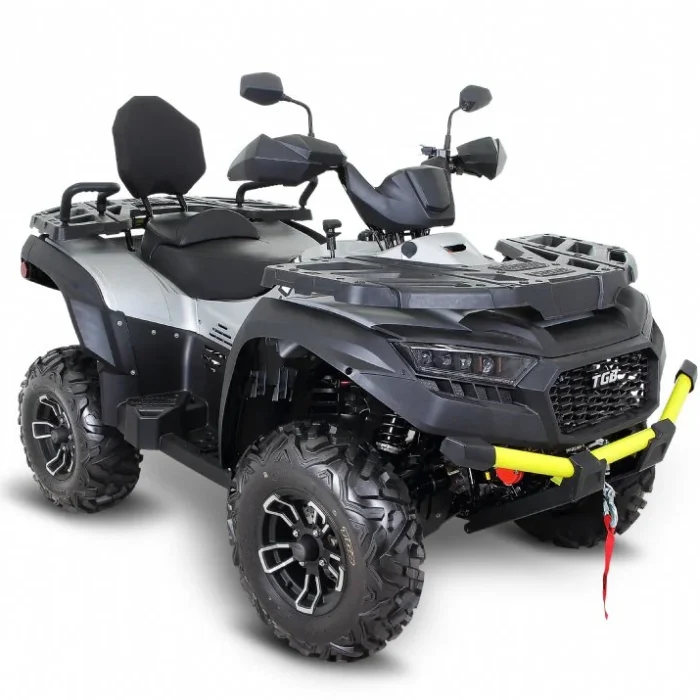

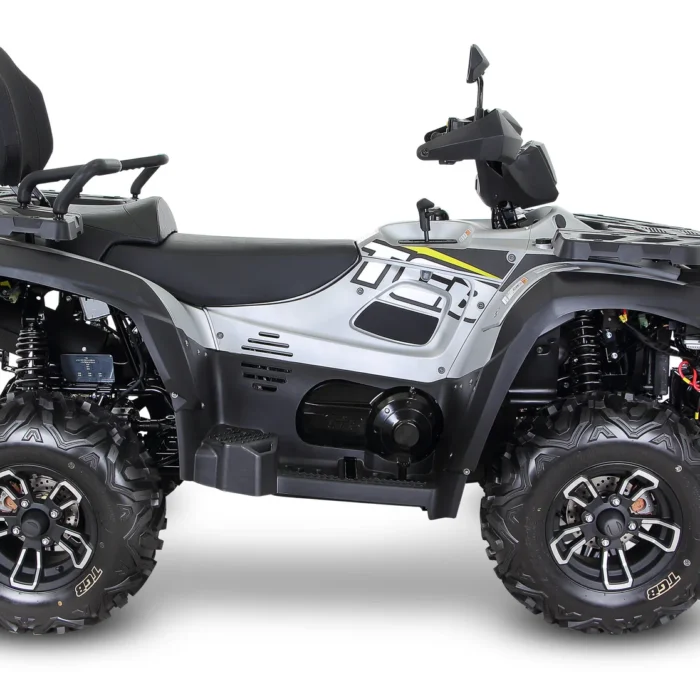

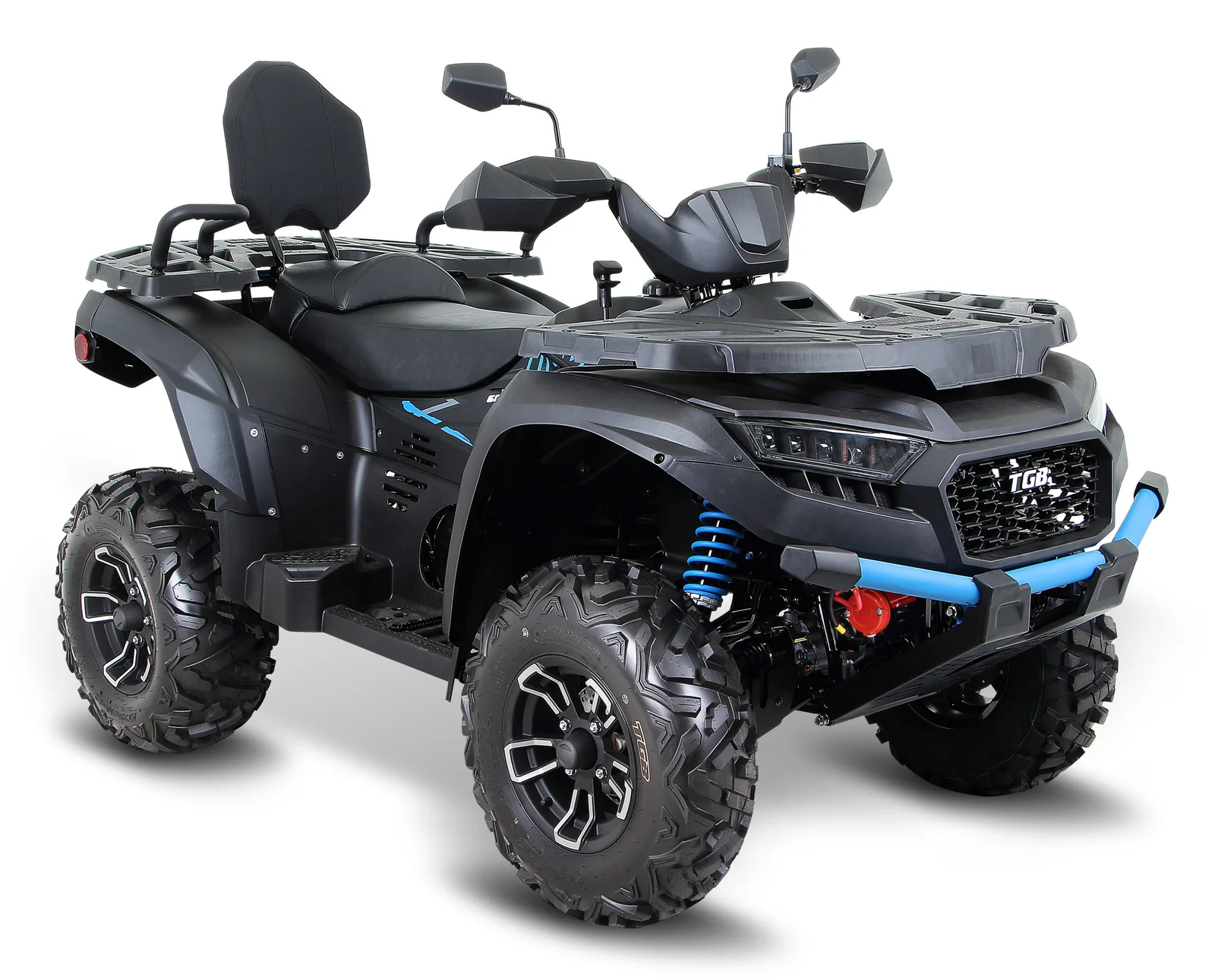

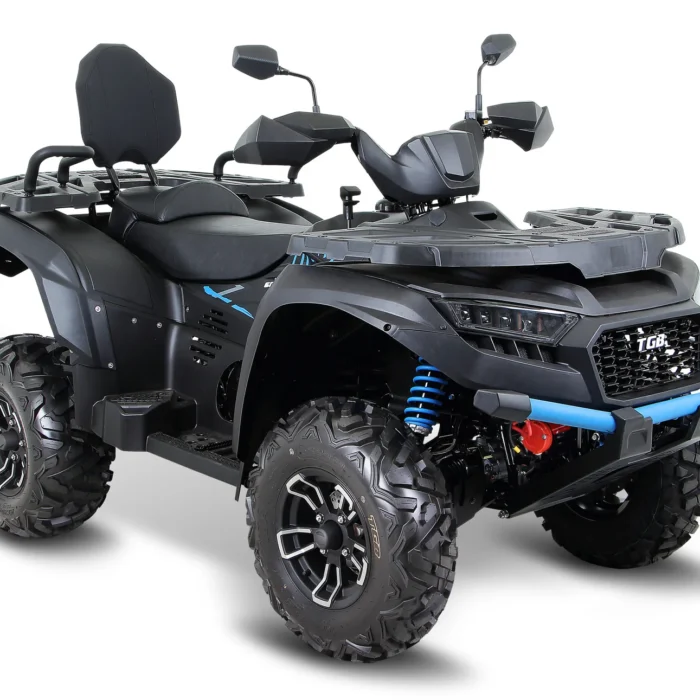

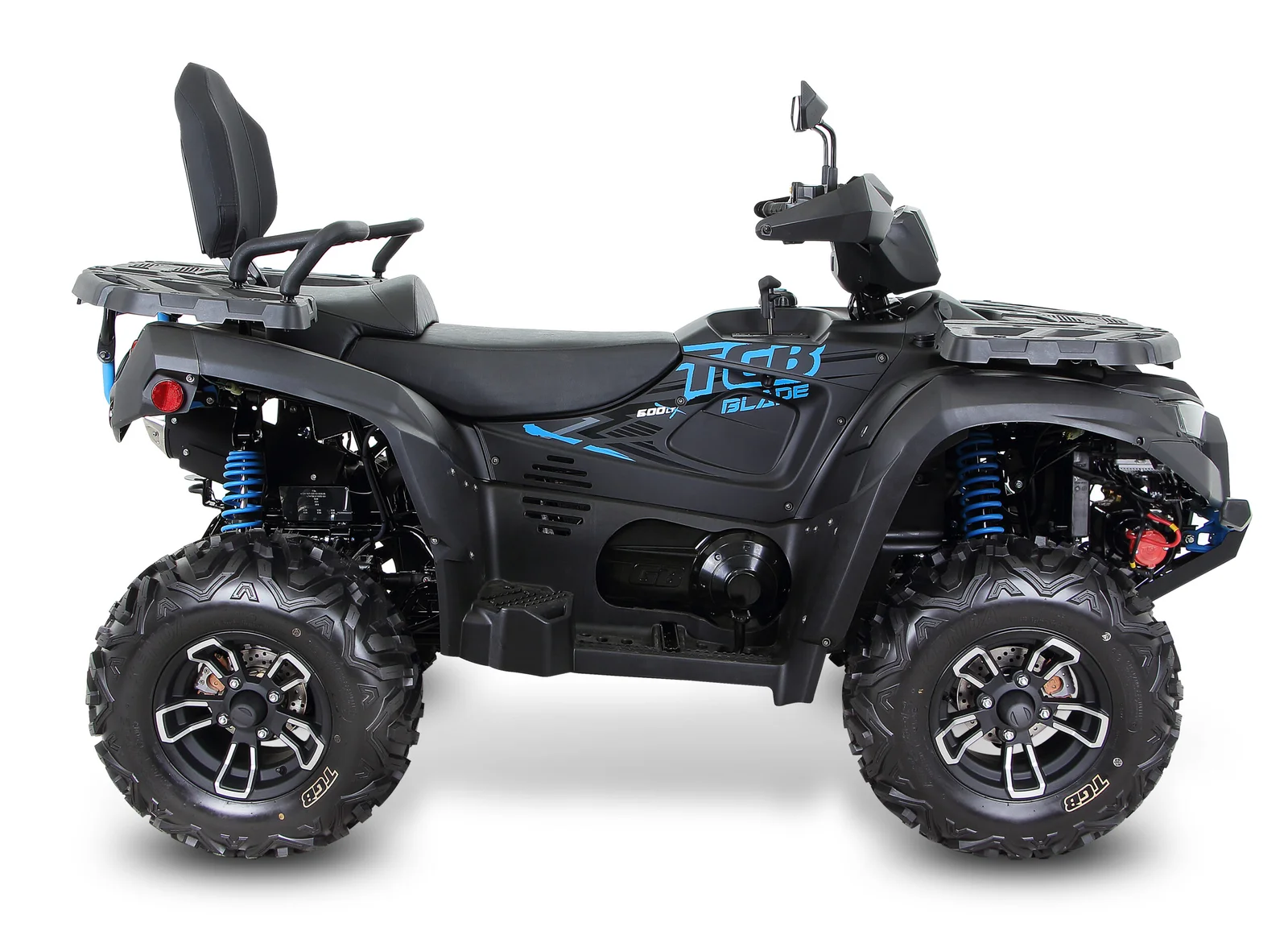

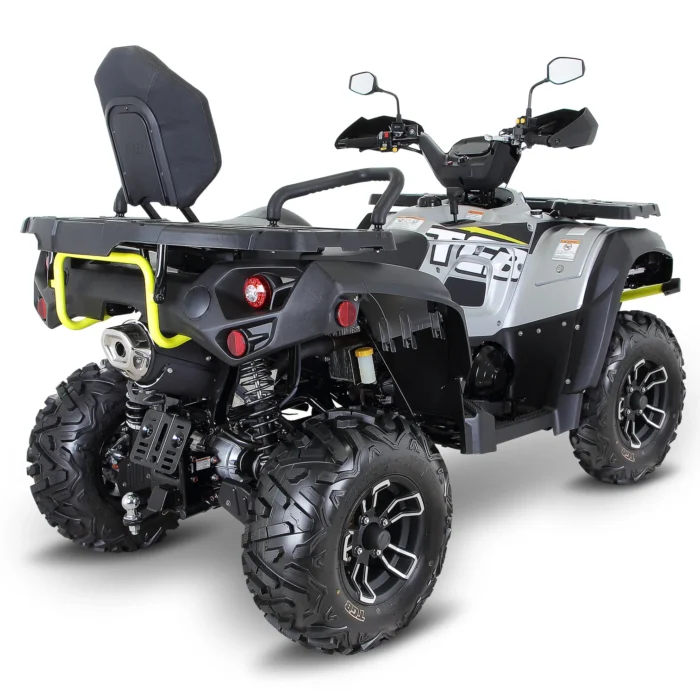

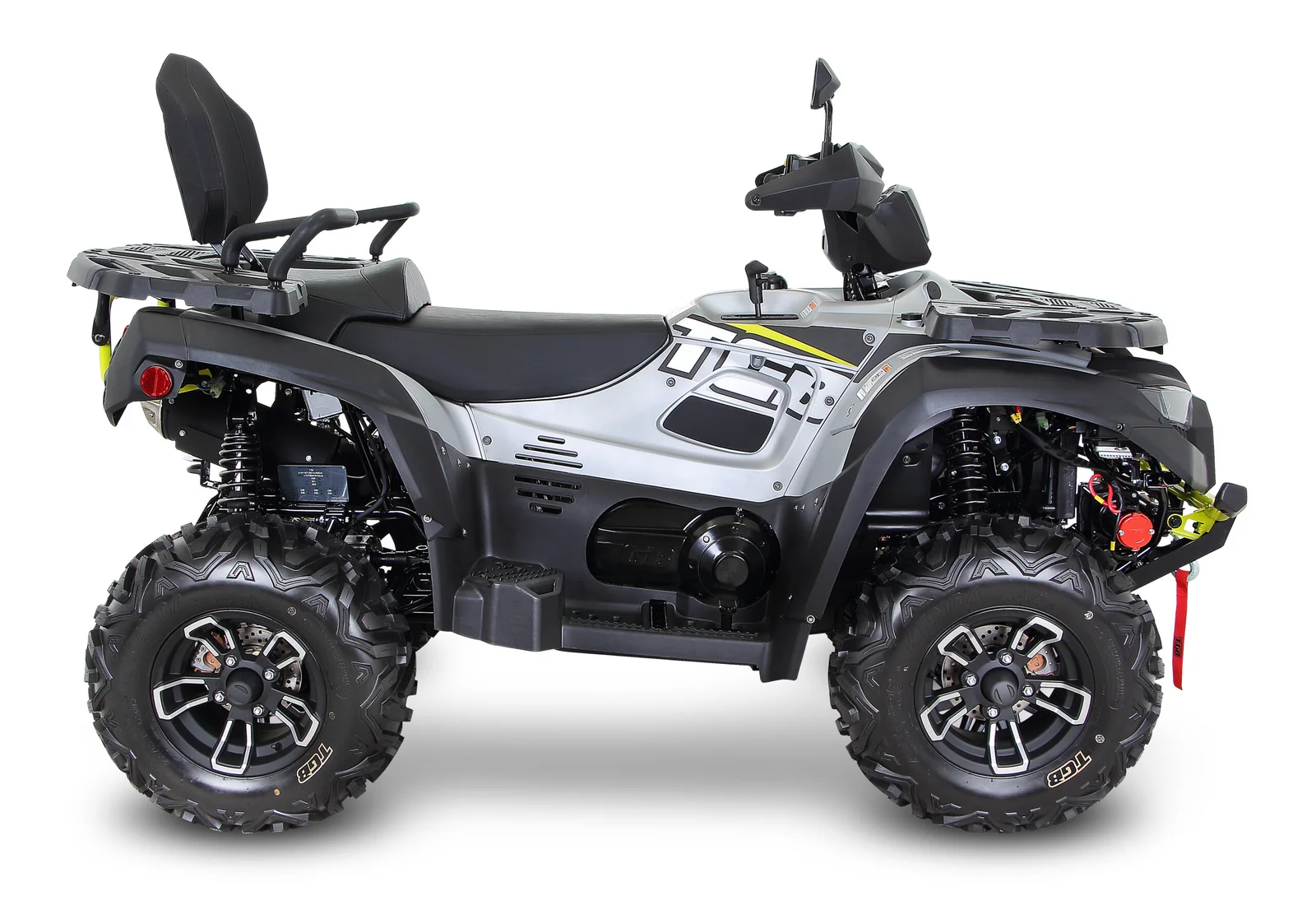

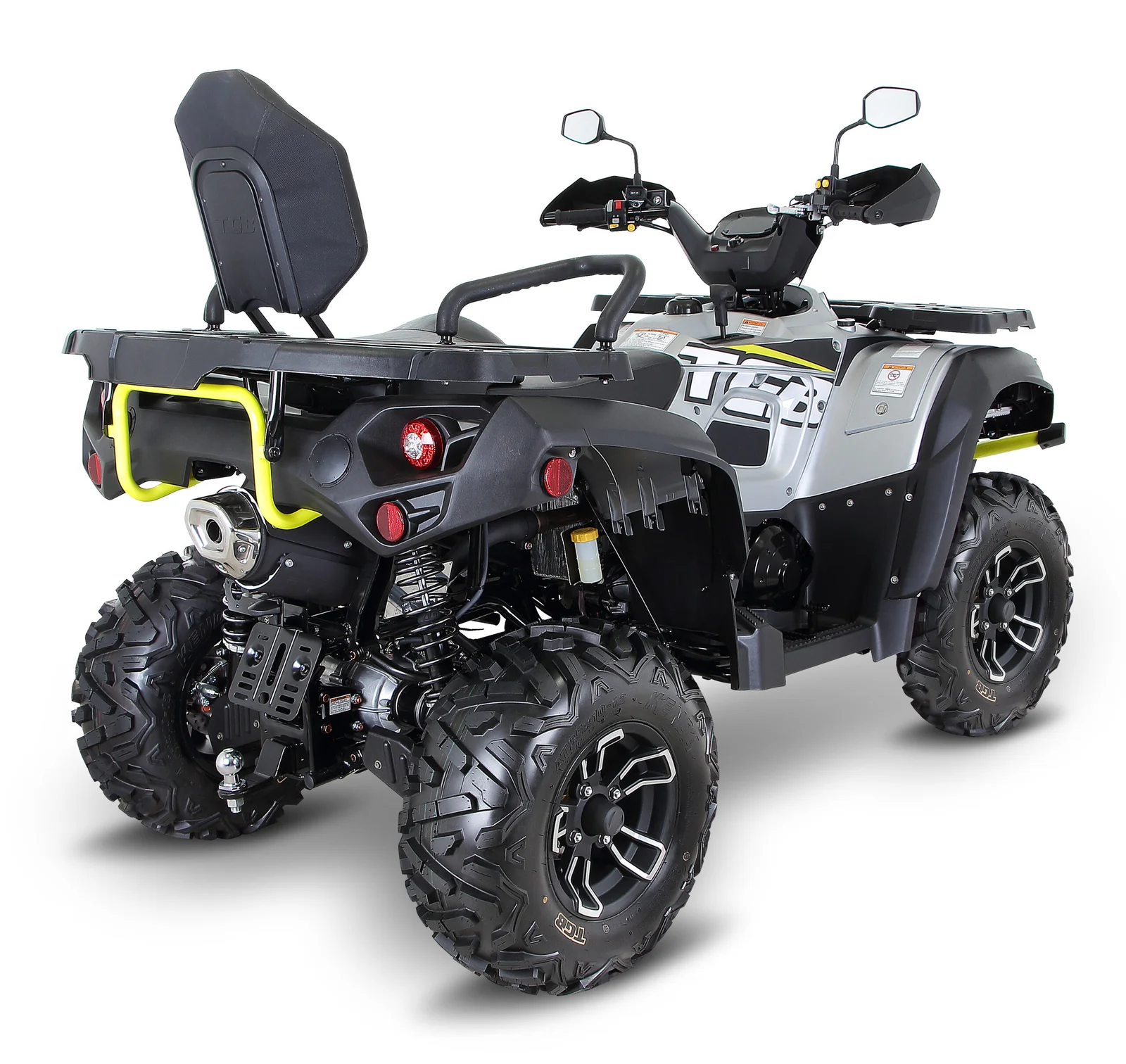

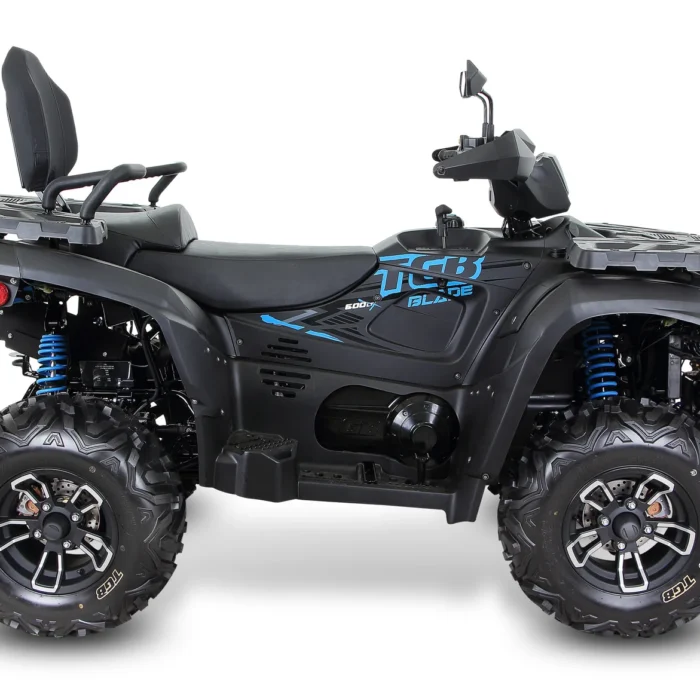

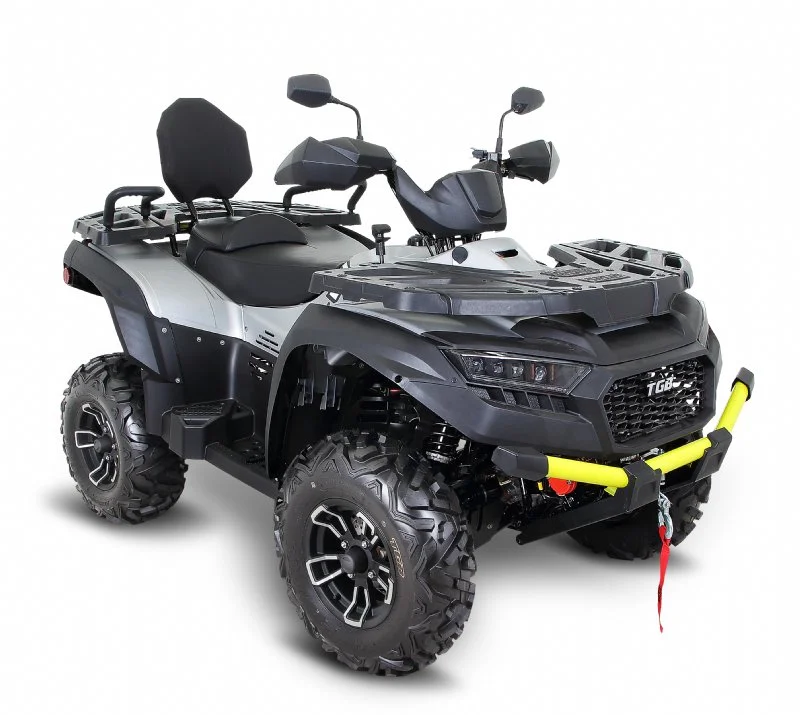

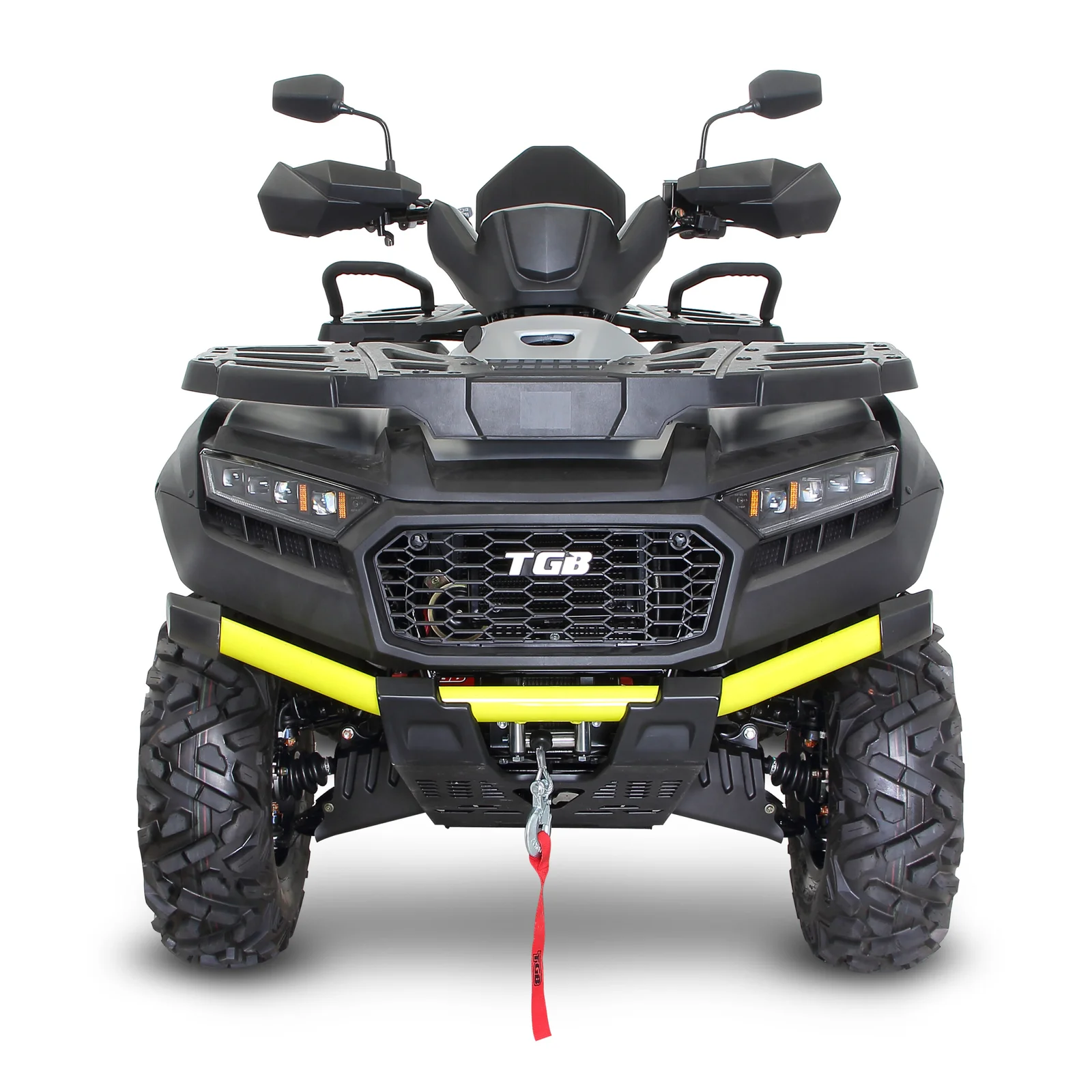

TGB Blade 600 LTX EPS ATV PPS-5562
The TGB Blade 600 LTX EPS is a two-seat ATV listed under SKU PPS-5562. The stored specifications identify a 561cc SOHC single-cylinder engine with programmed fuel injection, 44.8 HP at 6,500 rpm, 46.5 N·m at 5,500 rpm, V-belt CVT automatic transmission with L/H/N/R/P selection, 4×4 shaft drive, dual A-arm suspension, hydraulic disc brakes and 25-inch tires.
Browse related models in our ATVs category. For rider-safety information, visit the ATV Safety Institute. The source lists T3 and L7e homologation availability for two-seat configurations, but those labels do not by themselves establish registration or public-road eligibility in every jurisdiction; verify current local requirements separately.
What to Verify Before Riding
Match the physical VIN or serial number to SKU PPS-5562 and the final sales paperwork. Verify 4×4 engagement, EPS operation, CVT range selection, brakes, tires, lighting, storage, 12V outlets, passenger seating and all safety labels. Confirm current rider/passenger guidance, included manuals/accessories and local off-road riding rules before use.
Vehicle Specifications
Engine Information
- Engine Type: 561 cc, Single Cylinder, SOHC
- Ignition: ECU
- Starter: Electric
- Bore x Stroke: Ø 95 × 79.2 mm
- Compression Ratio: 10.2
- Fuel System: Programmed Fuel Injection
- Max Power: 44.8 HP / 6500 rpm
- Max Torque: 46.5 Nm / 5500 rpm
- Drive System: 4 × 4 Shaft Drive
- Gear Selection: L/H/N/R/P
- Transmission: V-belt CVT Automatic
- Engine Braking System: Standard
- Over Ride Button: Standard
Suspension and Brakes
- Front Suspension: Dual A-arm
- Rear Suspension: Dual A-arm with Anti-roll Bar
- Front/Rear Brake: Hydraulic Disc with piston caliper and Hydraulic Foot Brake
- Parking Brake: Park In Transmission / Lockable Hand Lever
Tires and Dimensions
- Front Tire: AT 25 × 8 – 12, 6 PLY
- Rear Tire: AT 25 × 10 – 12, 6 PLY
- Wheelbase: 1450 mm
- Length/Width/Height: 2360 × 1235 × 1280 mm
- Fuel Capacity: 18 L
Electrical and Homologation
- Electrical Outlet Connector: 2 DC 12V 10A 120W
- Homologation Available: T3, L7e 2 seaters
| Condition | New |
|---|---|
| Power Type | Gas |
