TrailMaster iMini Kids Electric Go-Kart, 48V 20Ah Battery, Fully Automatic with Reverse, LED Headlight
Local Pick-Up: You can come and pick up your New ride at 2470 W Pioneer Pkwy, Grand Prairie, TX 75051, however, In store we offer assembling service at additional charges, please call for details. +1(682) 369-8012
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

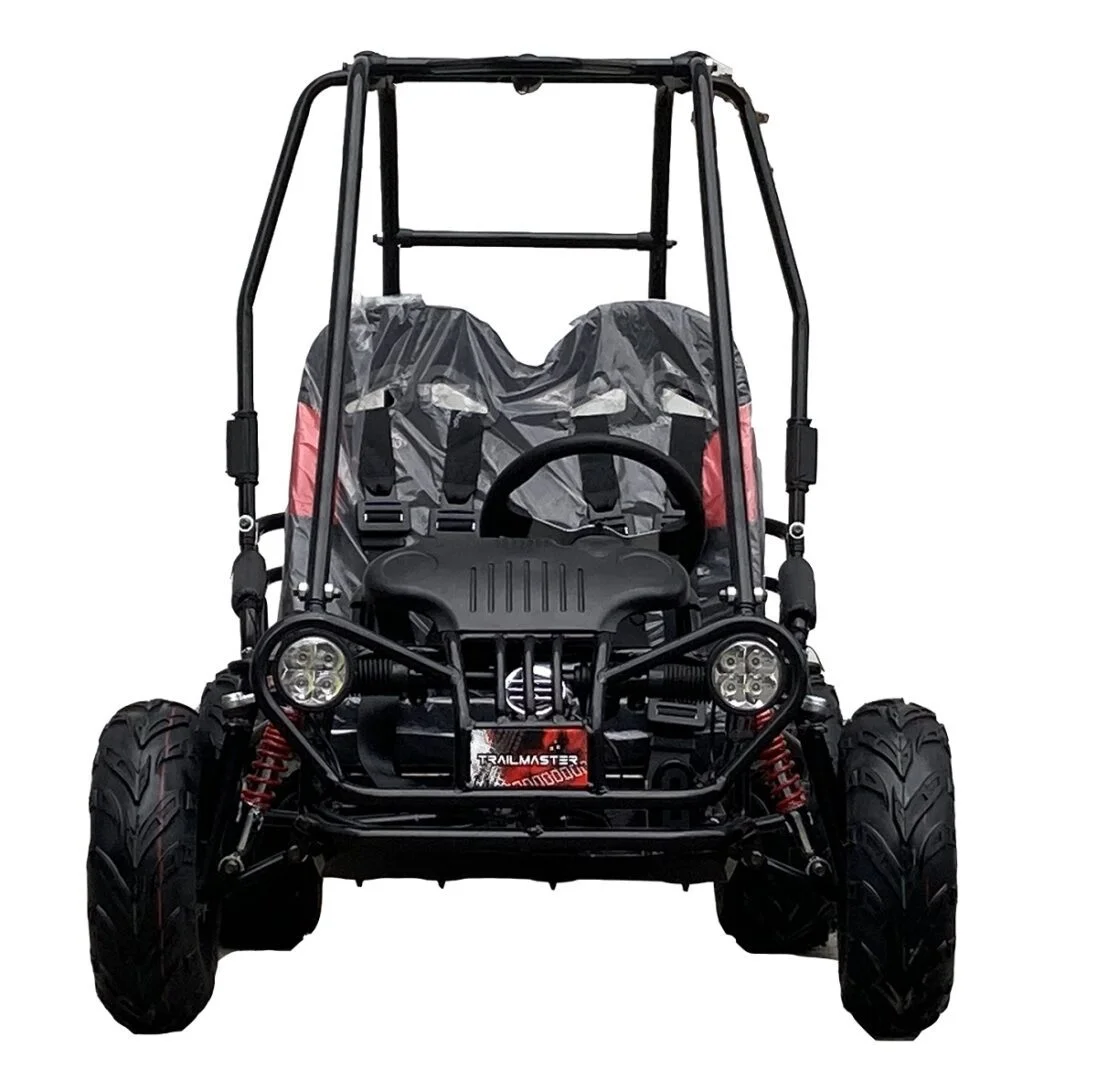

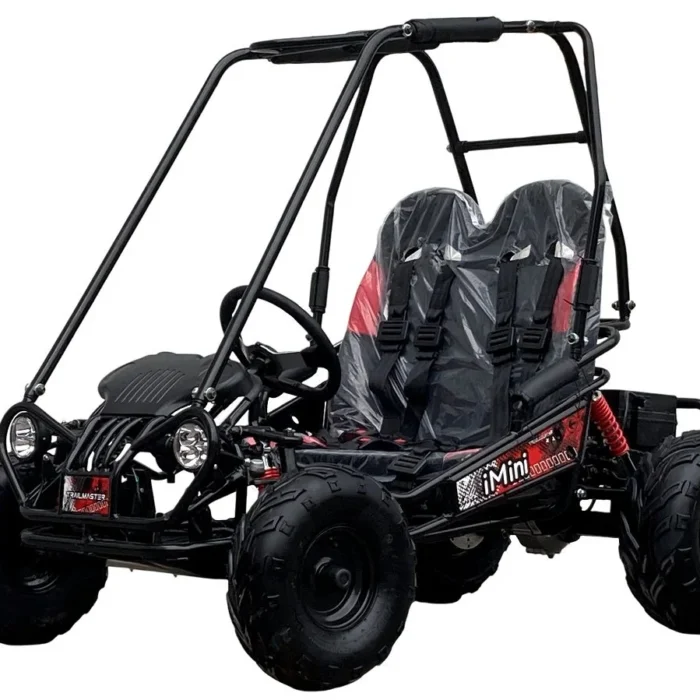

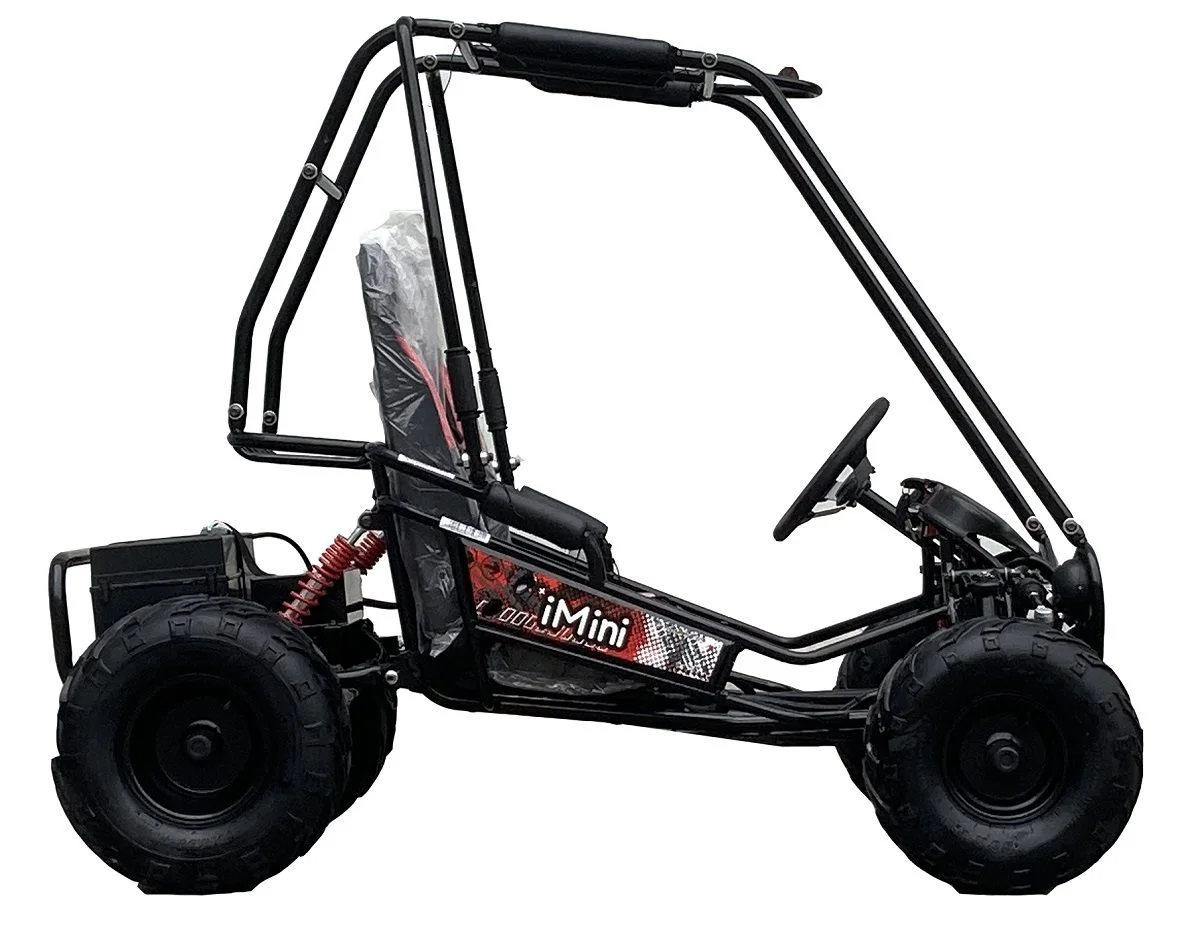

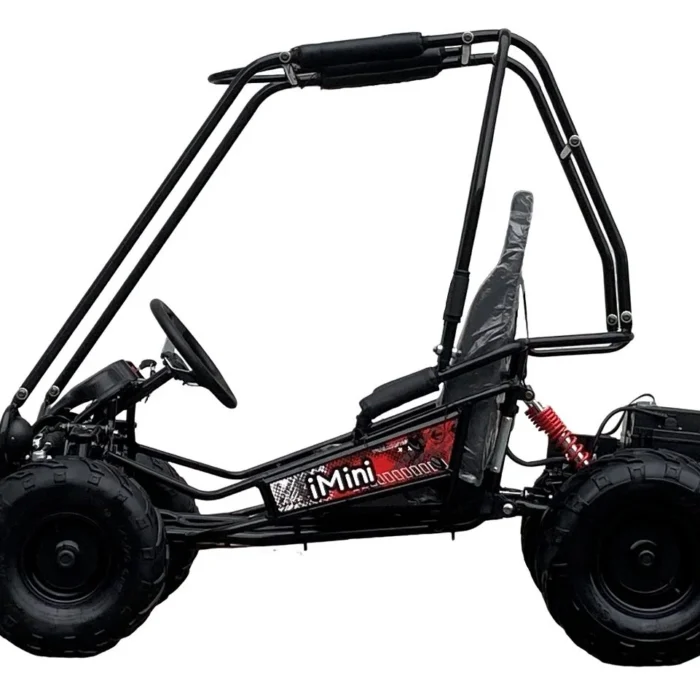

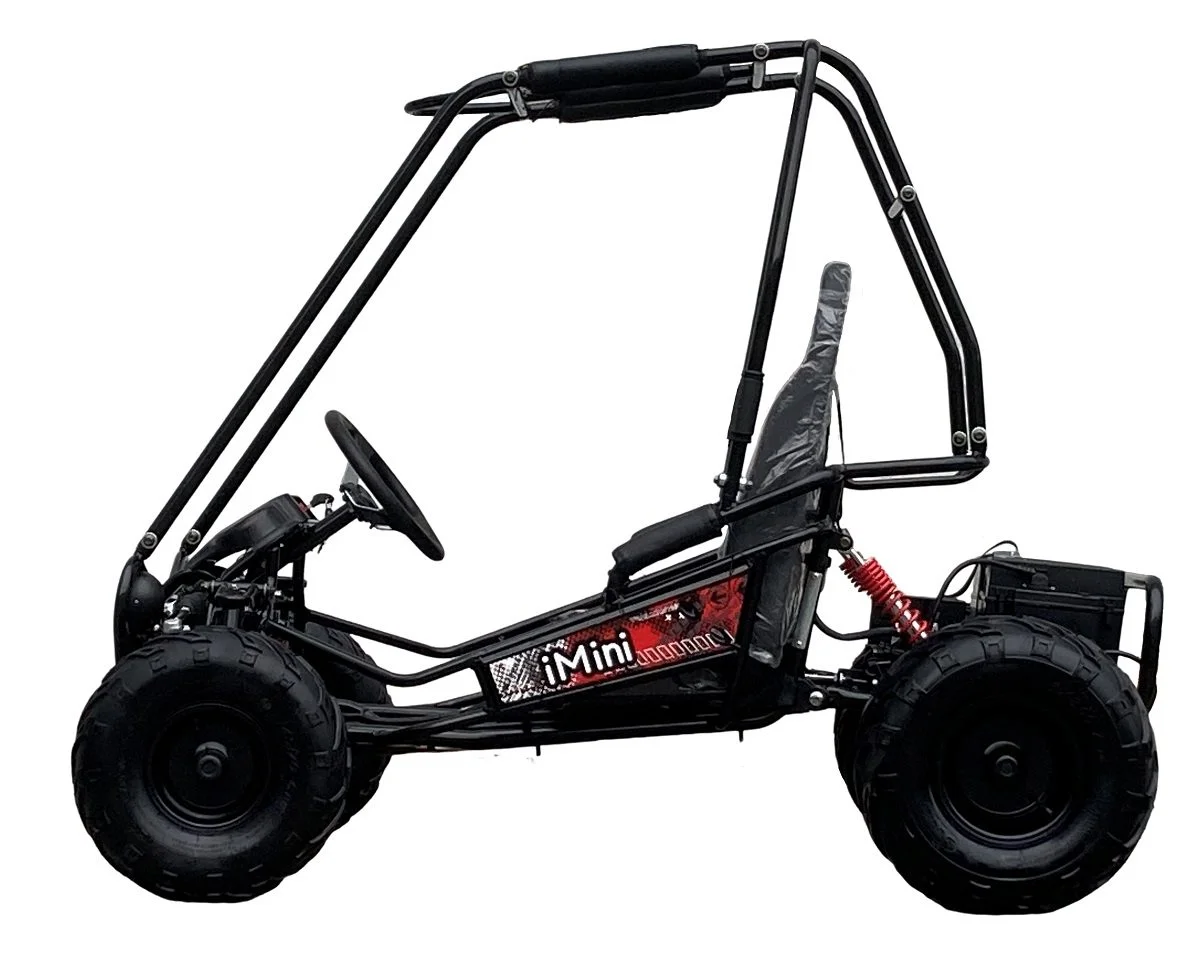

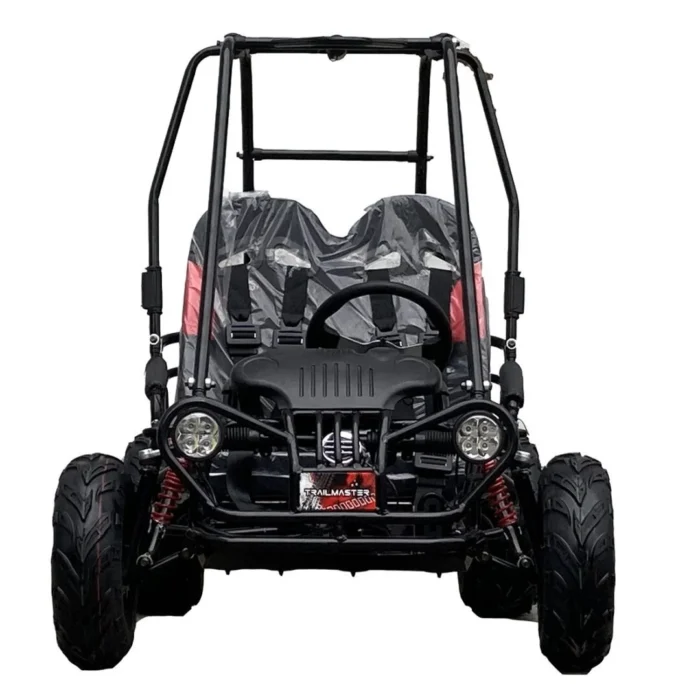

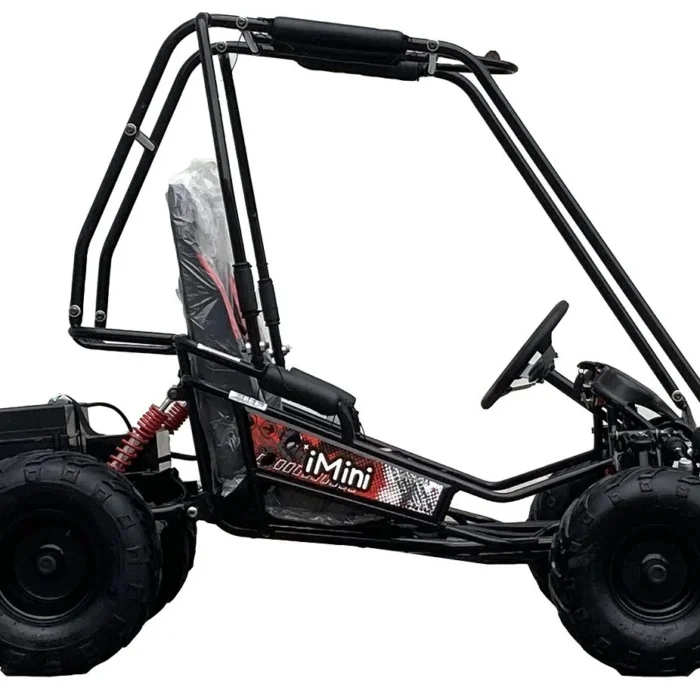

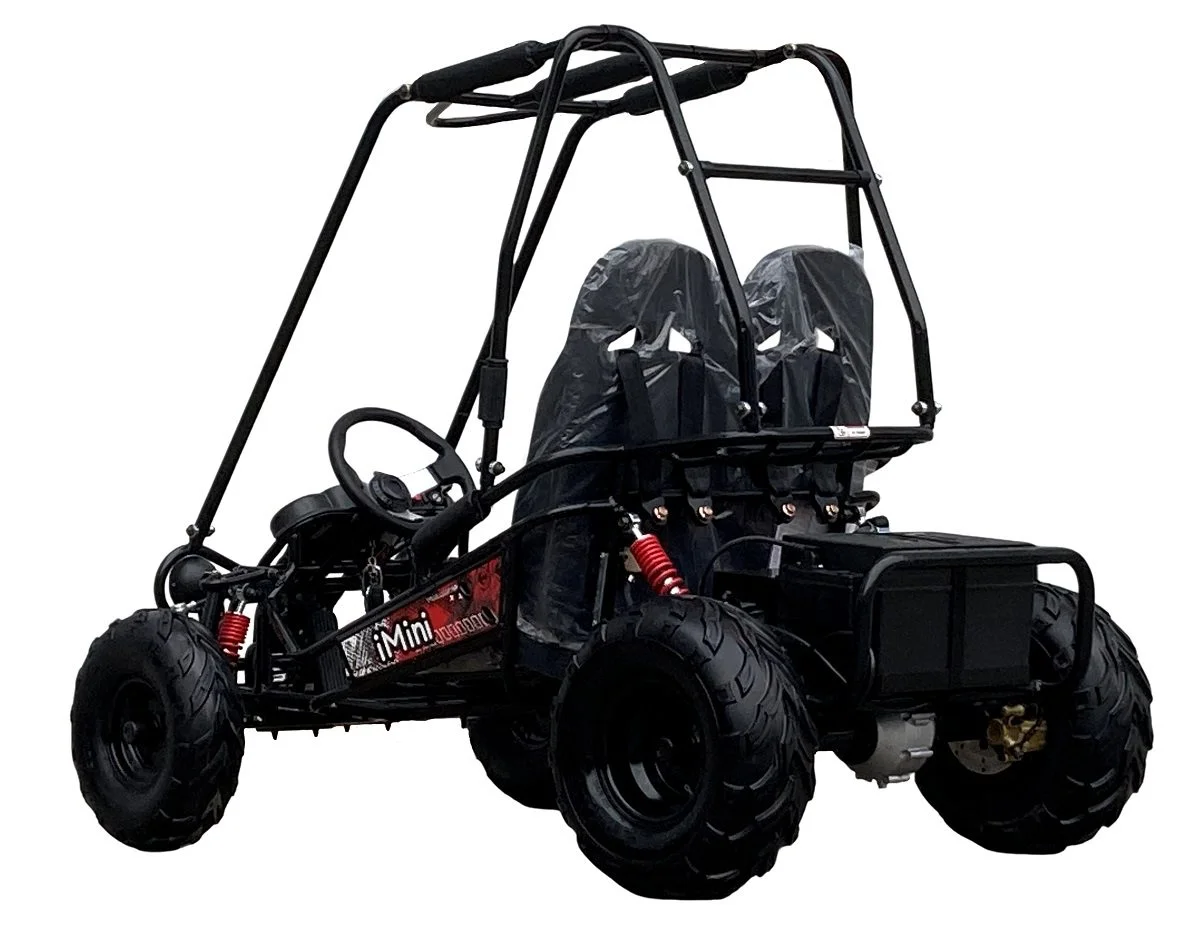

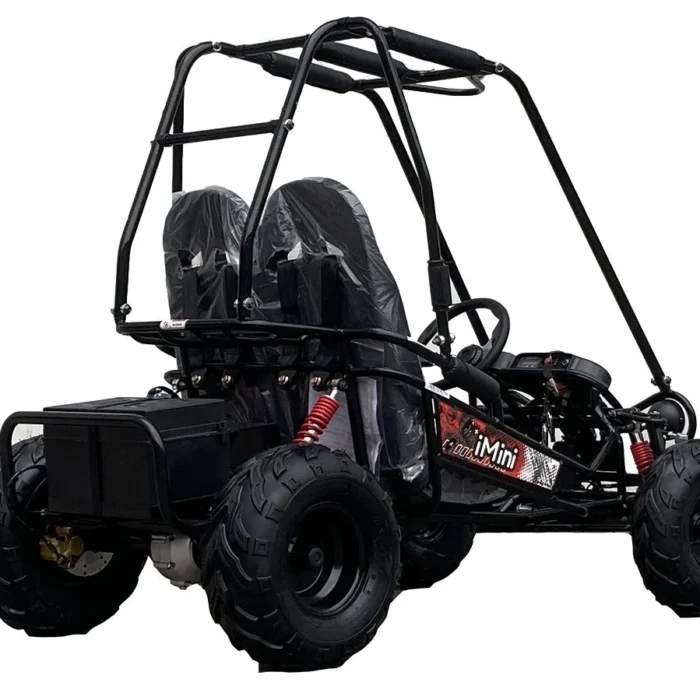

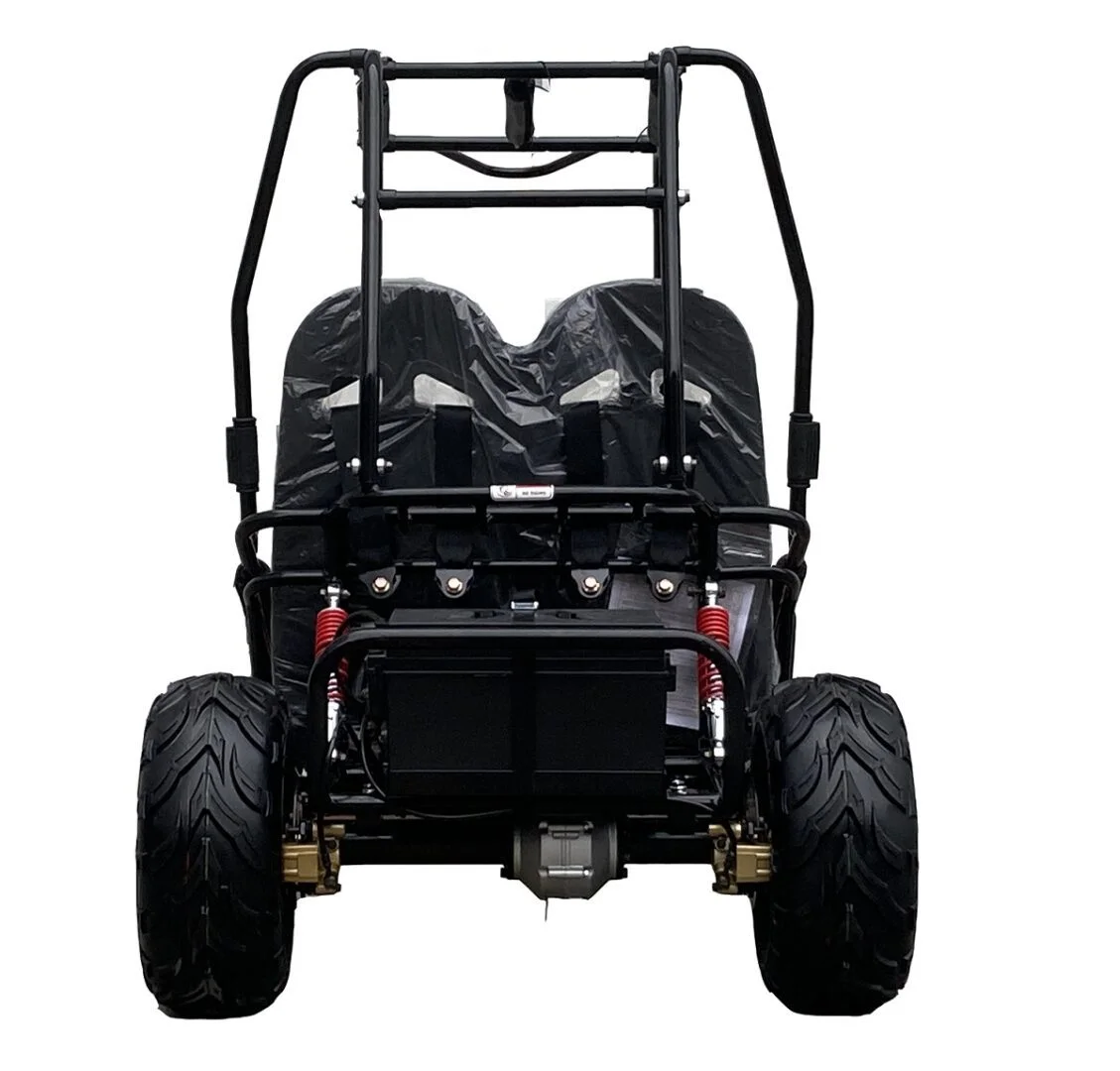

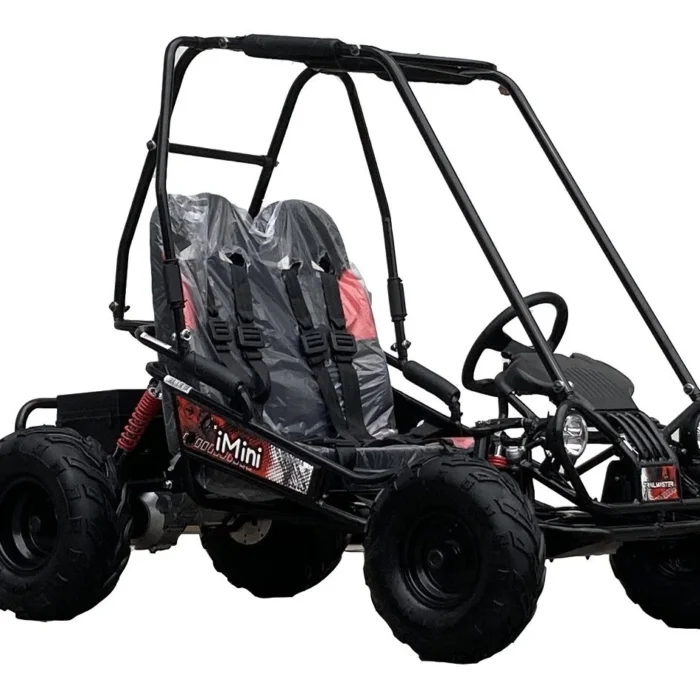

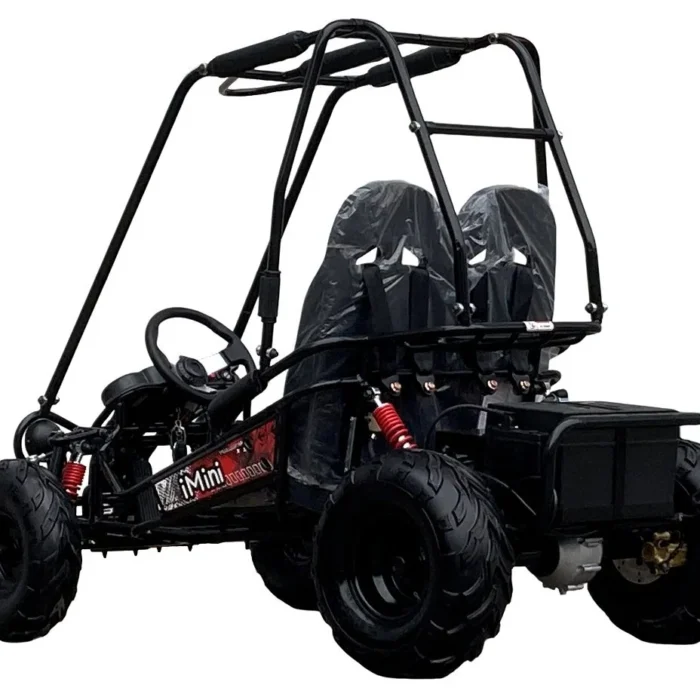

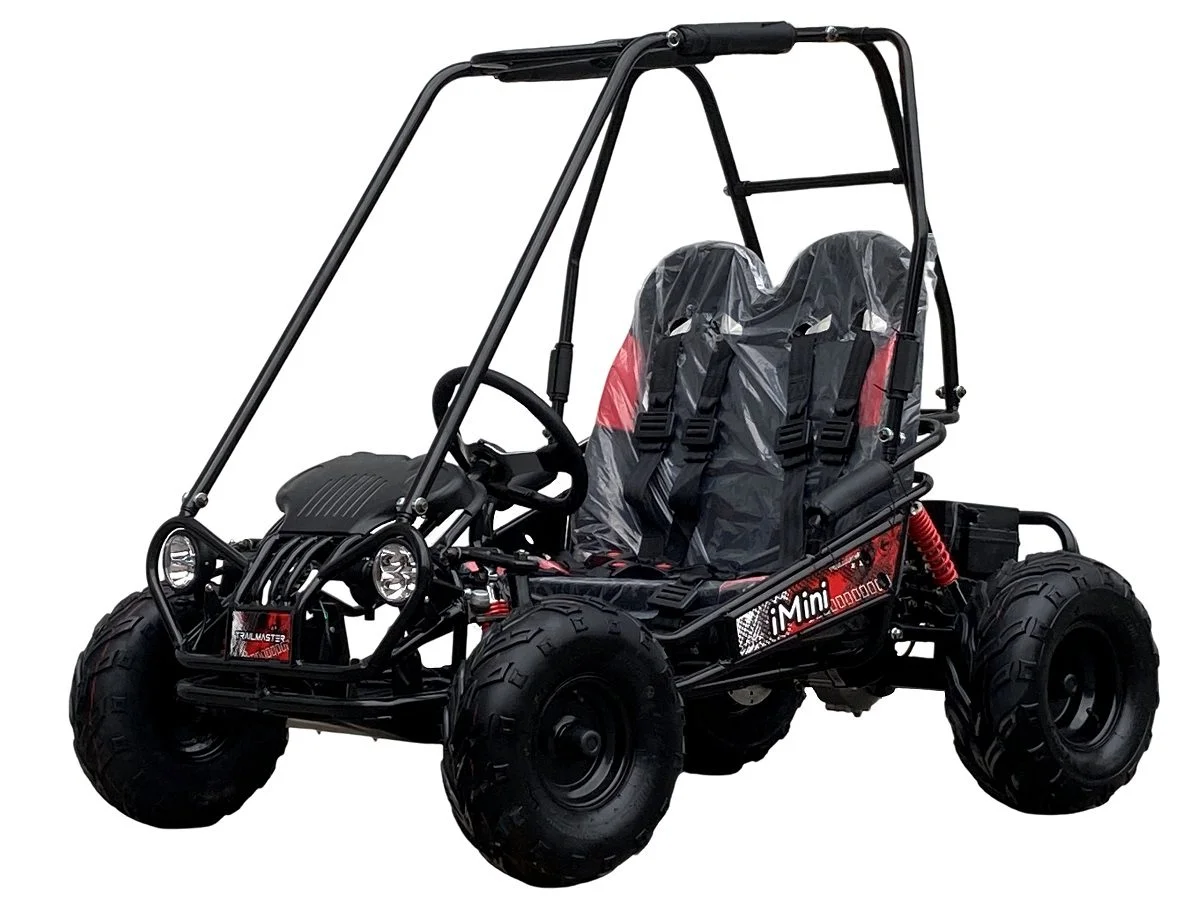

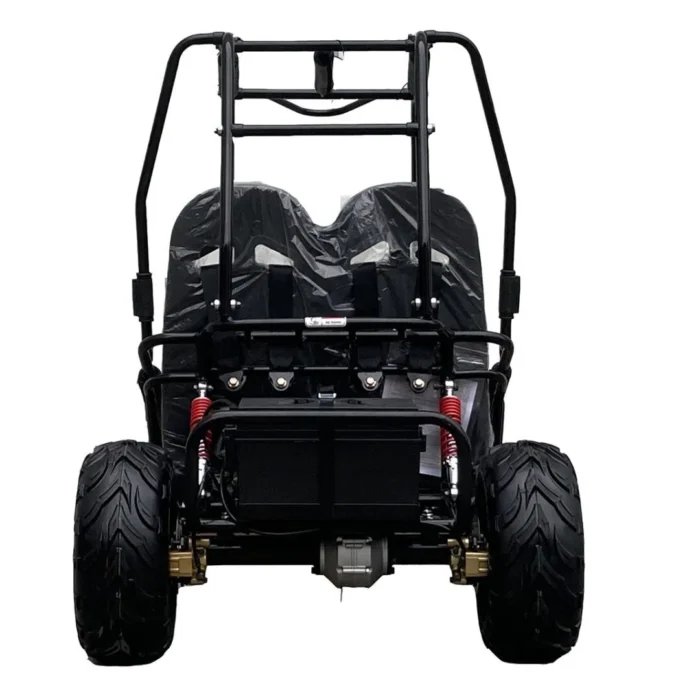

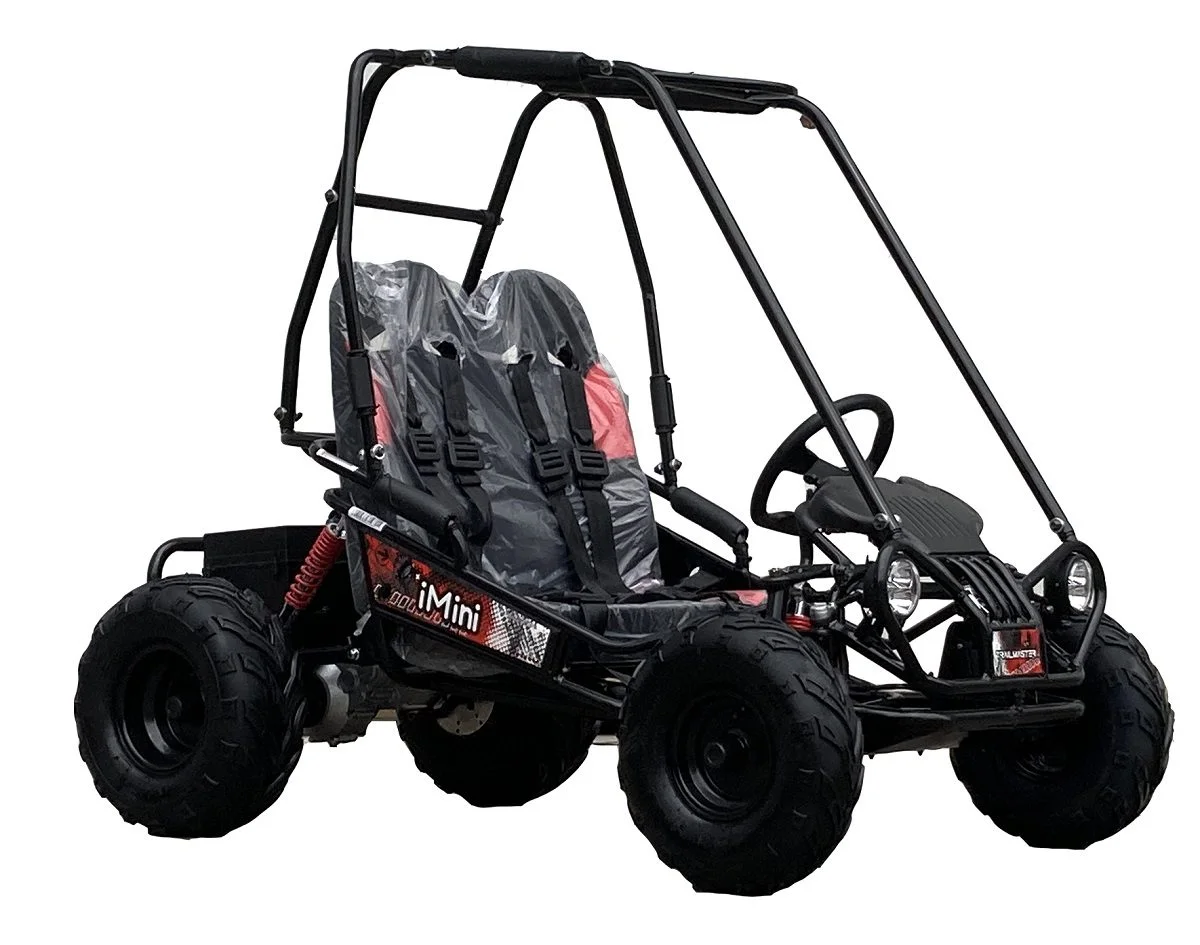

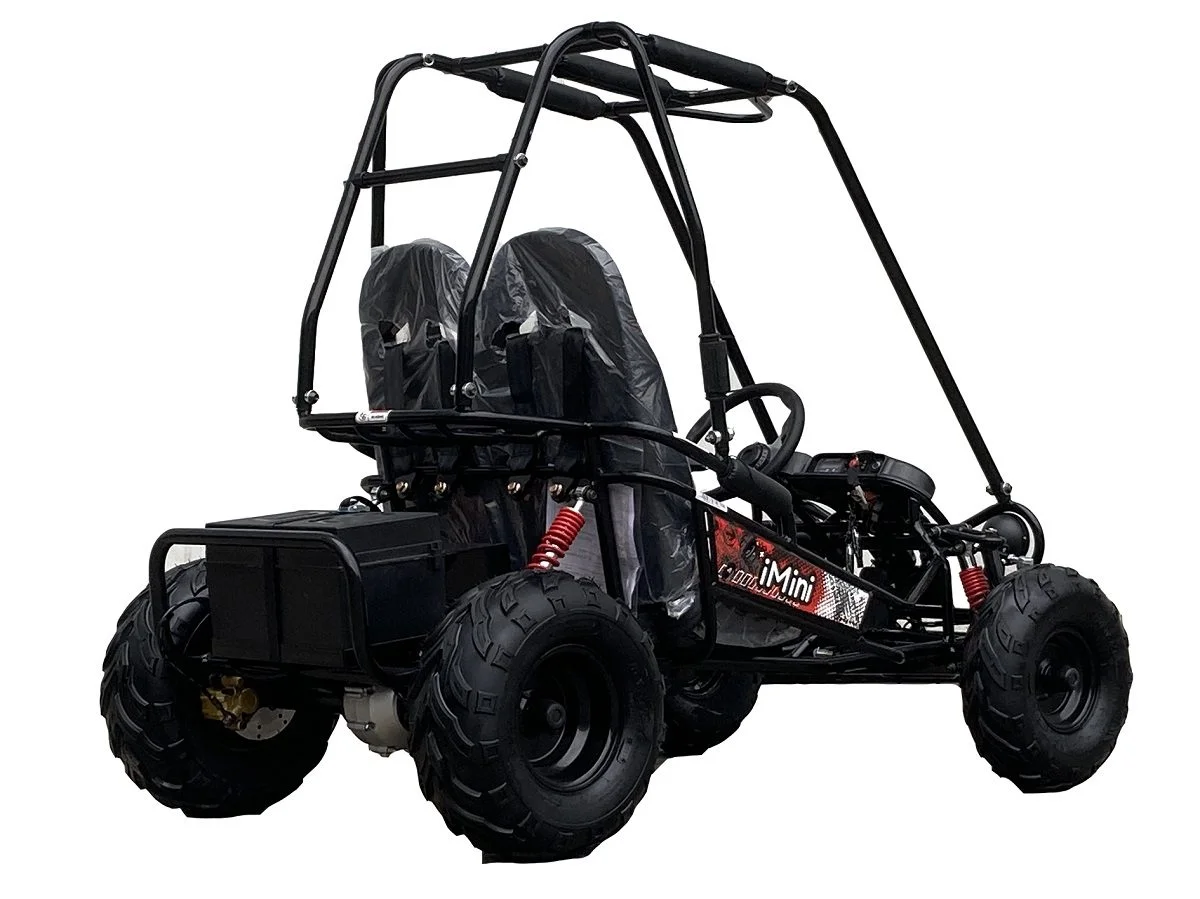

TrailMaster iMini Kids Electric Go-Kart, 48V 20Ah Battery, Fully Automatic with Reverse, LED Headlight
Introducing the iMini, designed to match the physical dimensions of our Mini XRX/R+. This compact electric vehicle is powered by a 48V 1.2KW electric motor and features a 48V 20Ah battery, offering an efficient and enjoyable ride.
The iMini operates fully automatically and includes a reverse function for easy maneuverability. It provides two forward driving modes: in “H” mode, you can reach a top speed of 18 MPH, while “L” mode is designed for more relaxed cruising with a top speed of 12 MPH.
With a full charge, the iMini can cover distances of up to 30 miles, making it a great choice for local adventures and leisurely outings. Experience the convenience and fun of electric driving with the versatile and compact iMini!
Key features:
- Powered by 48V, 20A battery
- Digital monitor
- Fully automatic with reverse
- Driver has to hit brake in order to engage throttle pedal for safety
- Offers two driving mode: with “H” mode top speed only 18M/h; with “L” mode top speed 12M/h
- Strong low-end torque and able to climb 15 degrees slope
- Driving range up to 30miles
- 5-Point safety harness seatbelt
- Remote Start/Kill
- LED headlight
- Horn
- Big tires: F / R: 145/70-6 / 16×8-7
- Rack and pinion steering wheel
- Hydraulic disc brake
- Padding over roll cage
- Adjustable sports seat: pedal to seat back adjustable from 30 to 35 inches
- Age group: 4 to 12 yrs
Vehicle Specifications
Battery Information
- Battery Type: Lead Acid Battery
- Nominal Voltage: 48V
- Rated Capacity: 20Ah
- Charging Temperature Range: 32 °F to 104 °F
- Storage Temperature Range: 5 °F to 104 °F
- Charging Time: 6-8 hours
- Range: 30 miles max depending on weight, speed, and driving conditions
- Battery Model: 6-DZF-12
- Battery Warranty: 6 Months Limited Warranty
Electric Motor Information
- Service Voltage: 48V
- Rated Power: 1.2KW
- Rated Speed: 3800 RPM
- Rated Current: 14A
- Max Torque: >= 8Nm
- Current Limit: 30A
General Information
- Suspension (Front/Rear): Double A-arm / Double Oil Damped Shock
- Brakes: Rear Hydraulic Disc Brake
- Tires (Front/Rear): 145/70-6 / 16×8-7
- Weight (Gross/Net): 273 lbs / 225 lbs
- Max Load: 330 lbs
- Driving Mode: R-N-D
- Max Speed: 12 mph on “L” mode; 18 mph on “H” mode
- Climbing Ability: 15 degrees
Dimension Information
- Wheelbase: 42 inches
- Height to Seat: 10.2 inches
- Min Ground Clearance: 2.8 inches
- Pedal to Seat Back Distance: 30 to 35 inches
- Overall Dimensions (L x W x H): 67 x 44 x 51.2 inches
- Crate Size: 60 x 30 x 21 inches
Rider-fit and range note: The stored copy lists ages 4–12, a 30–35 inch pedal-to-seat-back range, a 330 lb maximum load and up to 30 miles of range. Buyers should verify the manufacturer’s current age, size, supervision and load guidance for the exact iMini before use. Actual range can vary with rider load, speed mode, terrain, temperature, battery condition and setup. Also confirm the 48V 20Ah lead-acid battery, 1.2 kW motor, remote start/kill, rear hydraulic disc brake and five-point restraint system on the physical unit. For general product-safety and recall checks, review the U.S. Consumer Product Safety Commission recall database. Browse more electric go-karts and powersports inventory at DLR Golf Carts.
| Condition | New |
|---|---|
| Power Type | Electric |
