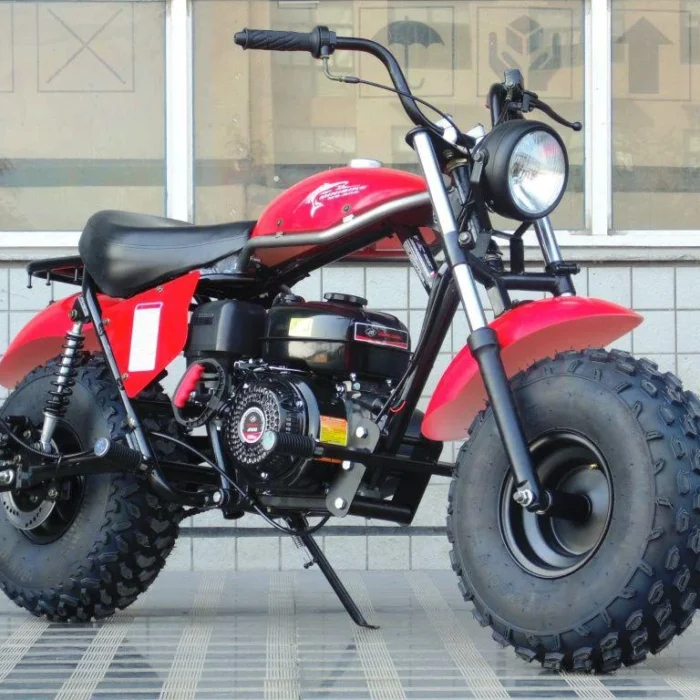

TrailMaster MB200-2 Mini Bike PPS-3375

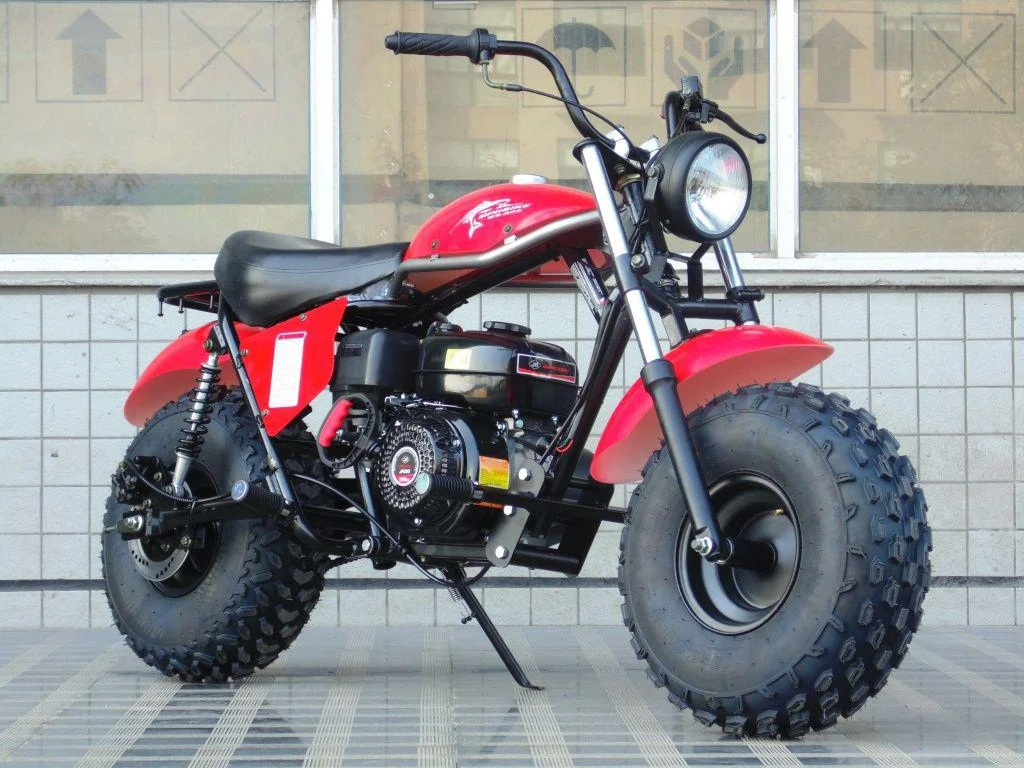

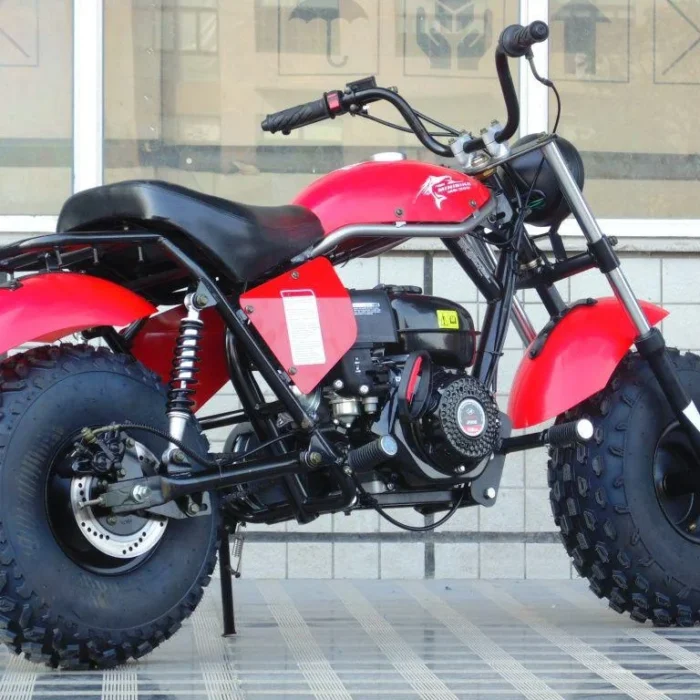

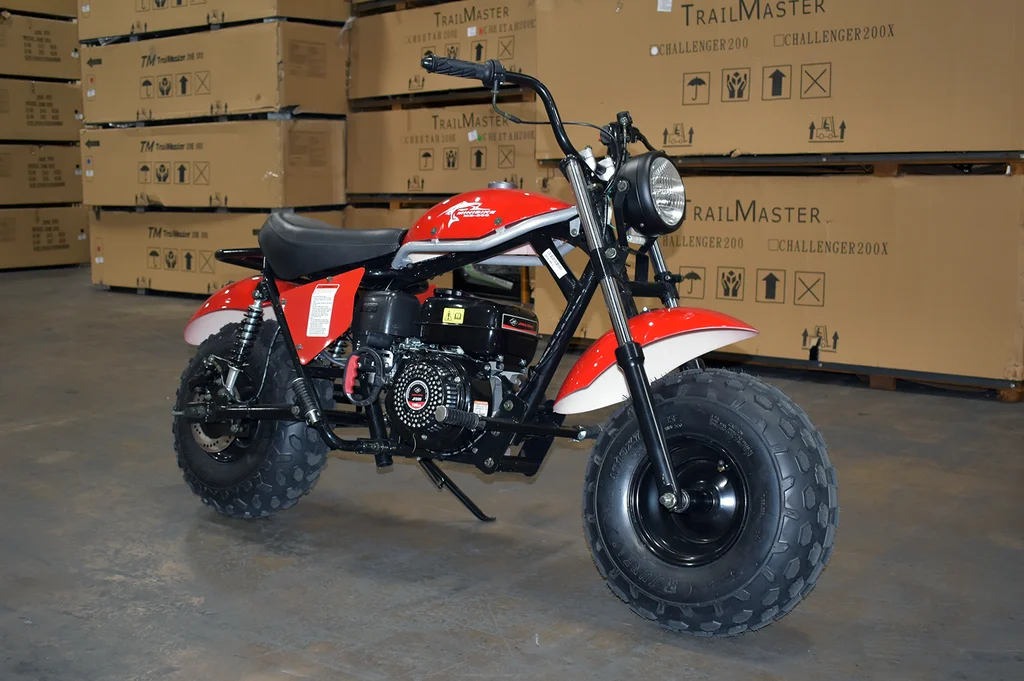

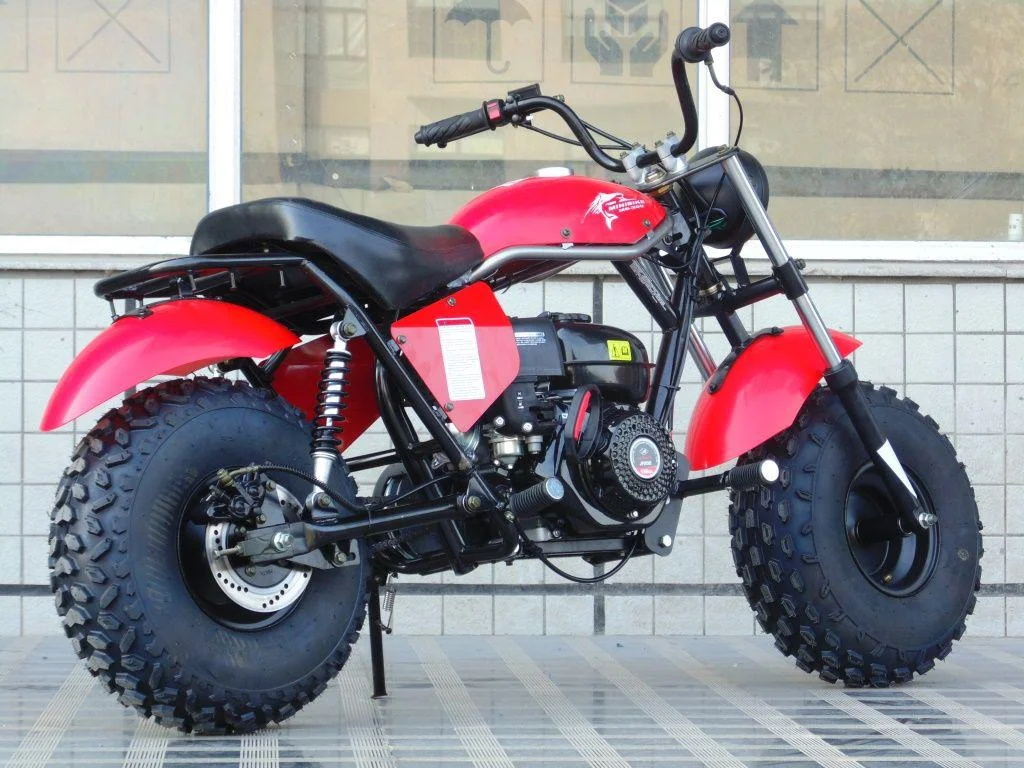

The TrailMaster MB200-2 is an off-road mini bike listed under SKU PPS-3375 with a 196cc air-cooled four-stroke OHV engine, recoil start, automatic drive, chain final drive, front fork suspension, rear hydraulic suspension, 19×7-8 low-pressure tires and a listed 200-lb weight capacity.
The source contains a brake-system inconsistency: the marketing copy describes a rear disc brake, while one stored specification row lists the rear brake as drum and another lists the overall brake system as disc. Confirm the physical brake hardware and current TrailMaster documentation before relying on either description.
Browse related models in our Dirt Bikes category. For manufacturer information, visit the TrailMaster website. The prior page text also made a broad 49-state legal-use claim; treat this model as an off-road mini bike unless current manufacturer documentation and local rules establish otherwise.

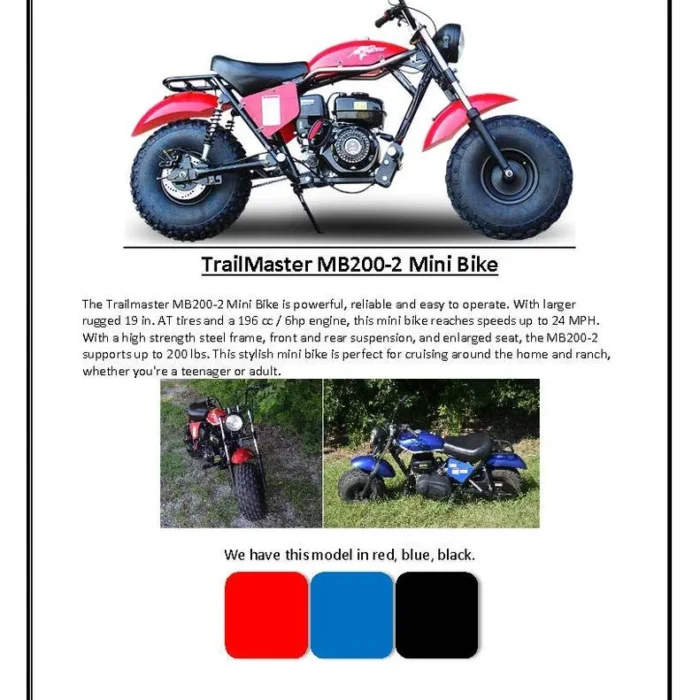

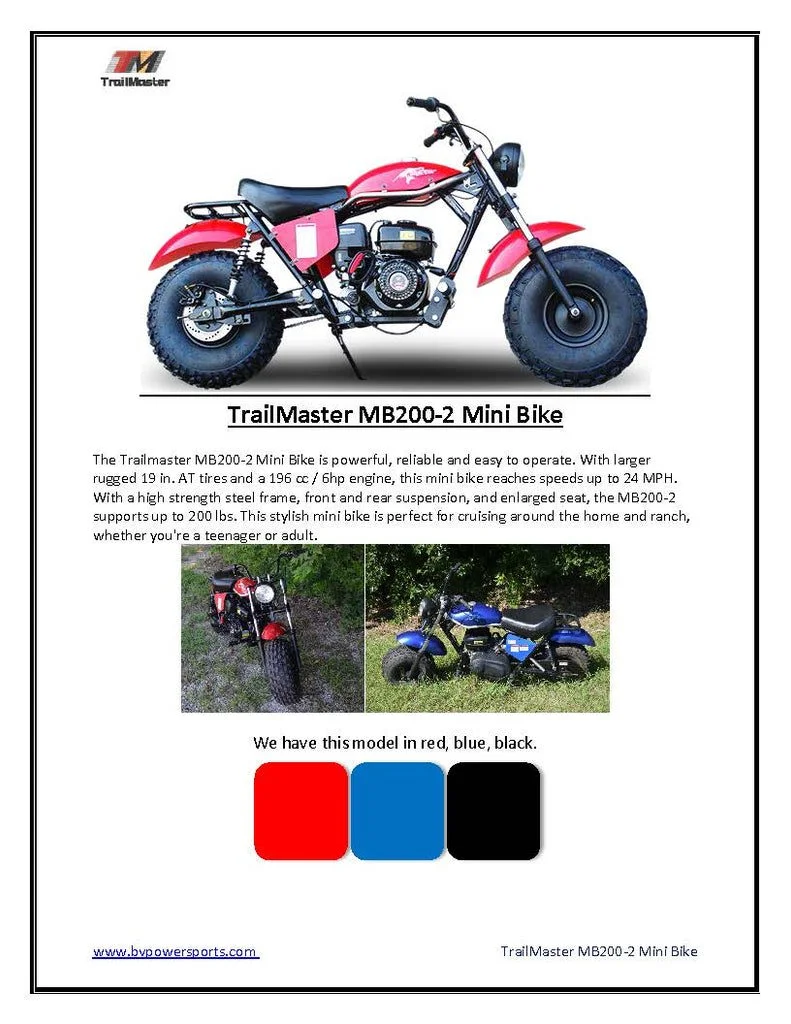

available in vibrant red, sleek blue, and classic black!

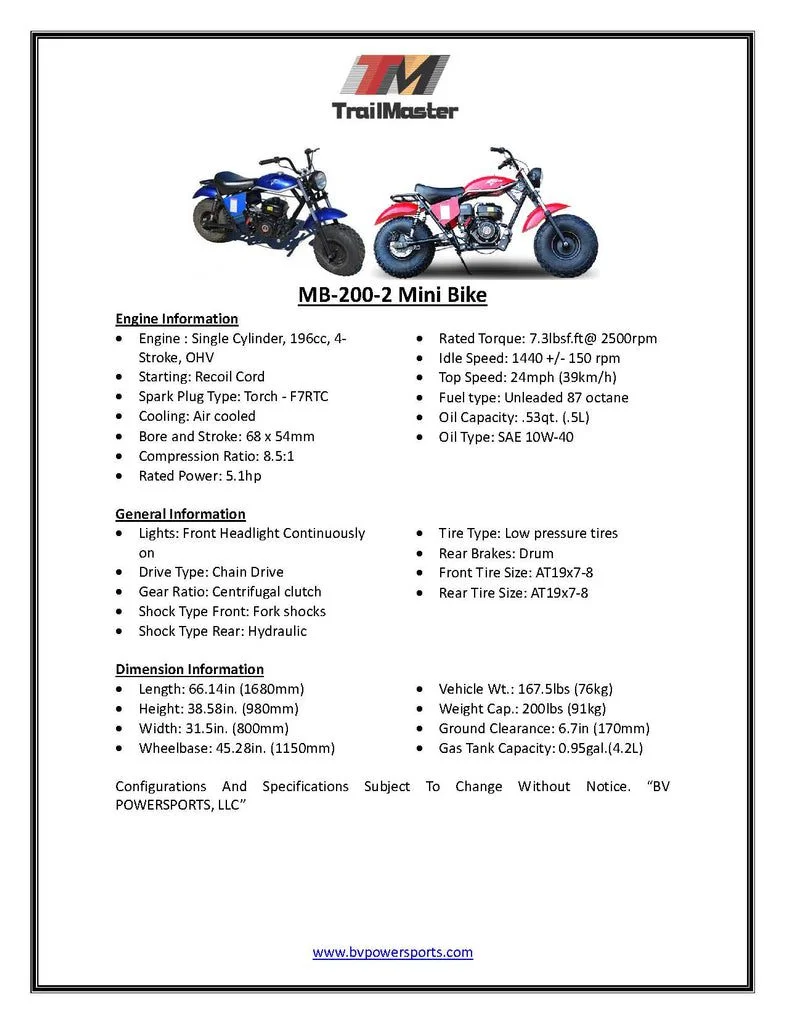

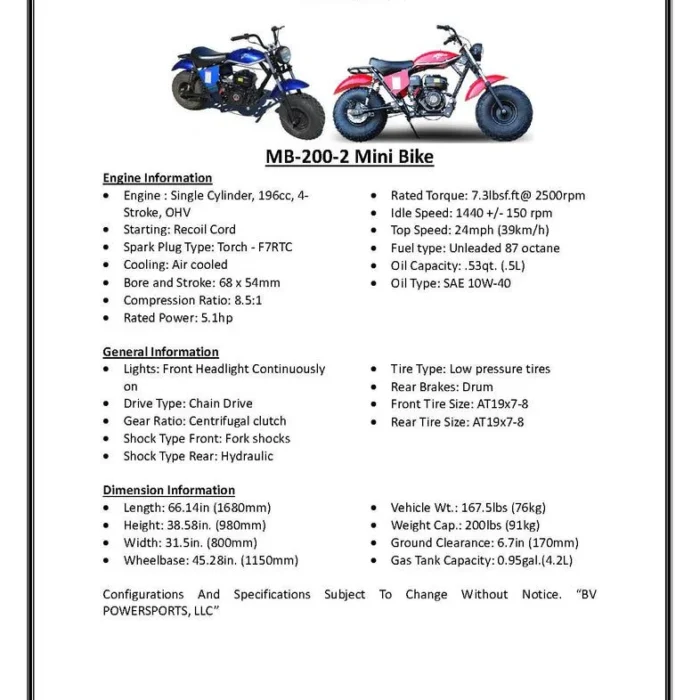

Technical Specifications
Engine Information
- Engine: Single Cylinder, 196cc, 4-Stroke, OHV
- Starting: Recoil Cord
- Spark Plug Type: Torch – F7RTC
- Cooling: Air Cooled
- Bore and Stroke: 68 x 54 mm
- Compression Ratio: 8.5:1
- Rated Power: 5.1 hp
- Rated Torque: 7.3 lbs-ft @ 2500 rpm
- Idle Speed: 1440 ± 150 rpm
- Top Speed: 24 mph (39 km/h)
- Fuel Type: Unleaded 87 Octane
- Oil Capacity: 0.53 qt (0.5 L)
- Oil Type: SAE 10W-40
General Information
- Lights: Front Headlight Continuously On
- Drive Type: Chain Drive
- Gear Ratio: Centrifugal Clutch
- Shock Type Front: Fork Shocks
- Shock Type Rear: Hydraulic
- Tire Type: Low Pressure Tires
- Rear Brakes: Drum
- Front Tire Size: AT19 x 7-8
- Rear Tire Size: AT19 x 7-8
Chassis / Suspension / Brakes
- Brake System: Disc
- Shock Absorber (Front / Rear): Hydraulic
- Suspension Front/Rear: Front Shocks / Low Pressure Tires
Dimensions / Capacities
- Length: 66.14 in (1680 mm)
- Height: 38.58 in (980 mm)
- Width: 31.5 in (800 mm)
- Wheelbase: 45.28 in (1150 mm)
- Vehicle Weight: 167.5 lbs (76 kg)
- Weight Capacity: 200 lbs (91 kg)
- Ground Clearance: 6.7 in (170 mm)
- Gas Tank Capacity: 0.95 gal (4.2 L)
Drive Train
- Transmission: Automatic
| Condition | New |
|---|---|
| Power Type | Gas |
