TrailMaster Mini XRX/R+ Go Kart
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

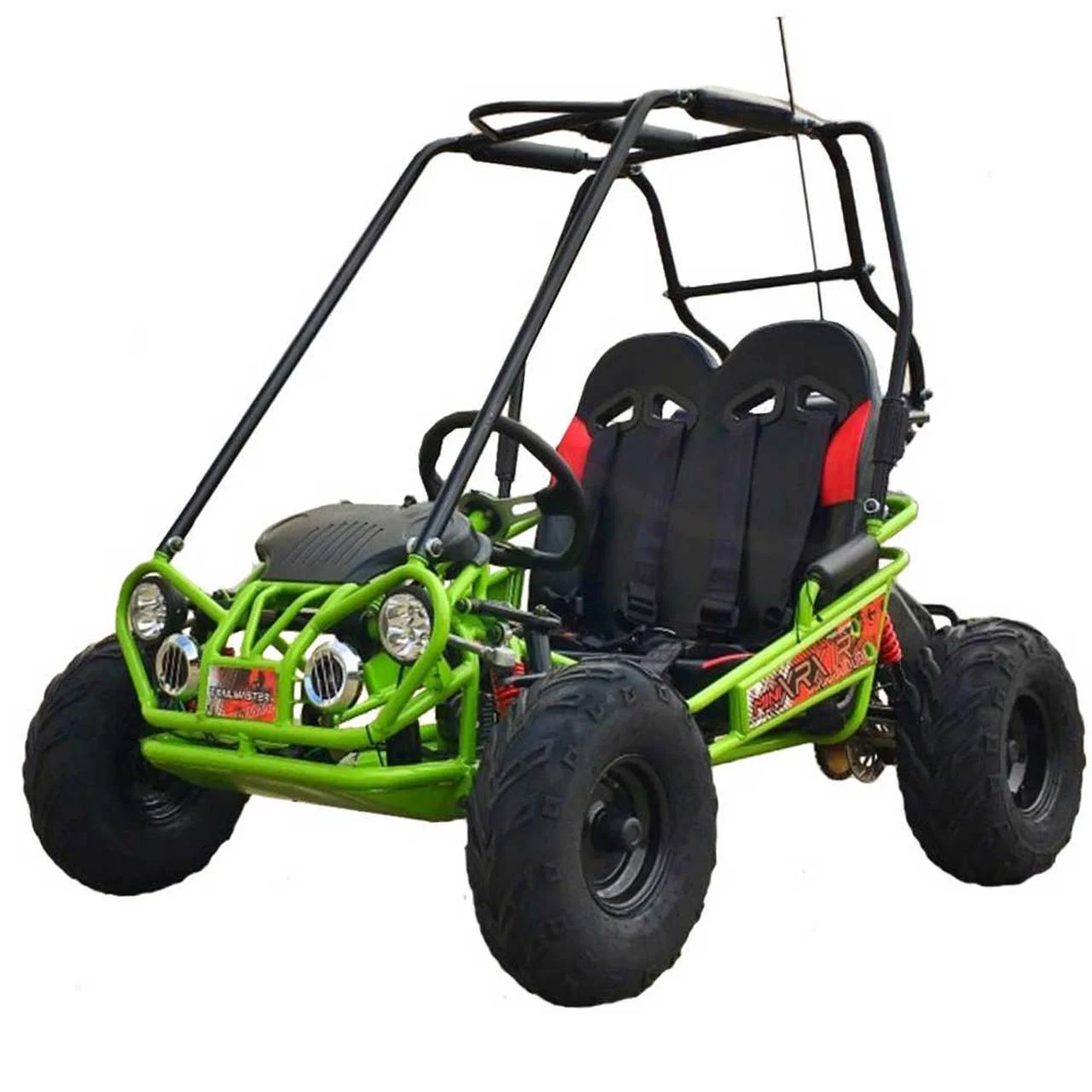

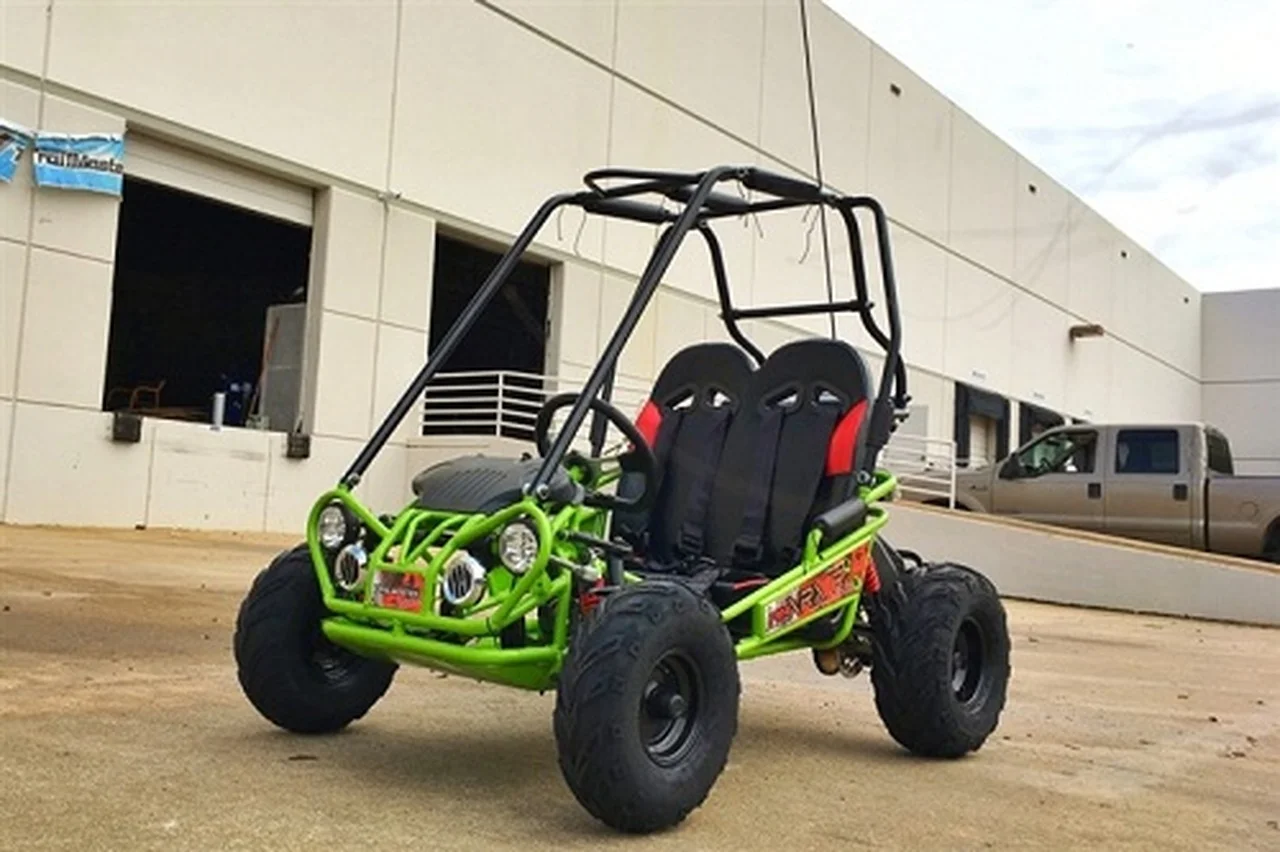

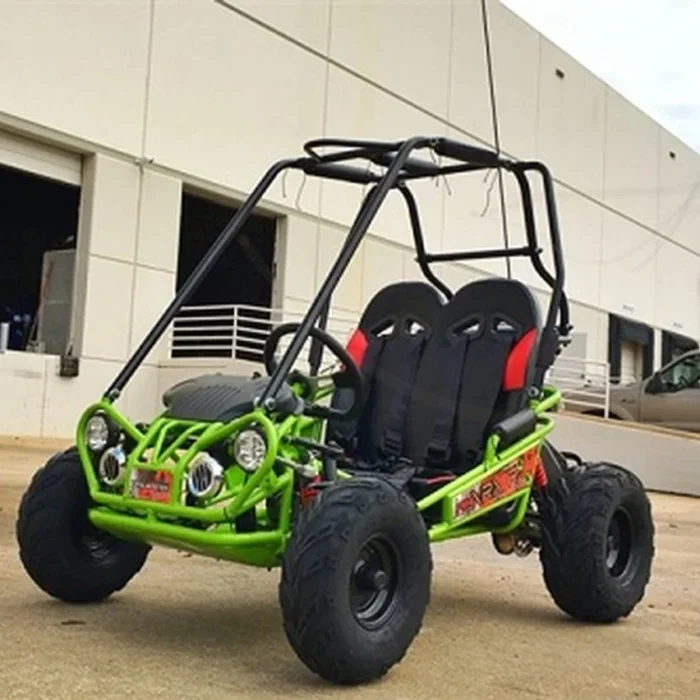

TrailMaster Mini XRX/R+ Go Kart PPS-1262
The TrailMaster Mini XRX/R+ is listed under SKU PPS-1262 with a 163cc air-cooled four-stroke engine, automatic transmission with reverse, electric start with pull-start backup, chain drive, dual-wheel drive, disc brakes and a 12V 9Ah battery. The stored specifications also list remote start/kill, a speed governor, horn, LED headlight, adjustable sports seat, adjustable pedals and a five-point safety belt.
Browse related models in our Go Karts category. For manufacturer information, visit the TrailMaster website.
Size, Load and Chassis Details
The source lists a 300-pound maximum load, 42.6-inch wheelbase, 4.02 inches of minimum ground clearance, front dual A-arm suspension, rear double oil-damped shocks and listed overall dimensions of 58.7 × 38.2 × 48.8 inches. Treat these as listing specifications to confirm against the physical kart and current documentation.
What to Verify Before Riding
Match SKU PPS-1262 to the physical unit and verify the engine, starting systems, reverse operation, brakes, tires, steering, suspension, remote shut-off, speed governor, seat and pedal adjustment, five-point belt and all safety labels. Confirm rider fit, supervision requirements, protective equipment and local off-road rules before use.
| Engine Information | |
| EPA and CARB certificated | |
| Engine type: | 4-stroke, single cylinder, air cooled |
| Displacement: | 163cc |
| Max HP: | 5.5hp/3600rpm |
| Max torque: | 8 lb ft/3600rpm |
| Bore x stroke: | 2.6 x 1.8 inches |
| Climbing ability: | 12 degrees |
| Ignition: | C.D.I |
| Starting system: | Electric Start with Pull Start Backup |
| Battery: | 12V 9Ah |
| Carburetor brand: | JF (RX) |
| Engine oil: | SAE 15W-40 |
| General Information | |
| Clutch: | Automatic with reverse |
| Driveline / Driving wheel: | Chain / Dual wheel drive |
| Suspension, F / R: | Dual A-arm / Double Oil Damped Shock |
| Brakes | Disc |
| Tires, F / R: | 145X70-6 / 16 X8-7 |
| Fuel capacity: | 1.2 gal |
| Weight, G.W. / N.W.: | 280 / 232 lbs |
| Max load: | 300 lbs |
| Dimension Information | |
| Wheelbase: | 42.6 inches |
| OA L x W x H: | 58.7×38.2×48.8 inches |
| Height to seat: | 13.6 inches |
| Min ground clearance: | 4.02 inches |
| Pedal to seat back: 30” to 35”; Pedal can also adjusted to 3” or 6” shorter. | |
| Features: Live Axle, Two-wheel Drive, Electric Start w/Pull Start Back Up, LED Headlight, Remote Start/Kill, Adjustable Sports Seat, Adjustable Pedal, Five Point Safety Seatbelt, Speed Governor, Horn | |
| Condition | New |
|---|---|
| Power Type | Gas |
