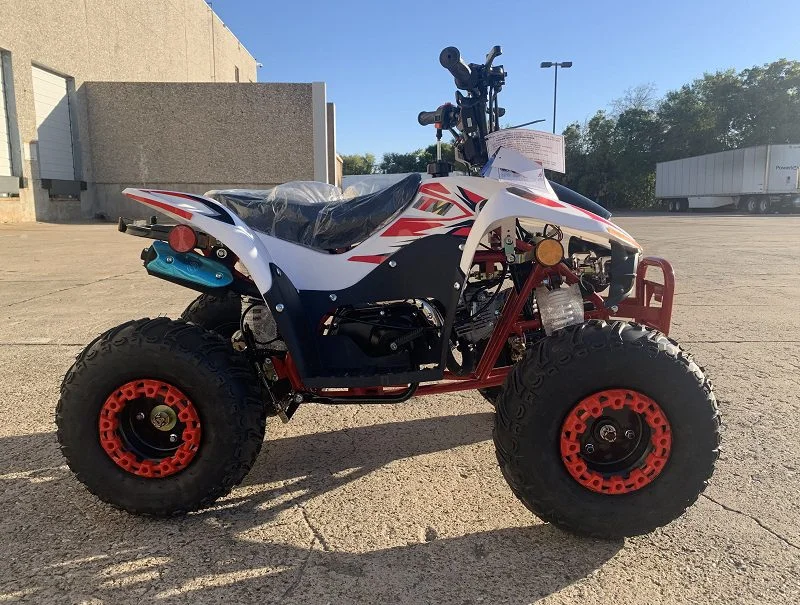

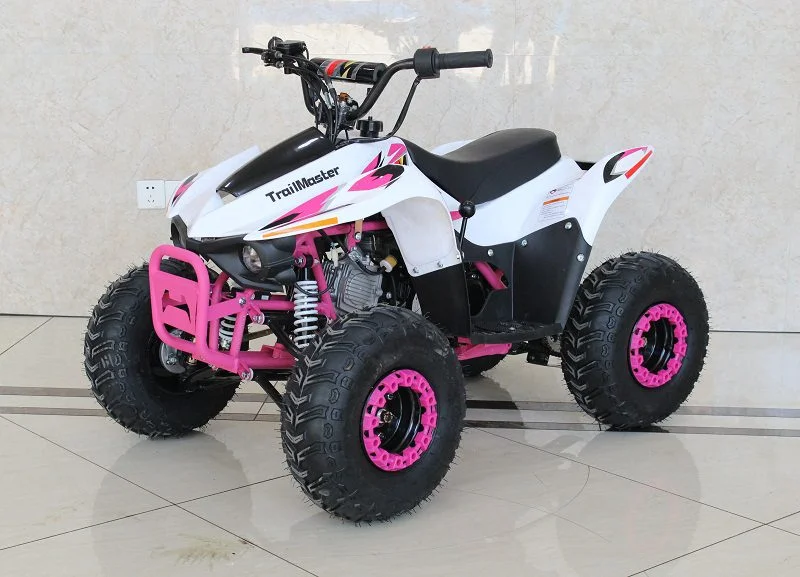

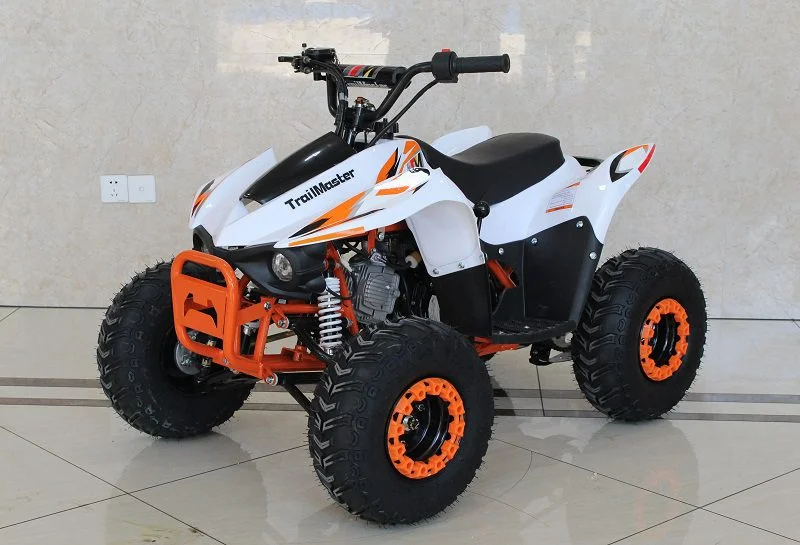

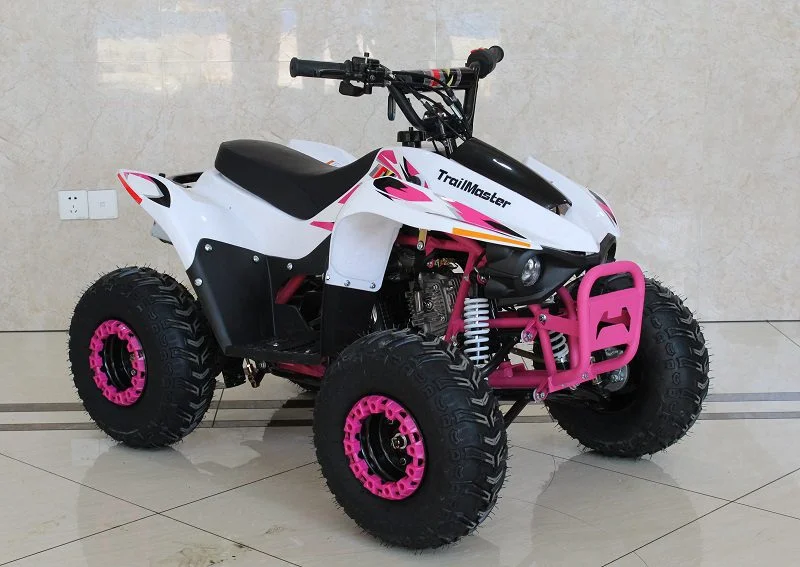

Trailmaster N110 Youth Off-Road ATV, 110cc Engine, 4-Stroke, 1-Cylinder, Air Cooled
Local Pick-Up: You can come and pick up your New ride at 2470 W Pioneer Pkwy, Grand Prairie, TX 75051, however, In store we offer assembling service at additional charges, please call for details. +1(682) 369-8012
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

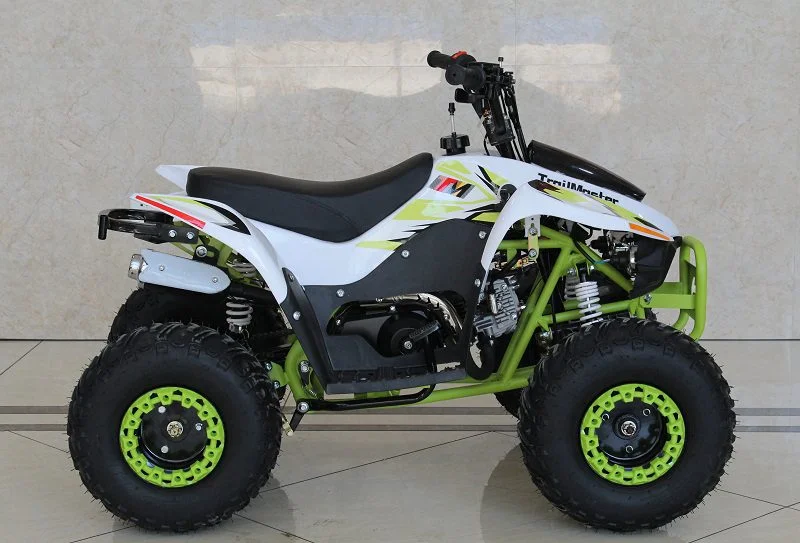

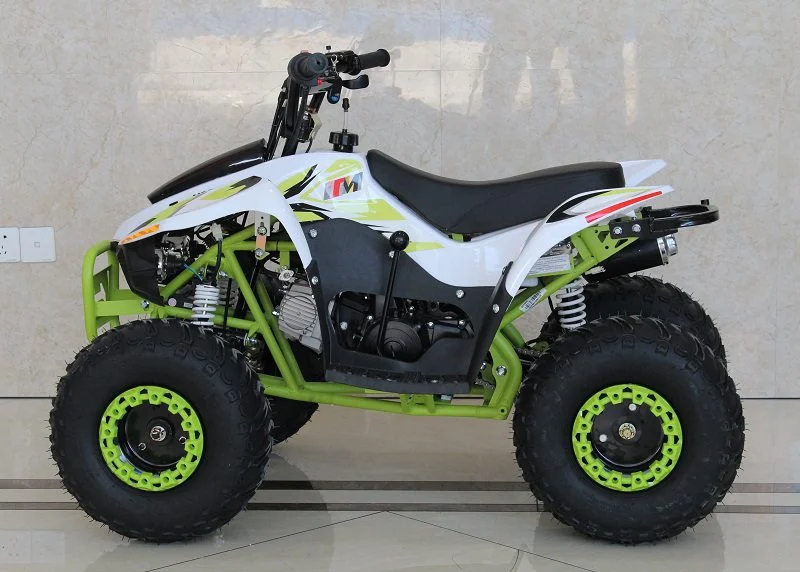

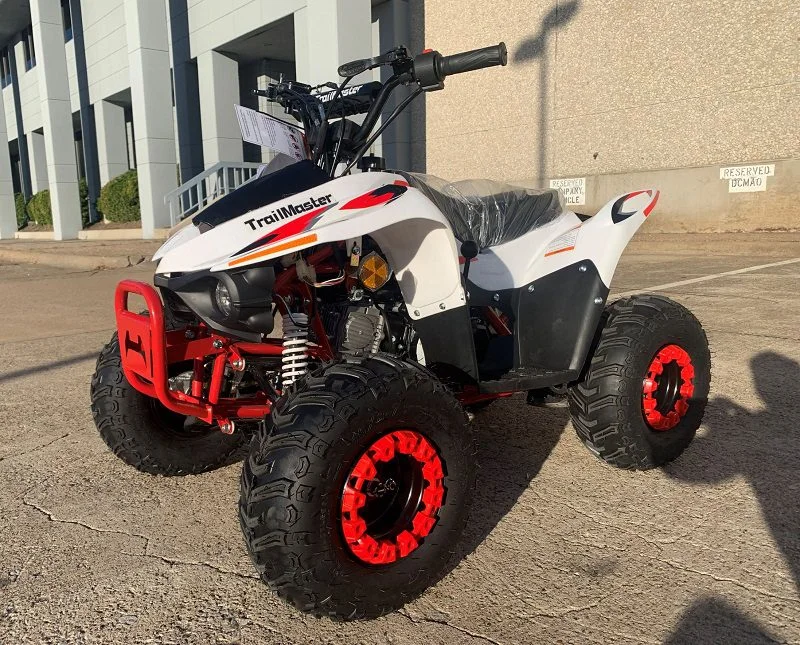

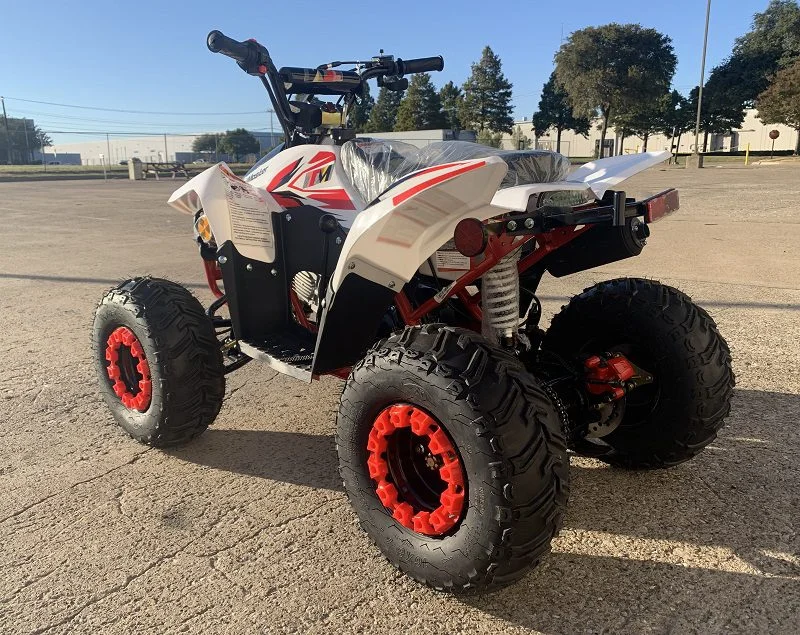

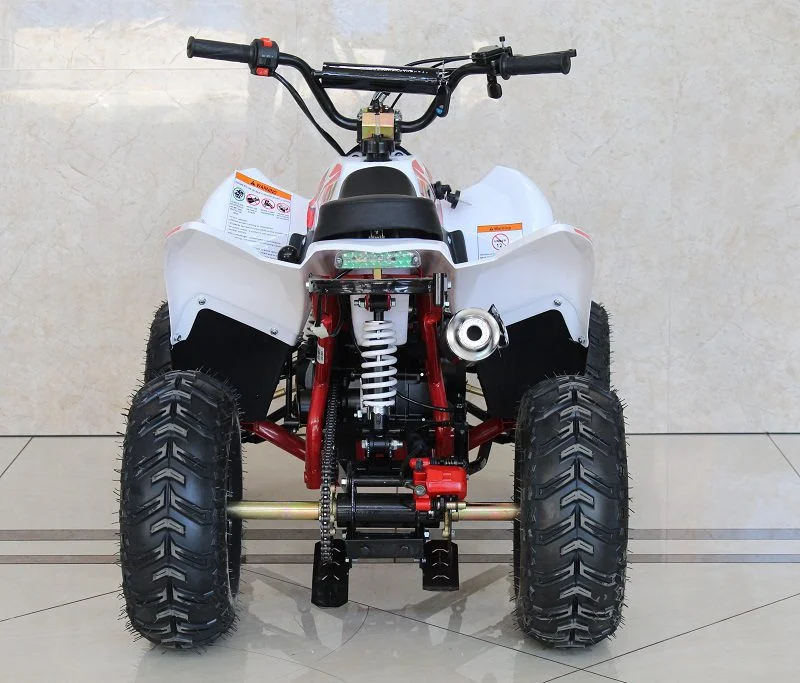

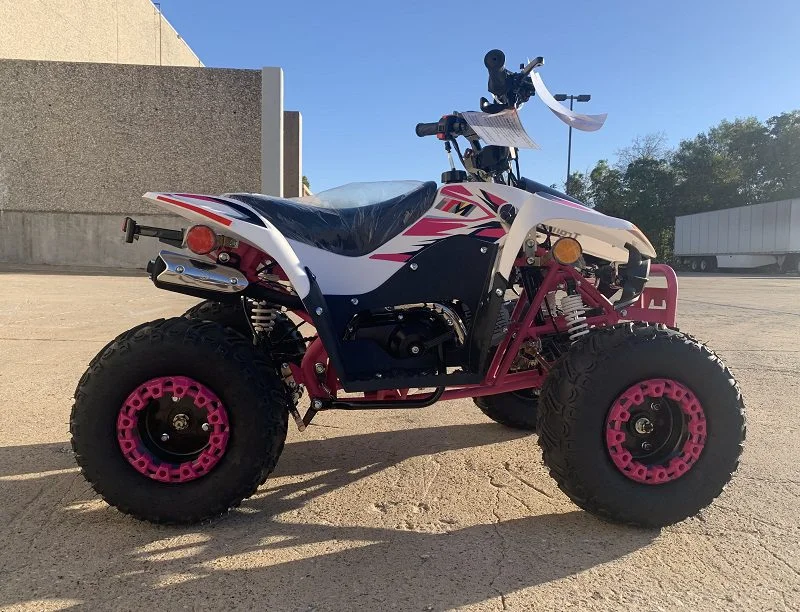

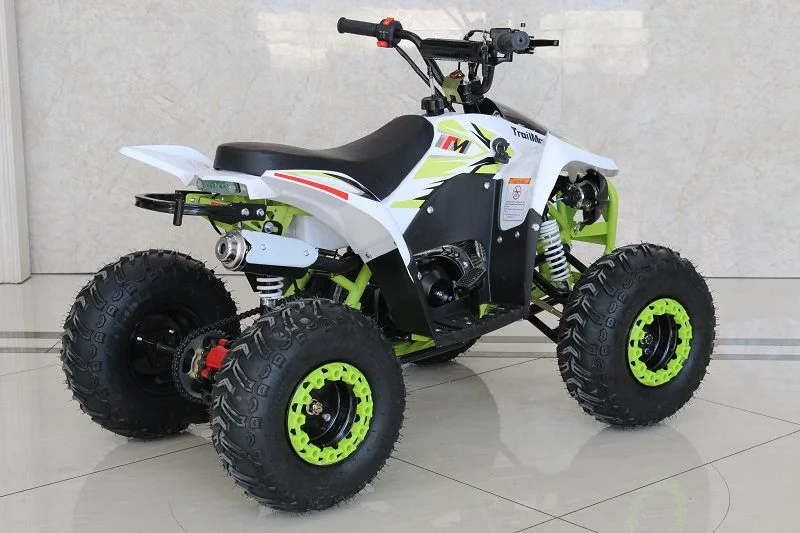

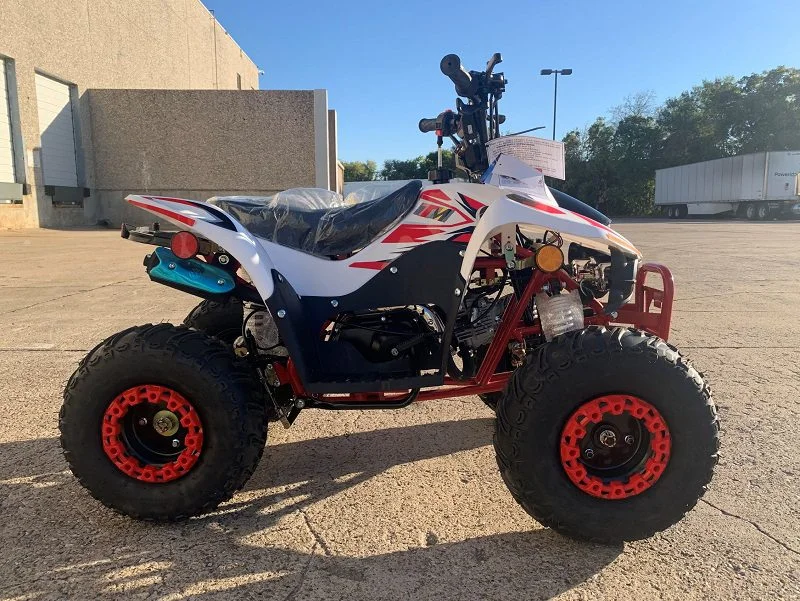

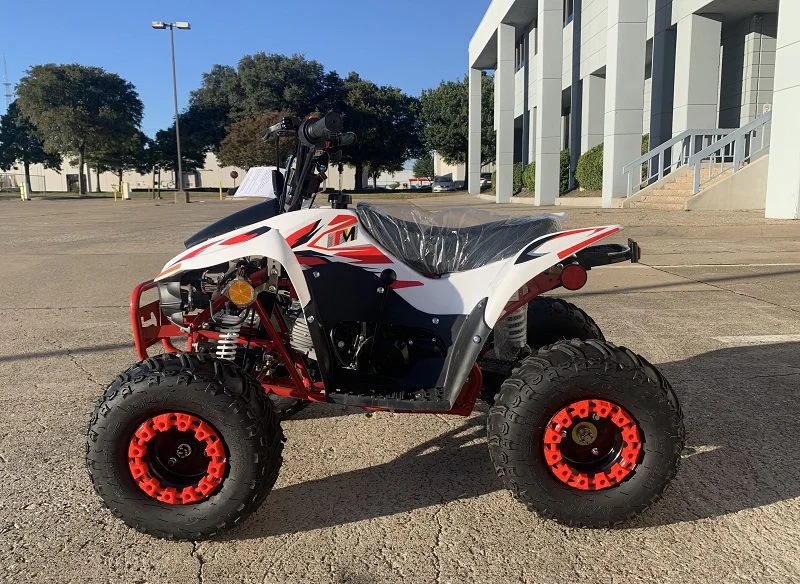

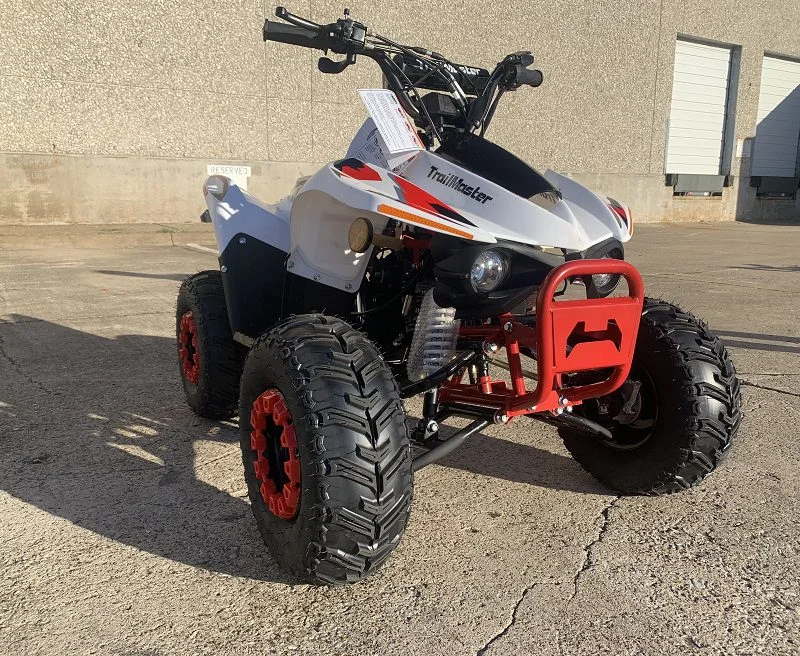

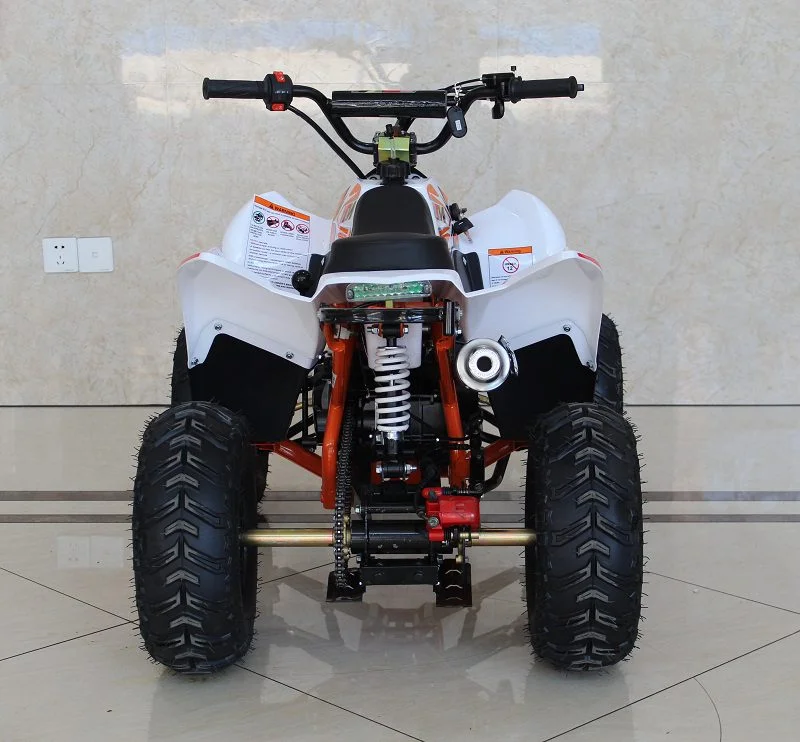

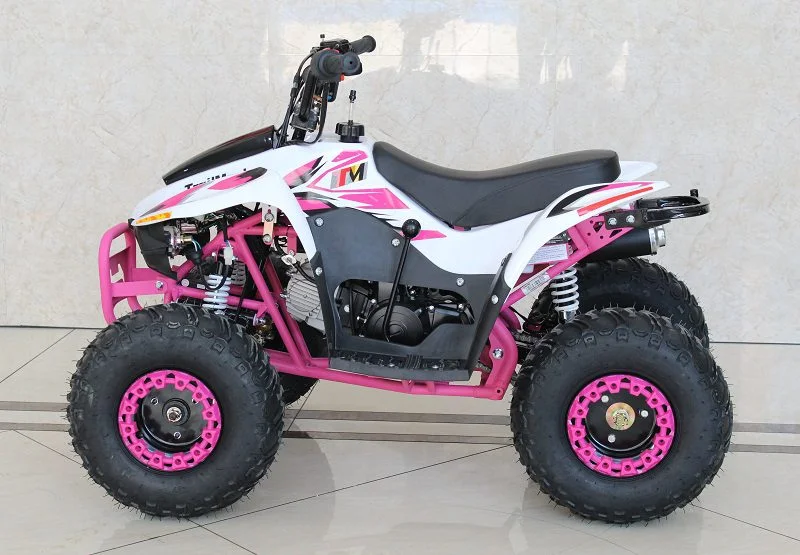

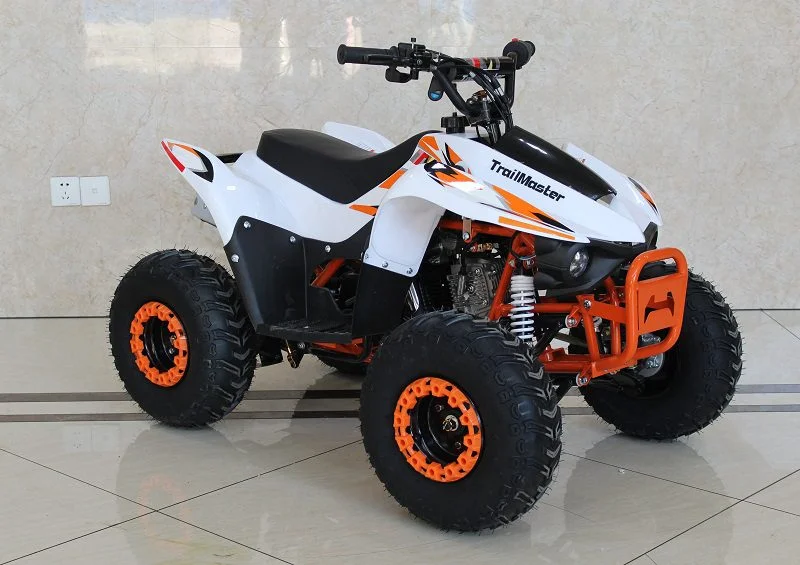

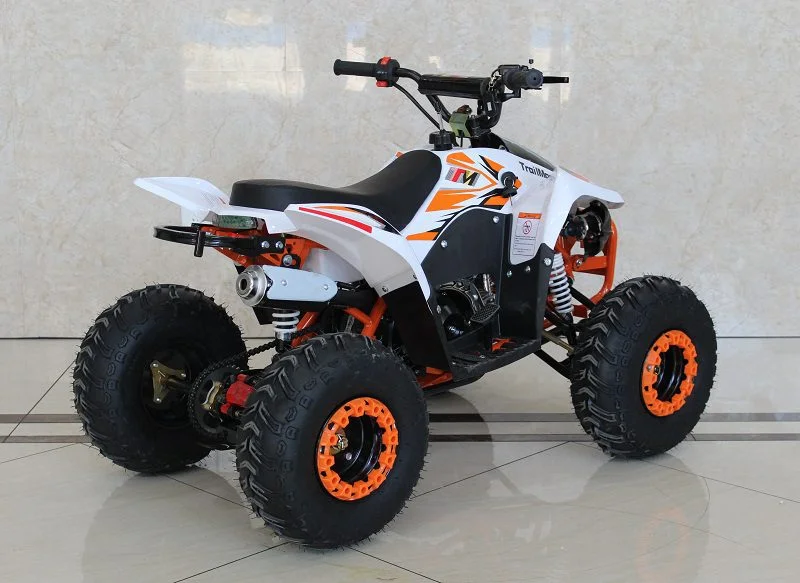

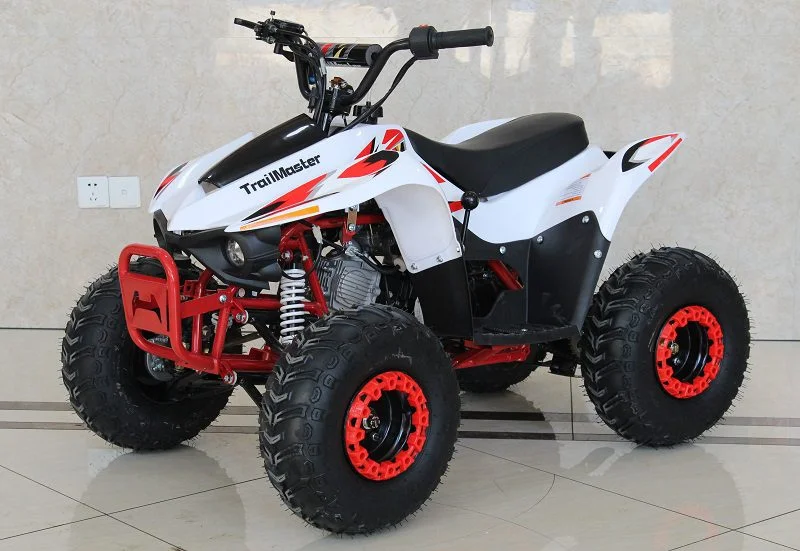

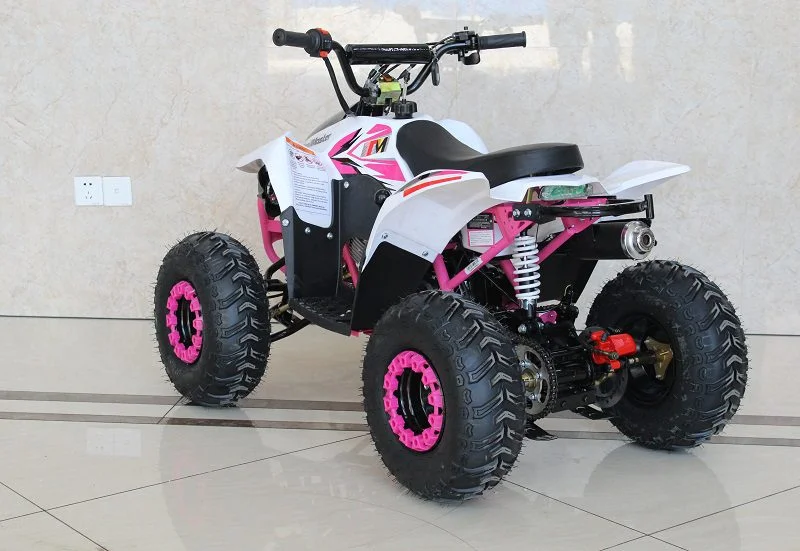

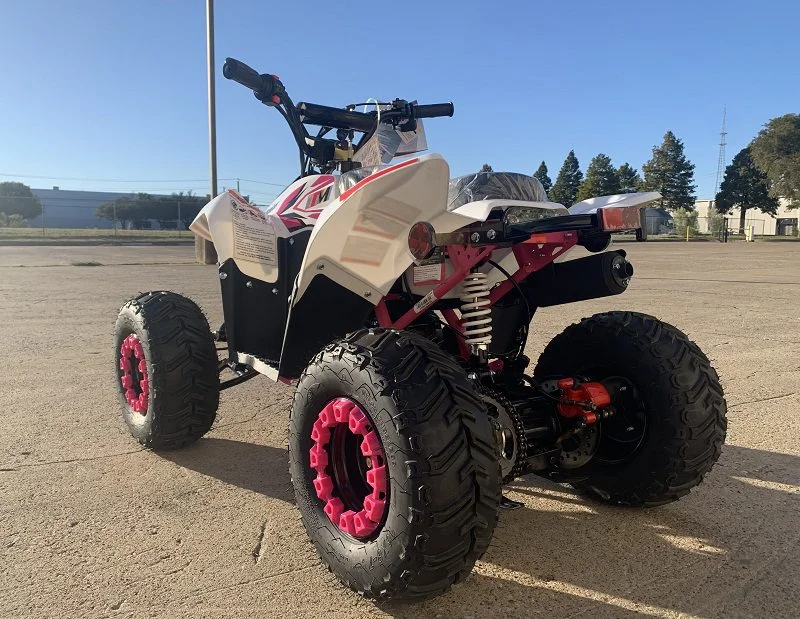

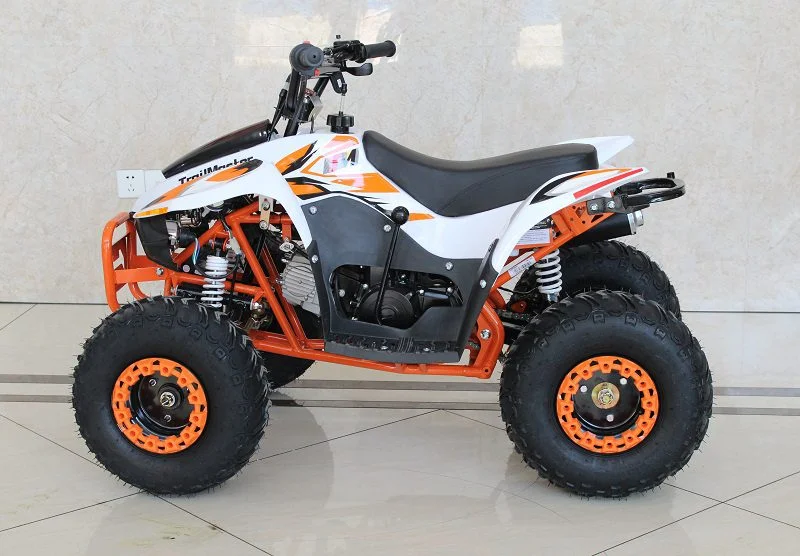

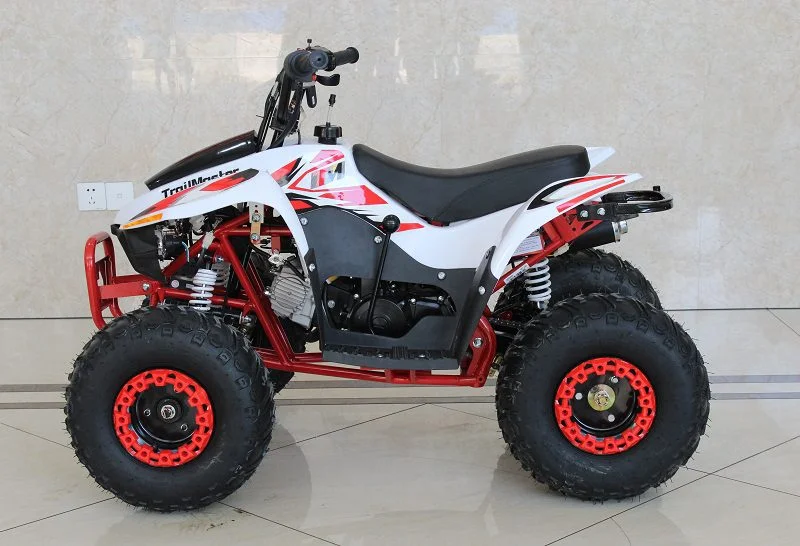

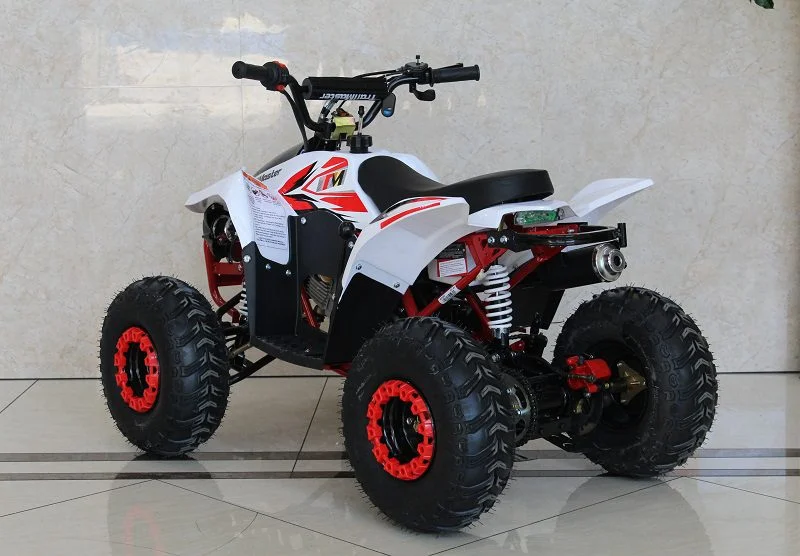

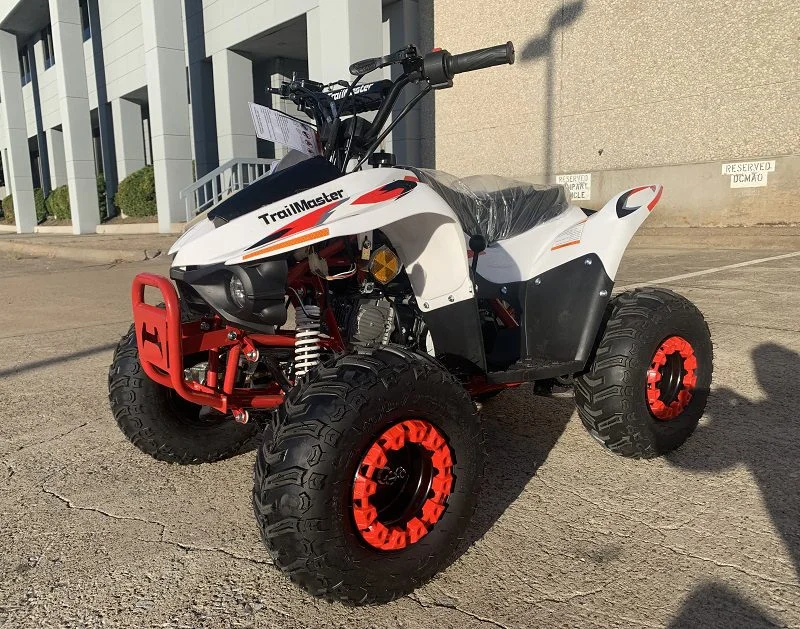

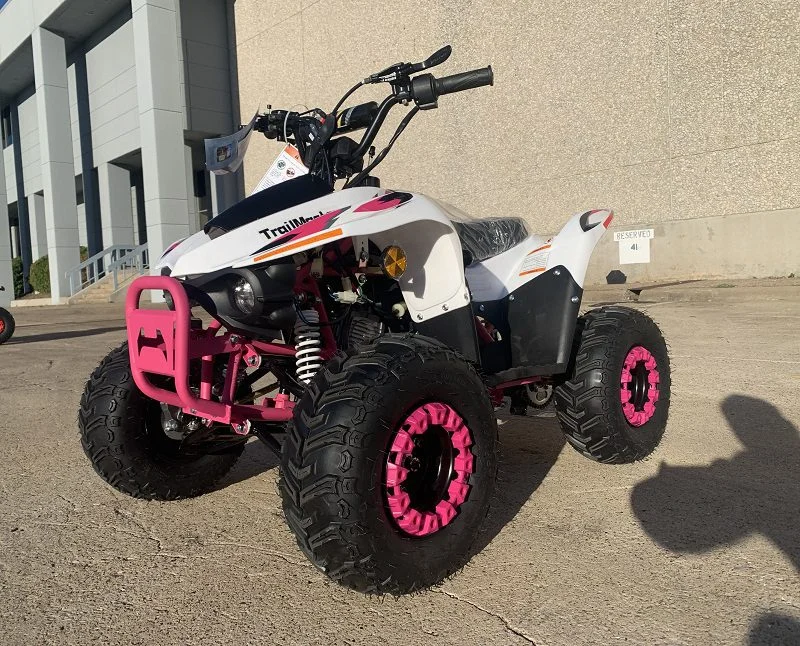

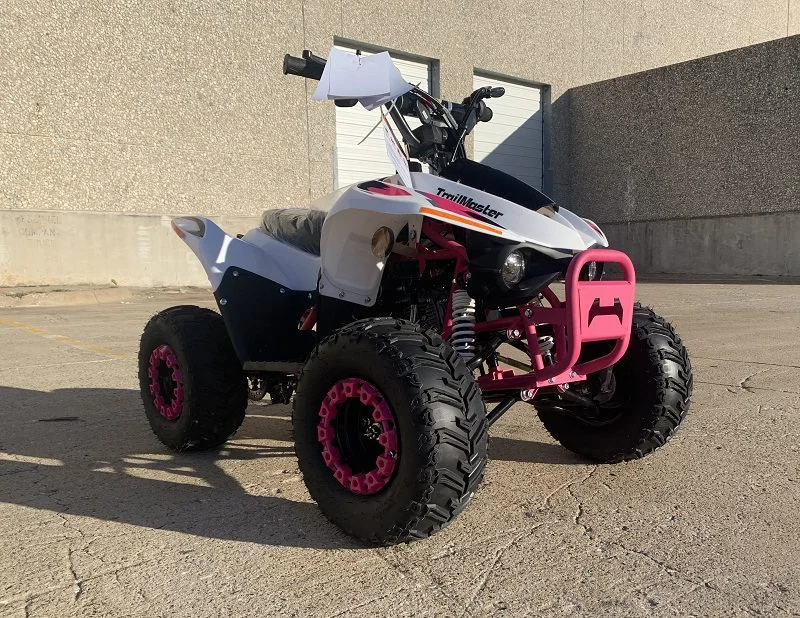

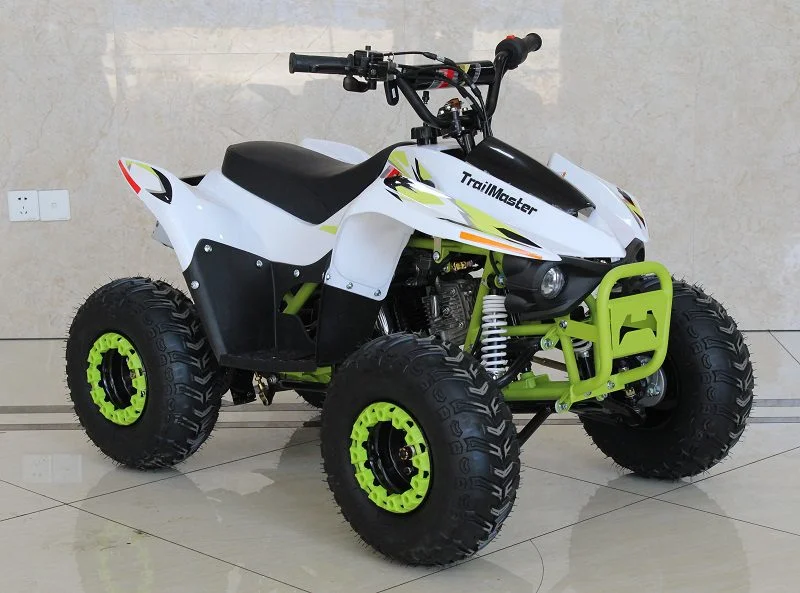

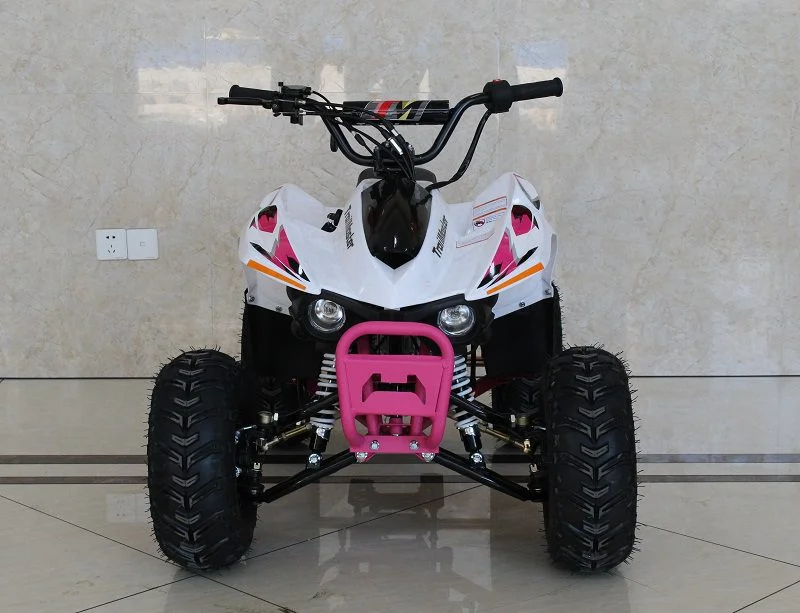

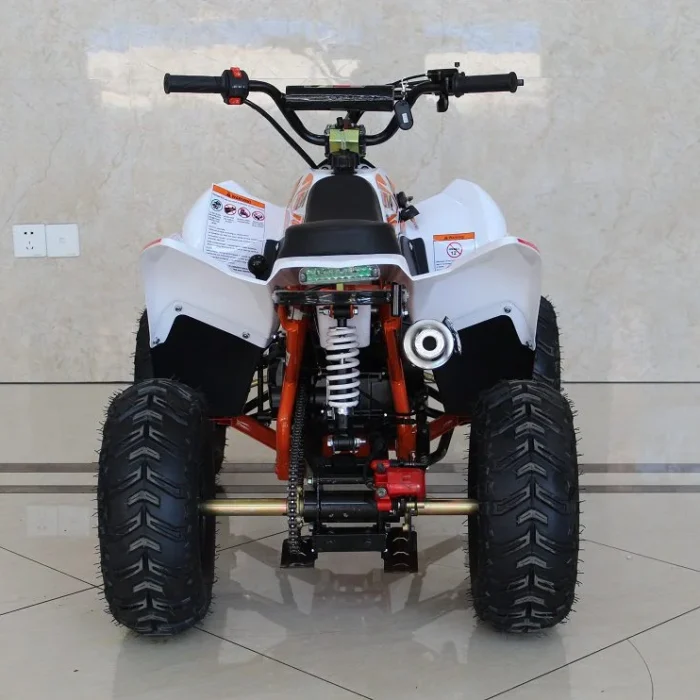

Trailmaster N110 Youth Off-Road ATV, 110cc Engine, 4-Stroke, 1-Cylinder, Air Cooled
- 110cc engine
- Sport style
- Automatic w/Reverse
- 7” Front and rear tires

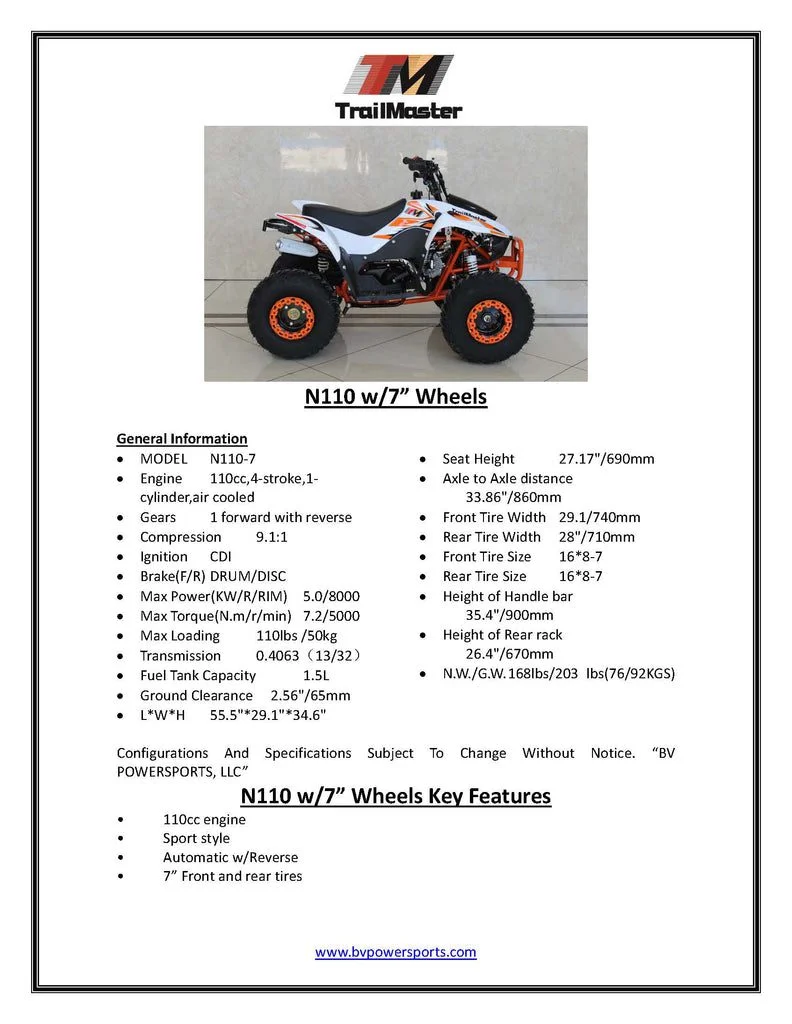

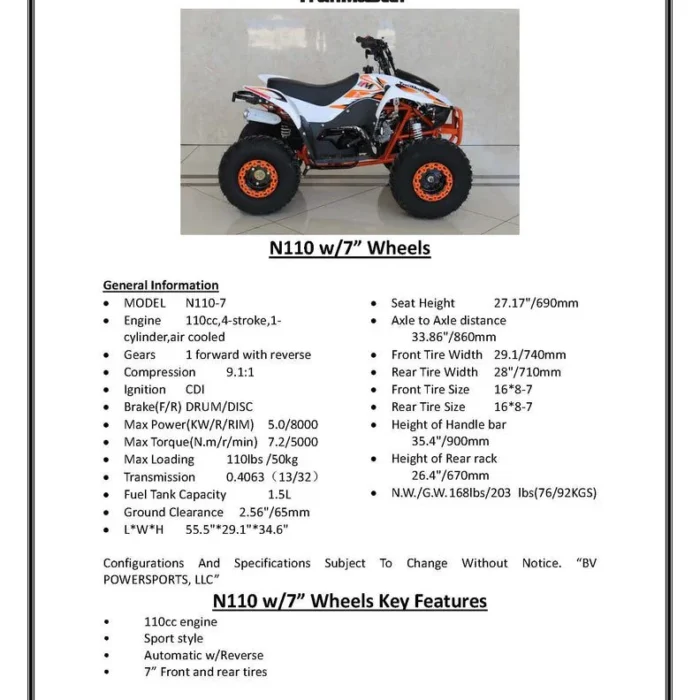

MODEL N110-7 Specification
Engine Information
- Engine: 110cc, 4-stroke, 1-cylinder, air-cooled
- Max Power: 5.0 KW @ 8000 RPM
- Max Torque: 7.2 N.m @ 5000 RPM
- Compression Ratio: 9.1:1
- Ignition: CDI
Transmission & Gears
- Transmission: 0.4063 (13/32)
- Gears: 1 forward with reverse
Brake System

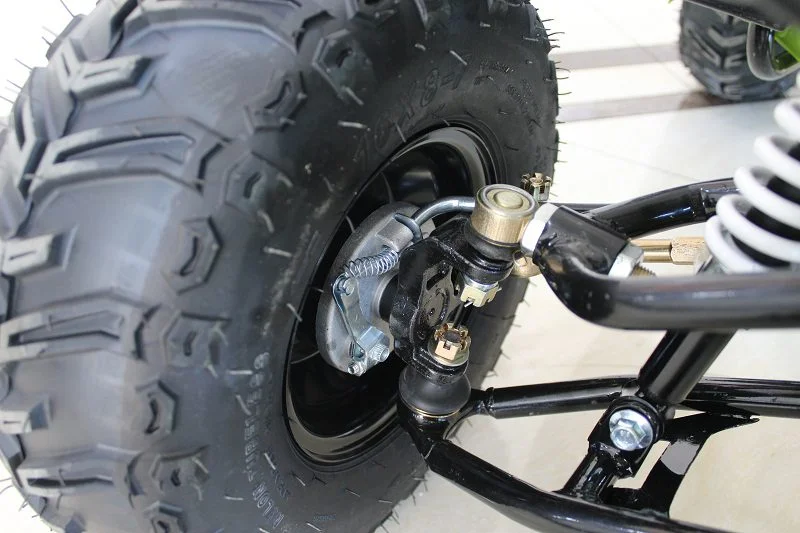

- Front Brake: Drum

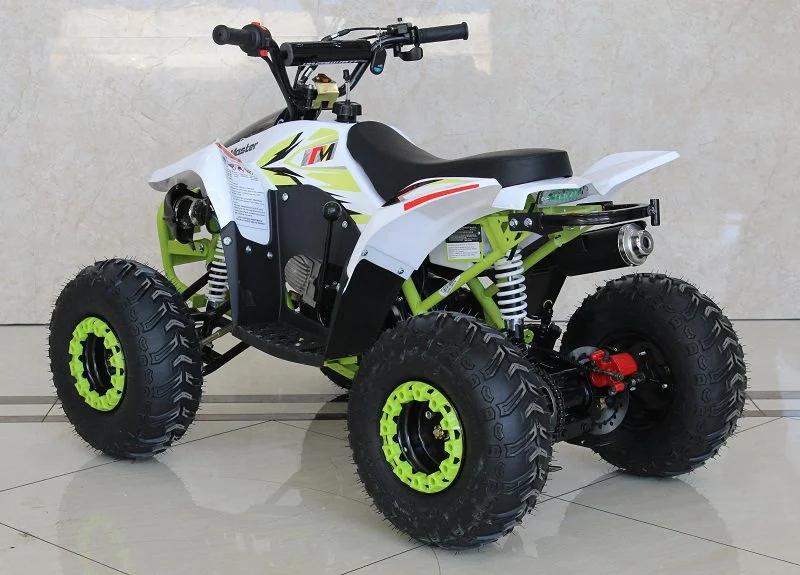

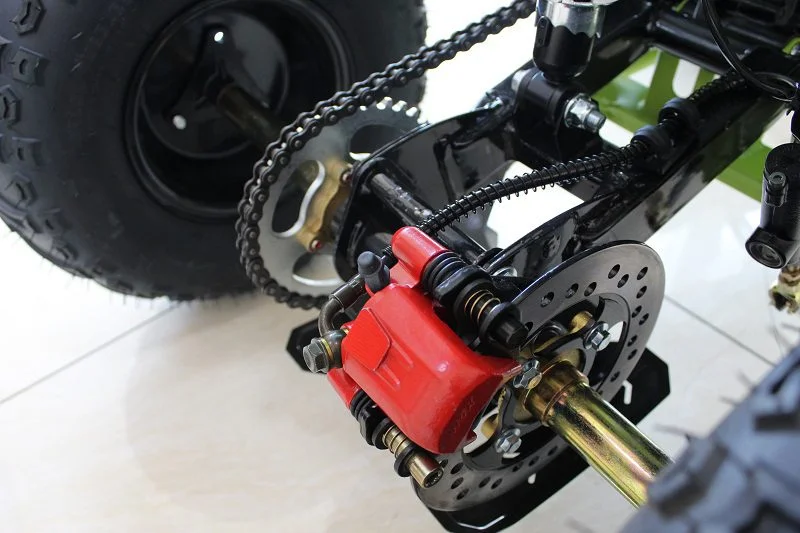

- Rear Brake: Disc
Dimensions & Weight
- Overall Dimensions (L x W x H): 55.5″ x 29.1″ x 34.6″ (1410 x 740 x 880 mm)
- Ground Clearance: 2.56″ (65 mm)
- Seat Height: 27.17″ (690 mm)
- Axle to Axle Distance: 33.86″ (860 mm)
- Front Tire Width: 29.1″ (740 mm)
- Rear Tire Width: 28″ (710 mm)
- Front Tire Size: 16 x 8-7
- Rear Tire Size: 16 x 8-7
- Height of Handle Bar: 35.4″ (900 mm)
- Height of Rear Rack: 26.4″ (670 mm)
- Net Weight: 168 lbs (76 kg)
- Gross Weight: 203 lbs (92 kg)
- Max Loading: 110 lbs (50 kg)

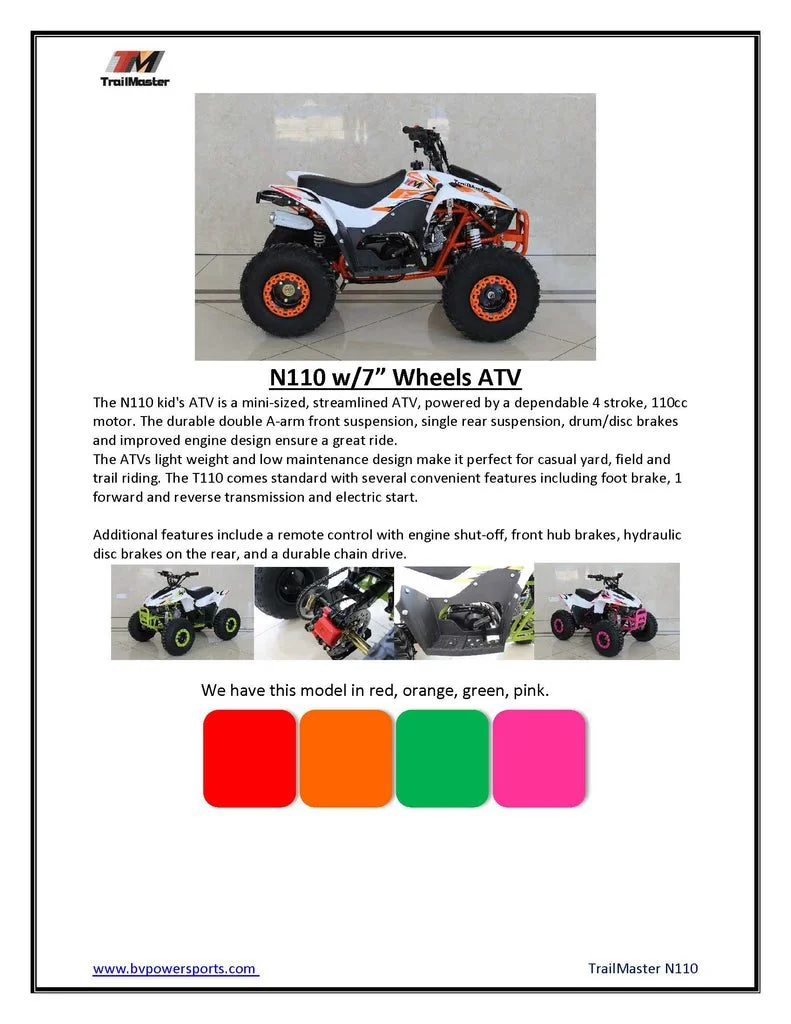

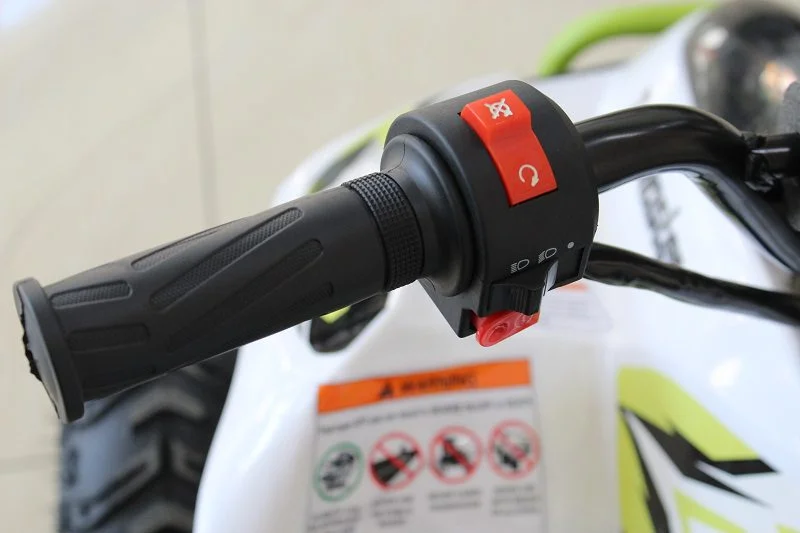

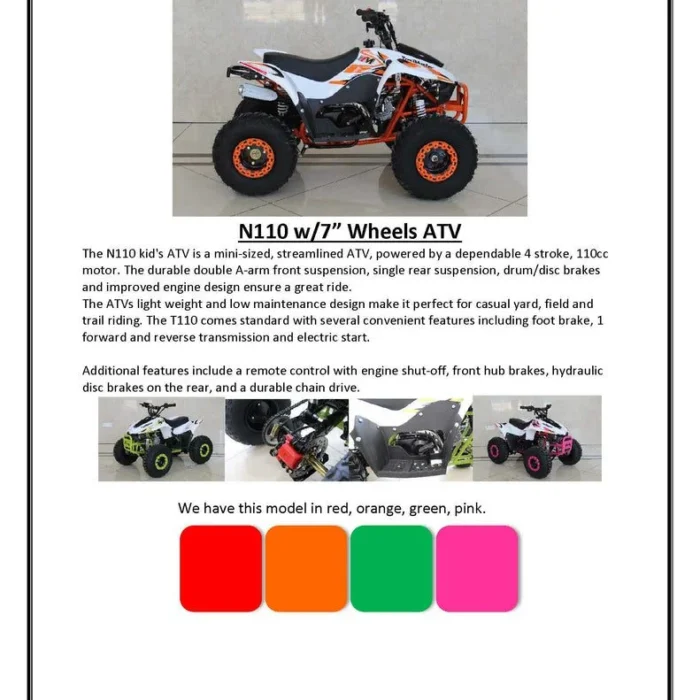

Rider-fit and record note: This page identifies the model as N110/N110-7, but one sentence in the stored copy calls it “T110.” Buyers should verify the physical model label before relying on that sentence. Because the listing describes this as a youth ATV, confirm the manufacturer’s current age, size, supervision and 110 lb load guidance for the exact unit before use. Also verify the remote shut-off, forward/reverse operation, brakes, tires and chain drive. For general ATV safety information, review the U.S. Consumer Product Safety Commission ATV safety guidance. Browse more ATV and powersports inventory at DLR Golf Carts.
| Condition | New |
|---|---|
| Power Type | Gas |
