Trailmaster TM C50 150Cc Off-Road Dirt bike, 33.5 Inch seat Height, 4 gear manual clutch, LED Headlight
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

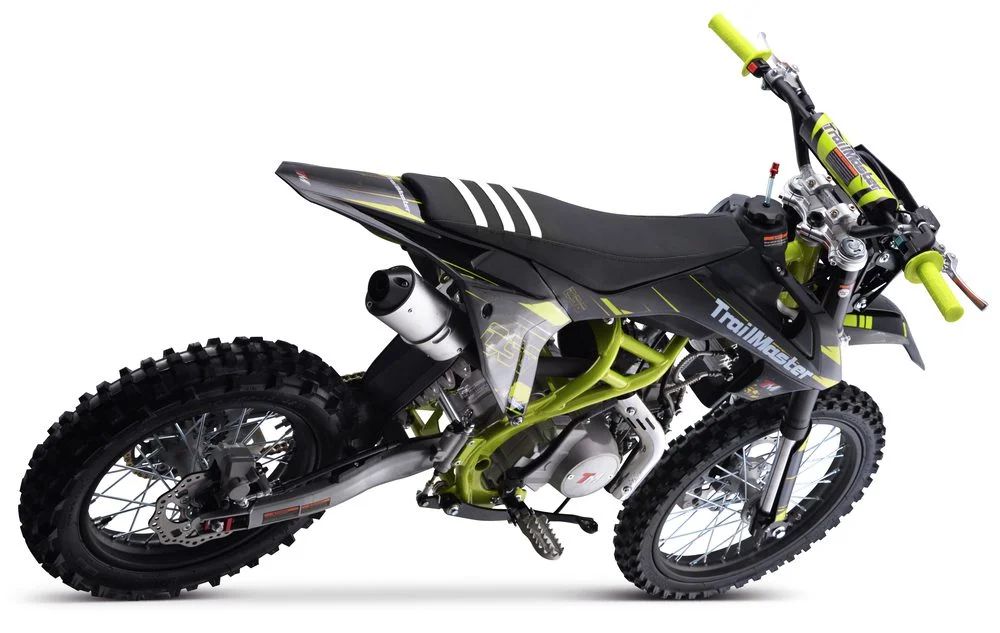

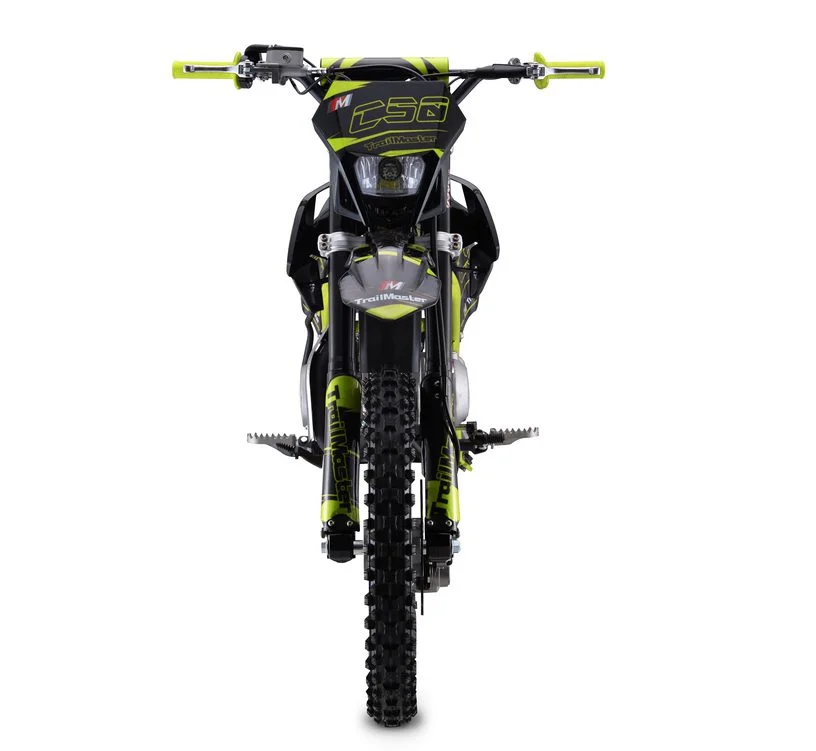

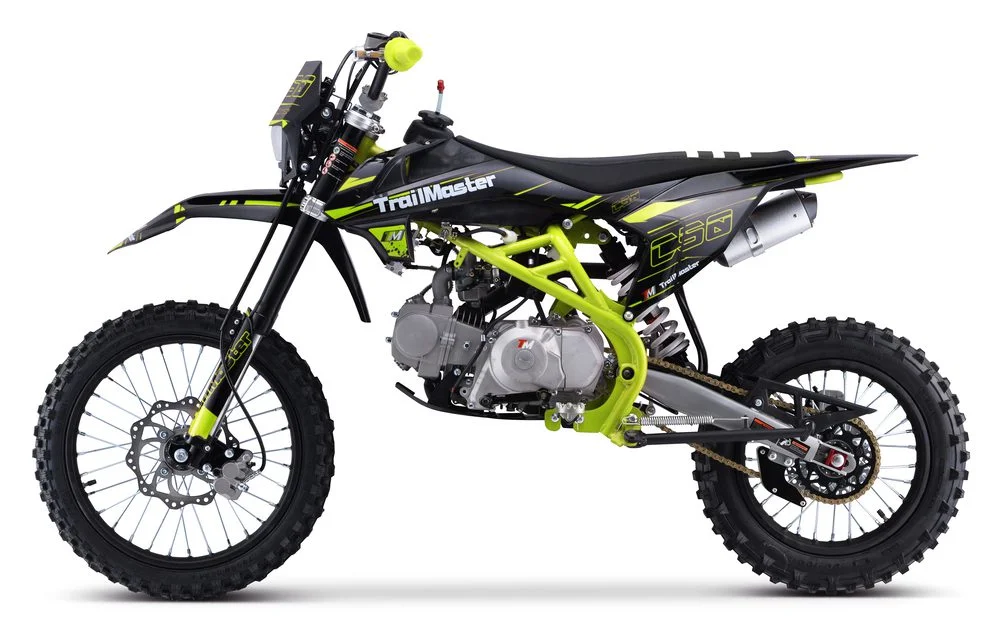

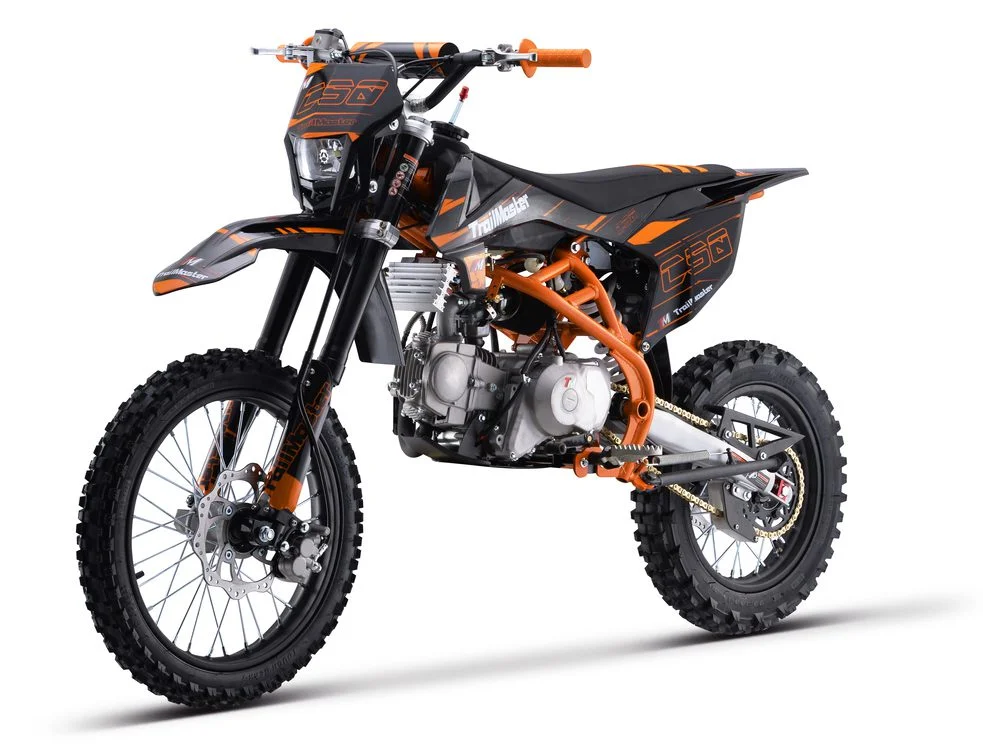

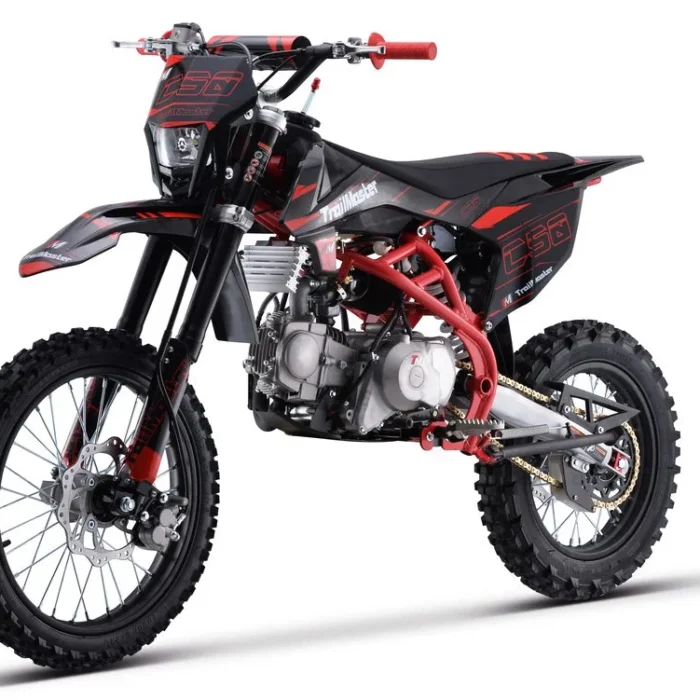

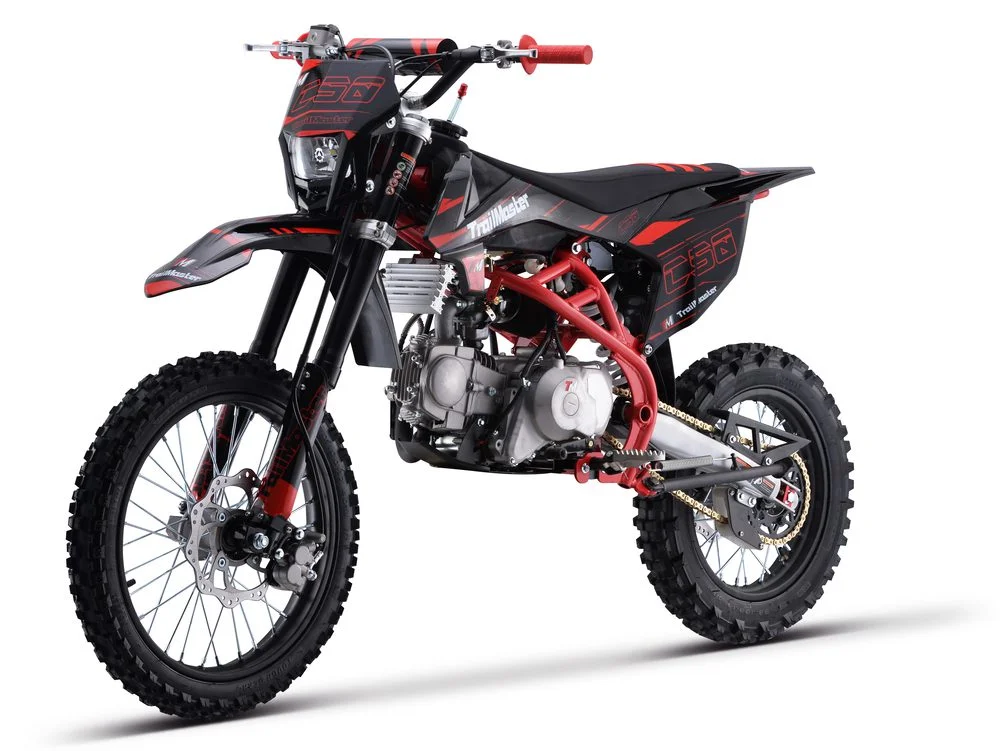

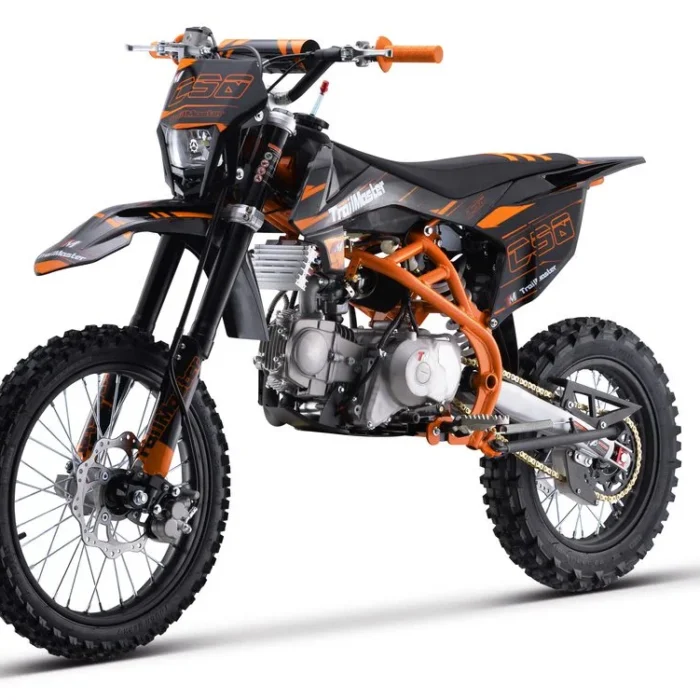

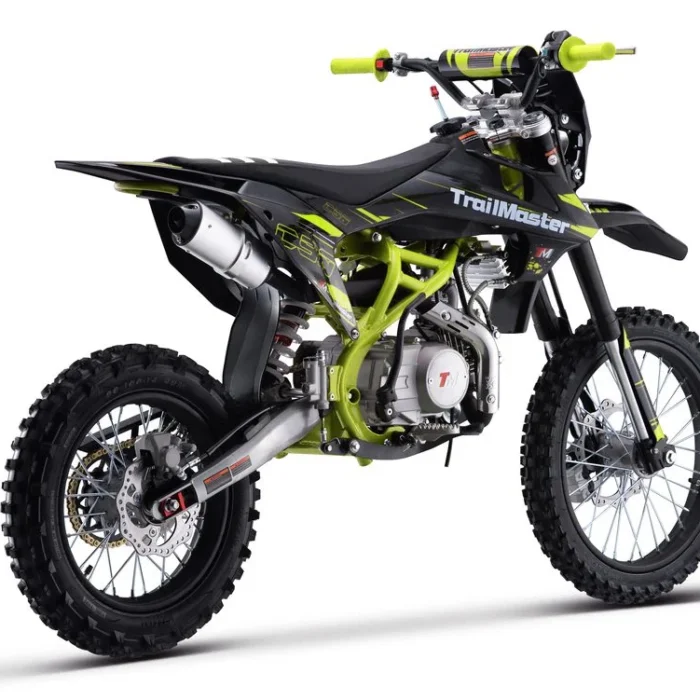

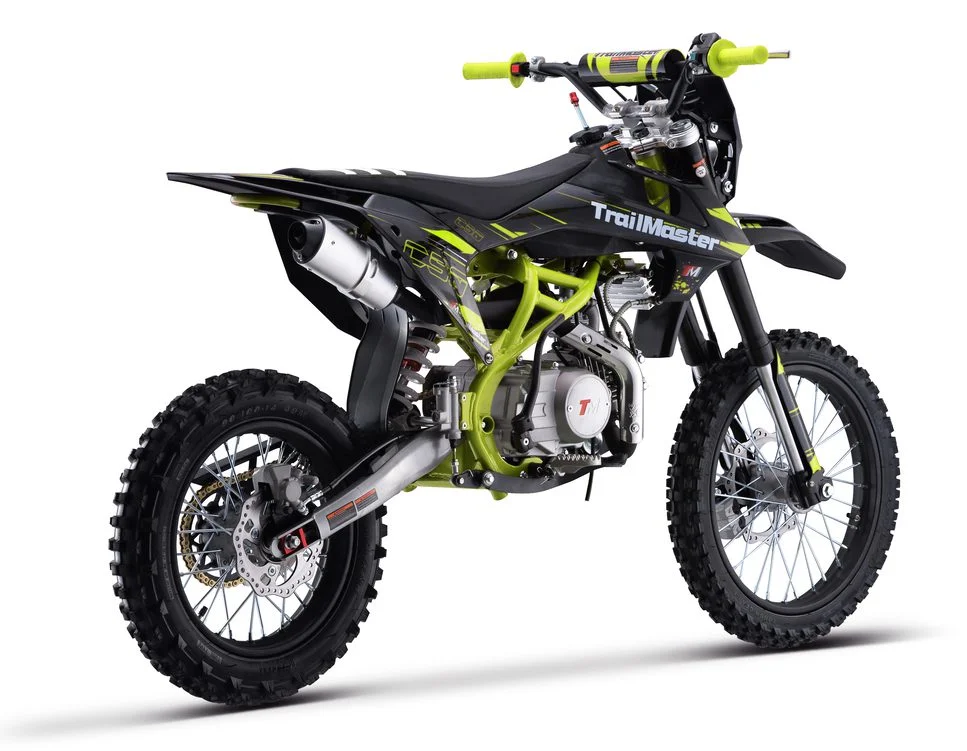

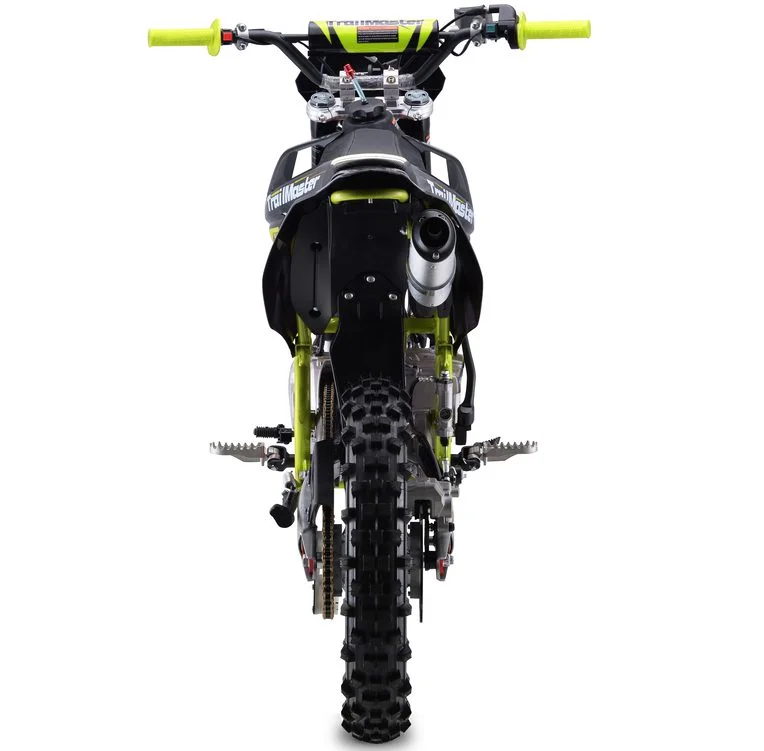

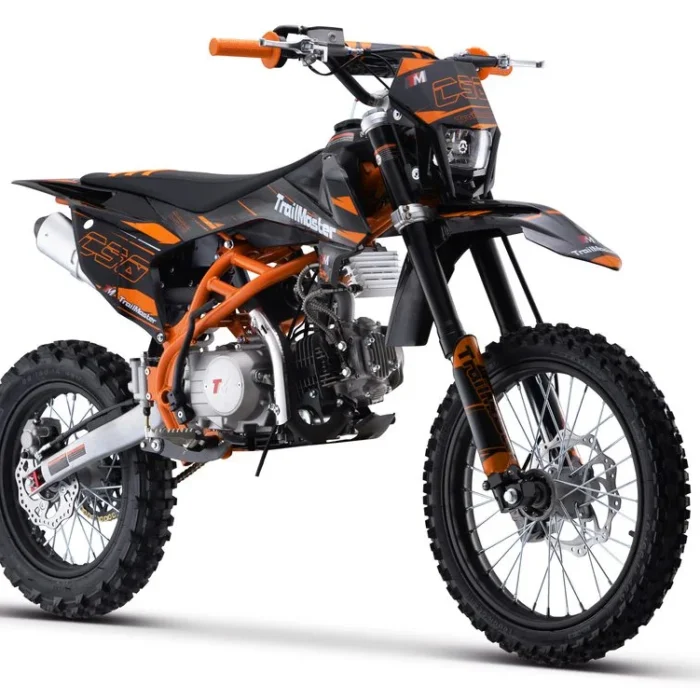

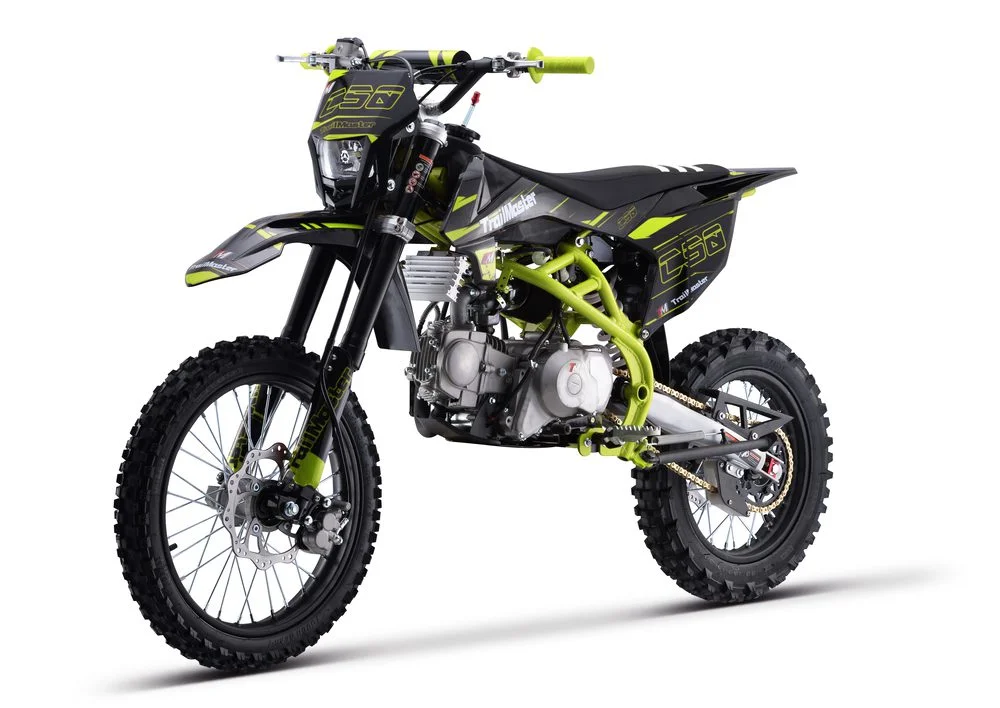

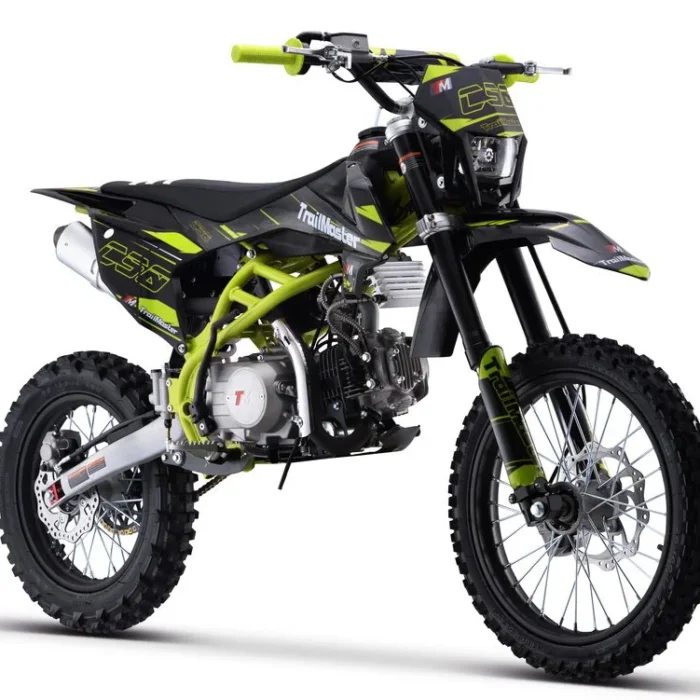

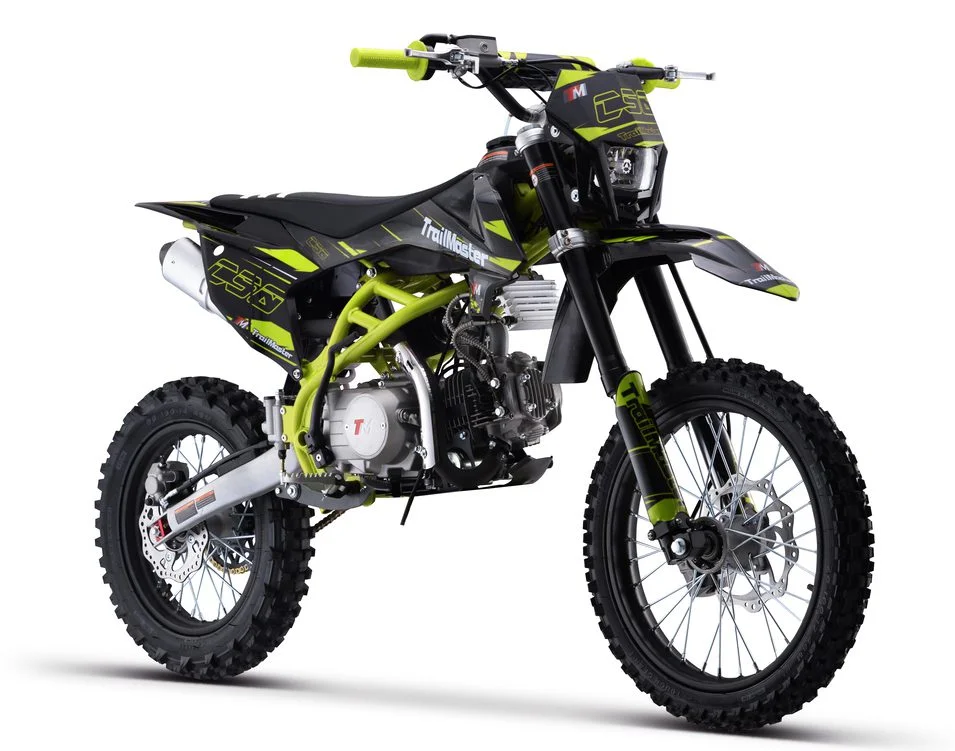

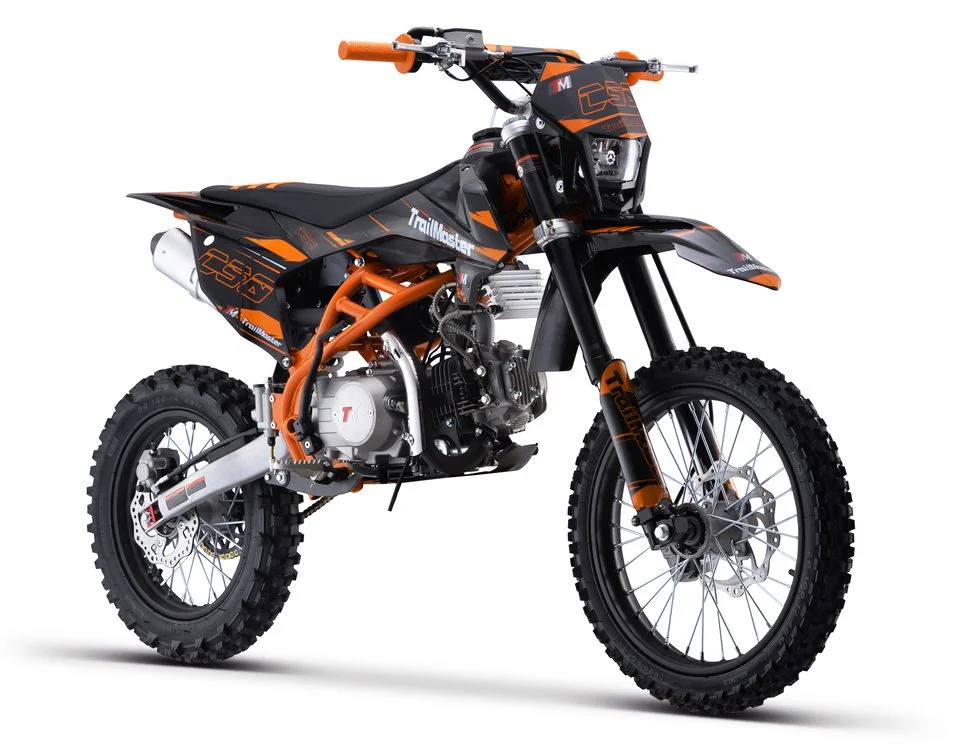

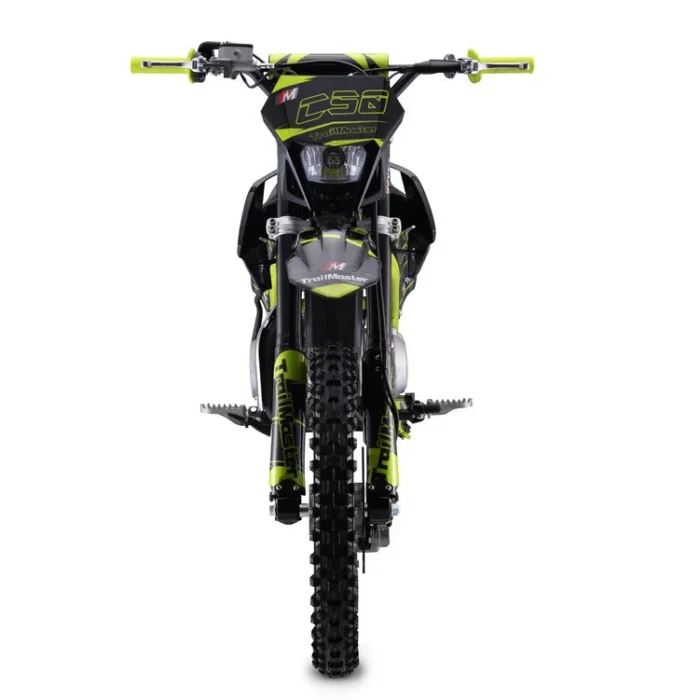

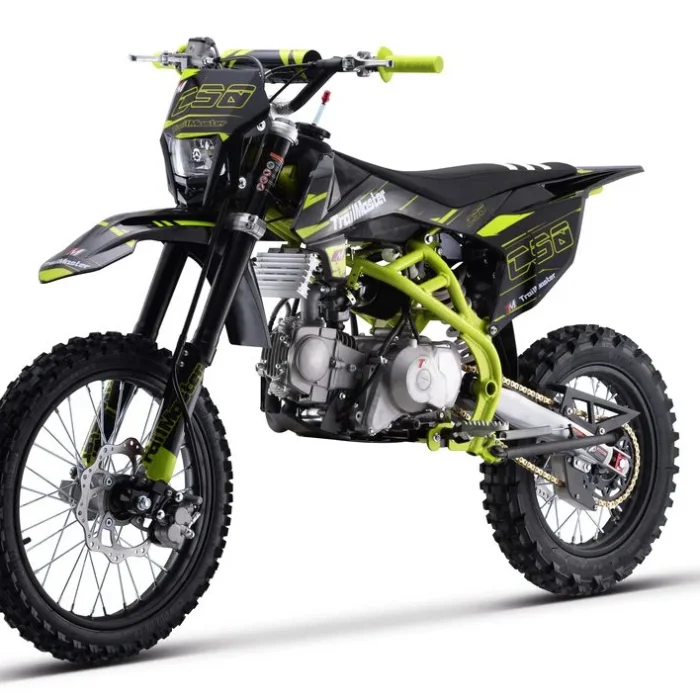

TrailMaster TM C50 150 Dirt Bike
The TrailMaster TM C50 is a full-size off-road dirt bike listed under SKU TM-C50-150. The model name uses “150,” while the stored technical table lists 145 mL displacement, so treat 150 as the model designation rather than a verified engine-size figure. The feature list also says 9.5 HP, while the technical table lists 6.8 kW maximum power at 8,500 rpm; confirm the physical engine label and current TrailMaster documentation before relying on either power figure.
The stored specifications also identify a four-speed manual N-1-2-3-4 transmission, electric and kick start, chain drive, hydraulic front and rear disc brakes, 17-inch front and 14-inch rear wheels, LED headlight and a 33.5-inch seat height.
Browse related models in our Dirt Bikes category. For manufacturer information, visit the TrailMaster website.
Features
- Powerful 4 stroke oil cooled 145ml, 9.5 HP engine
- Electric & Kick start, 4 gear manual clutch
- 49.8“ wheel base and 33.5” seat high
- 735mm Inverted Hydraulic Forks
- 310mm Spring Pre-load None-Adjustable Shock
- Front tire 17”/Rear Tire 14”
- LED Headlight
- Foldable Clutch & Brake Lever
- TrailMaster Ribbed Seat
Technical Specifications
Engine System
- Engine Type: ZM-Single Cylinder, 4-Stroke, Oil Cooling
- Displacement: 145 ml
- Max Power: 6.8 kW / 8500 rpm (±5%)
- Max Torque: 11 N·m / 5500 rpm (±5%)
- Compression Ratio: 9.0:1
- Bore and Stroke: 56.5 x 57.8 mm
- Shift Type: N-1-2-3-4, Four-Gear Manual Shift
- Start Type: Electric & Kick Start
- Ignition: CDI
- Min. Fuel Consumption: ≤367 g/kW·h
- Engine Oil #: SJ-5W/40
- Transmission: Chain Drive; #428 & 110L Chain, 14/41T
Size Data
- Overall Size: 71.3″ x 28.9″ x 43.3″ (1810 x 735 x 1100 mm)
- Wheel Base: 49.8″ (1265 mm)
- Seat Height: 33.5″ (850 mm)
- Ground Clearance: 13″ (330 mm)
- Fuel Capacity: 4.5 L / 1.2 Gal.
- Tires: Front: 70/100-17, Rear: 90/100-14 Knobby Tires
- Wheels: Steel 1.6 x 17″ / 1.85 x 14″ Rims, DCA Hubs
Frame/Suspension/Brake System/More Features
- Frame: Twin Girders Steel Tube Frame
- Front Fork: Inverted 45 x 48 x 735 mm Forks, Non-Adjustable
- Rear Shock: 10 mm x 11 mm x 310 mm, Spring Pre-load
- Swing-Arm: Steel Tube, 14 inch
- Handle Bar: Steel Crossbar, L=720 mm; Dia=22 mm
- Front Brake: Hydraulic Twin Piston Caliper, 220 mm Disc
- Rear Brake: Hydraulic Single Piston Caliper, 190 mm Disc
- Exhaust: Steel Pipe with Catalyst Converter (EPA Standard)
- Brake & Clutch Lever: Foldable
- Seat: Ribbed TrailMaster Seat
- HeadLight: LED
Packing and Loading
- Packing Size: 62.6″ x 14.8″ x 29.9″ (1590 x 375 x 760 mm)
- Net Weight: 172 lbs (78 kg)
- Gross Weight: 203 lbs (92 kg)
| Condition | New |
|---|---|
| Power Type | Gas |
