Trailmaster TM C60 160cc Off-Road Dirt Bike, 4-Speed Manual, 34″ Seat Height, Kick Start
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

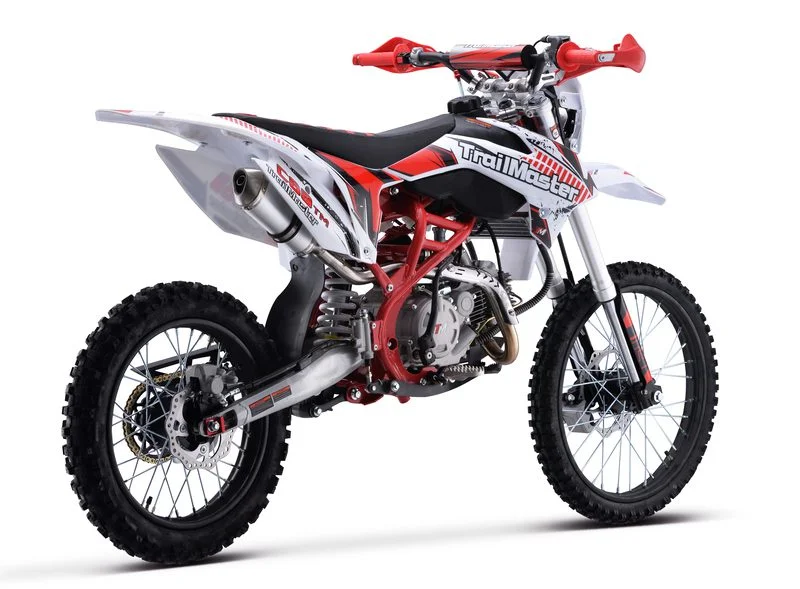

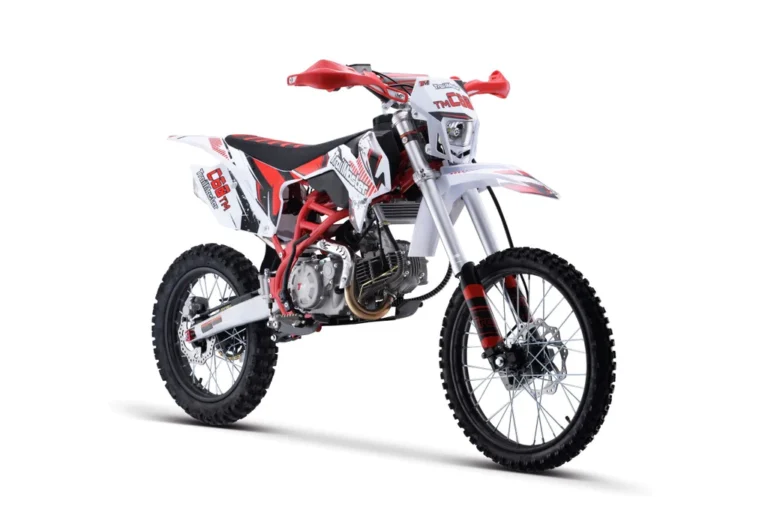

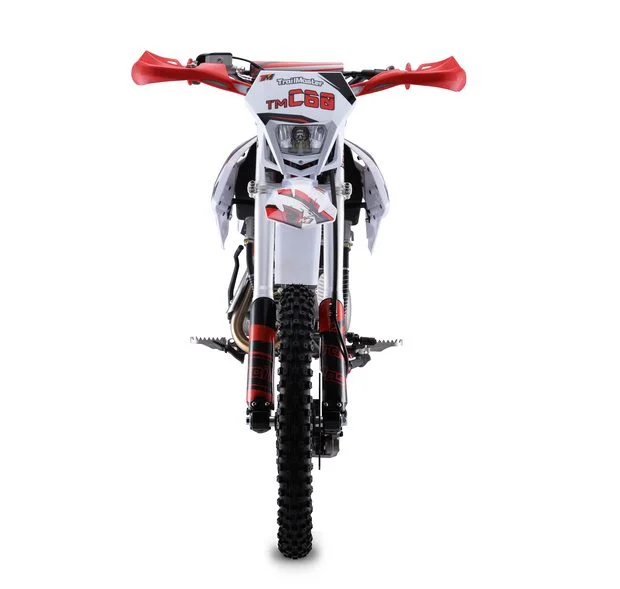

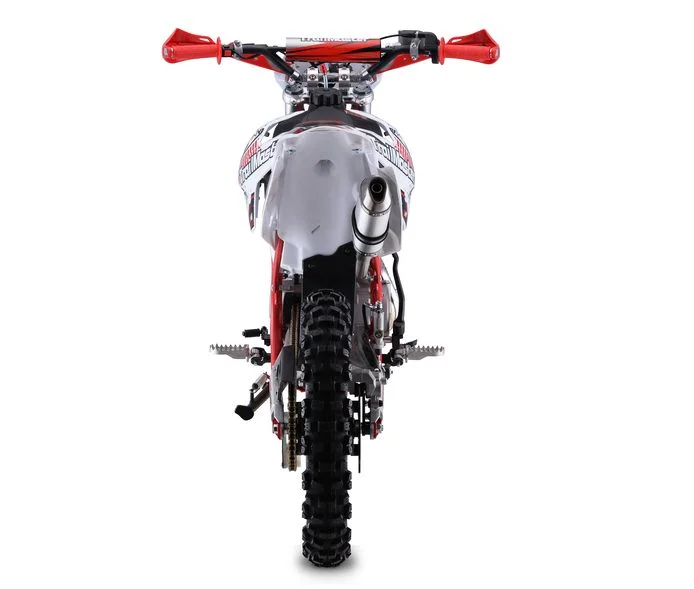

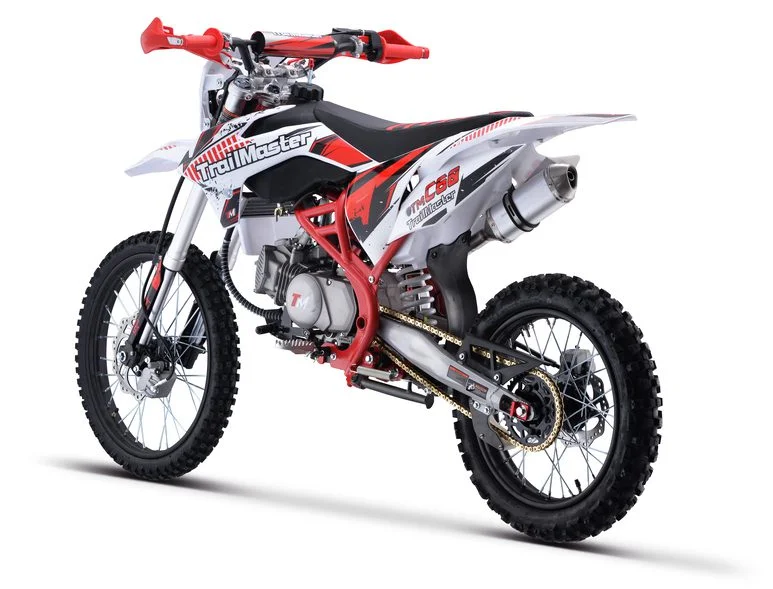

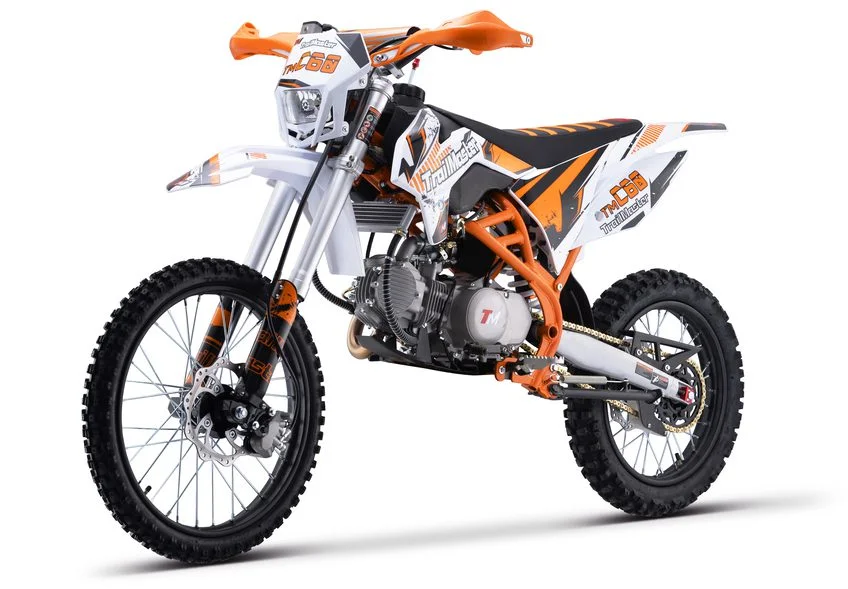

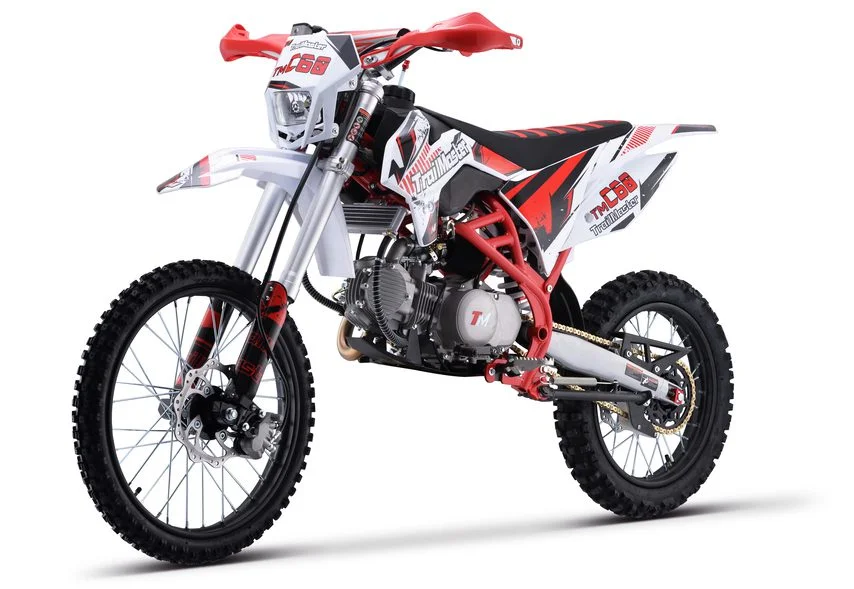

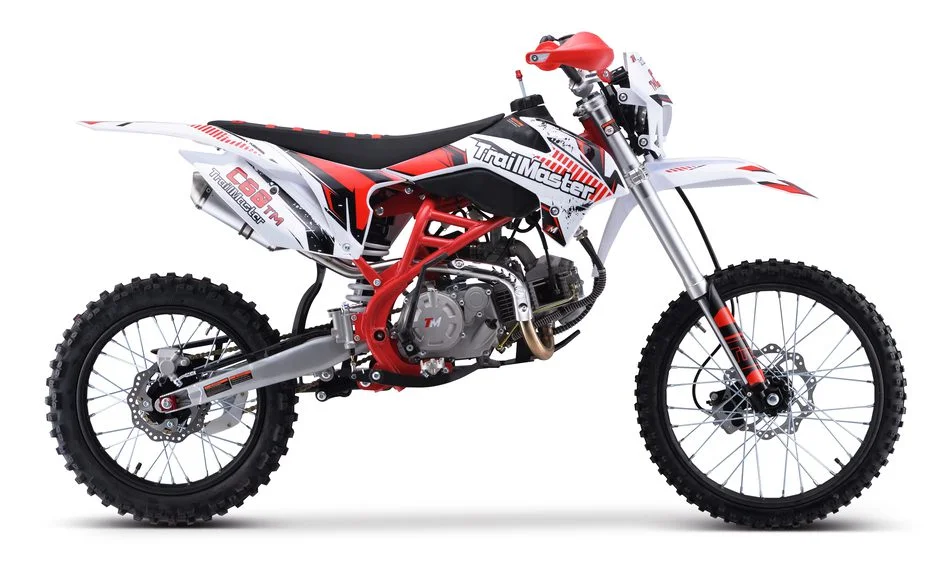

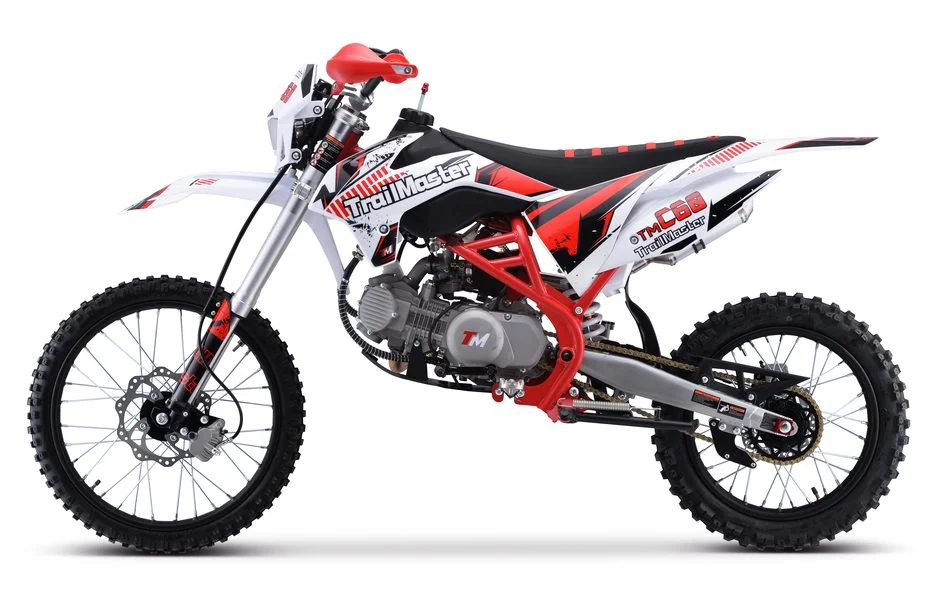

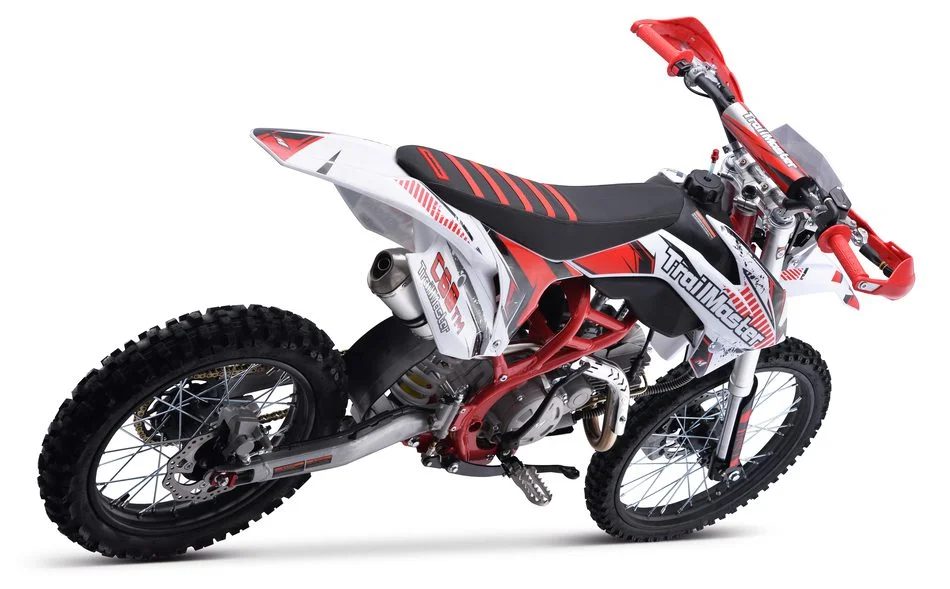

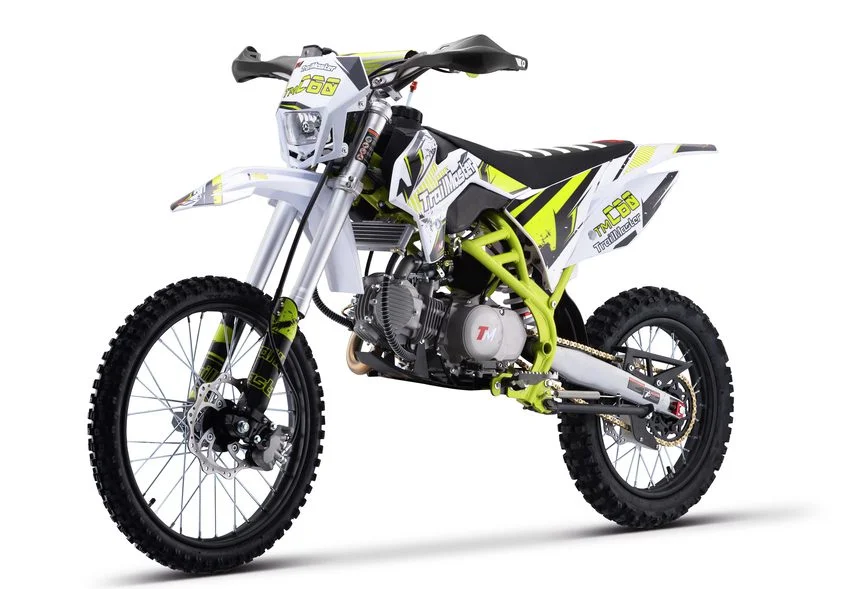

TrailMaster TM C60 160 Dirt Bike
The TrailMaster TM C60 is an off-road dirt bike listed under SKU TM-C60-160. The model name uses “160,” while the stored technical table lists 156 mL displacement, so treat 160 as the model designation rather than a verified engine-size figure. The feature list also says 14.3 HP, while the technical table lists 10.5 kW maximum power at 8,500 rpm; confirm current TrailMaster documentation if exact output matters to the purchase.
The stored specifications also identify a four-speed manual N-1-2-3-4 transmission, kick start, chain drive, hydraulic front and rear disc brakes, 19-inch front and 16-inch rear wheels, LED headlight, handguards and a 34.6-inch seat height.
Browse related models in our Dirt Bikes category. For manufacturer information, visit the TrailMaster website. Rider suitability should be confirmed from current manufacturer guidance, rider size, experience and protective-equipment requirements rather than broad fit marketing.
Features
- Powerful 4 stroke ZhongShen oil cooled 156ml, 14.3 HP engine
- Kick start, 4 gear manual clutch
- 53.3“ wheel base and 34.6” seat high
- 780mm Inverted Hydraulic Forks, 150mm Travel
- 410mm Spring Pre-load None-Adjustable Shock
- Front tire 19”/Rear Tire 16”
- LED Headlight
- Foldable Clutch & Brake Lever
- Alloy Bracket Handguard
- TrailMaster Ribbed Seat
Technical Specifications
Engine System
- Engine Type: ZM-Single Cylinder, 4-Stroke, Oil Cooling
- Displacement: 156 ml
- Max Power: 10.5 kW / 8500 rpm (±5%)
- Max Torque: 11.5 N·m / 5500 rpm (±5%)
- Compression Ratio: 11.5:1
- Bore and Stroke: 60 x 55 mm
- Shift Type: N-1-2-3-4, Four-Gear Manual Shift
- Start Type: Kick Start
- Ignition: CDI
- Min. Fuel Consumption: ≤367 g/kW·h
- Engine Oil #: SJ-5W/40
- Transmission: Chain Drive; #428 & 120L Chain, 14/41T
Size Data
- Overall Size: 78.7″ x 28.9″ x 44.5″ (2000 x 735 x 1130 mm)
- Wheel Base: 53.3″ (1355 mm)
- Seat Height: 34.6″ (880 mm)
- Ground Clearance: 13.4″ (340 mm)
- Fuel Capacity: 7.5 L / 2 Gal.
- Tires: Front: 70/100-19, Rear: 90/100-16 Knobby Tires
- Wheels: Steel 1.6 x 19″ / 1.85 x 16″ Rims, Cast Hubs
Frame/Suspension/Brake System/More Features
- Frame: Twin Girders Steel Tube Frame
- Front Fork: Inverted 45 x 48 x 780 mm Forks, Non-Adjustable
- Rear Shock: 10 mm x 410 mm, Spring Pre-load
- Swing-Arm: Steel Tube, 14 inch
- Handle Bar: Steel Crossbar, L=720 mm; Dia=22 mm
- Front Brake: Hydraulic Twin Piston Caliper, 220 mm Disc
- Rear Brake: Hydraulic Single Piston Caliper, 190 mm Disc
- Exhaust: Steel Pipe with Catalyst Converter (EPA Standard)
- Brake & Clutch Lever: Foldable & Handguard
- Seat: Ribbed TrailMaster Seat
- Headlight: LED
Packing and Loading
- Packing Size: 66″ x 16.3″ x 31.3″ (1680 x 415 x 795 mm)
- Net Weight: 190 lbs (86 kg)
- Gross Weight: 227 lbs (103 kg)
| Condition | New |
|---|---|
| Power Type | Gas |
