Trailmaster TM15 Dirt Bike 110cc Semi Automatic 4 speed
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

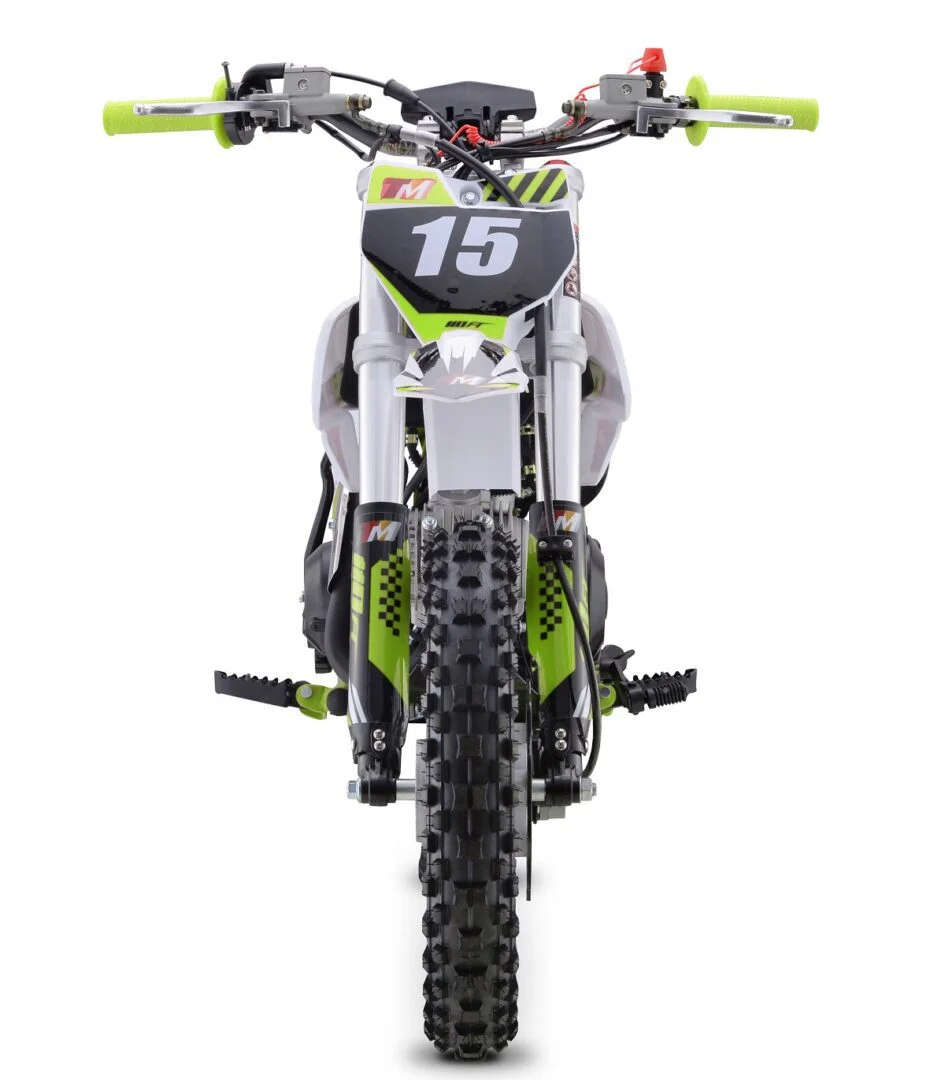

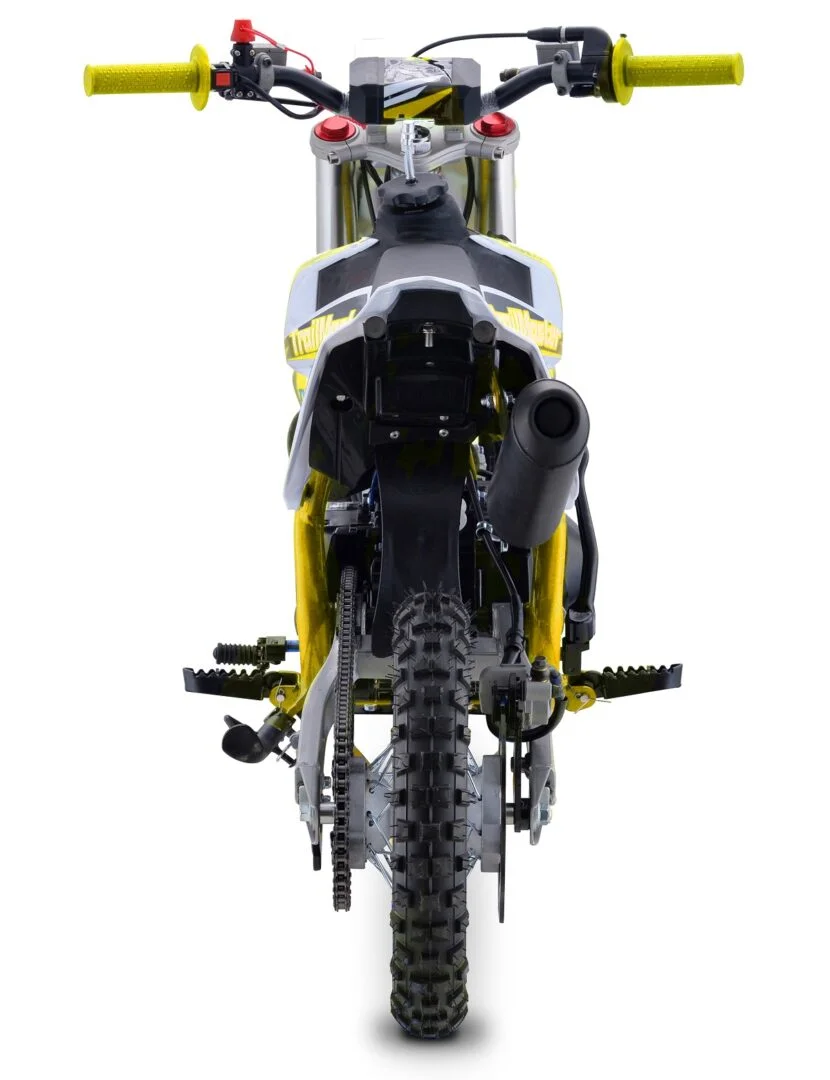

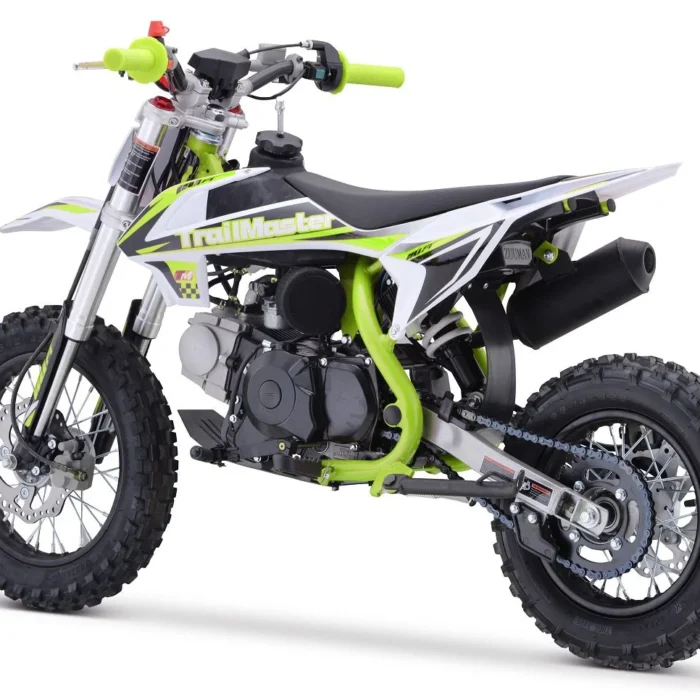

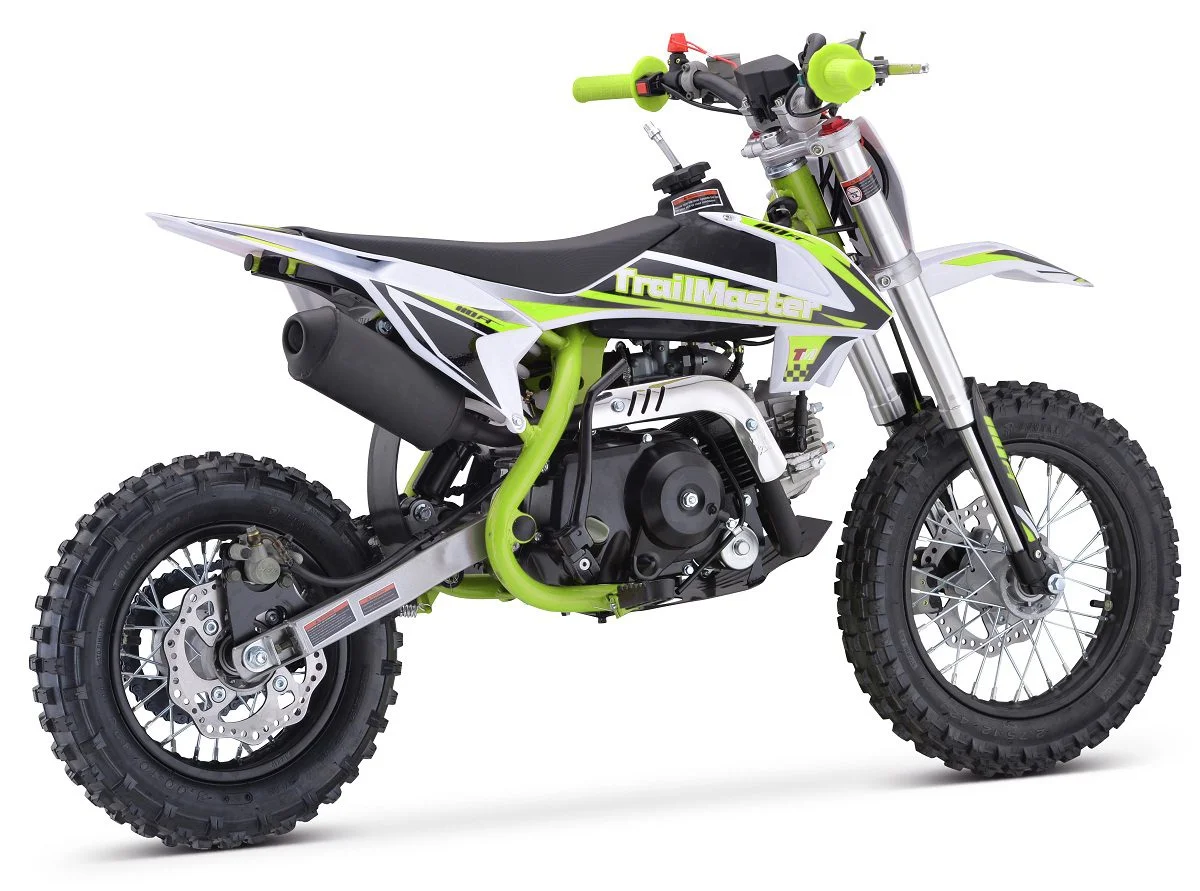

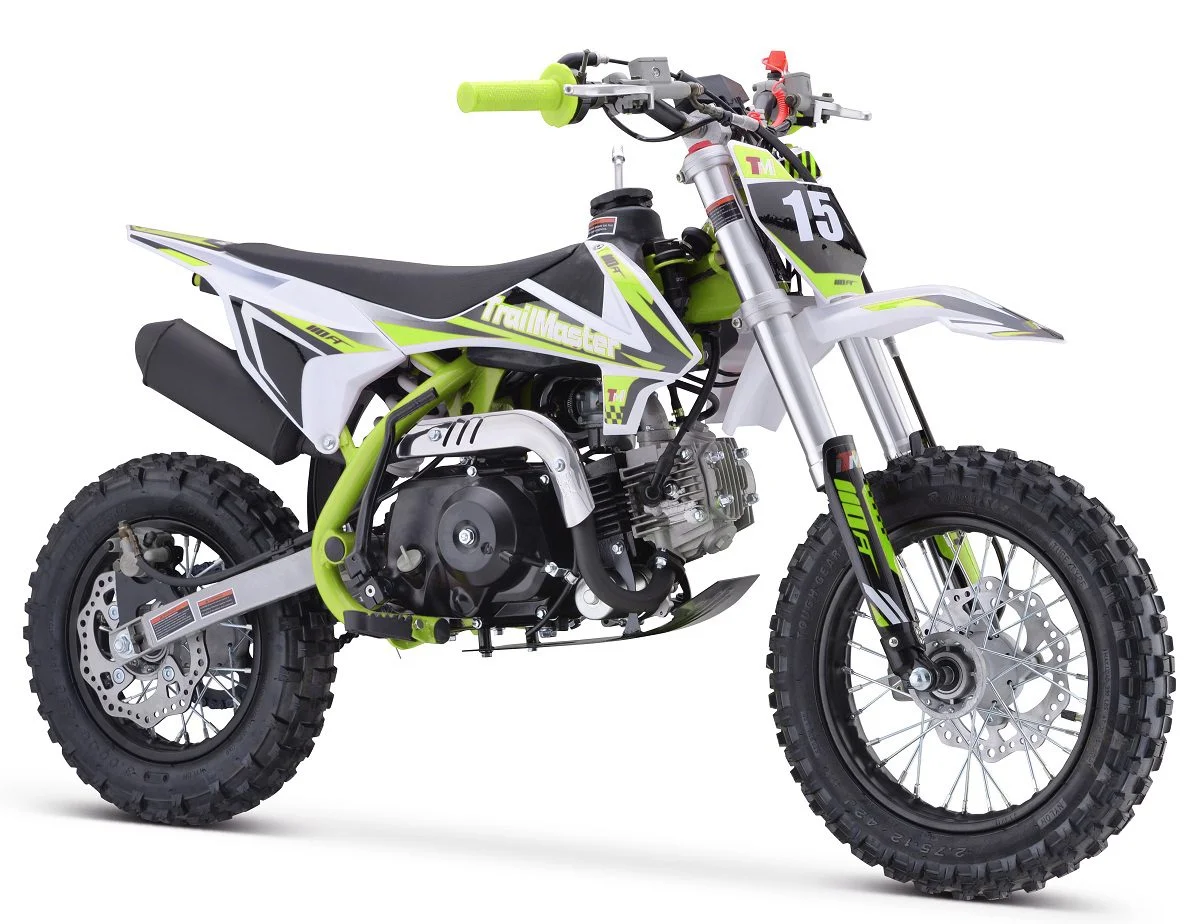

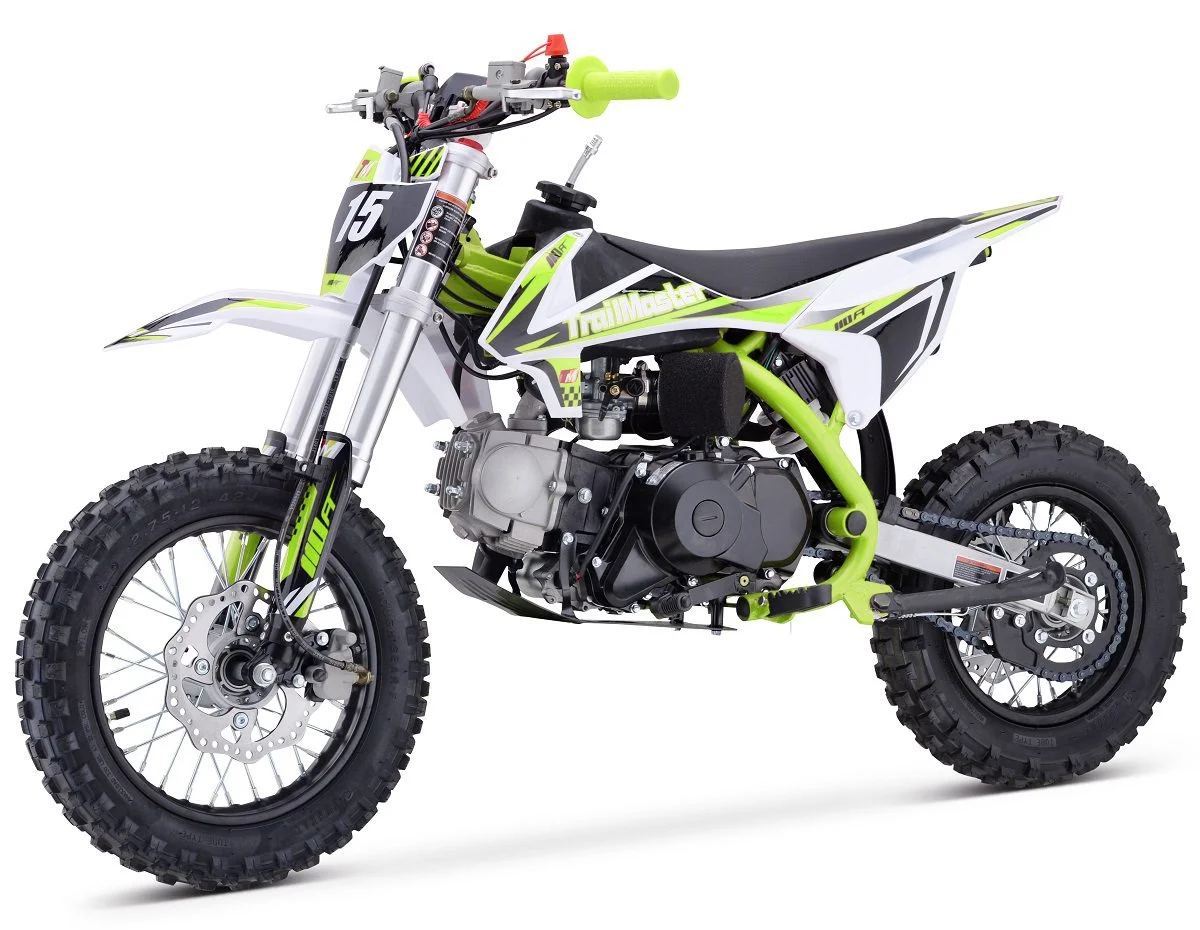

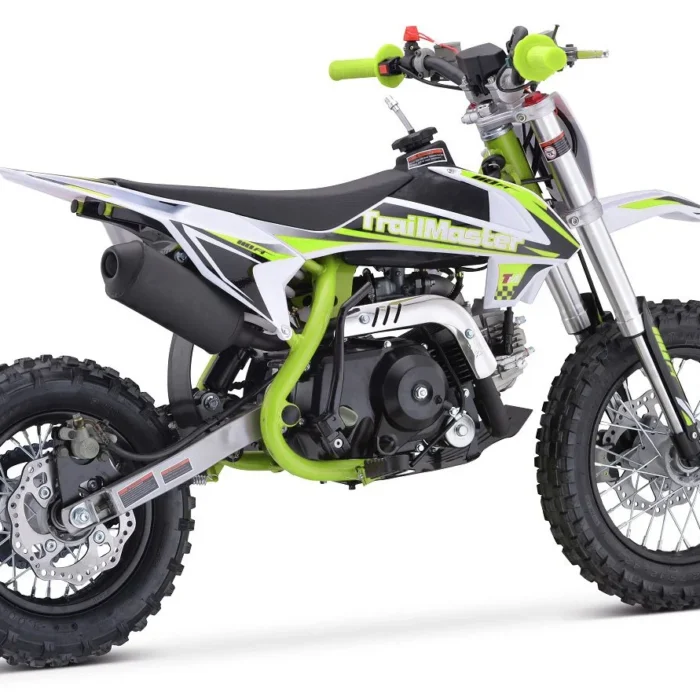

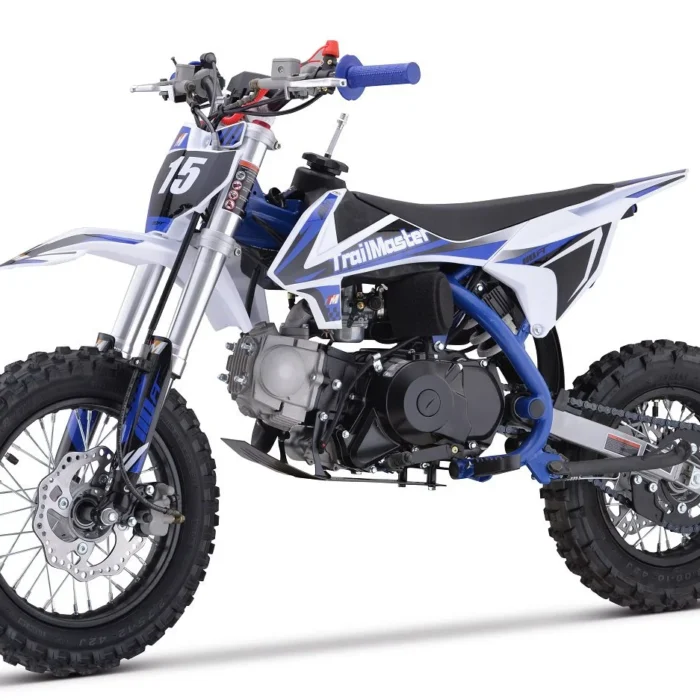

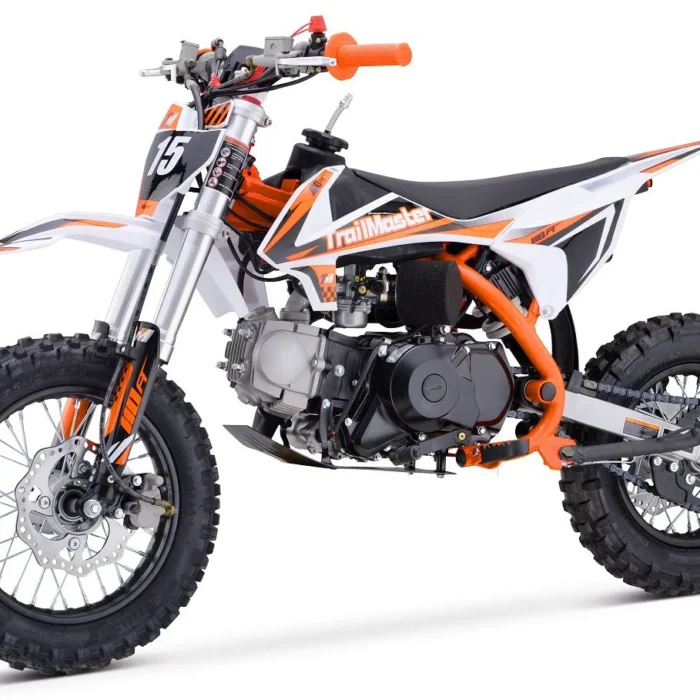

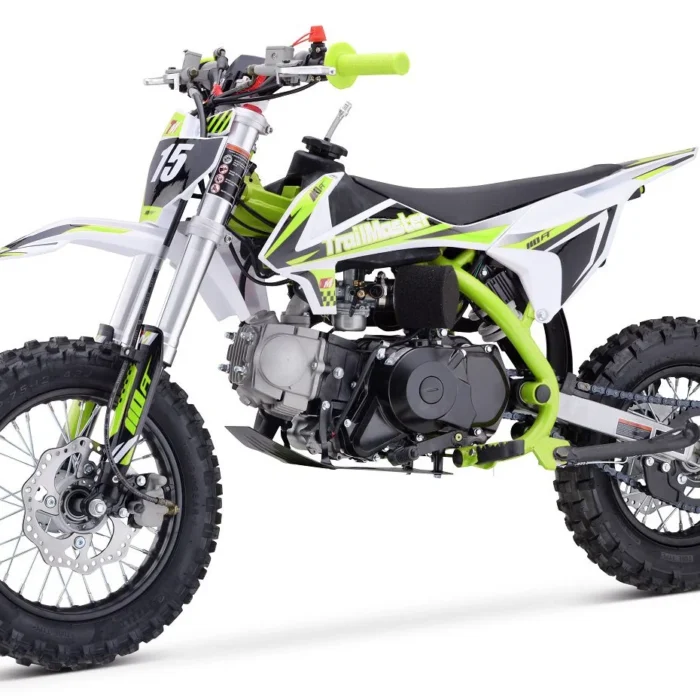

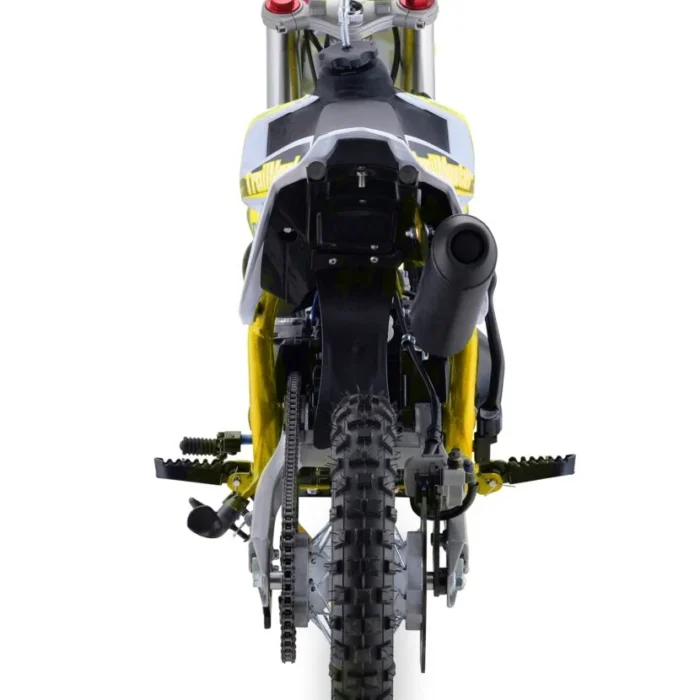

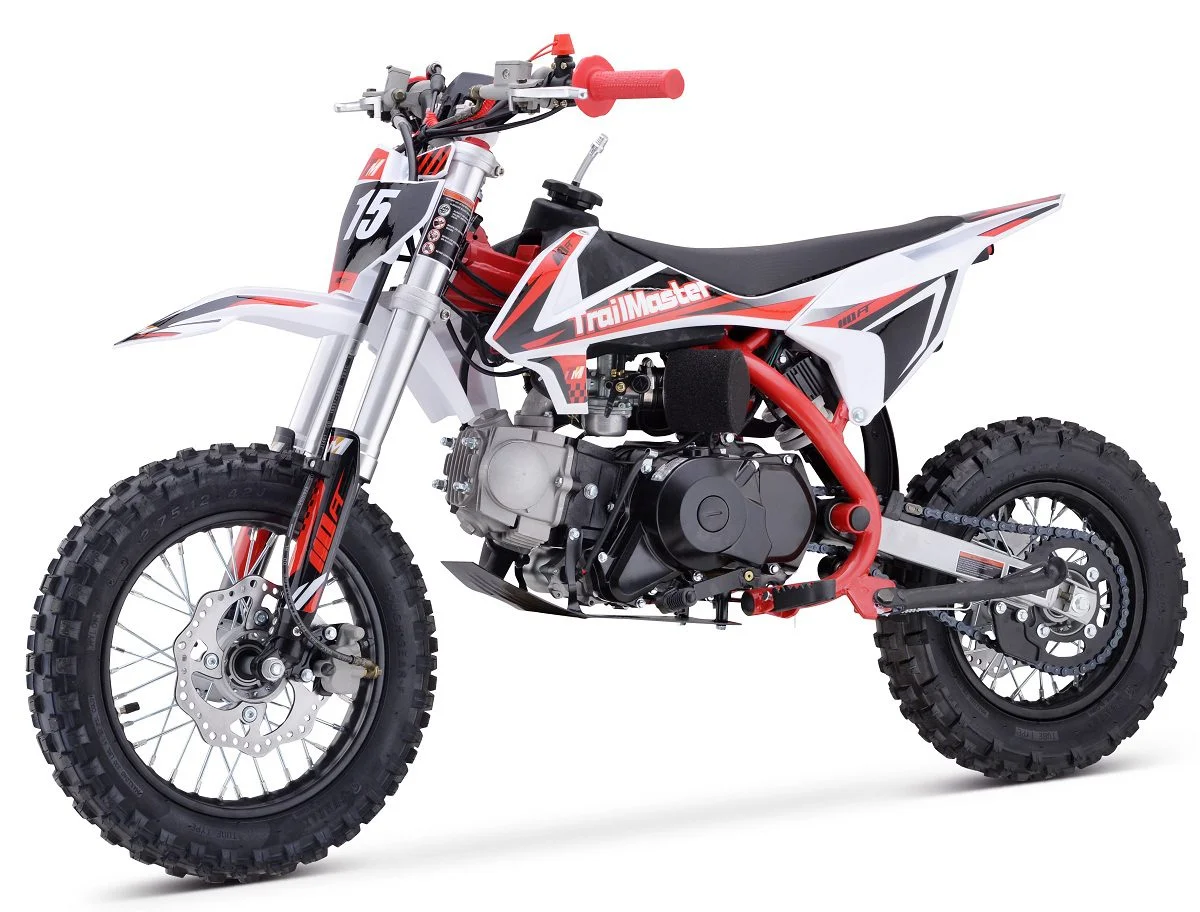

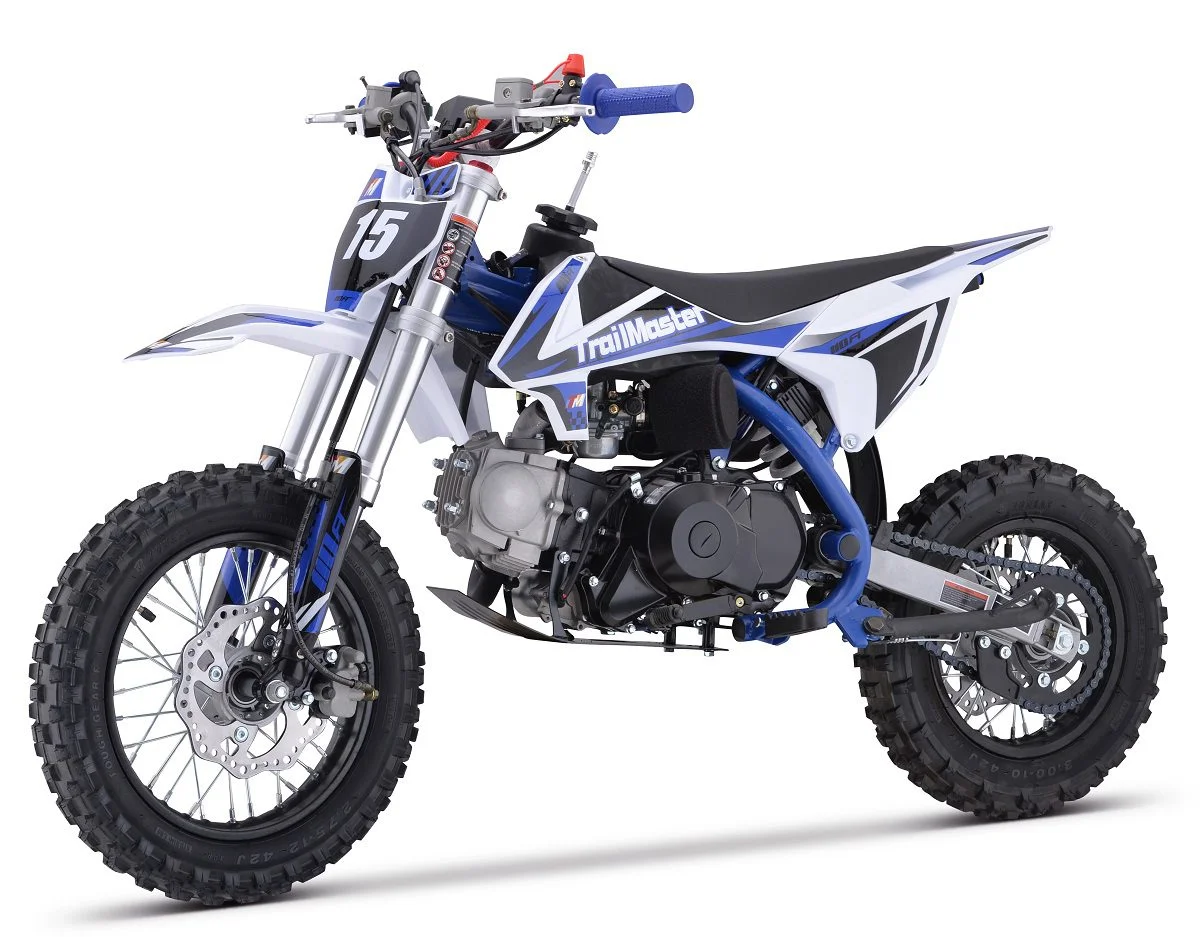

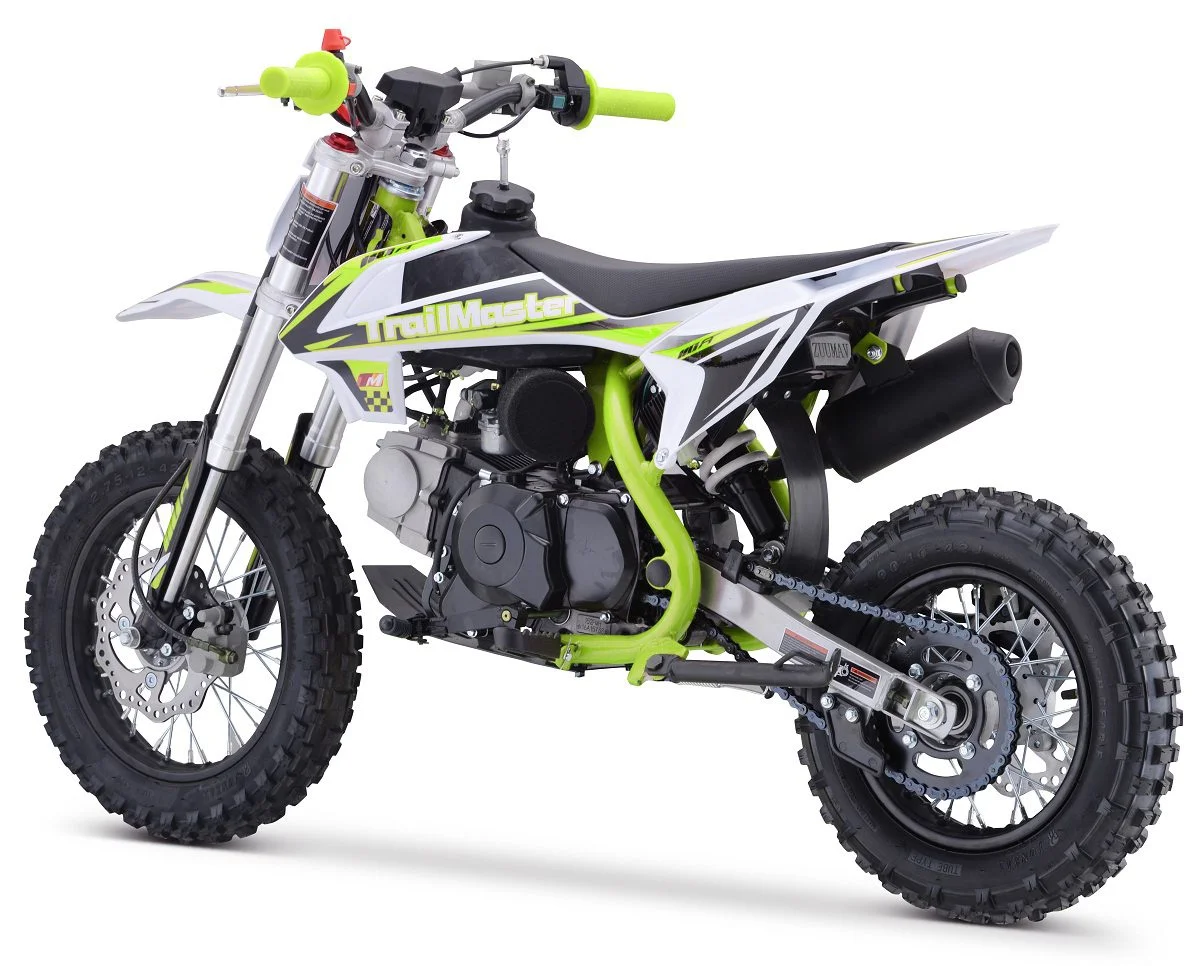

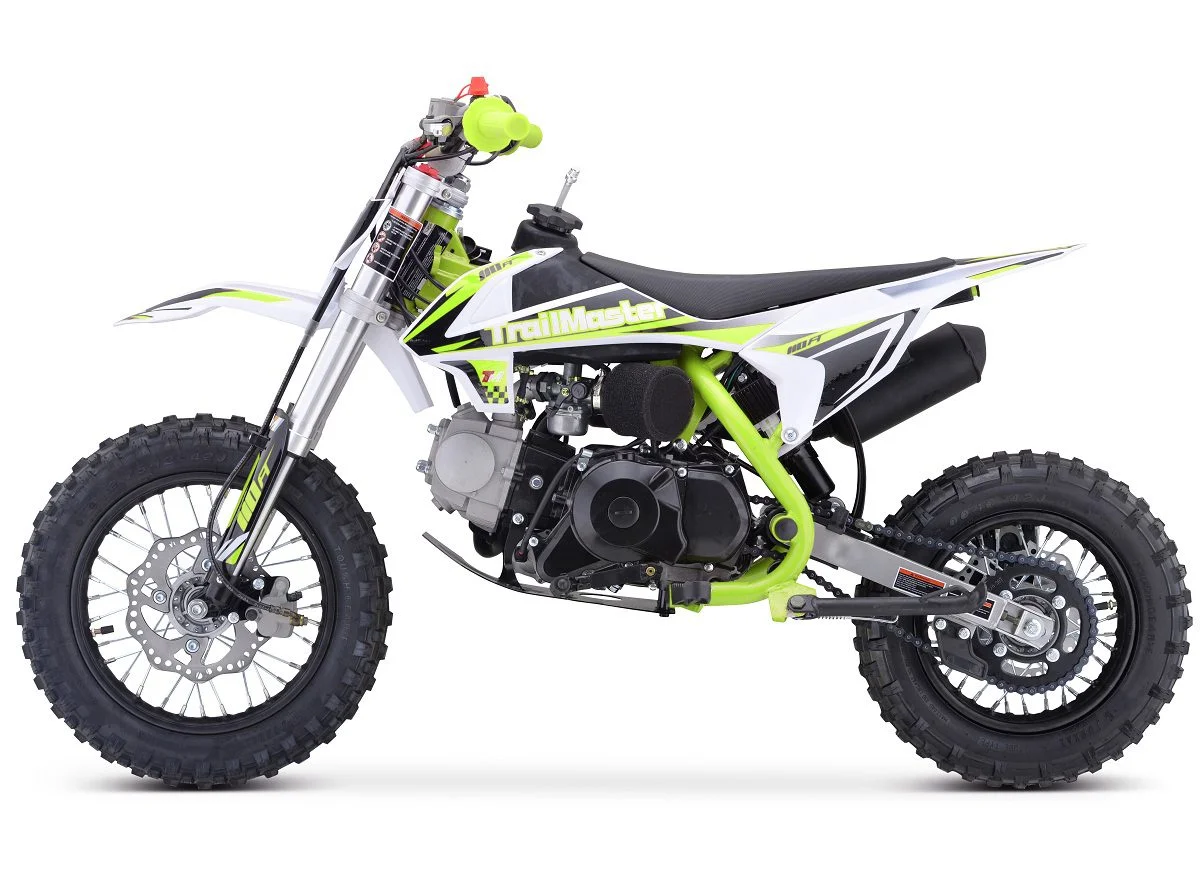

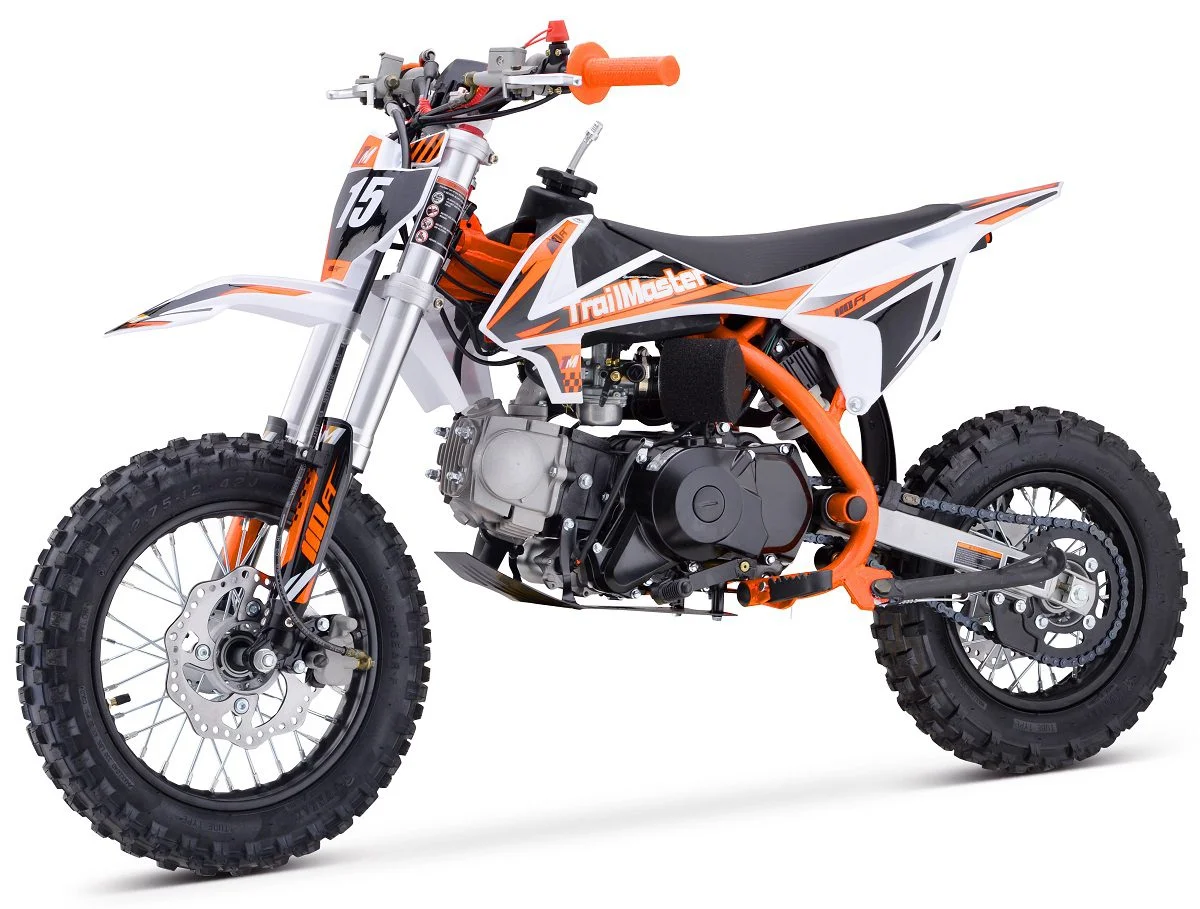

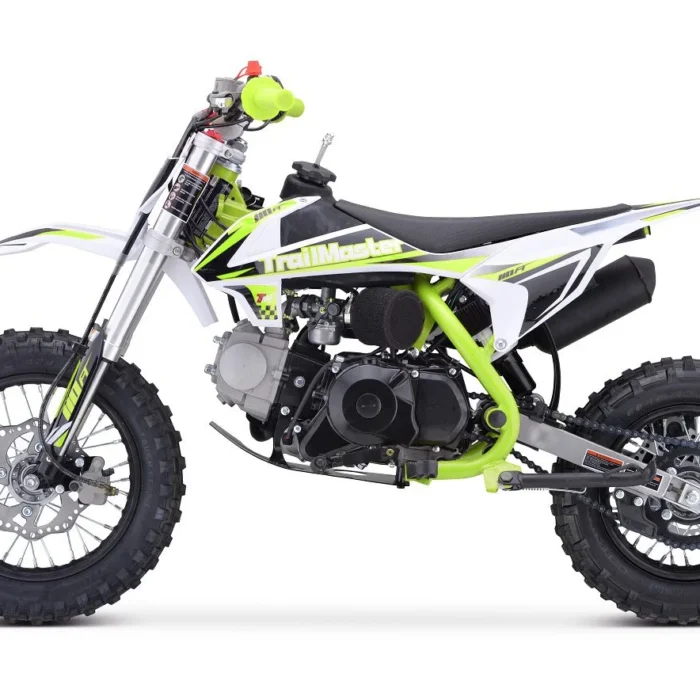

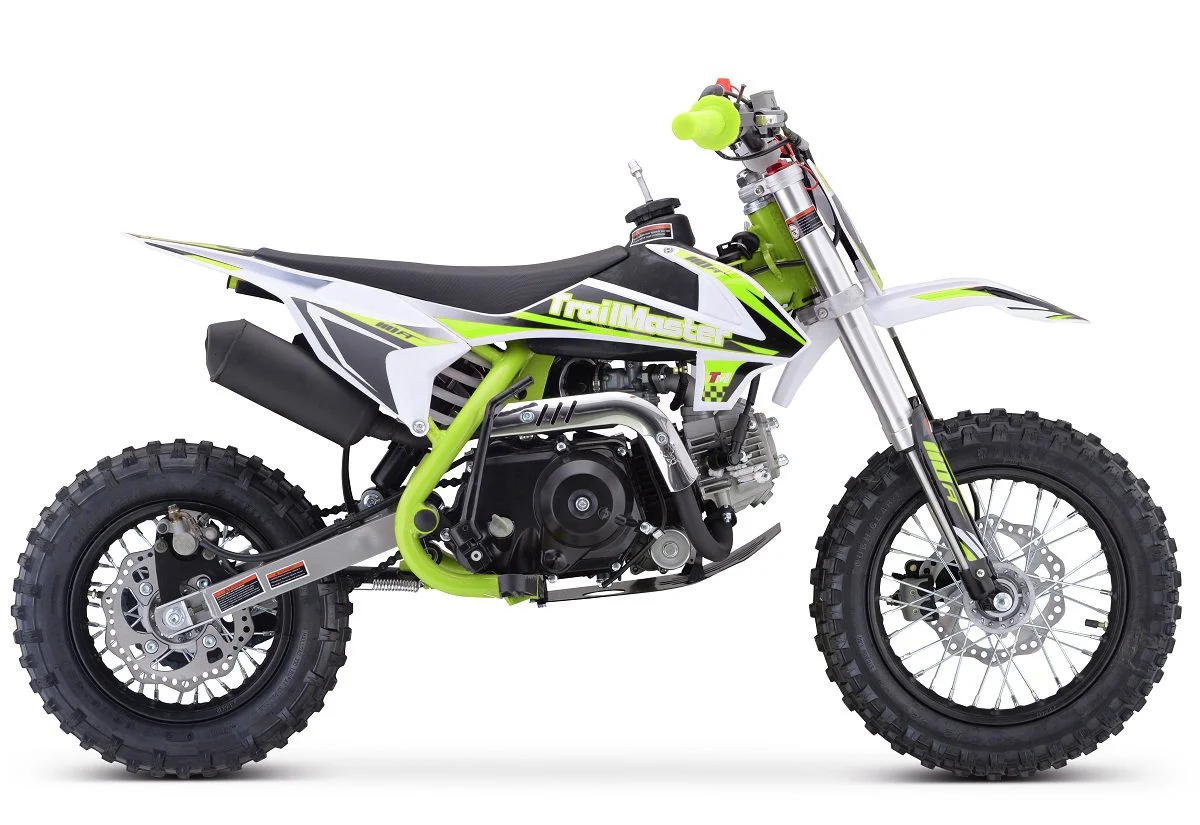

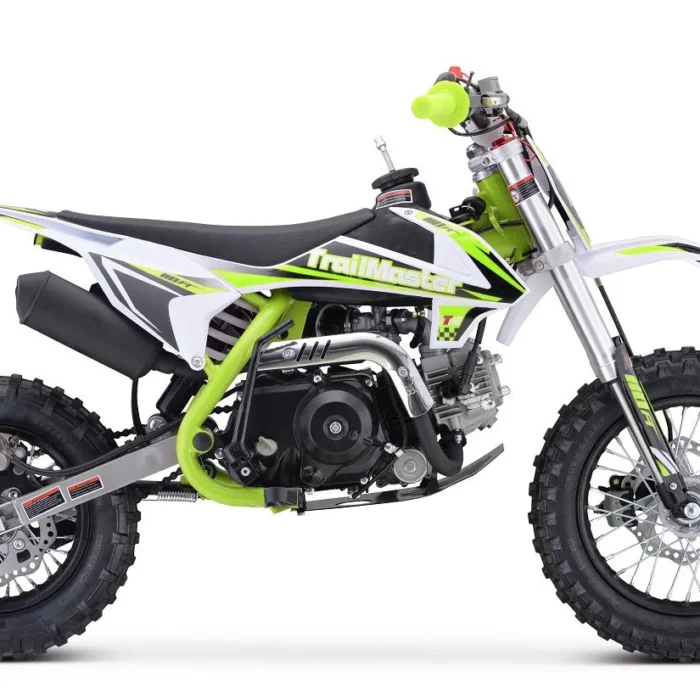

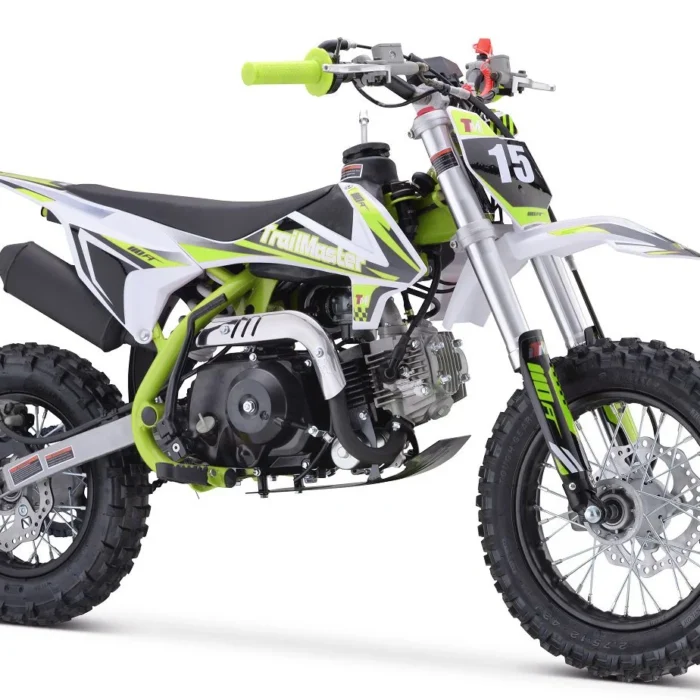

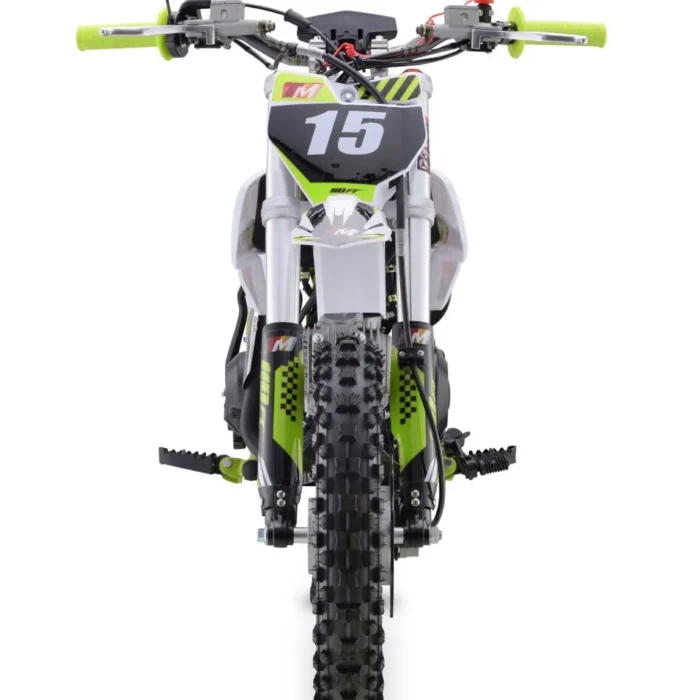

TrailMaster TM15 Semi-Automatic Dirt Bike
The TrailMaster TM15 is a youth-size off-road dirt bike listed under SKU TM15-110. The marketing copy says 110cc and 6 hp, while the stored technical table lists 107 mL displacement and 6.7 hp. Confirm the physical engine label and current TrailMaster documentation before relying on either set of figures. The stored specifications also identify a four-speed semi-automatic N-1-2-3-4 transmission, electric and kick start, hydraulic front and rear disc brakes, 12-inch front and 10-inch rear knobby tires and a 24.41-inch seat height.
Browse related models in our Dirt Bikes category. For manufacturer information, visit the TrailMaster website. Rider suitability should be confirmed from current manufacturer guidance, rider size, experience, supervision needs and protective-equipment requirements.

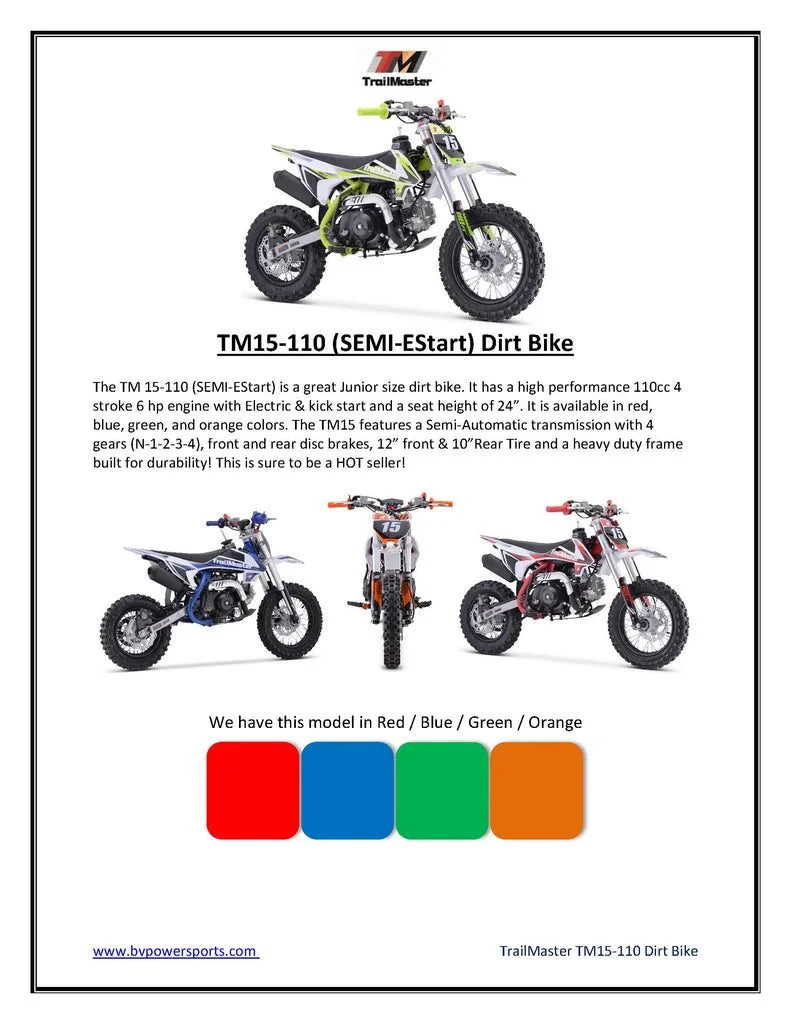

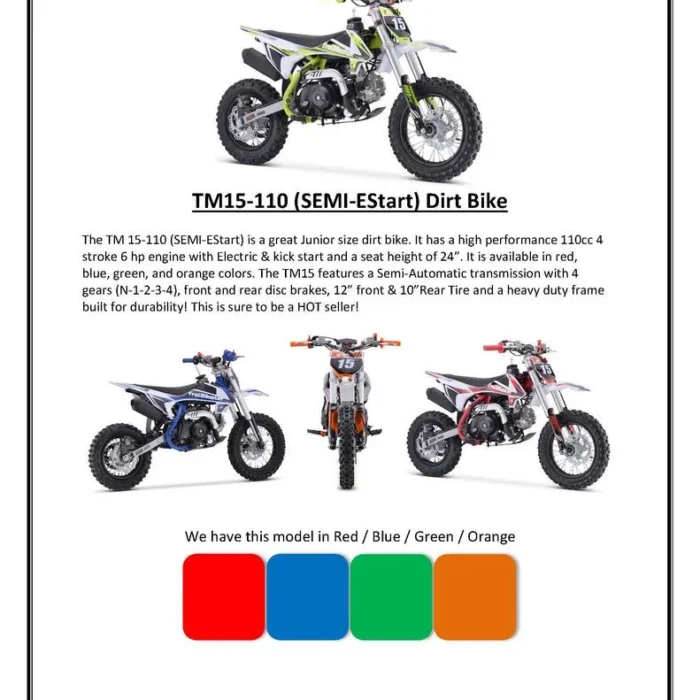

The TM 15-110 features a user-friendly 4-gear semi-automatic transmission (N-1-2-3-4), allowing young riders to shift smoothly without the need for a clutch. Enhanced with hydraulic front and rear disc brakes, it provides reliable stopping power for increased safety. The bike is equipped with a 12” front tire and a 10” rear tire, offering excellent traction and stability on various terrains.

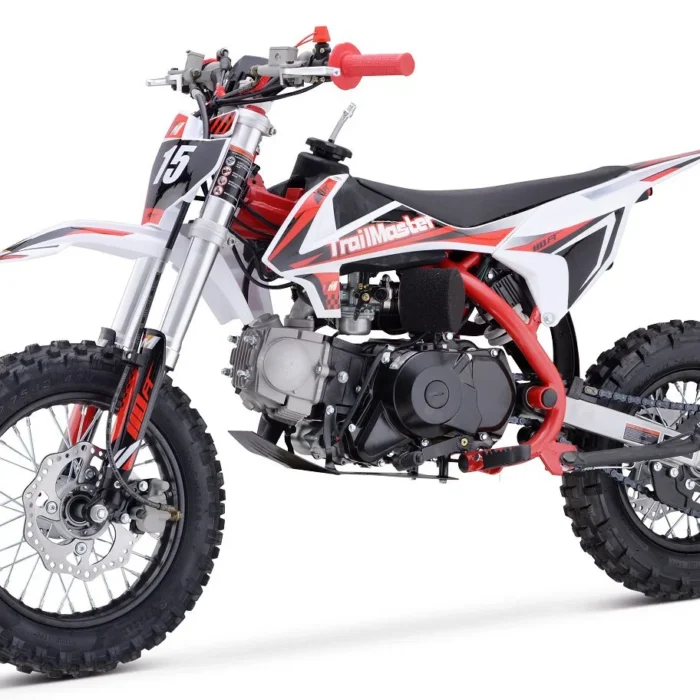

Built with a heavy-duty frame for durability, the TM 15-110 is designed to withstand the rigors of off-road riding. Available in vibrant red, blue, green, and orange, this dirt bike is not only tough but also stylish, making it a hot seller for junior enthusiasts.
Key Features:
- Powerful 110cc 4-stroke engine
- Electric start and kick start options
- 4-gear semi-automatic transmission
- 40” wheelbase and 24.41” seat height
- 12” front tire / 10” rear tire
- Hydraulic front and rear disc brakes

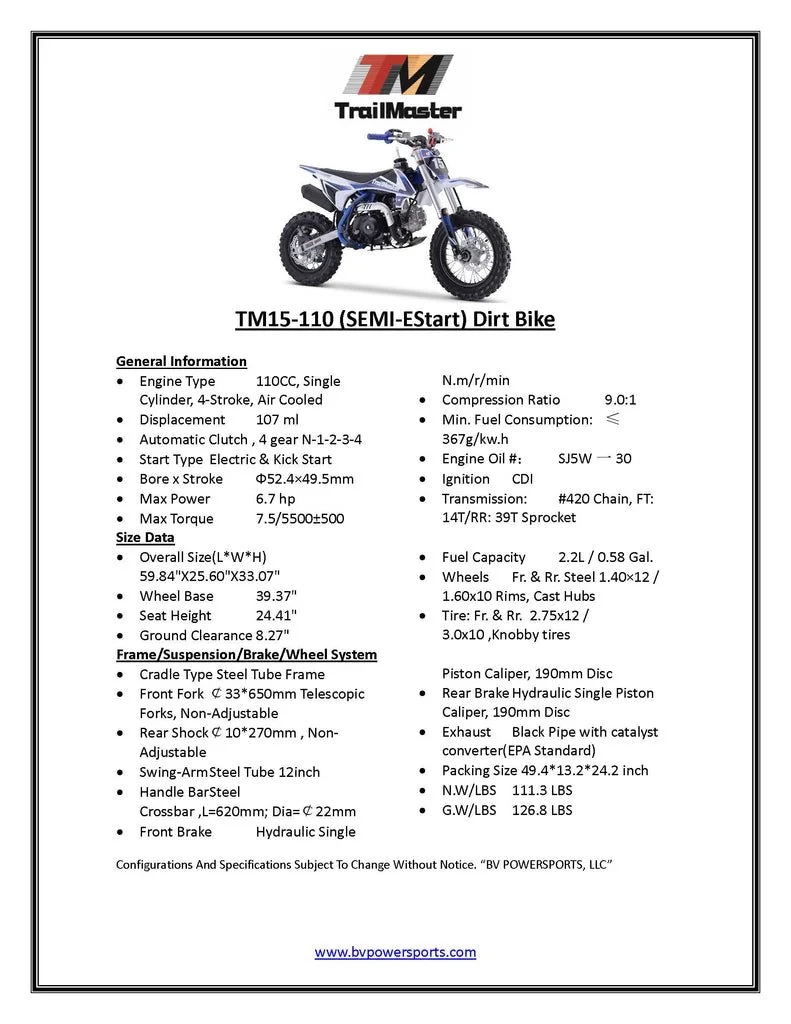

Technical Specifications
General Information
- Engine Type: 110CC, Single Cylinder, 4‐Stroke, Air Cooled
- Displacement: 107 ml
- Clutch: Automatic, 4 Gear (N‐1‐2‐3‐4)
- Start Type: Electric & Kick Start
- Bore x Stroke: Ф52.4 × 49.5mm
- Max Power: 6.7 hp
- Max Torque: 7.5 N.m @ 5500 ± 500 RPM
- Compression Ratio: 9.0:1
- Min. Fuel Consumption: ≤ 367g/kw.h
- Engine Oil: SJ5W-30
- Ignition: CDI
- Transmission: #420 Chain, FT:14T/RR: 39T Sprocket
Size Data
- Overall Size (L × W × H): 59.84 x 25.60 x 33.07 inches (1519 x 650 x 839 mm)
- Wheel Base: 39.37 inches
- Seat Height: 24.41 inches
- Ground Clearance: 8.27 inches
- Fuel Capacity: 2.2L / 0.58 Gal
- Wheels (Front & Rear): Steel 1.40×12 / 1.60×10 Rims, Cast Hubs
- Tire (Front & Rear): 2.75×12 / 3.0×10, Knobby Tires
Frame / Suspension / Brake / Wheel System
- Frame: Cradle Type Steel Tube Frame
- Front Fork: Ф33x650mm Telescopic Forks, Non‐Adjustable
- Rear Shock: Ф10x270mm, Non‐Adjustable
- Swing‐Arm: Steel Tube 12 inch
- Handle Bar: Steel Crossbar, L=620mm; Dia=￠22mm
- Front Brake: Hydraulic Single Piston Caliper, 190mm Disc
- Rear Brake: Hydraulic Single Piston Caliper, 190mm Disc
- Exhaust: Black Pipe with Catalyst Converter (EPA Standard)
Packing Information
- Packing Size: 49.4 x 13.2 x 24.2 inches
- Net Weight: 111.3 lbs (50 kg)
- Gross Weight: 126.8 lbs (58 kg)
| Condition | New |
|---|---|
| Power Type | Gas |
