Trailmaster TM22 Dirt Bike 125cc Manual Transmission
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

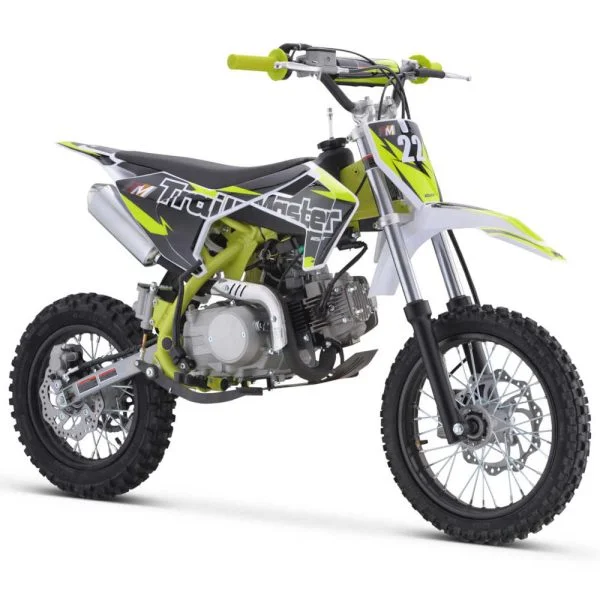

TrailMaster TM22 Manual Dirt Bike PPS-3398
The TrailMaster TM22 is a youth-size off-road dirt bike listed under SKU PPS-3398. The marketing copy uses 125cc, while the stored technical table lists 124 mL displacement; confirm the physical engine label and current TrailMaster documentation before relying on the rounded displacement figure. The stored specifications also identify 8.3 hp, a four-speed manual N-1-2-3-4 transmission with manual clutch, kick start, hydraulic front and rear disc brakes, 14-inch front and 12-inch rear tires and a 29.13-inch seat height.
Browse related models in our Dirt Bikes category. For manufacturer information, visit the TrailMaster website. Rider suitability should be confirmed from current manufacturer guidance, rider size, experience, supervision needs and protective-equipment requirements.

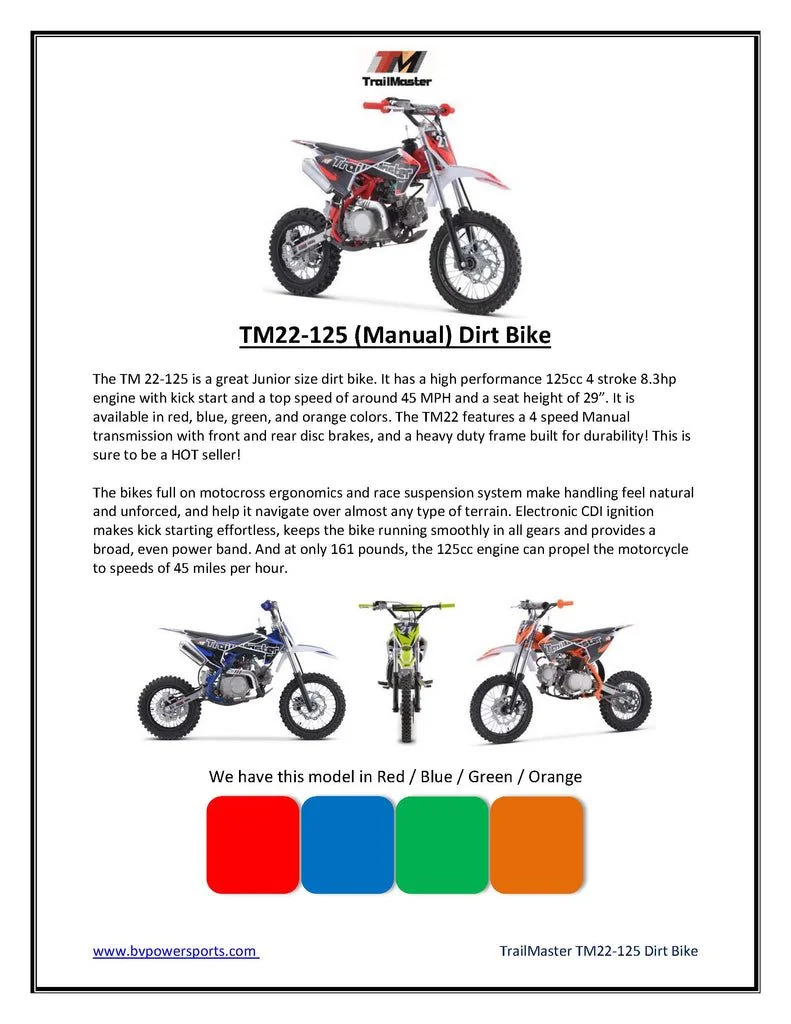

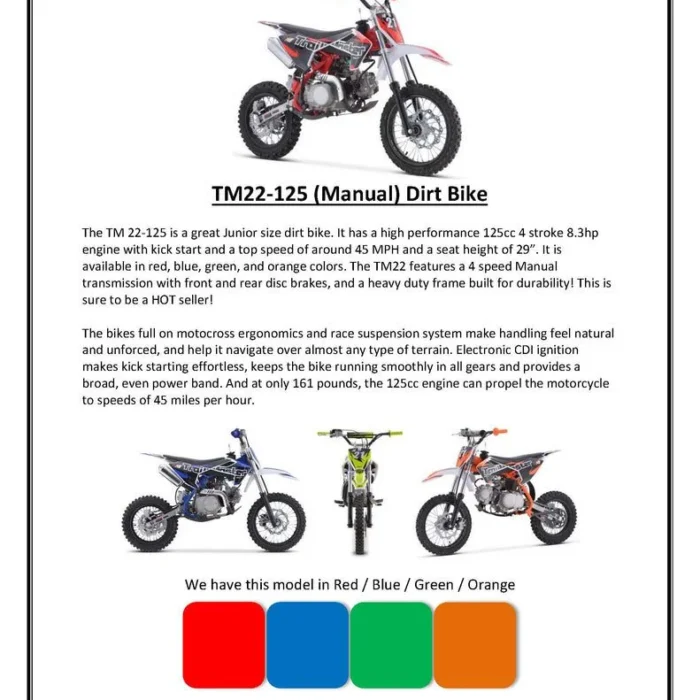

The TM 22-125 features a 4-speed manual transmission, giving young riders full control over their ride. Its front and rear hydraulic disc brakes offer superior stopping power, ensuring safety on any terrain. Built with a heavy-duty frame, the bike is engineered for durability, while its full motocross ergonomics and race suspension system provide smooth and natural handling, making it easy to navigate over rough trails.
The electronic CDI ignition system simplifies kick starting and keeps the bike running smoothly across all gears, offering a broad, even power band. The 41.54” wheelbase, combined with a 14” front tire and a 12” rear tire, ensures stability and traction, making the TM 22-125 a top seller in the junior dirt bike category.

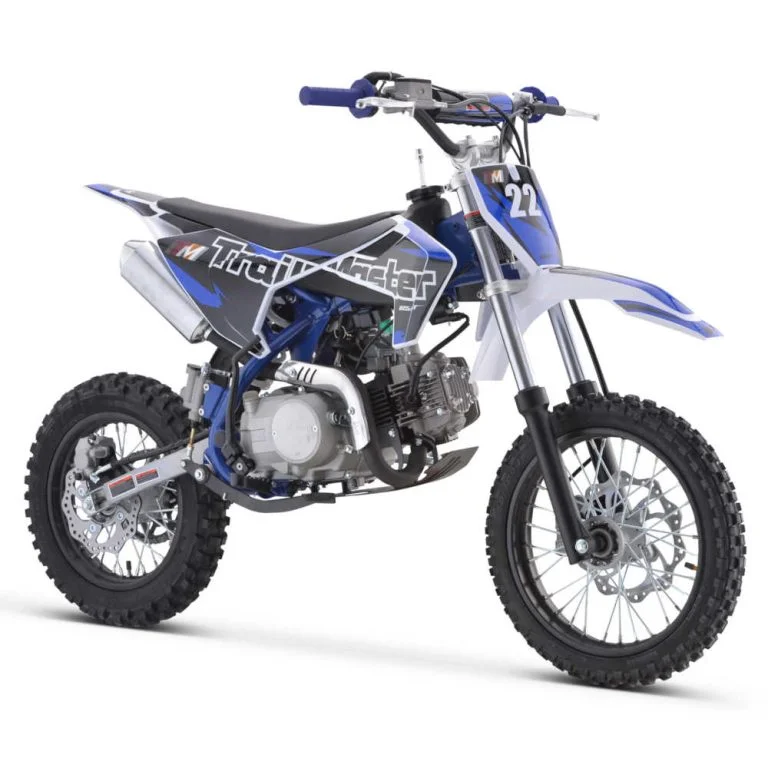

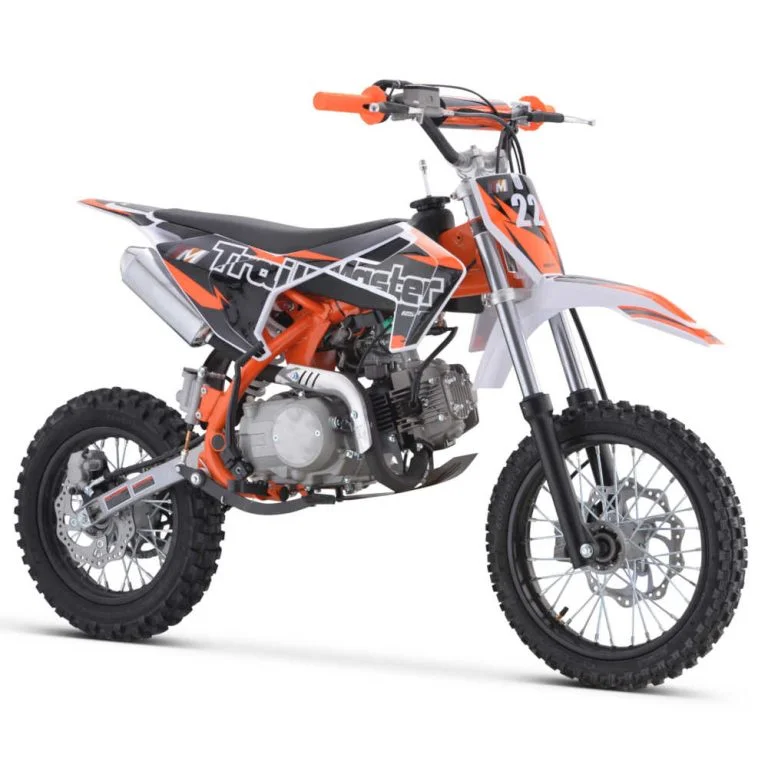

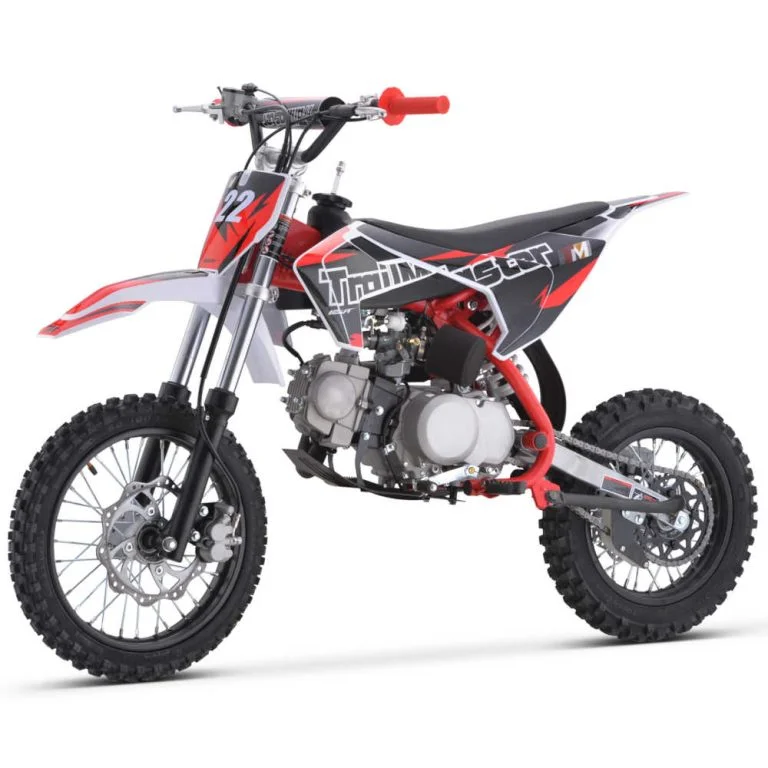

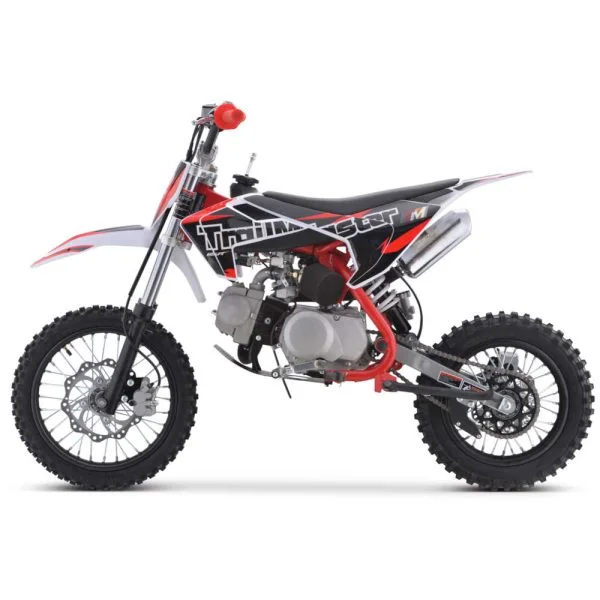

Available in striking red, blue, green, and orange, the TM 22-125 is as stylish as it is powerful, perfect for young riders who want to stand out.
Key Features:
- Powerful 125cc 4-stroke engine with 8.3 HP
- Kick start with manual clutch and 4-speed transmission
- 41.54” wheelbase and 29.13” seat height
- 14” front tire / 12” rear tire
- Hydraulic front and rear disc brakes
- Aluminum handlebar for enhanced control

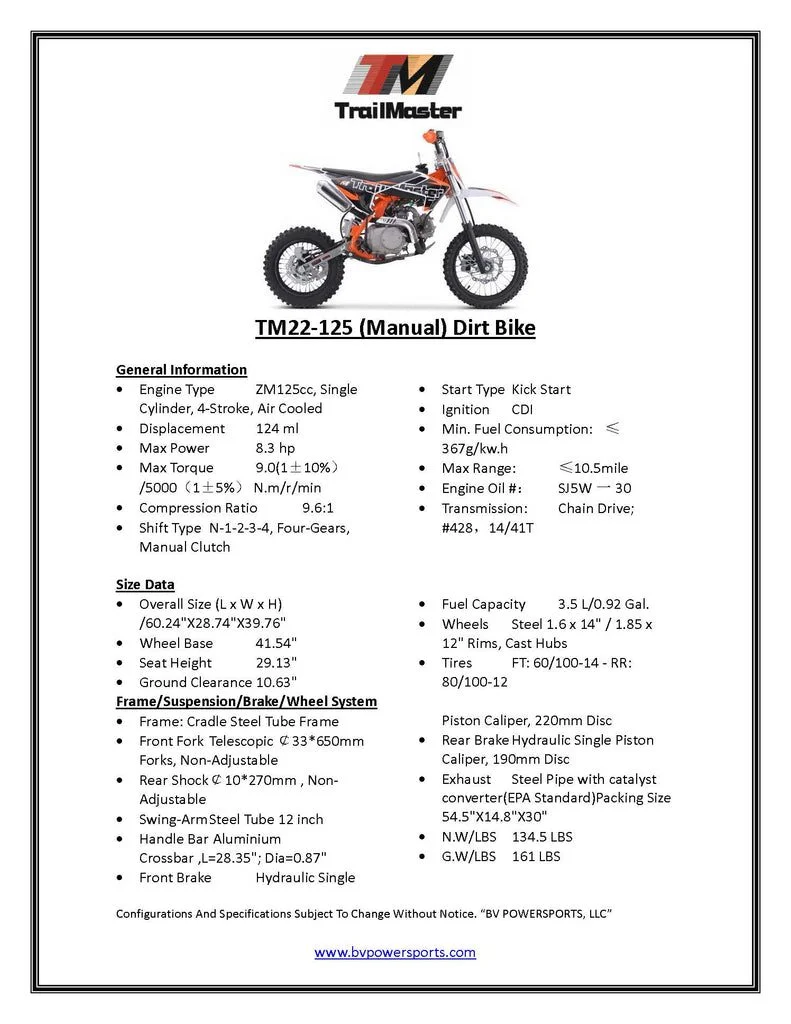

Technical Specifications
General Information
- Engine Type: ZM125cc, Single Cylinder, 4‐Stroke, Air Cooled
- Displacement: 124 ml
- Max Power: 8.3 hp
- Max Torque: 9.0 (1±10%) @ 5000 (1±5%) N.m/r/min
- Compression Ratio: 9.6:1
- Shift Type: N‐1‐2‐3‐4, Four‐Gears, Manual Clutch
- Start Type: Kick Start
- Ignition: CDI
- Min. Fuel Consumption: ≤ 367g/kw.h
- Max Range: ≤ 10.5 miles
- Engine Oil: SJ5W-30
- Transmission: Chain Drive, #428, 14/41T
Size Data
- Overall Size (L × W × H): 60.24 x 28.74 x 39.76 inches (1530 x 729 x 1009 mm)
- Wheel Base: 41.54 inches
- Seat Height: 29.13 inches
- Ground Clearance: 10.63 inches
- Fuel Capacity: 3.5 L / 0.92 Gal
- Wheels: Steel 1.6 x 14″ / 1.85 x 12″ Rims, Cast Hubs
- Tires (Front & Rear): FT: 60/100‐14 / RR: 80/100‐12
Frame / Suspension / Brake / Wheel System
- Frame: Cradle Steel Tube Frame
- Front Fork: Telescopic ￠33 x 650mm Forks, Non‐Adjustable
- Rear Shock: ￠10 x 270mm, Non‐Adjustable
- Swing‐Arm: Steel Tube 12 inch
- Handle Bar: Aluminium Crossbar, L=28.35″, Dia=0.87″
- Front Brake: Hydraulic Single Piston Caliper, 220mm Disc
- Rear Brake: Hydraulic Single Piston Caliper, 190mm Disc
- Exhaust: Steel Pipe with Catalyst Converter (EPA Standard)
Packing Information
- Packing Size: 54.5 x 14.8 x 30 inches
- Net Weight: 134.5 lbs (61 kg)
- Gross Weight: 161 lbs (73 kg)
| Condition | New |
|---|---|
| Power Type | Gas |
