Brand: TrailMaster
Trailmaster TM35 250cc Dirt Bike, 5 Gear Manual Clutch, Single Cylinder, 4-Stroke, Air Cooling
3 products sold in last 16 hours
Selling fast! Over 6 people have in their cart
23 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

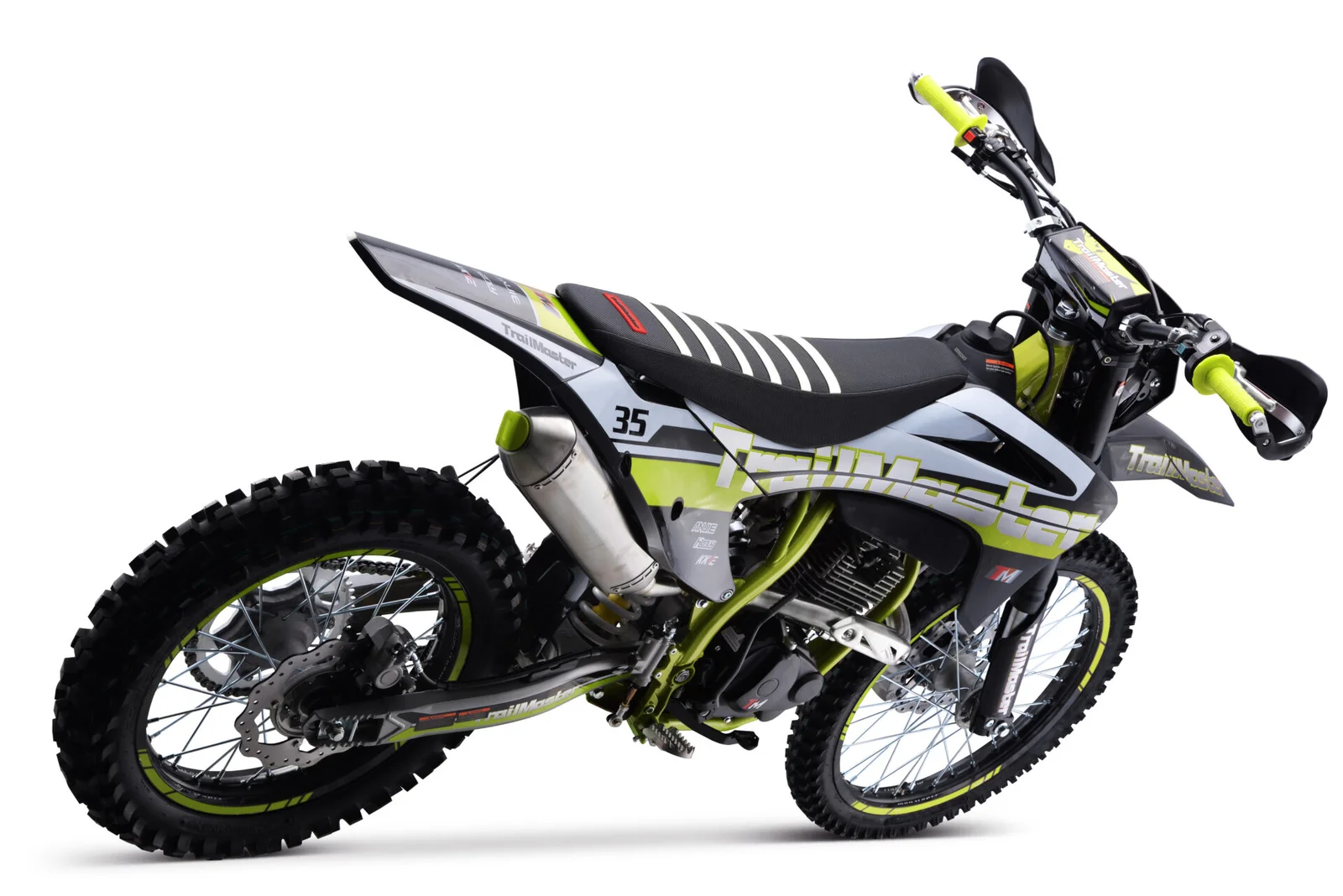

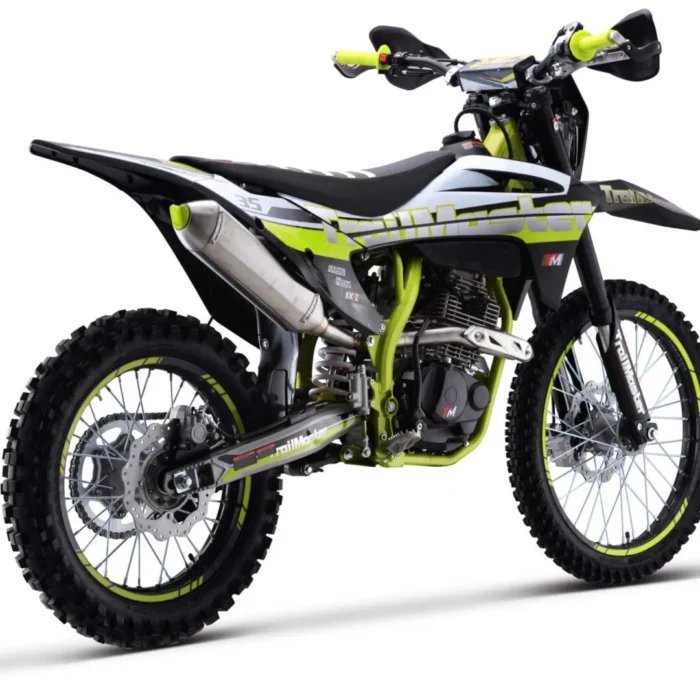

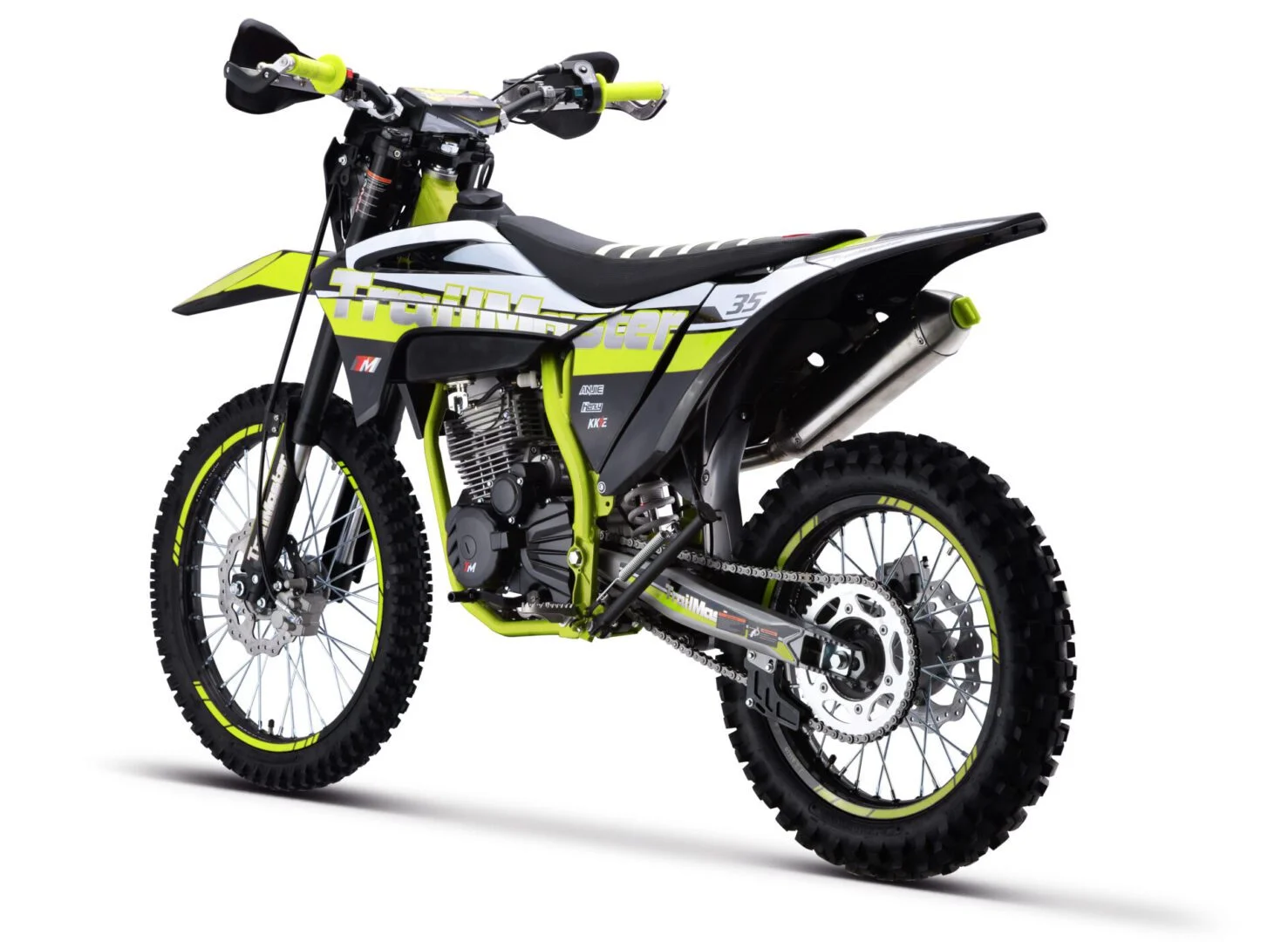

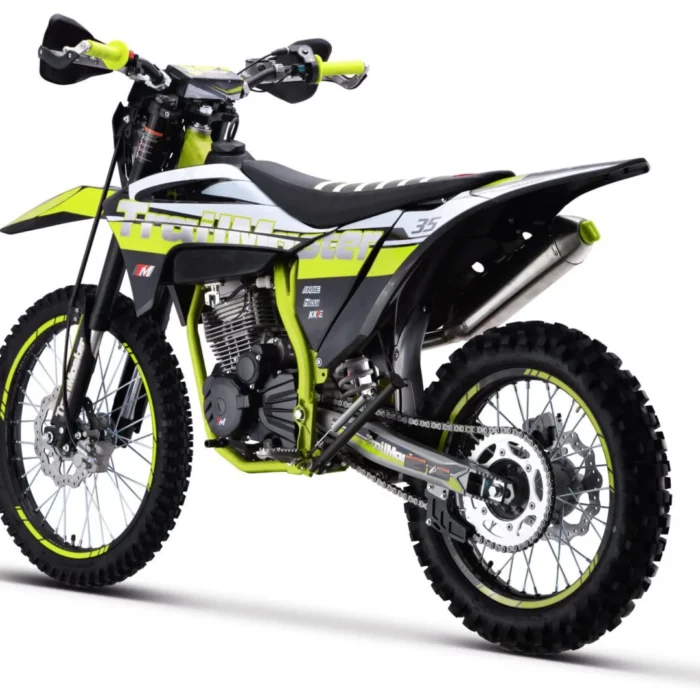

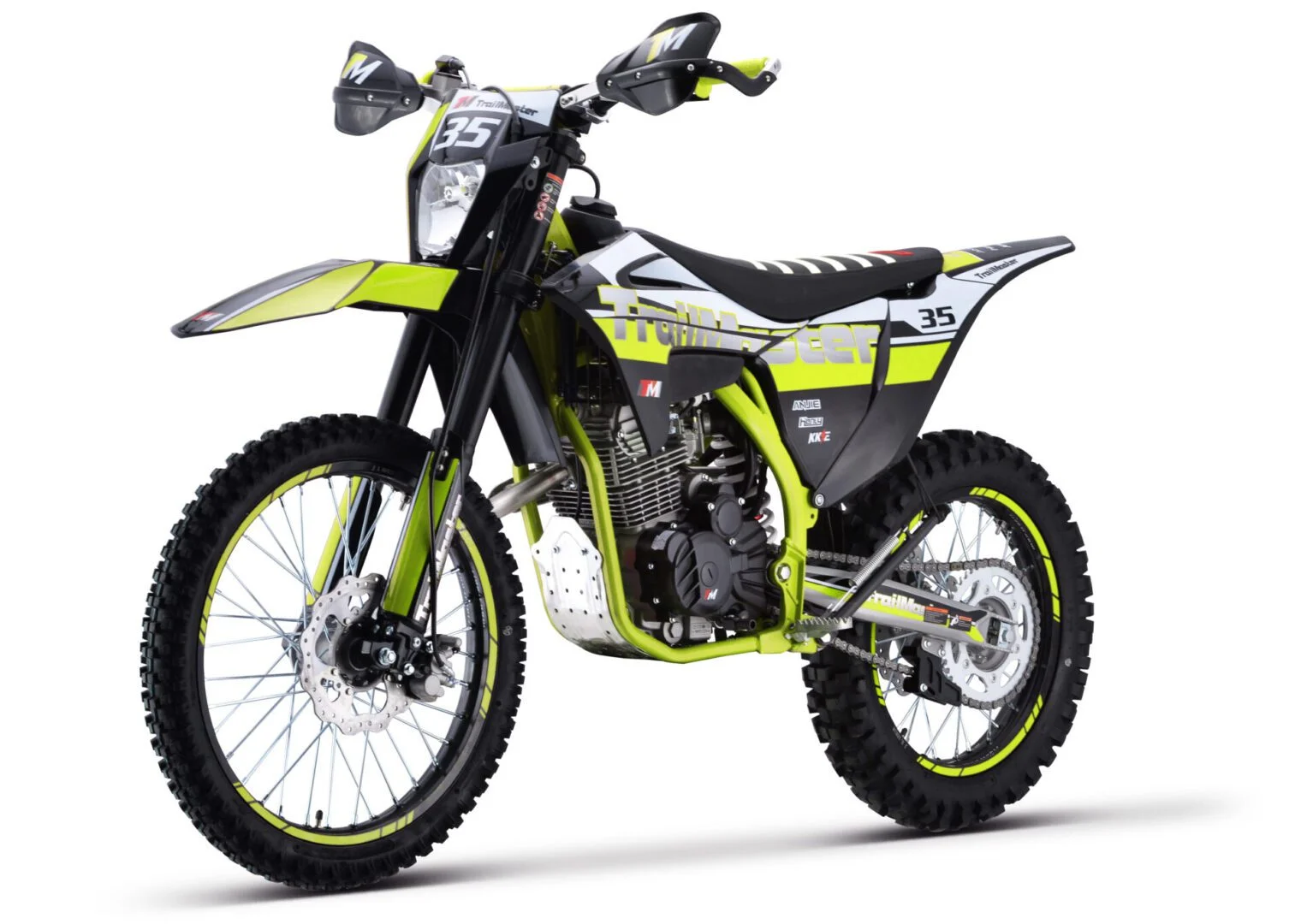

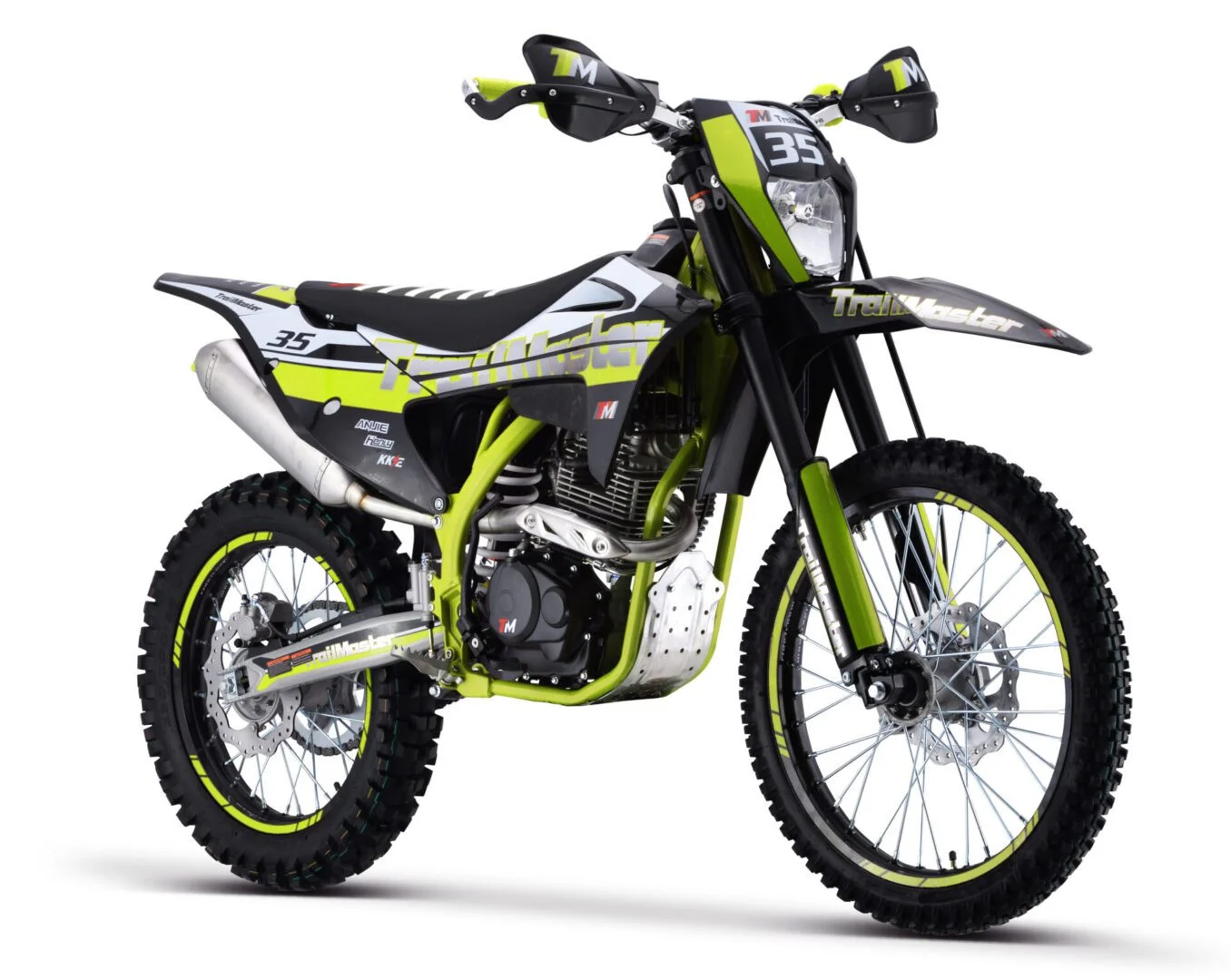

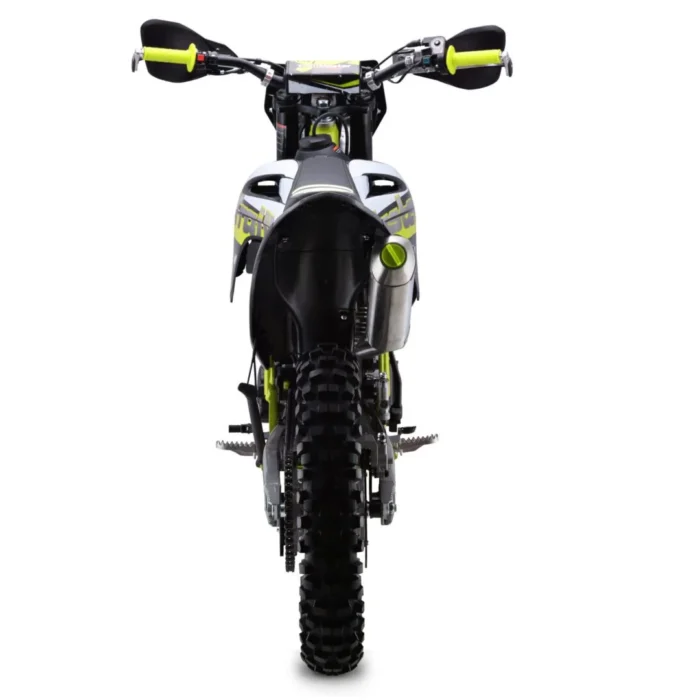

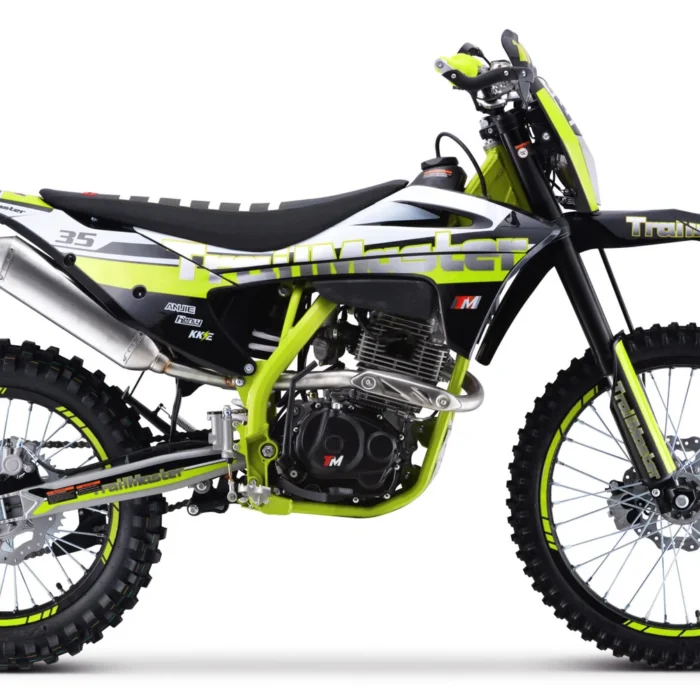

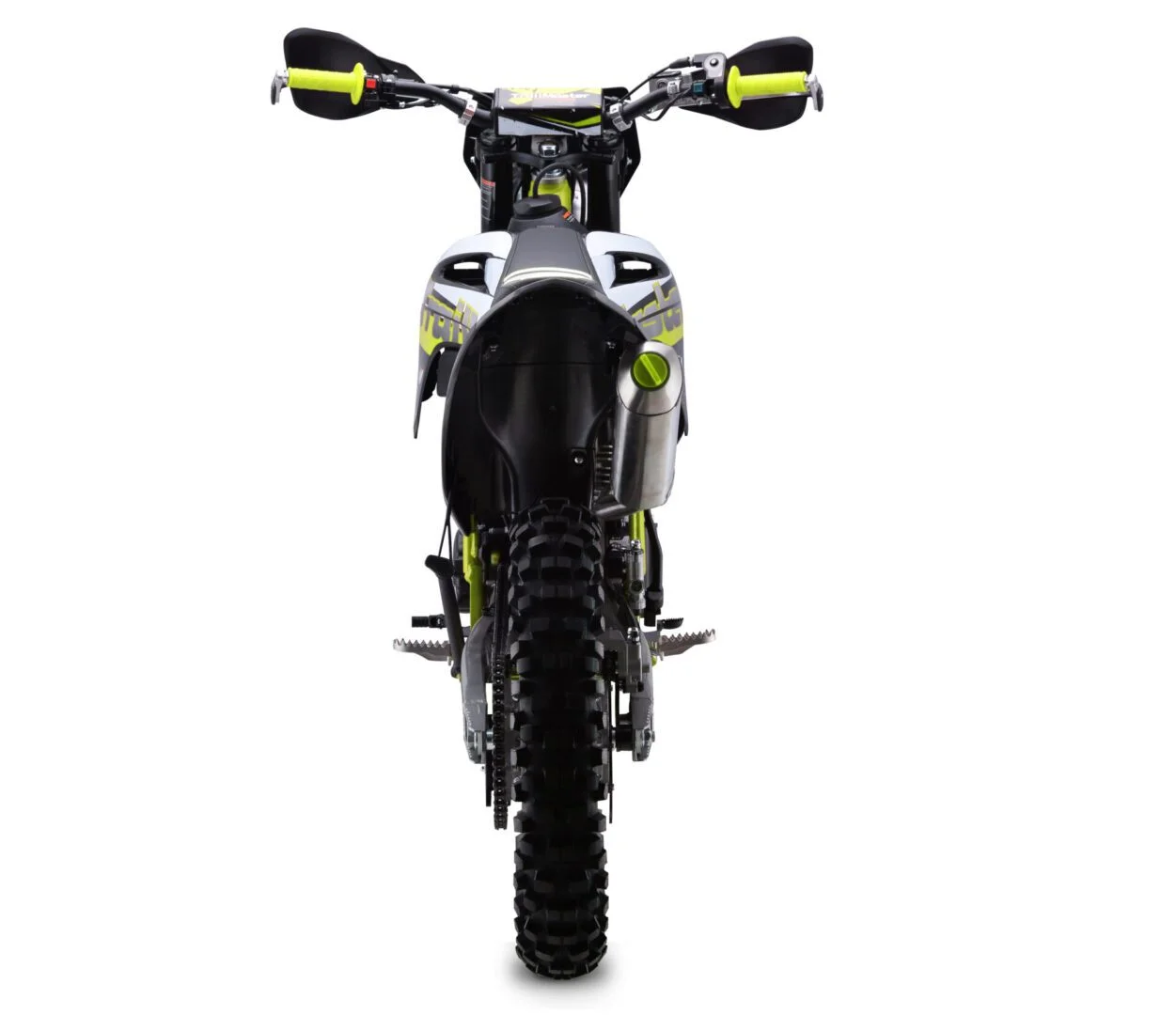

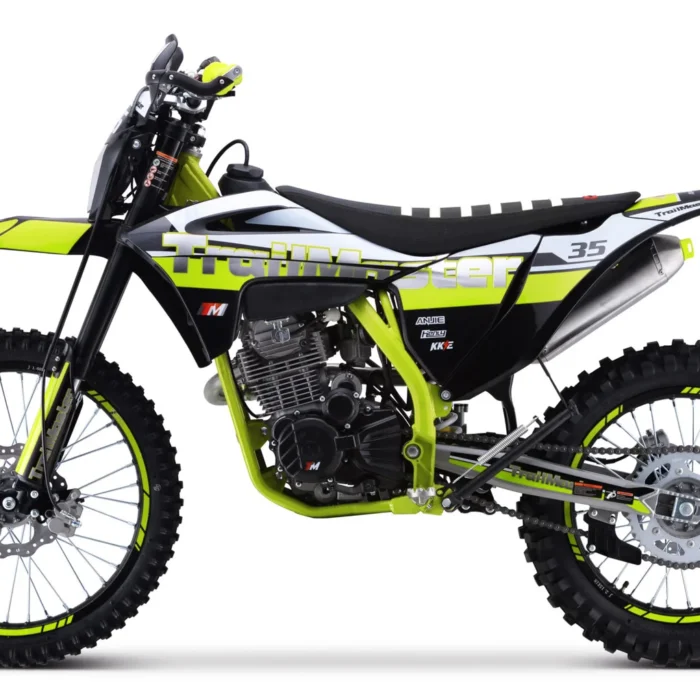

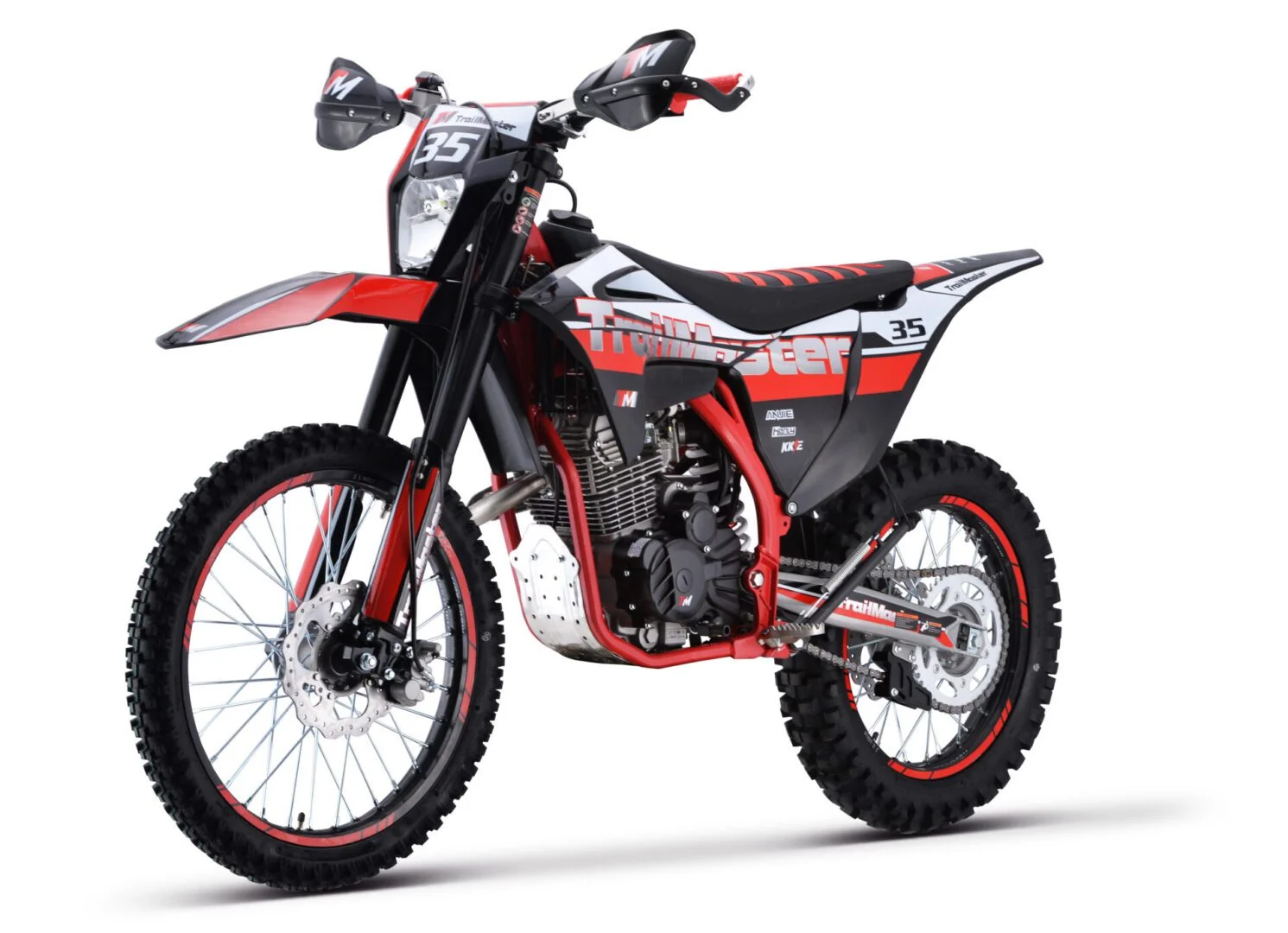

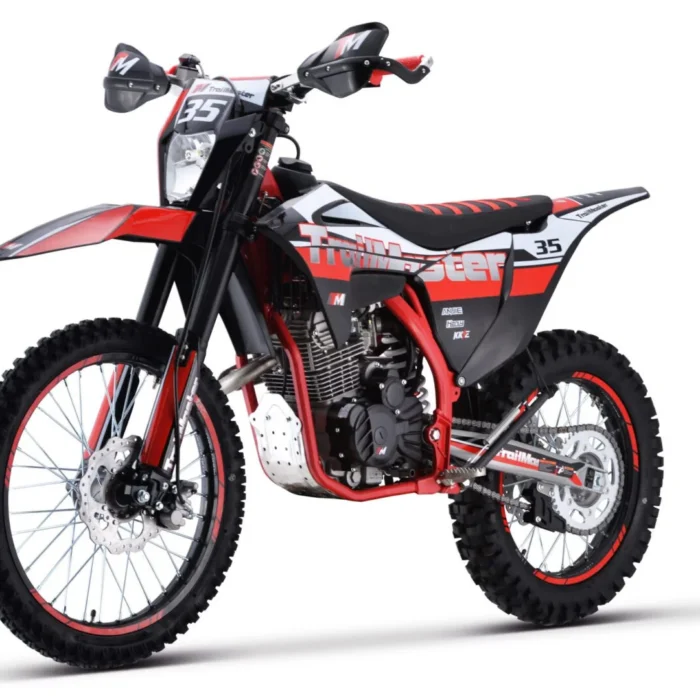

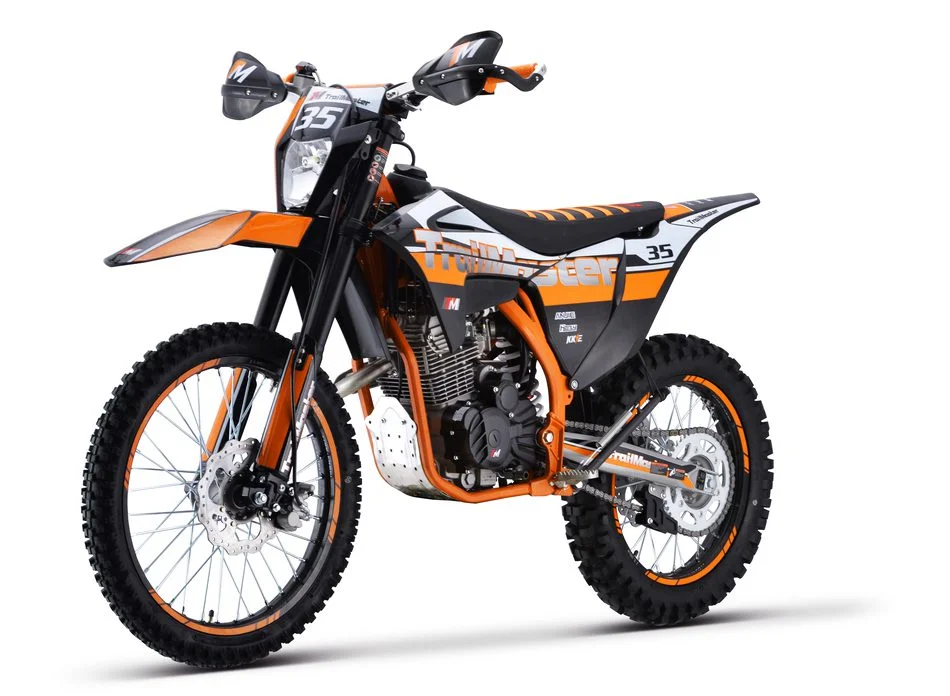

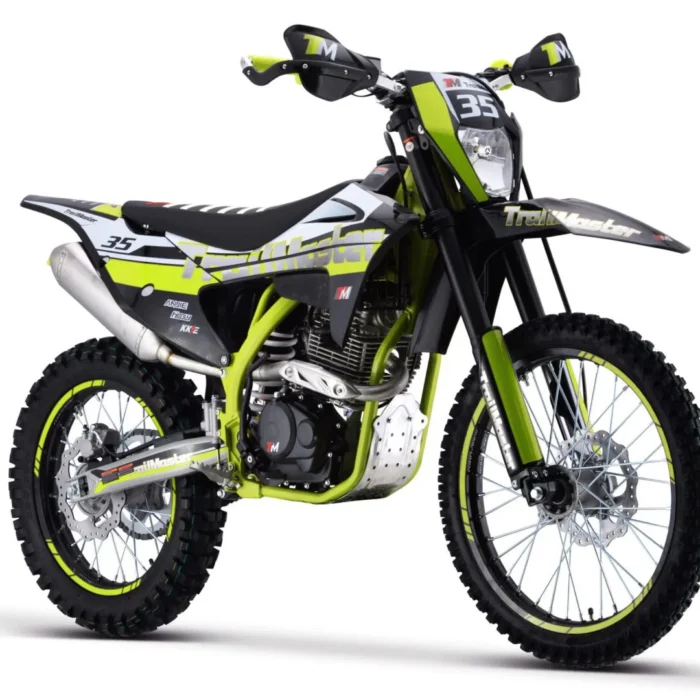

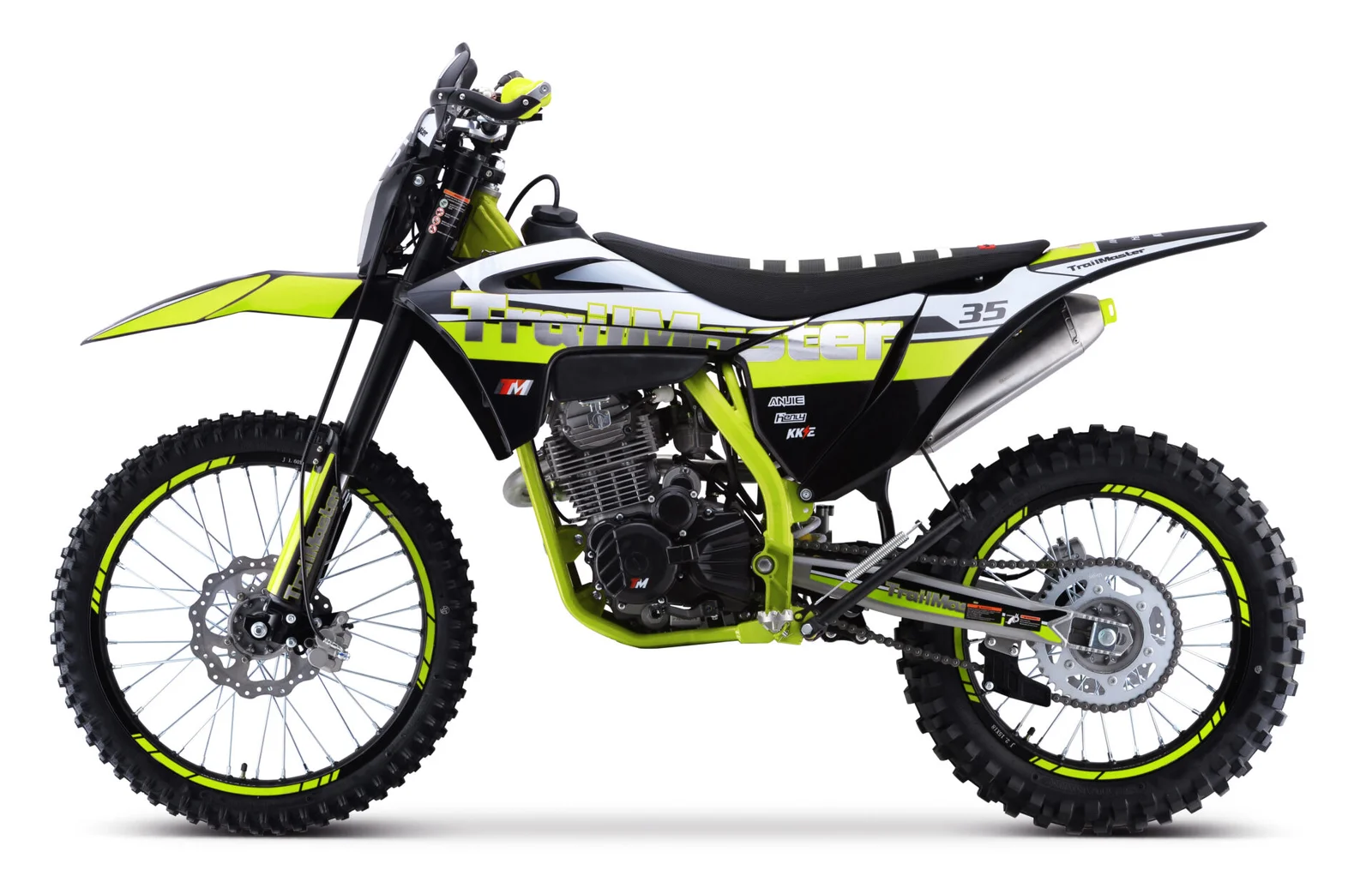

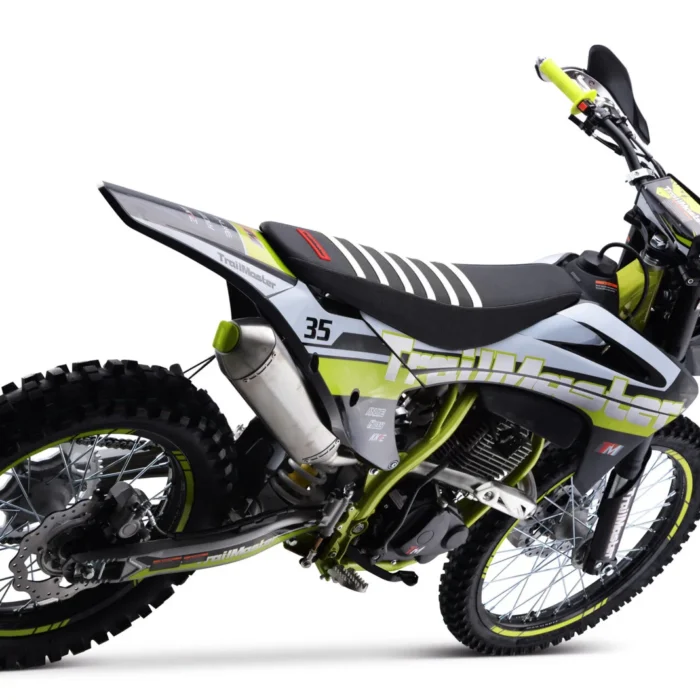

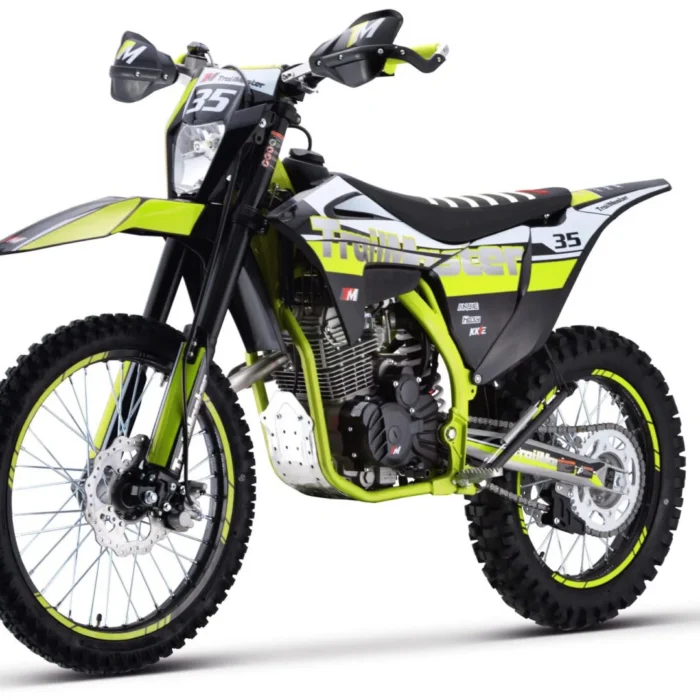

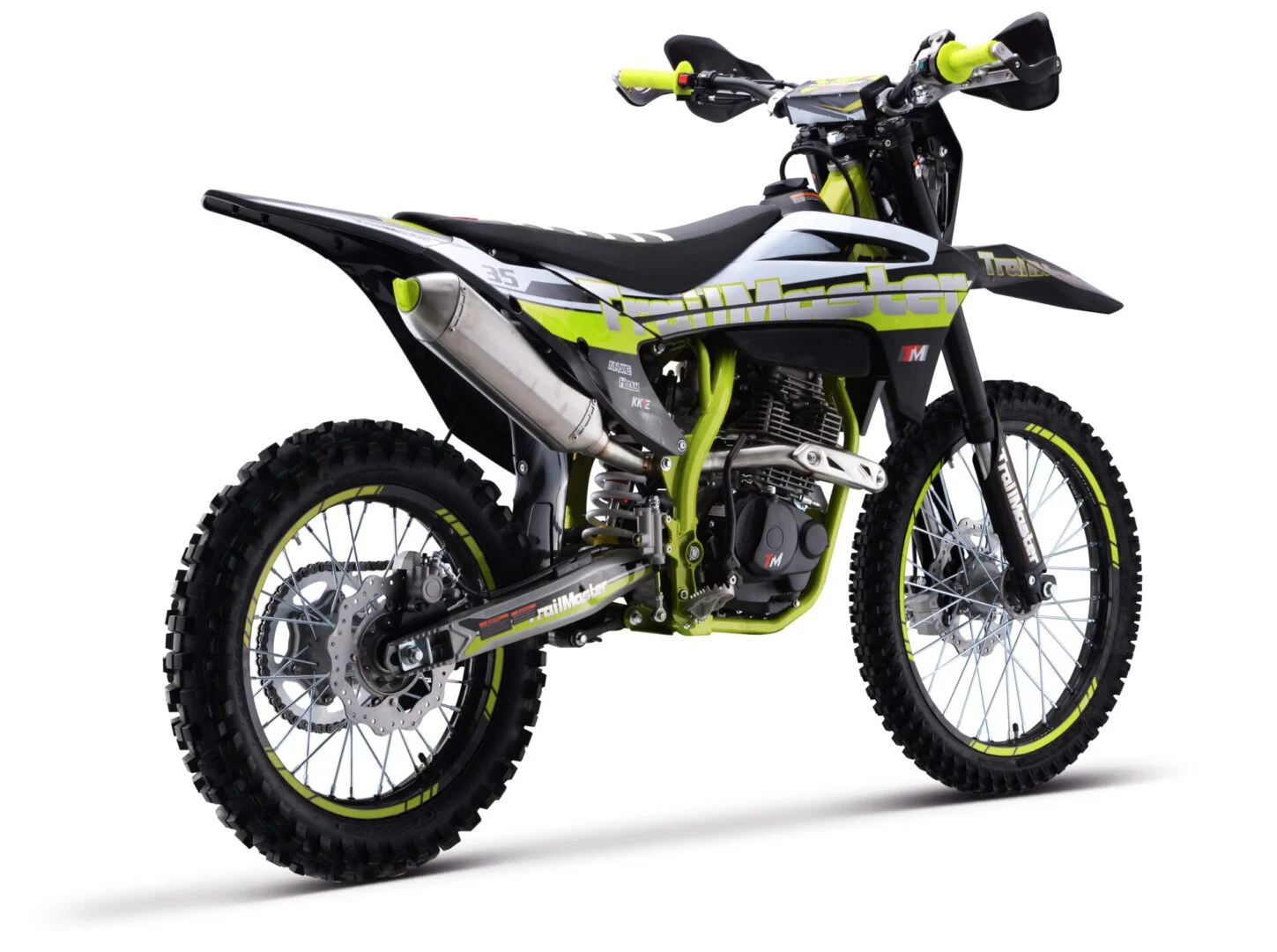

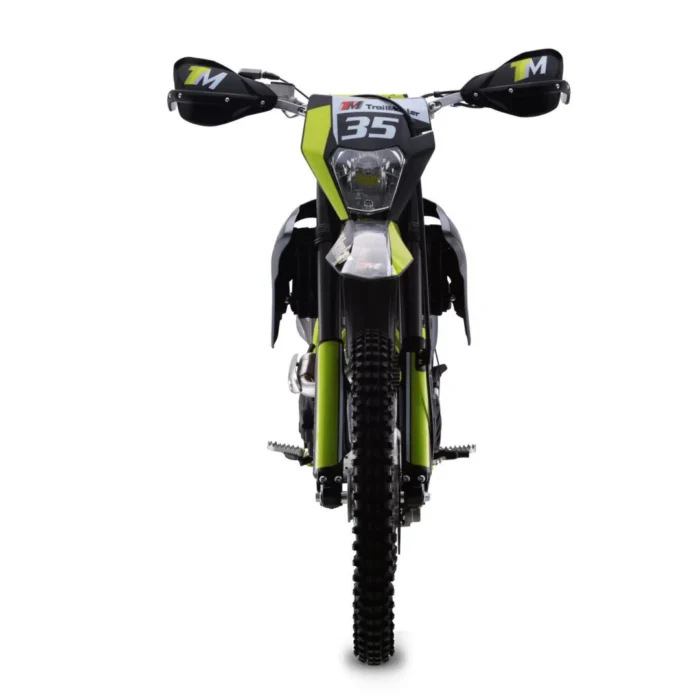

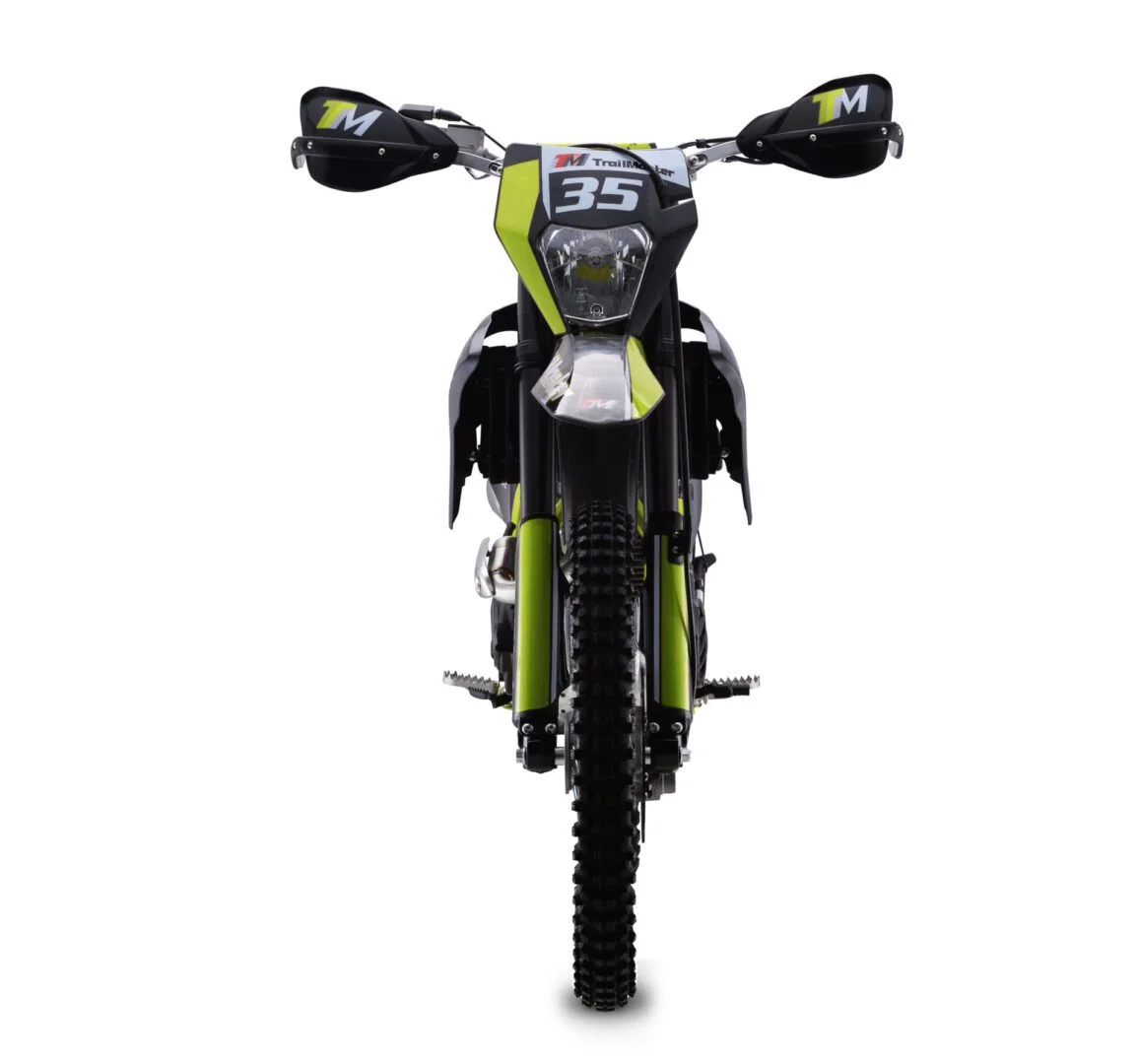

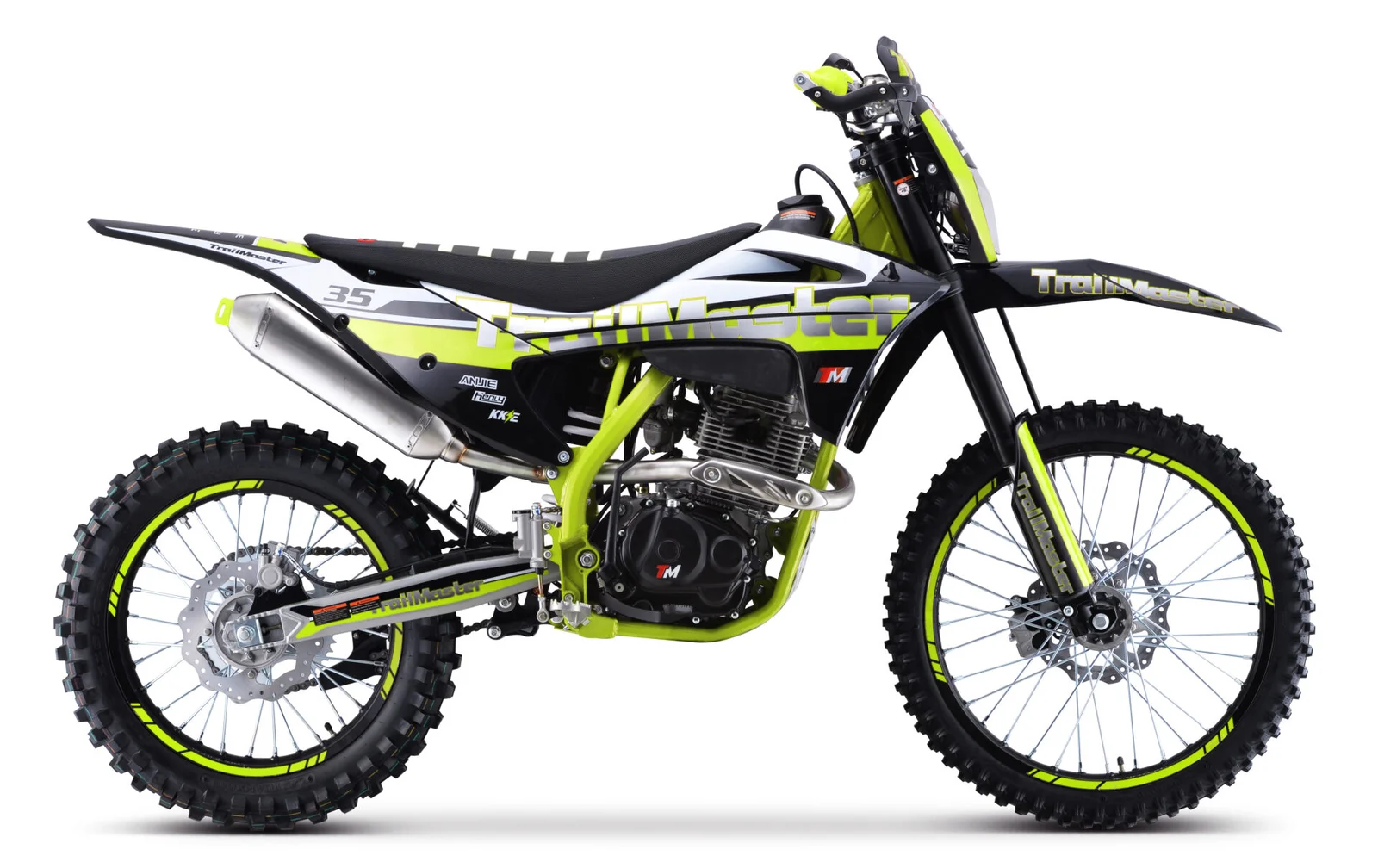

TrailMaster TM35 250cc Dirt Bike
The TrailMaster TM35 is a full-size off-road dirt bike listed under SKU TM35-DIRT-BIKE. The stored specifications identify a 249.9 mL air-cooled four-stroke single-cylinder engine, 14 kW maximum power at 8,500 rpm, 18 N·m maximum torque at 6,500 rpm, five-speed manual wet multi-plate transmission, electric and kick start, chain drive, hydraulic front and rear disc brakes, 21-inch front and 18-inch rear wheels, LED headlight and a 36.2-inch seat height.
Browse related models in our Dirt Bikes category. For manufacturer information, visit the TrailMaster website. Rider suitability should be confirmed from current manufacturer guidance, rider size, experience and protective-equipment requirements rather than broad performance marketing.

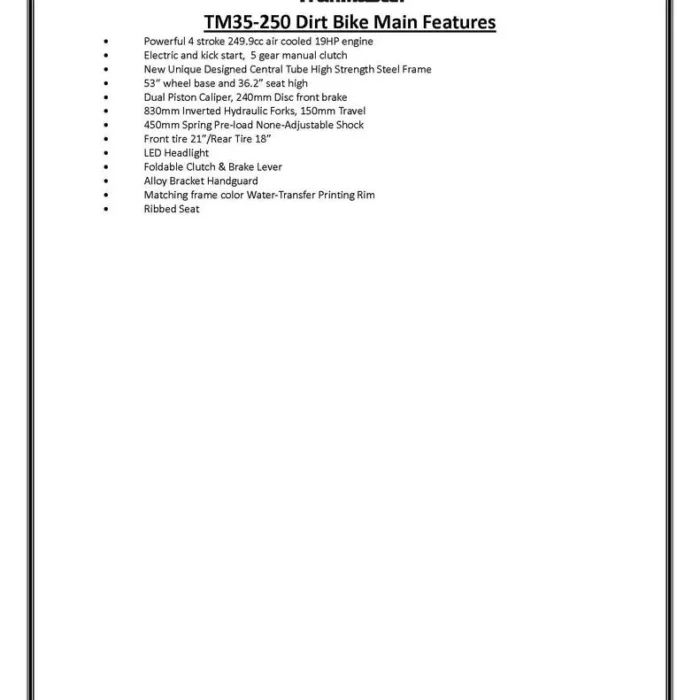

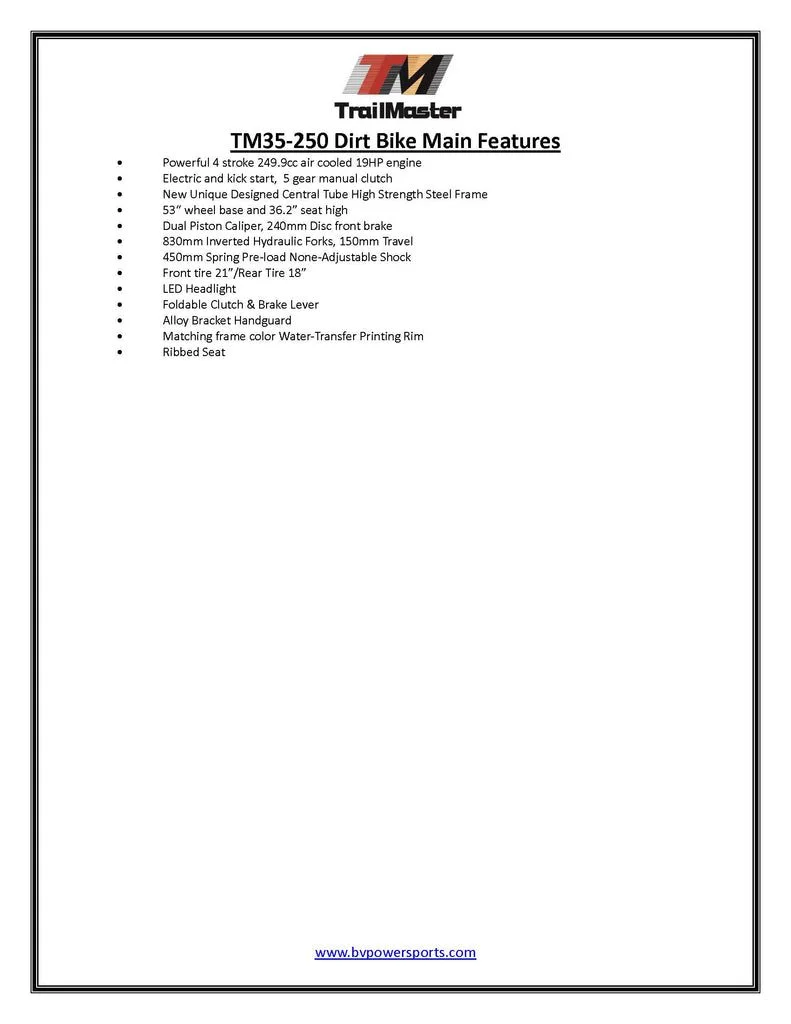

Main Features:
- Powerful 249cc 4-stroke air-cooled engine with 18.7 HP
- Electric and kick start options
- 5-speed manual clutch transmission
- Unique high-strength steel tube frame
- 53” wheelbase and 36.2” seat height
- 21” front tire / 18” rear tire
- Dual piston caliper, 240mm disc front brake
- 830mm inverted hydraulic forks with 150mm travel
- 450mm spring pre-load non-adjustable rear shock
- LED headlight
- Foldable clutch and brake levers
- Alloy bracket handguards
- Matching frame color water-transfer printing rim
- Ribbed seat for added comfort

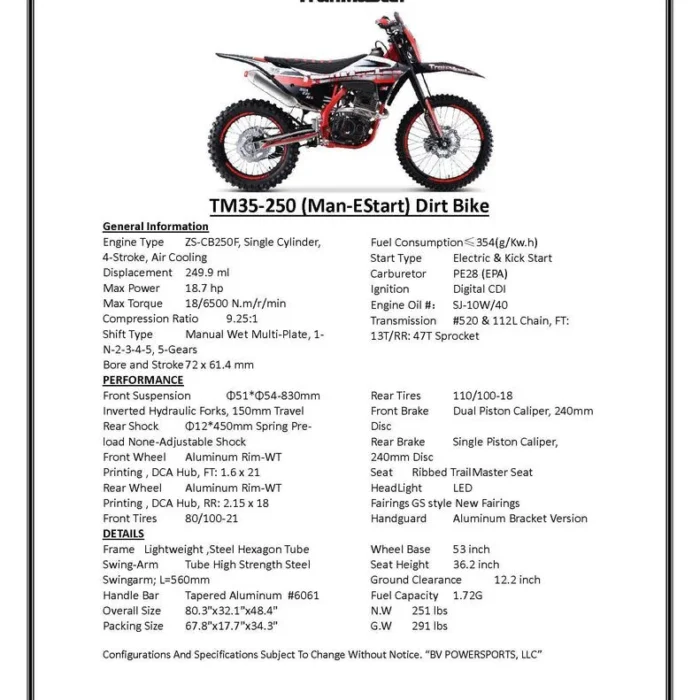

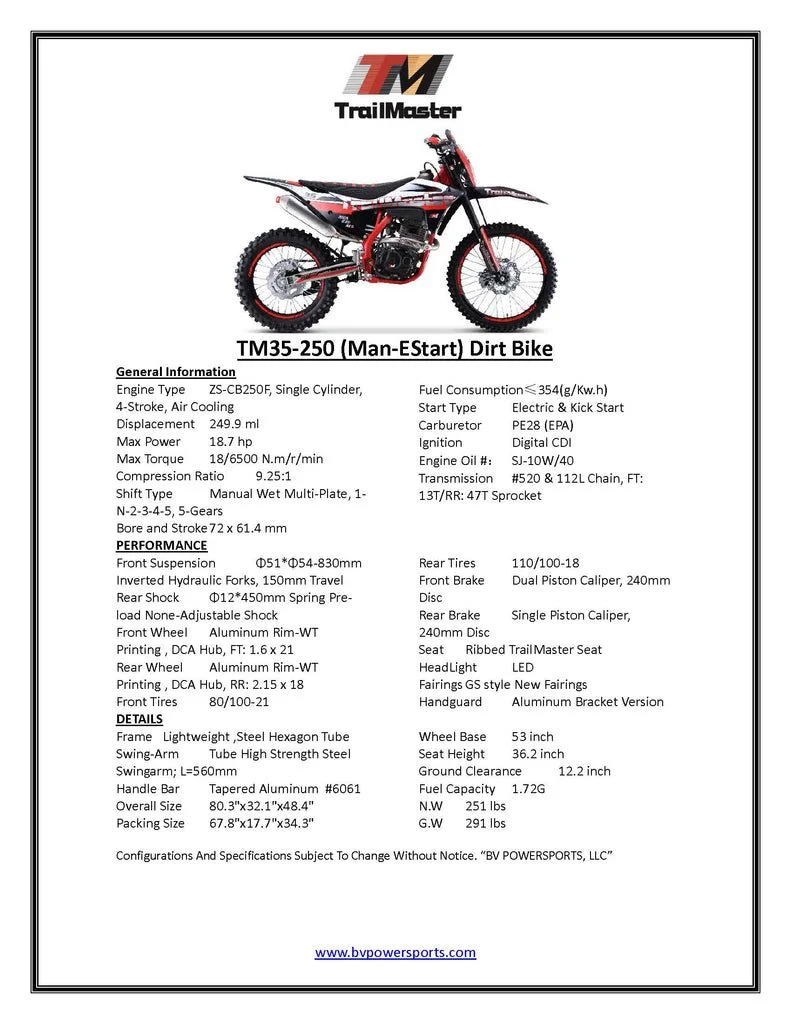

Technical Specifications
Power System
- Engine Type: ZS-CB250F, Single Cylinder, 4-Stroke, Air Cooling
- Displacement: 249.9 ml
- Max Power: 14/8500 kw/r/min
- Max Torque: 18/6500 N.m/r/min
- Compression Ratio: 9.25:1
- Shift Type: Manual Wet Multi-Plate, 1-N-2-3-4-5, 5-Gears
- Bore and Stroke: 72 x 61.4 mm
- Min. Fuel Consumption: ≤354(g/Kw.h)
- Start Type: Electric & Kick Start
- Carburetor: PE28 (EPA)
- Ignition: Digital CDI
- Engine Oil: SJ-10W/40
- Transmission: #520 & 112L Chain, FT: 13T/RR: 47T Sprocket
Performance
- Front Suspension: Φ51*Φ54-830mm Inverted Hydraulic Forks, 150mm Travel
- Rear Shock: Φ12*450mm Spring Pre-load None-Adjustable Shock
- Front Wheel: Aluminum Rim-WT Printing, DCA Hub, FT: 1.6 x 21
- Rear Wheel: Aluminum Rim-WT Printing, DCA Hub, RR: 2.15 x 18
- Front Tires: 80/100-21
- Rear Tires: 110/100-18
- Front Brake: Dual Piston Caliper, 240mm Disc
- Rear Brake: Single Piston Caliper, 240mm Disc
- Seat: Ribbed TrailMaster Seat
- HeadLight: LED
- Fairings: GS style New Fairings
- Handguard: Aluminum Bracket Version
Details
- Frame: Lightweight, Steel Hexagon Tube Frame
- Swing-Arm: Tube High Strength Steel Swingarm; L=560mm
- Handle Bar: Tapered Aluminum #6061
- Overall Size (L × W × H): (Inches) 80.3 x 32.1 x 48.4 / (mm) 2040 x 815 x 1230
- Packing Size: 67.8″ x 17.7″ x 34.3″ (1720 x 450 x 870 mm)
- Wheel Base: 1345 mm / 53 inch
- Seat Height: 920 mm / 36.2 inch
- Ground Clearance: 310 mm / 12.2 inch
- Fuel Capacity: 6.5 L / 1.72 Gal
- Net Weight: 114 KG / 251 lbs
- Gross Weight: 132 KG / 291 lbs
| Condition | New |
|---|---|
| Power Type | Gas |
