Brand: TrailMaster

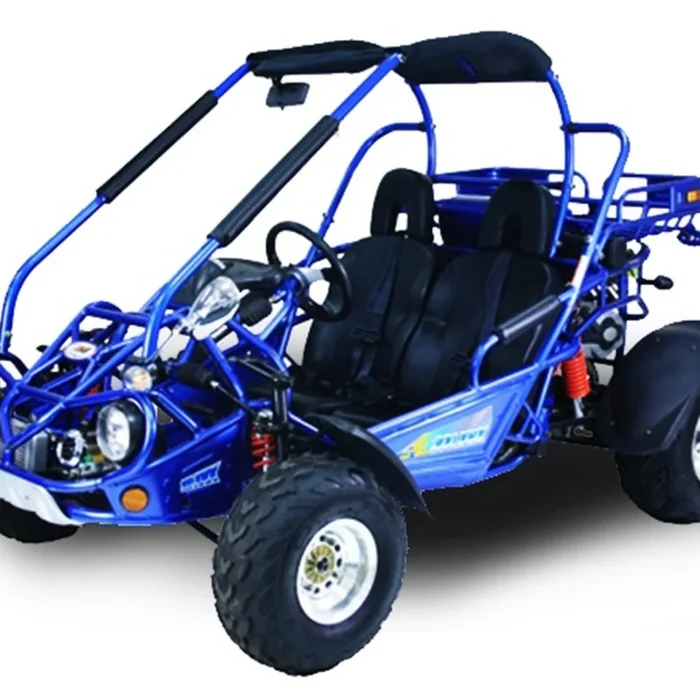

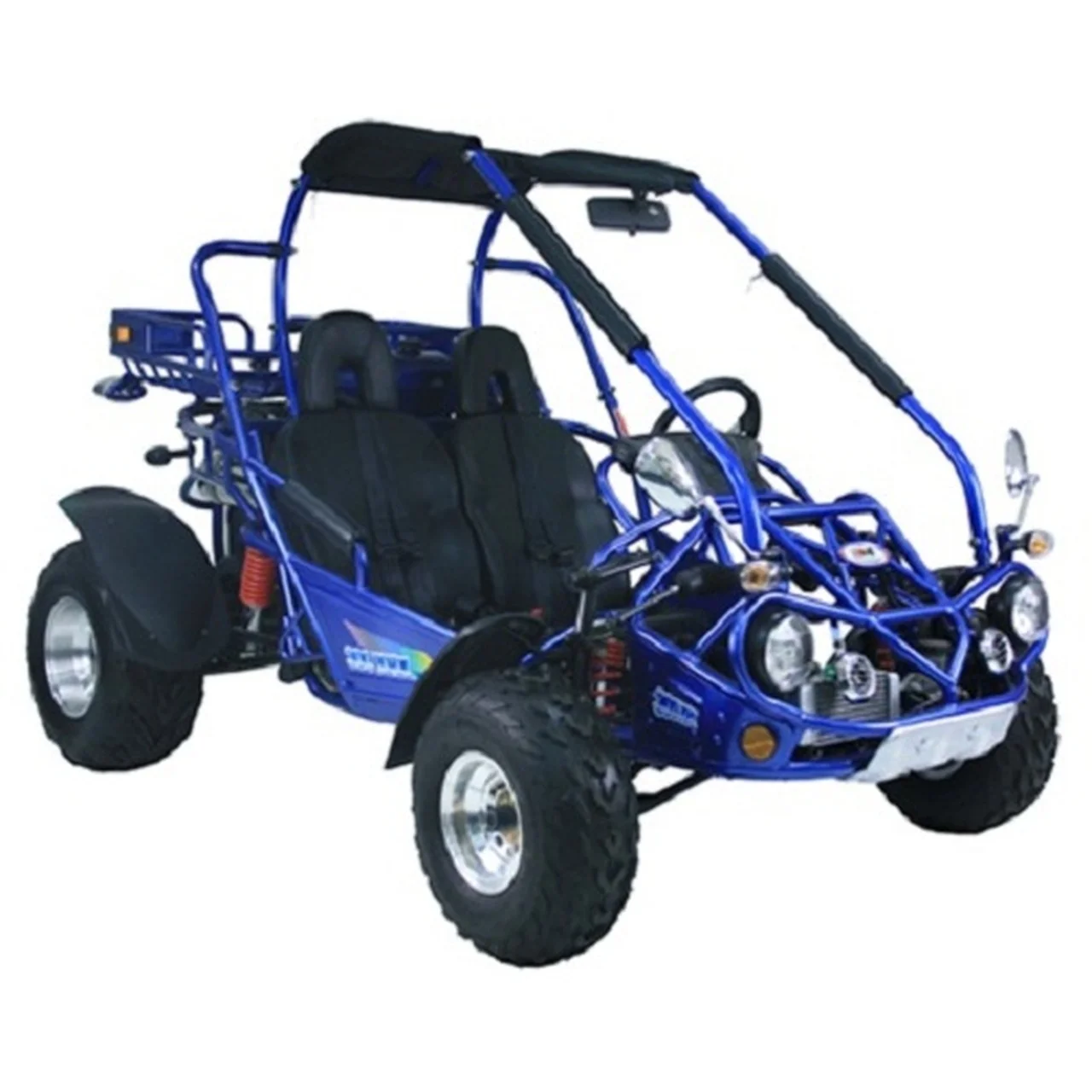

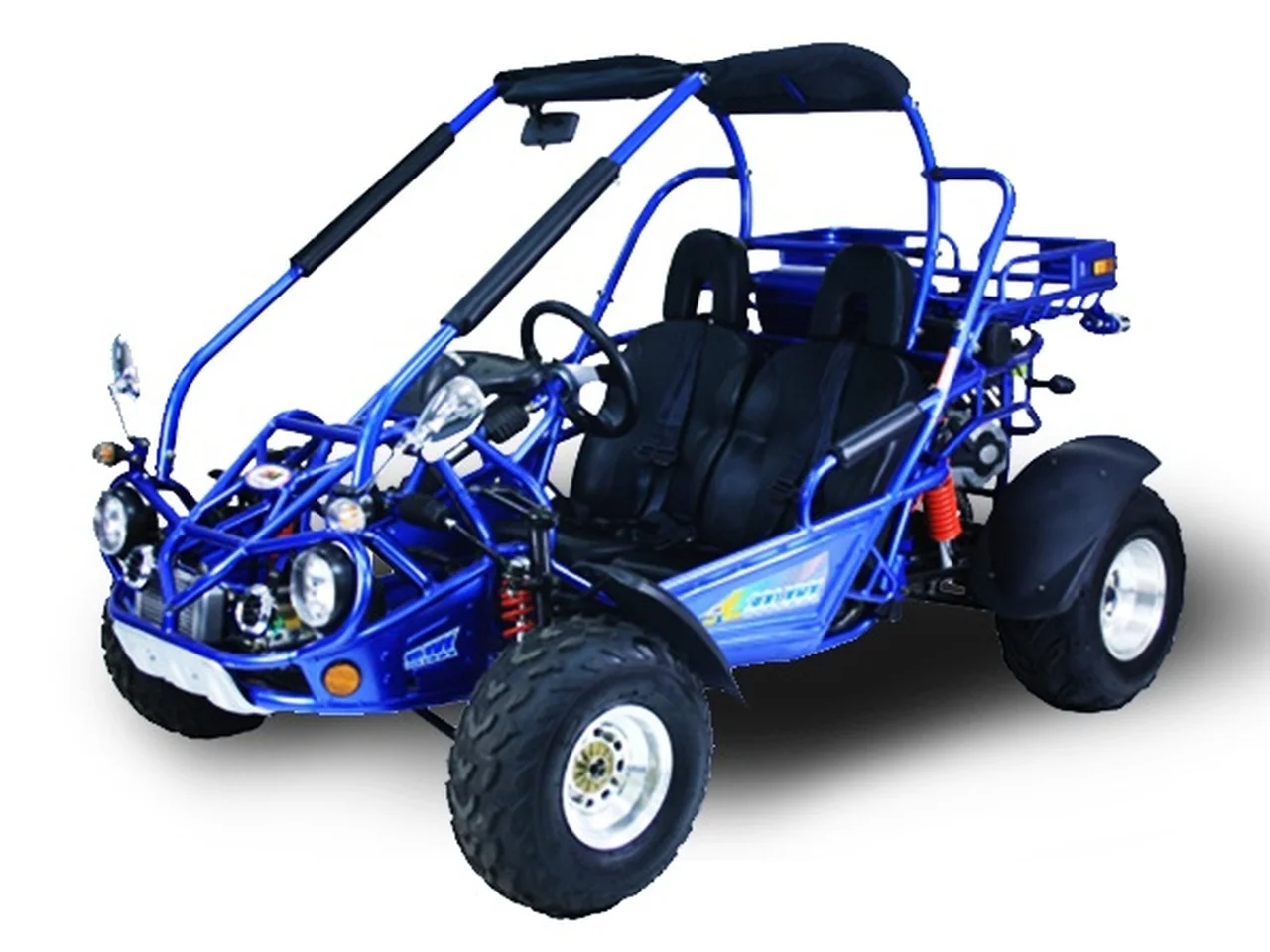

Trailmaster 300 XRX High Quality 300CC Electric Start, 4-Stroke, Single Cylinder, Water Cooled Go Kart
11 products sold in last 9 hours
Selling fast! Over 16 people have in their cart
25 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
TrailMaster 300 XRX Go Kart PPS-2079
The TrailMaster 300 XRX is a two-seat off-road go-kart listed under SKU PPS-2079 with a 300cc liquid-cooled four-stroke single-cylinder engine, electric start, automatic CVT with reverse, hydraulic disc brakes and a listed maximum speed of 50 mph. The source contains a fuel-system inconsistency: the feature section says EFI/fuel injection, while the technical table contains a carburetor entry. Confirm the physical fuel-system components and current TrailMaster documentation before relying on either description.
Browse related models in our Go Karts category. For manufacturer information, visit the TrailMaster website.
Key Features:
- Engine: 17.4 HP 300cc CVT fully automatic with reverse, liquid-cooled
- Fuel System: EFI (Fuel Injection) for optimal efficiency
- Suspension: Newly designed rear independent suspension and shaft-driven 4-wheel independent suspension for a smoother ride
- Wheels: Aluminum wheels with large tires (20×7-8 front, 22×10-10 rear)
- Instrumentation: Digital speedometer/odometer for accurate tracking
- Muffler: Stainless steel performance muffler for durability and enhanced sound
- Safety: Four-point harness seatbelt, front and rear hydraulic disc brakes, parking brake, and LED headlights
- Comfort: Adjustable driver seat (pedal to seat back adjustable from 41” to 46”), adjustable heavy-duty front and rear shock absorbers
- Convenience: Electric start with kill switch, 12-volt power supply, large gas tank, and a high-quality DelTran BATTERY TENDER with Quick Connect
- Additional Features: Bikini sunshade top, rack and pinion steering wheel, four-wheel fenders, turn signals, horn, trailer hitch, and large rear utility rack
Technical Specifications
Engine Information
- EPA Certificated: Yes
- Engine Type: 4-stroke, single cylinder, water cooled
- Displacement: 300cc
- Max HP: 17.4hp / 6500rpm
- Max Torque: 16 lb ft / 5000rpm
- Bore x Stroke: 2.85 x 2.63 inches
- Max Speed: 50 mph
- Climbing Ability: 18 degrees
- Ignition: C.D.I
- Starting System: Electric Start
- Battery: 12V 10Ah
- Carburetor Brand: JF (RX)
- Engine Oil: TK (Vacuum film)
- Gear Oil: MoS2 & W-2WD-4D
General Information
- Clutch: Automatic CTV with reverse
- Driveline / Driving Wheel: Chain + Shaft / Dual wheel drive
- Suspension F / R: Double A-arm / Independent Swing-arm
- Brakes F / R: Both hydraulic brakes, Disc
- Tires F / R: 20×7-8 / 22×10-10
- Fuel Capacity: 2.25 gal
- Weight, G.W. / N.W.: 705 lbs / 617 lbs
- Max Load: 500 lbs
Dimension Information
- Wheelbase: 66.1 inches
- Overall Length x Width x Height: 90.5 x 53.1 x 57.1 inches
- Height to Seat: 13.8 inches
- Min Ground Clearance: 8.5 inches
| Condition | New |
|---|---|
| Power Type | Gas |
